Wireless Networks Mesh Radio Systems
Moneypro’s Wireless Mesh Radio Systems create self-forming, self-healing networks for resilient multi-node communication. They ensure secure, low-latency data links and extended coverage in dynamic operational environments.
Types of China Moneypro Wireless Networks Mesh Radio Systems Wholesale
Showing 1–9 of 15 results
BiAMP RF Bidirectional Radio Frequency Power Amplifier
The BiAMPRF power amplifier offers 150M/230M/400M/600M/800M/900M/1.4G/2.3G/5.0GHz linear/non-linear RF amplifiers in 40/20/10/5 watt configurations, specifically designed for broadband/narrowband digital data link applications. This series of amplifiers uses silicon-based gallium nitride devices, featuring a compact structure, high-speed Tx/Rx switching, and efficient RF output.

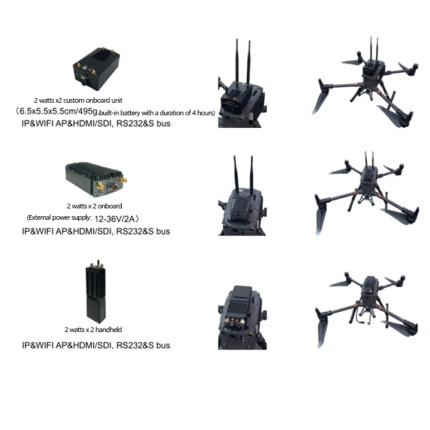

DJ series drones are equipped with video transmission, data transmission, and data link, as well as MESH self-organizing network
Broadband ad hoc network equipment, featuring network ports, video ports, multiple serial ports, enables long-distance flight control data links and high-definition video channels for unmanned aircraft and ground command centers. At the same time, it automatically provides wide-area communication relay for emergency communication networks.
The radio simultaneously offers network ports, HDMI/SDI/AV video interfaces, and 232/485/422/TTL or Sbus asynchronous data interfaces.

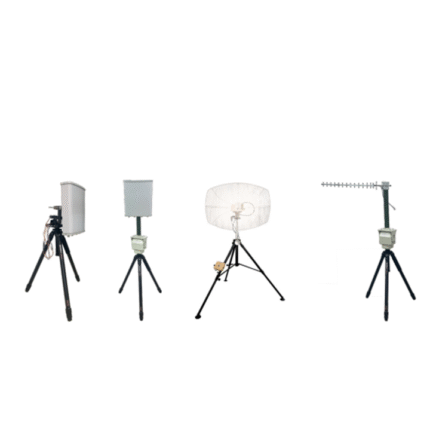

Long-distance wireless communication Directional antenna automatic tracking turntable and servo control system
With the continuous development of drone technology, the requirements for the transmission range of high-bandwidth microwave data links have also increased. By increasing the power of the ground or airborne transmitters and enhancing the sensitivity of the receivers, it is no longer possible to meet the requirements for long-distance communication. Increasing the receiving gain of the ground tracking antennas is an effective solution, and it will not increase the weight and size of the onboard communication equipment.
Directional communication antennas are widely used in the tracking and control communication of medium and long-range drones because they have high gain within the beam angle range. The antenna uses the method of directional radiation and receiving signals to focus energy on the useful range, reducing energy dissipation and increasing the transmission gain. However, due to the characteristic of directional transmission and reception signals, this type of antenna must be equipped with a guidance and tracking system to be used in the dynamic tracking communication application of drones. Up.
By using GPS guidance method and brushless servo motor control, the one-dimensional azimuth servo control for directional antennas such as helical directional antenna (beam angle less than 20°, gain 15dB), octal directional antenna, and grid directional antenna can be achieved. This is more stable, more digitalized, and more cost-effective than using a single-channel single-pulse tracking system.

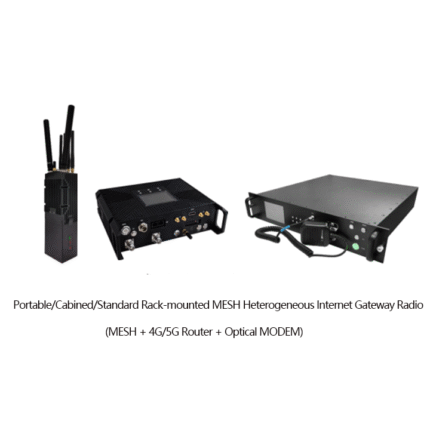

MESH Heterogeneous Internet Gateway Station
The MESH Heterogeneous Internet Gateway Station integrates broadband MESH self-organizing network, 3G/4G/5G routers, 4GLTE, and SwitchWIFIAP. It enables the interconnection between broadband self-organizing network and 4G public network, LTE private network, as well as the heterogeneous networking in the sky and on the ground.

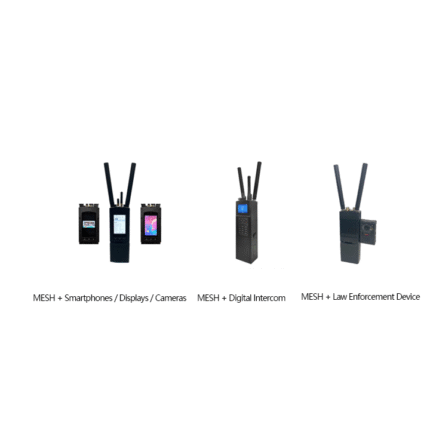

MESH multi-mode mobile phone
With MESH self-organizing network as the main transmission channel, it supports 3/4G public networks, Wi-Fi, Bluetooth and other networks, and also has built-in cameras/field enforcement devices.

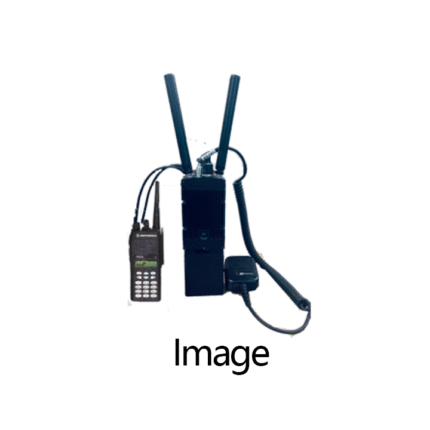

A professional self-organizing network intelligent terminal for DMR/PDT two-way radios, with main application modes such as high-definition video transmission and group voice communication, and also taking into account remote monitoring (satellite positioning, audio and video collection and upload) and command information interaction functions. In addition, the terminal has daily essential functions such as making phone calls and sending text messages, and supports installation of third-party applications.

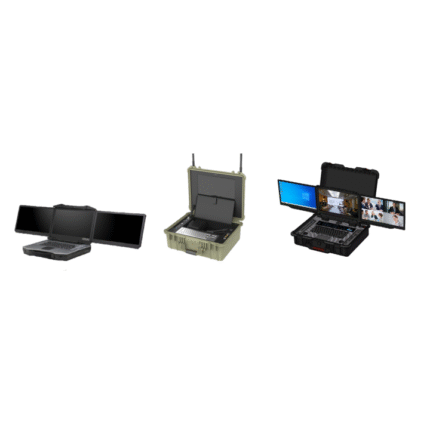

MESH Portable Command Box / Command Dispatch Console
The MESH portable command box/command dispatch console integrates MIMOmesh/Smartmesh long-range broadband self-organizing network radios. It is a system developed through advanced technologies such as mobile communication, the Internet, the Internet of Things, and artificial intelligence, which combines command dispatch, multi-network integration, intelligent wearable device access, wide and narrowband terminal access integration, platform sharing and utilization, intelligent management, etc. It has the advantages of flexible networking, rich interfaces, high efficiency and intelligence, mobility and portability, and simple operation. It can be widely applied in industries such as emergency communications, unmanned systems, emergency rescue, security control, armed police counter-terrorism, fire rescue, and power repair. In various emergency situations, it can quickly establish a temporary command center and promptly connect to the rear command platform, truly achieving local linkage and center interaction in multi-level command dispatch management.
