Moneypro’s Turbojet Engine Systems deliver compact, high-thrust propulsion from 100N to 800N. Featuring all-weather reliability and in-flight restart, they enable high-speed flight for target drones and loitering munitions.

Types of China Moneypro Turbojet Engine Systems Wholesale

Download Moneypro Turbine Engine Catalogues

Home » UAV Accessories » Turbine Engine Systems

Showing 1–9 of 22 results

Show sidebar

High-Speed Impeller Machinery Products

The Moneypro Series blower integrates advanced foil air bearings, a high-speed permanent magnet motor, and an efficient impeller. Featuring a compact footprint, adaptive monitoring, low noise, and high energy efficiency, it offers maintenance-free operation with IoT connectivity. Ideal for diverse industrial applications, it delivers reliable and intelligent air supply solutions.

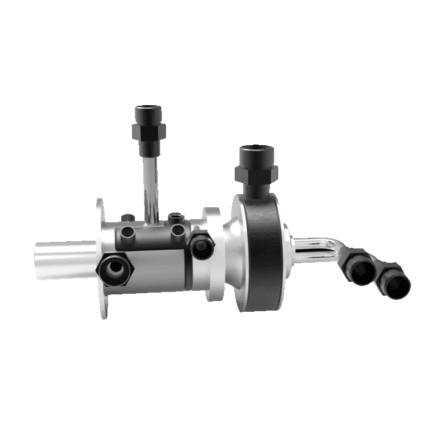

Industrial Burner Series

Moneypro's industrial burner series utilizes advanced detonation combustion technology to achieve ultra-low NOx emissions (as low as <5 ppm). With models like the EG201 for industrial heating and the HOH105 for hydrogen-rich applications, these burners offer high combustion efficiency and significant fuel flexibility. Ranging from 100 kW to 22.5 MW, they provide clean, high-performance combustion solutions for power generation, metallurgy, and industrial heating processes.

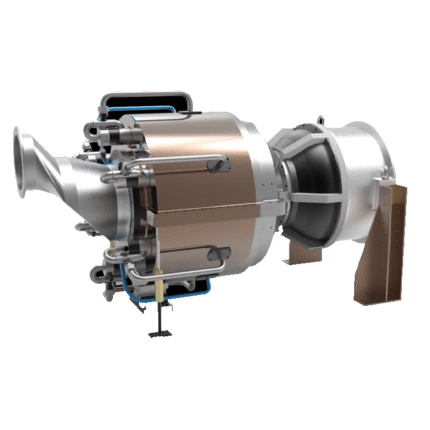

Micro Gas Turbine Series

Moneypro's micro gas turbine series delivers robust 230kW power generation with exceptional 81% cogeneration efficiency. Capable of utilizing diverse fuels including hydrogen, natural gas, and even waste liquids, it achieves ultra-low NOx emissions (<25ppm). This compact, highly efficient solution is ideal for distributed energy systems, providing reliable power and thermal energy with outstanding environmental performance.

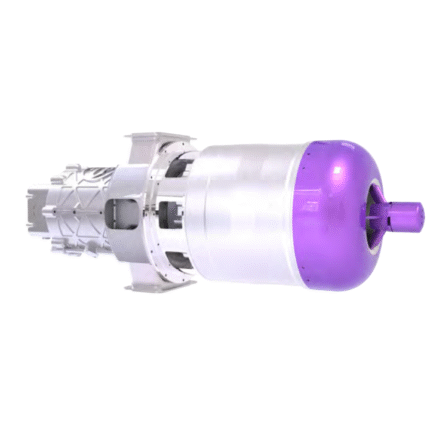

MTN-WD200 Turboshaft Generator

The Moneypro MTN-WD200 turboshaft generator delivers 200kW of electrical power with exceptional efficiency (≥15%), designed for unmanned helicopter platforms and eVTOL range extension. This highly integrated, compact unit features a wide starting envelope (0-5000m) and superior power-to-weight ratio. Weighing under 60kg, it provides reliable, high-efficiency power generation for advanced unmanned systems requiring extended endurance and operational flexibility.

MTN-WP125 Turbojet Engine

The Moneypro MTN-WP125 turbojet engine delivers a robust 125 daN thrust, providing superior power for high-performance target drones and unmanned aerial systems. Weighing only 15 kg with a compact design (550 mm length), it achieves an outstanding thrust-to-weight ratio and enhanced fuel efficiency (1.4 kg/daN·h). This engine ensures reliable, high-speed propulsion for advanced missions requiring exceptional power and endurance.

MTN-WP160 Turbojet Engine

The Moneypro MTN-WP160 turbojet engine delivers powerful 158 daN thrust for high-performance target drones and unmanned systems. Weighing 23 kg with compact dimensions (620 mm length), it achieves an excellent thrust-to-weight ratio and outstanding fuel efficiency (1.35 kg/daN·h). This engine provides reliable propulsion for advanced missions requiring superior power and extended endurance in a robust yet lightweight package.

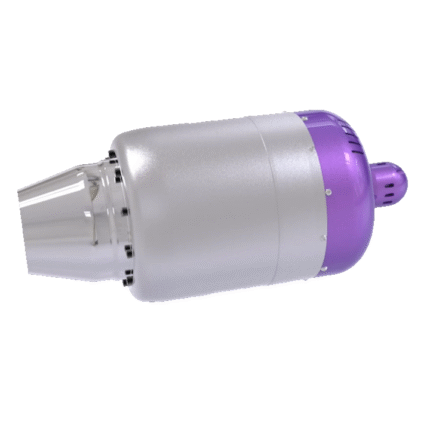

MTN-WP40 Turbojet Engine

The Moneypro MTN-WP40 is a compact, high-performance turbojet engine delivering 42 daN of thrust. Weighing only 3.8 kg with a minimal footprint (342mm length), it offers an exceptional thrust-to-weight ratio for high-speed target drones and small unmanned applications. Its efficient design ensures reliable propulsion, making it an ideal power solution for missions requiring maximum performance in a minimal size and weight envelope.

MTN-WP60 Turbojet Engine

The Moneypro MTN-WP60 turbojet engine delivers 59 daN thrust, offering an optimal balance of power and efficiency for high-speed UAV applications. Weighing only 5.8 kg, it features improved fuel consumption (1.45 kg/daN·h) within a compact design. This engine provides reliable propulsion for target drones and other unmanned systems requiring enhanced performance in a lightweight package.

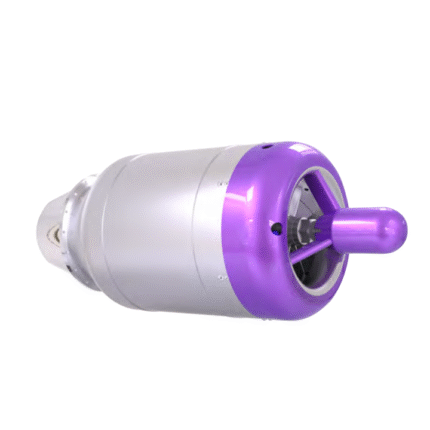

MTN-WP80/100 Turbojet Engine

The Moneypro MTN-WP80/100 turbojet engine delivers powerful 95 daN thrust for high-speed UAV applications. With a compact design (510mm length) and weighing 11.5 kg, it maintains an excellent thrust-to-weight ratio. This engine provides reliable propulsion for target drones and unmanned systems requiring enhanced performance, combining substantial power output with efficient packaging for advanced aerial missions.

Introduction to UAV Turbojet Engines

UAV turbojet engines are high-performance propulsion systems designed specifically for unmanned aerial vehicles (UAVs). These engines offer powerful thrust and efficient energy conversion, making them superior to traditional UAV power systems. With their durability, compact size, and strong thrust capabilities, turbojet engines are widely used in military, aerial photography, and high-end UAV projects. Learn about the working principles, applications, and future trends of UAV turbojet engines to enhance the performance of your drones.

Different Models of Turbojet Engines

Turbojet engines come in a variety of models, each suited to specific application needs. Whether you need a mini turbojet engine, an RC turbojet engine, or a large-scale turbojet engine, each model is designed to balance performance and weight. We offer a range of engine models to help customers select the best option based on their unique requirements, improving flight efficiency and performance.

How Turbojet Engines Work?

The core principle behind turbojet engines is the combustion of fuel and air in the combustion chamber, producing high-pressure, high-temperature gases. These gases drive the turbine, which powers the engine and produces thrust when expelled. Turbojet engines' efficient working mechanism makes them ideal for various aircraft, particularly in the UAV sector, where they provide significant power and longer flight times. Understand the working principles of turbojet engines to better grasp their operational mechanics and advantages.
