Home » Unmanned System Products » 1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
China Moneypro 150km Data Link Nlos IP Mesh Radio Long Distance Voice Video Communication Fast Frequency Hopping for Drone Transmitter and Receiver
Back to products
China Moneypro M20PRO Broadband MIMO IP Mesh Radio Communication Module for Drone Internet Transmitter & Receiver Software

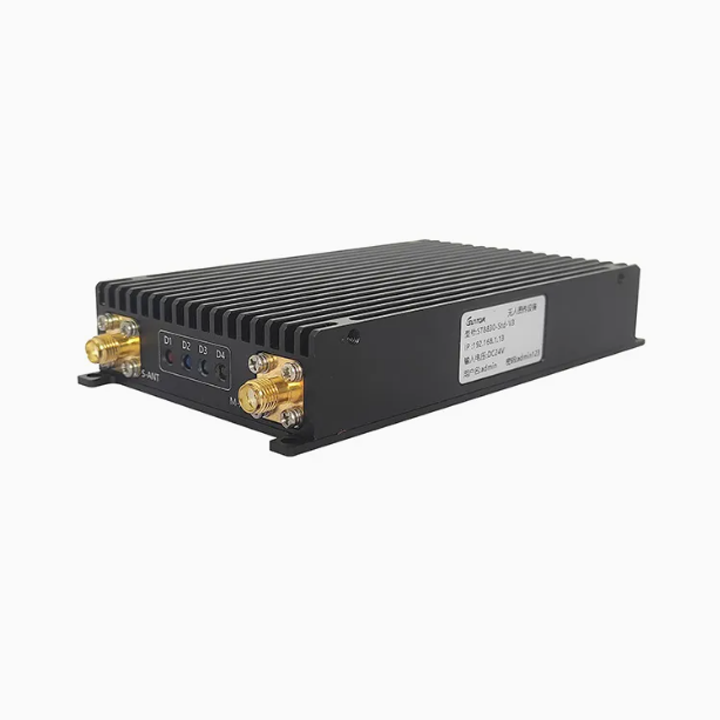

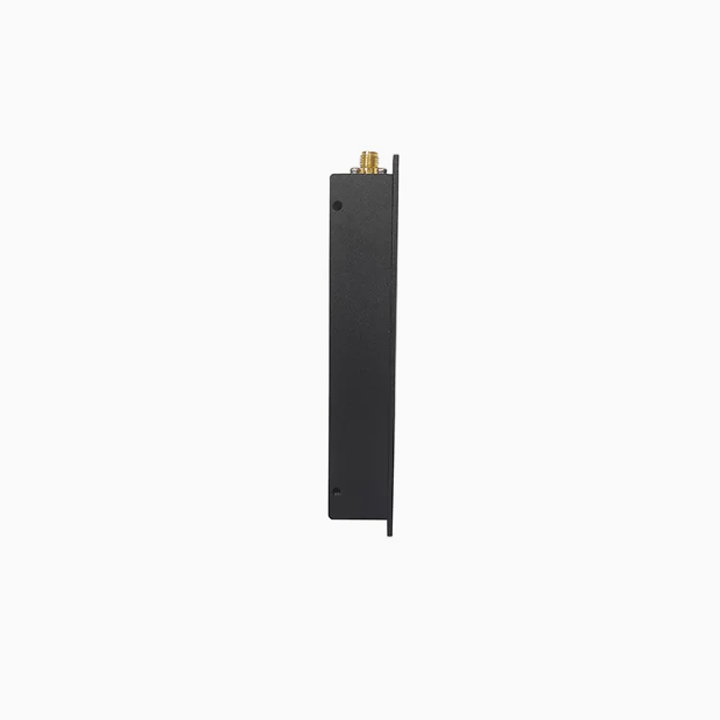

1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver

The 1.4GHz 10W Mesh Network Radio is a high-performance wireless data transceiver designed for reliable long-range connectivity, supporting both point-to-point (P2P) and point-to-multipoint (P2MP) communication modes. Boasting a 10W high-power output and operating on the 1.4GHz frequency band—ideal for minimizing interference in industrial, rural, or remote environments—it delivers stable data transmission over distances of up to 50km, even in challenging terrain. Its mesh network architecture ensures self-healing and redundant connections, enabling seamless data sharing across multiple nodes without relying on a central hub. Suitable for applications such as industrial IoT (IIoT), smart agriculture, rural broadband, and critical infrastructure monitoring, this transceiver combines robust performance, flexible deployment, and low-latency data transfer to meet the demands of mission-critical wireless communication systems.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M50
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 126 × 69 × 22mm (Air)
Interfaces Eth × 1, Ttl × 1, Pwr × 1
Security Protection AES128
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 33dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 180g (Air)
Frequency Range 1.4G / 2.4GHz
Transmission Distance 50km Air-to-Ground
Specification 180Gram
Origin China
Production Capacity 5000PCS/Month

Product Description

M50 Drone Video Transmission Radio

180 Grams Weight

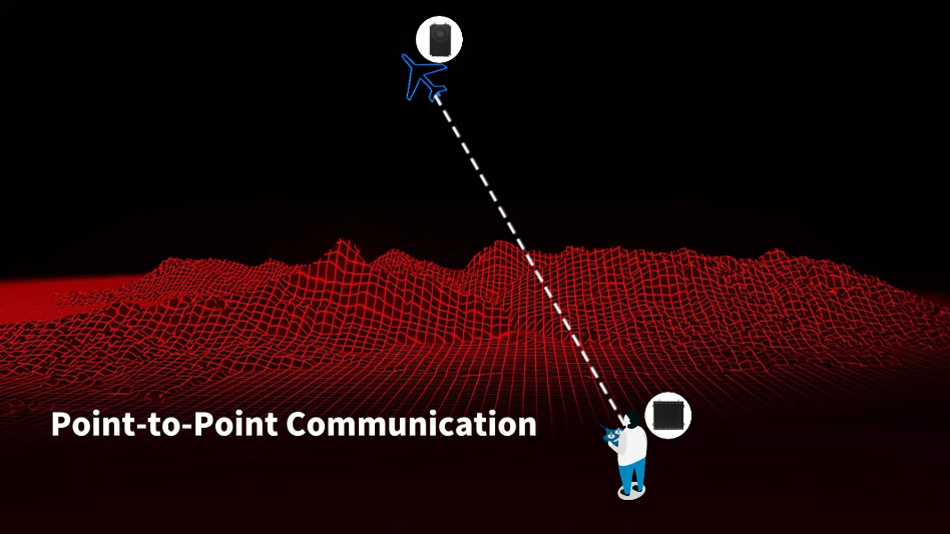

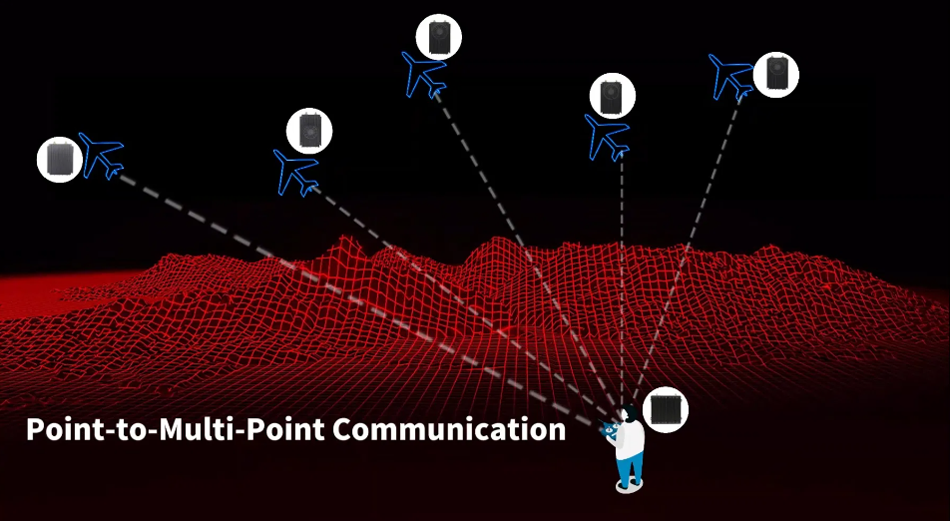

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection

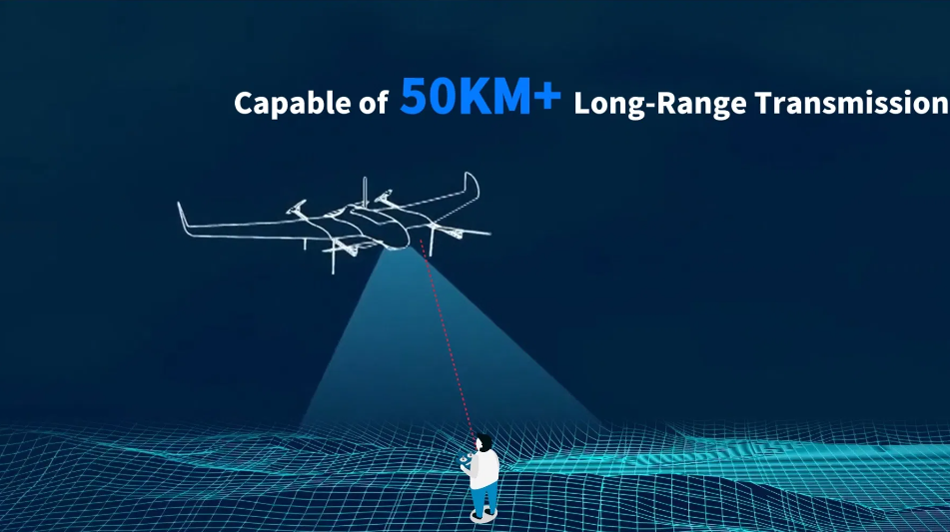

50KM Air-to-Ground Transmission Distance

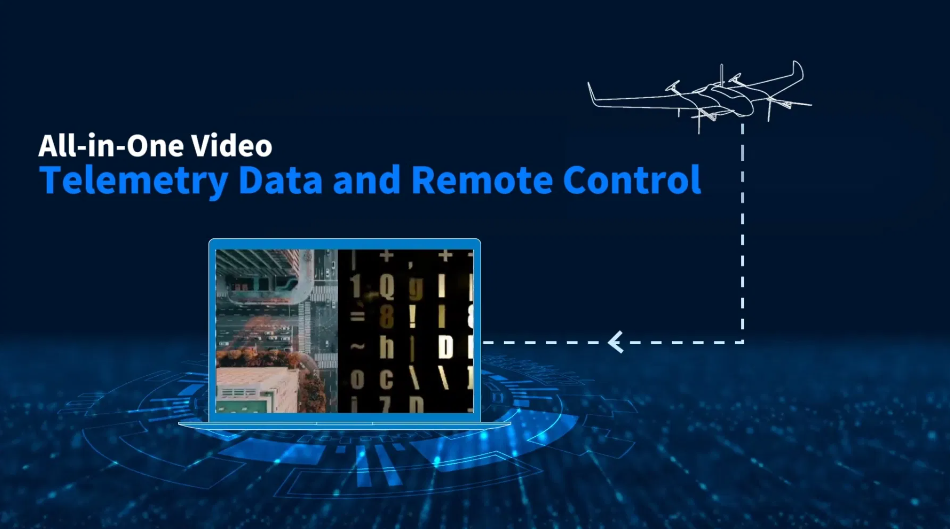

1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver

Specification

Wireless
TDD-OFDM / MIMO / 1T2R
Technology
QPSK / 16QAM / 64QAM
Modulation
24Mbps @ 10MHz (Peak)
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
33dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL
Video Port
1 ETH
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 12W @ DC12V Power
Consumption (Air)
Interfaces
RF Antenna
SMA × 2
Serial Port Interface
JST × 1
S.BUS Interface
N/A
Video Port Interface
JST(ETH) × 1
Power Input
JST × 1
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2
ETH Cable × 1; Serial Cable × 1; JST Power Cable × 1

Packing & Delivery

1.4GHz 10W 50km Point to Point Multipoint Mesh Network Radio Wireless Data Transceiver
