Home » Unmanned System Products » 150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
China Moneypro 20MHz 50-100km Uav Wireless Data Link of OEM Module Video Transmitter Radio
Back to products
Wireless Mesh Radio System Manufacturer Point to Point Real-Time Digital Image Wireless Transmission

150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio

The 150-300km UAV Wireless Video Data Link Tactical Radio IP Mesh Transmitter is a mission-critical, long-range communication solution engineered for tactical drones and robotic systems. Leveraging advanced MIMO technology and IP Mesh networking, it delivers ultra-long-distance transmission (150-300km) with seamless, self-healing connectivity—enabling real-time transfer of high-definition video, encrypted tactical data, and low-latency control signals. Designed for demanding tactical scenarios (military operations, border surveillance, long-range reconnaissance, and emergency response), it combines rugged durability with exceptional anti-jamming and anti-interference capabilities, ensuring reliable performance in harsh, contested environments. Its versatile compatibility with both drones and ground robots, paired with a compact, tactical-grade design, makes it ideal for field-deployable systems requiring secure, extended-range communication. Whether for critical mission command, remote surveillance, or long-distance data relay, this radio stands as a robust, battle-tested choice for tactical operators and defense/security integrators.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M150Pro
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Consumption ≤36W
Dimension 22*73*57mm(Air) / 278*278*95mm(Ground)
Interfaces Eth × 1, Ttl × 1, Pwr × 1
Security Protection AES128
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000
Work Mode FDD
Information Content Text, Picture, Video, Audio
RF Power 10W
Data Rate 20Mbps
Weight 650g(Air)
Frequency Range 1.4G / 2.4GHz
Transmission Distance 150km Air-to-Ground
Specification 680Grams
Origin China
Production Capacity 5000PCS/Month

Packaging & Delivery

Package Size 12.20cm * 7.60cm * 5.70cm
Package Gross Weight 0.680kg

Product Description

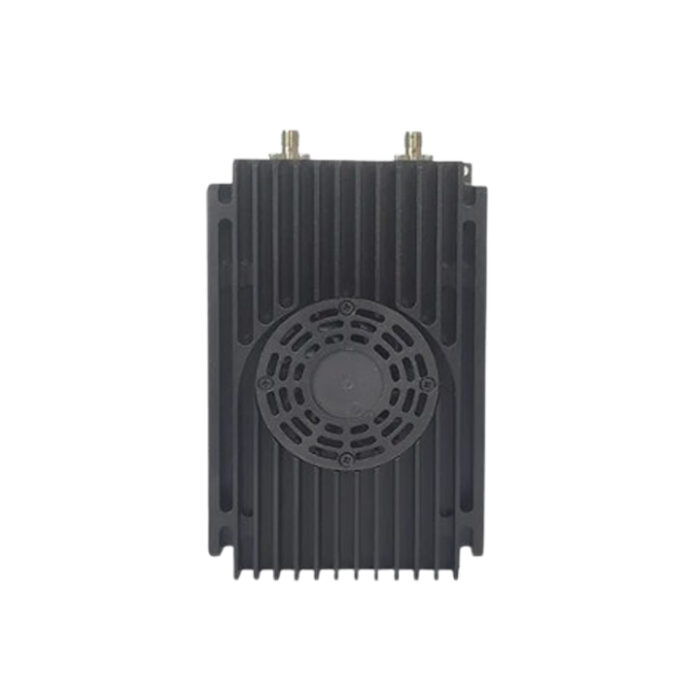

M150Pro Drone Video Transmission Radio

680 Grams Weight

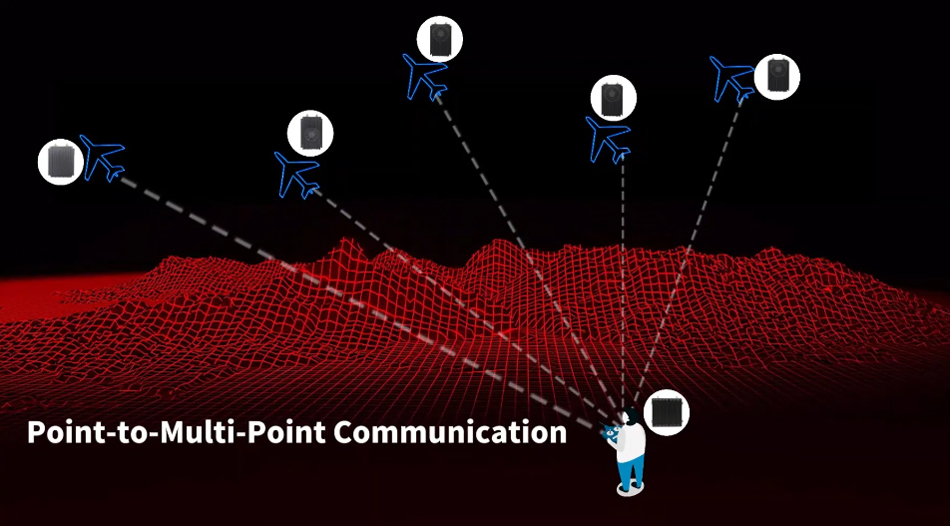

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
150KM Air-to-Ground Transmission Distance
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio 150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio 150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio

Specification

Wireless
Technology
TDD-OFDM / MIMO / 1T2R
Modulation
QPSK / 16QAM / 64QAM
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
40dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL + 1 RS232 + 1 S.BUS
Video Port
2 ETH or
1 ETH + 1 SDI/HDMI(Customized)
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 30W @ DC12V Power Consumption (Air)
Interface
RF Antenna
SMA × 2
Serial Port Interface
JST × 2
S.BUS Interface
JST × 1
Video Port Interface
JST(ETH) × 2 or JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input
XT30
ACCESSORIES
OMNI Antenna for Air Unit × 2
Serial Cable × 2
OMNI Antenna for Ground Unit × 1
S.BUS Cable × 1
Directional Antenna for Ground Unit × 1
XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
VTA-Manual (Manual Tracking Antenna System) × 1

Packing & Delivery

150-300km Uav Wireless Video Data Link Tactical Radio IP Mesh Transmitter MIMO Robot/Drone Radio
