Home » Unmanned System Products » 20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
MIMO MES128 Datalink for HD Video and High-Bandwidth Data Drone Video Radio
Back to products
China Moneypro Factory Mesh Radio & Uav Data Link Industrial Wireless Drone Networks Transmitter

20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio

The 20-30km 1.4GHz Wireless Digital Data Link Airborne Radio is a high-performance communication solution tailored for professional drone operations requiring long-range, reliable connectivity. Operating on the 1.4GHz frequency band—renowned for excellent signal penetration and reduced interference—it delivers stable digital data transmission over distances of 20 to 30km, enabling seamless transfer of critical information such as telemetry, control signals, and sensor data. Engineered for airborne use, this data link combines robust anti-interference capabilities with low latency, ensuring consistent performance even in complex outdoor environments, from industrial inspections and agricultural surveys to public safety missions. Its lightweight, aerodynamic design integrates effortlessly with various drone platforms, while advanced digital modulation technology optimizes throughput and signal integrity, making it an ideal choice for professionals seeking long-range, mission-critical communication for their drone systems.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20Pro
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 94.5 × 77 × 32mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Specification 330Grams Weight
Origin China
Production Capacity 5000PCS/Month
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 25dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 330g (Air)
Transmission Distance 20km Air-to-Ground
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 9.45cm * 7.70cm * 3.20cm
Package Gross Weight 0.330kg

Product Description

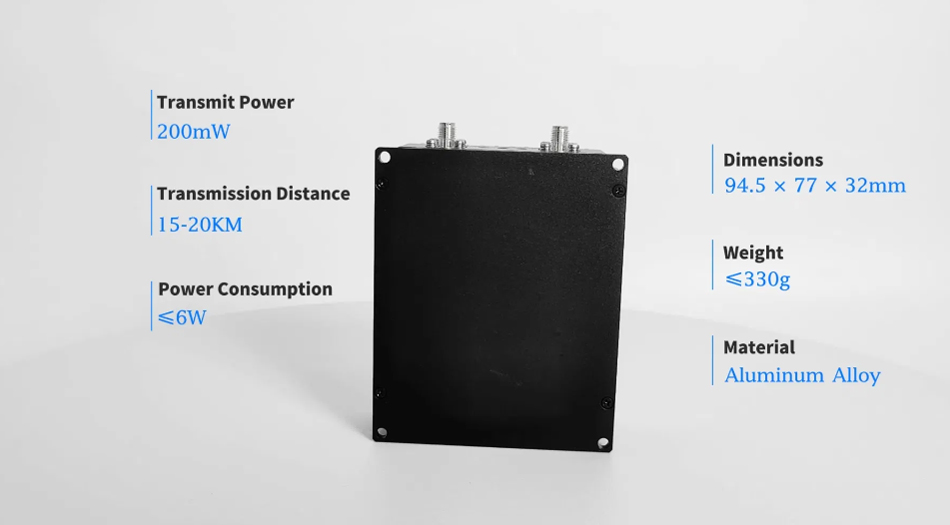

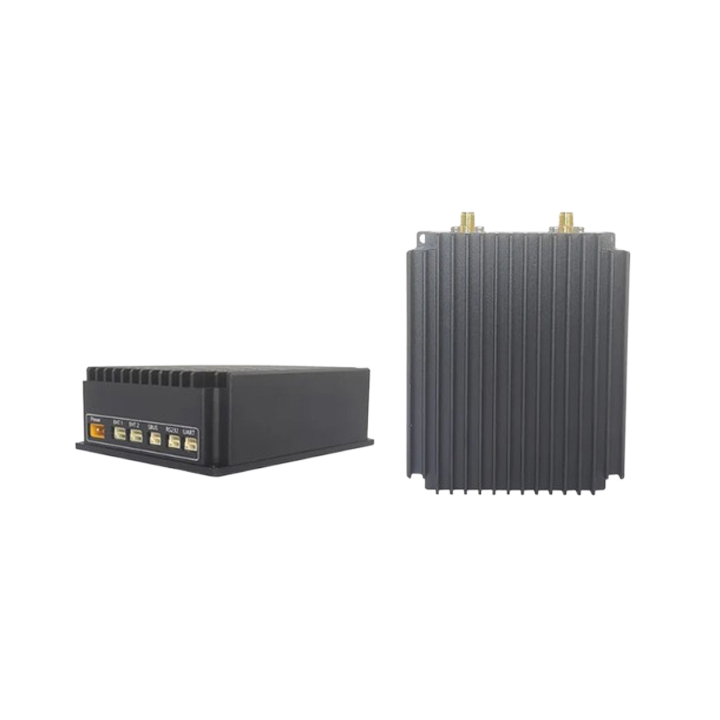

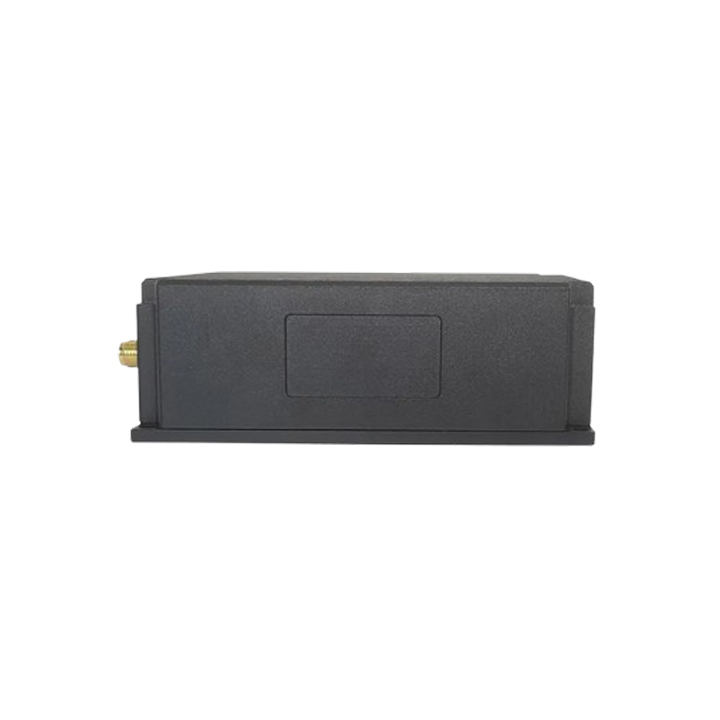

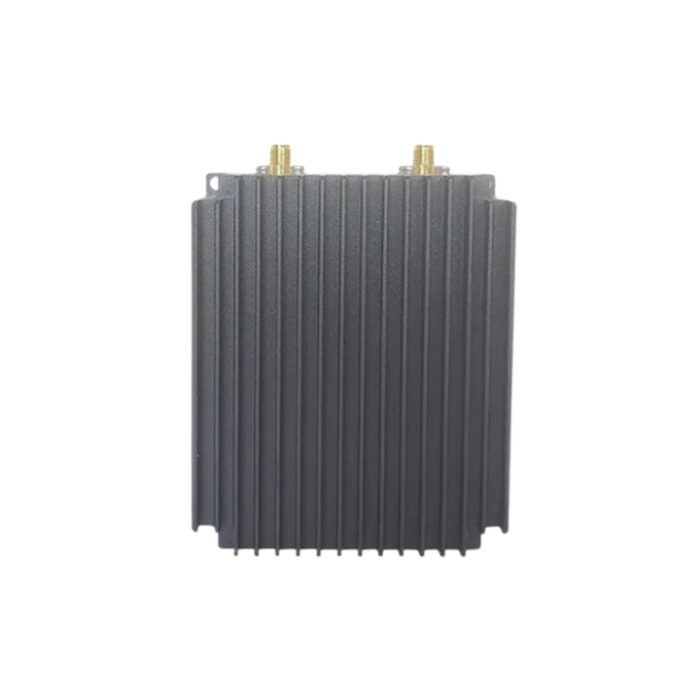

M20Pro Drone Video Transmission Radio

330 Grams Weight

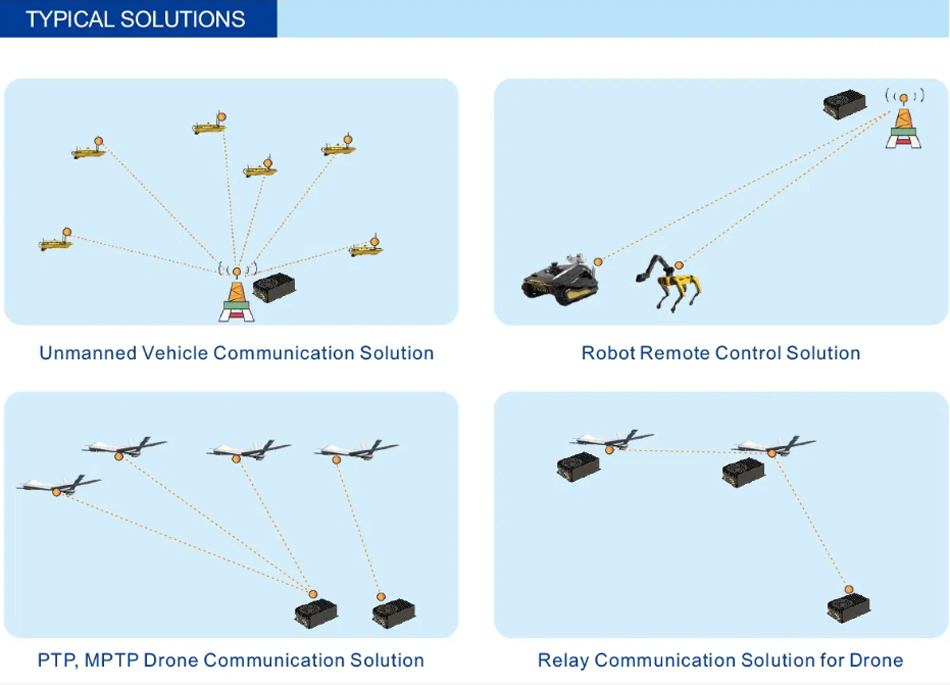

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio 20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio

Specification

Wireless
TDD-OFDM / MIMO / 1T2R
Technology
QPSK / 16QAM / 64QAM
Modulation
24Mbps @ 10MHz (Peak)
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
25dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL + 1 RS232 + 1 S.BUS
Video Port
2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air)

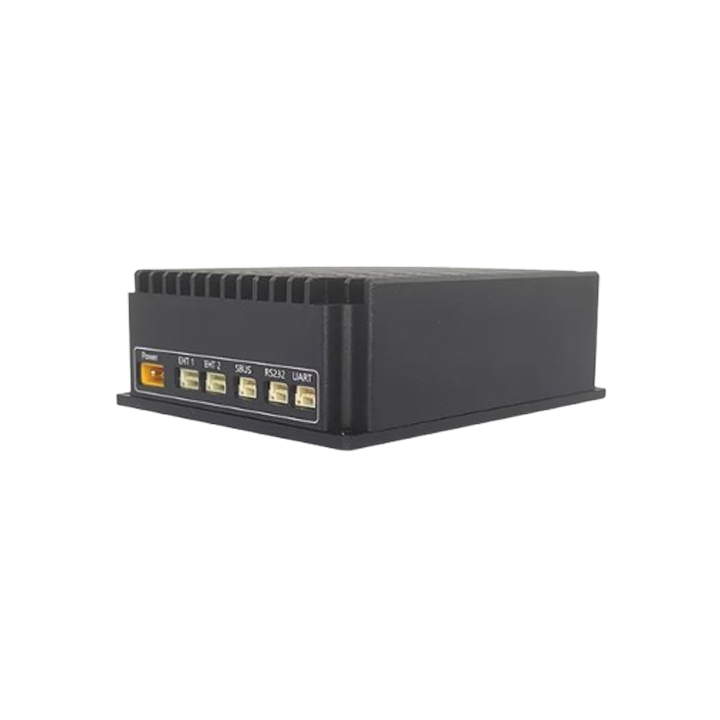

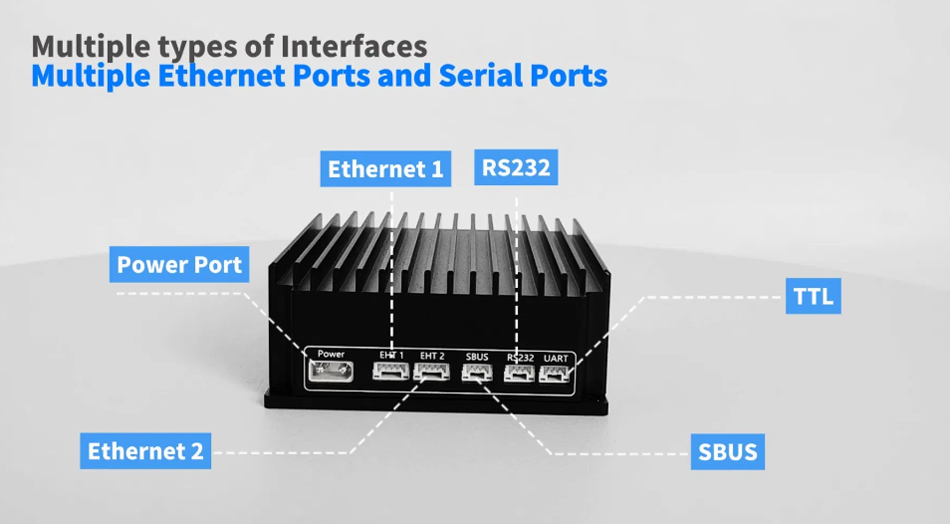

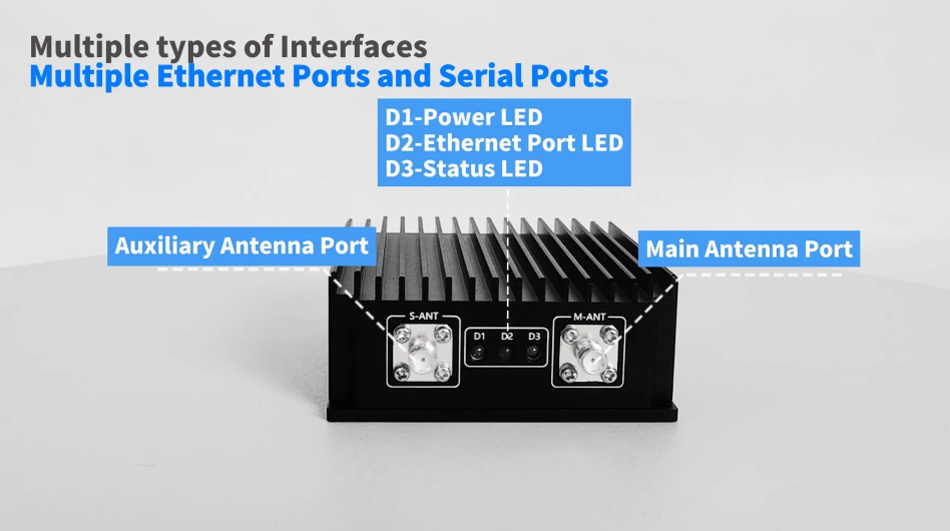

Interfaces

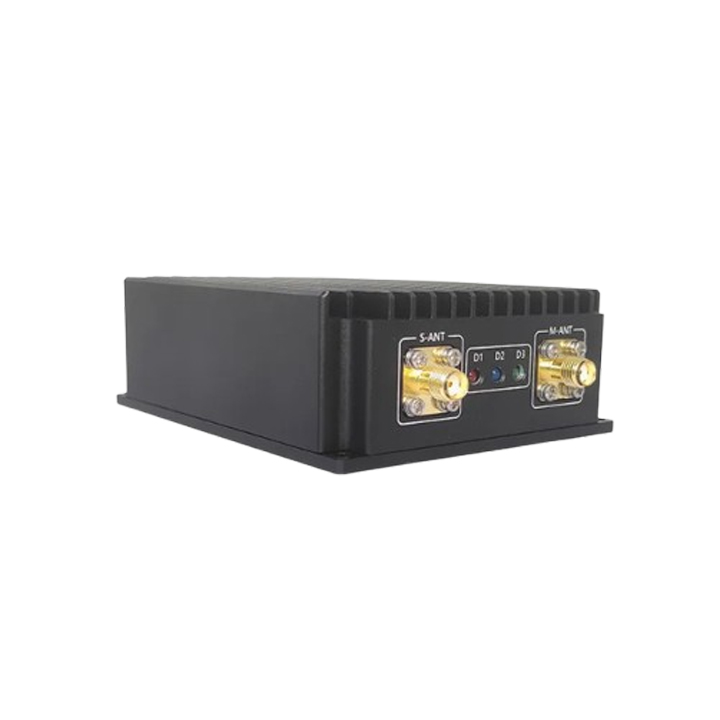

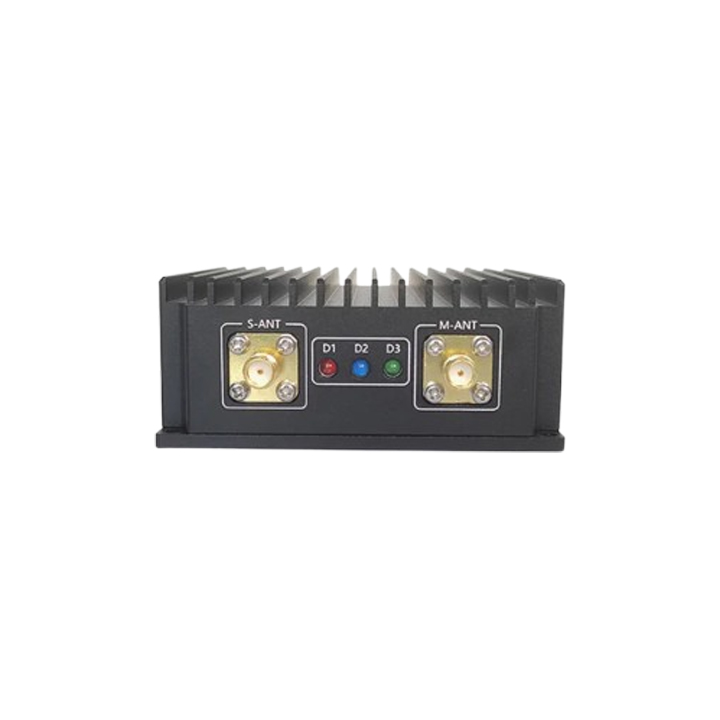

RF Antenna
SMA × 2
Serial Port Interface
JST × 2
S.BUS Interface
JST × 1
Video Port Interface
JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input
XT30
Physical
Dimension
≤ 94.5 × 77 × 32mm (Air)
Weight
≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2
Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

Packing & Delivery

20-30km 1.4GHz Wireless Digital Data Link Drone of Airborne Radio
