Home » Unmanned System Products » 350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio
China Moneypro 300-3000MHz Frequencies Customized Handheld & Manpack IP Mesh Radio
Back to products
5-10km IP Mesh Radio – Handheld & Manpack with Removable Battery

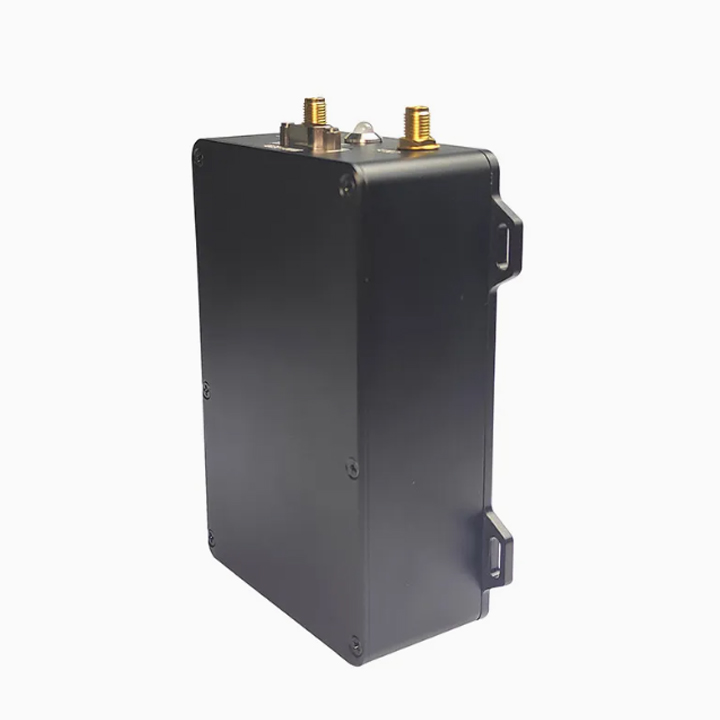

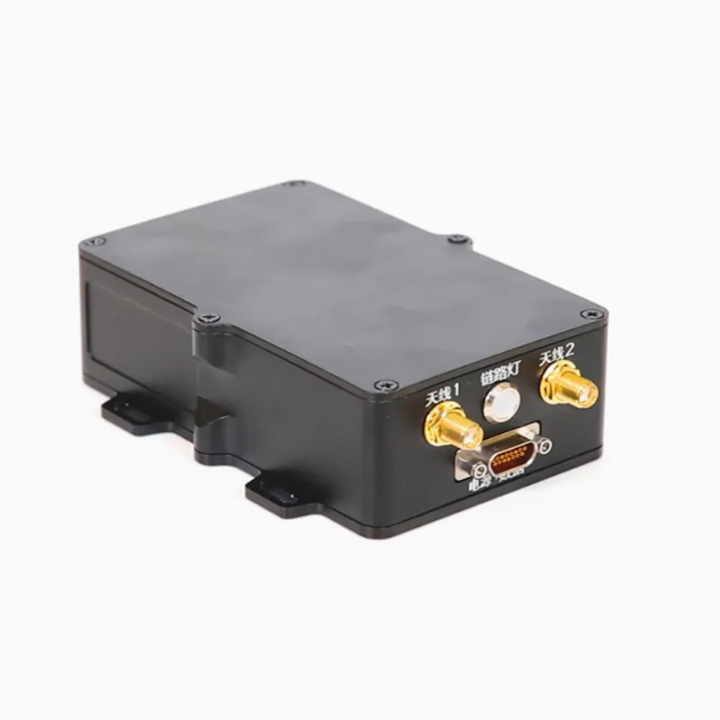

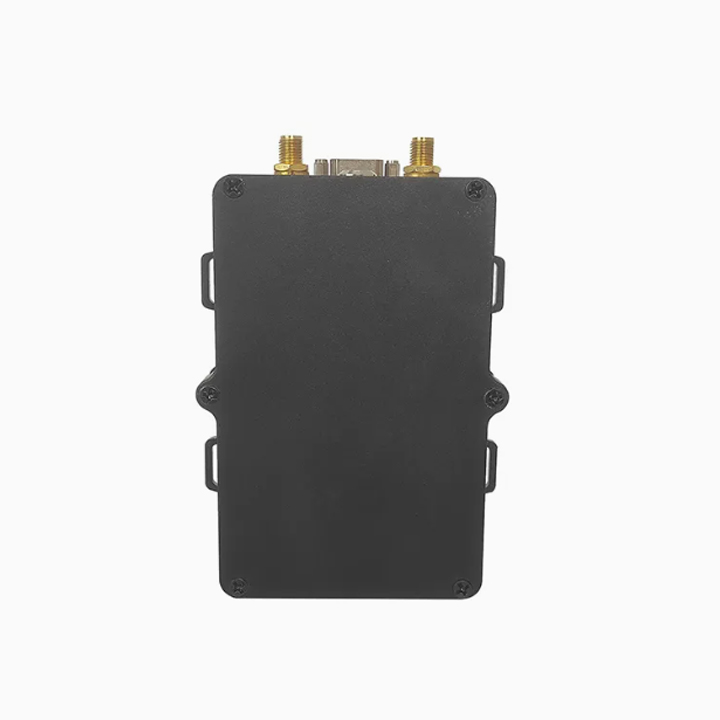

350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio

The 350g Airborne & Unmanned System Mounted IP Mesh Video Transmission Radio is a lightweight, high-performance communication solution engineered specifically for integration with UAVs, unmanned ground vehicles (UGVs), and other airborne/unmanned platforms. Weighing just 350 grams, it delivers exceptional portability without compromising on reliability, making it ideal for mission-critical scenarios where payload weight and space are at a premium.
Leveraging advanced IP mesh technology, the radio enables self-organizing, ad-hoc network connectivity—ensuring seamless, low-latency video transmission even in dynamic or obstructed environments. It supports high-definition (HD) video streaming alongside data and control signals, facilitating real-time situational awareness for operators in applications such as aerial surveillance, search and rescue, industrial inspection, and tactical operations. With robust anti-interference capabilities and wide operating temperature range, it maintains stable communication in harsh field conditions, while its compact, ruggedized design ensures compatibility with a wide range of unmanned systems. This radio empowers unmanned platforms to operate with enhanced connectivity, flexibility, and operational efficiency.
Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MD02
Information Content Text, Picture, Video, Audio
Frequency Range 1300~1500MHz
Networking ≥ 52 Nodes
Security Protection AES128/256
Power Consumption ≤ 30W
Specification 350Grams
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W*2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MD02 Drone Mesh Radio

Small Size & Light Weight
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
30KM Air-to-Ground Transmission Distance

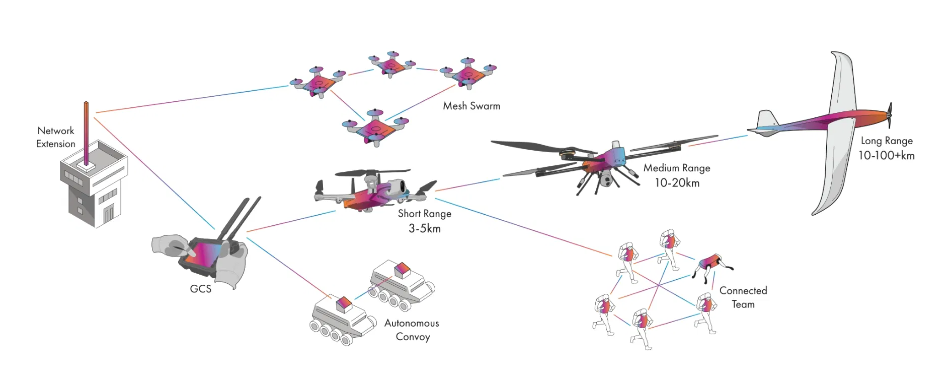

Mesh Radio – Typical System Solution

350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
SMA × 2
GPS Antenna
N/A
WIFI Antenna
N/A
Ethernet Interface
J30J Connector
Serial Port Interface
J30J Connector
Power Interface
J30J Connector
Physical
Dimension
≤ 107 × 84 × 37mm
Weight
≤ 350g (Host Only)
Protection Level
IP65
Operating Temperature
-30°C-+65°C

Packaging & Shipping

350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio

Application

IP Mesh Radio Application Case

350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio



350g Airborned & Unmanned System Mounted IP Mesh Video Transmission Radio
