Overview
Basic Info.
| Model NO. | MV10 |
| Information Content | Text, Picture, Video, Audio |
| Frequency Range | 1428~1448MHz(Std) / 1100~1500MHz(Customized) |
| Networking | ≥ 52 Nodes |
| Encryption | AES128/256 |
| Dimension | ≤ 492*387*90mm |
| Power Comsuption | ≤200W |
| Specification | 20W (10W * 2) |
| Origin | China |
| Production Capacity | 5000PCS/Month |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Transmitter Power | 20W (10W * 2) |
| Bandwidth | 5/10/20MHz |
| Max Data Rate | 90Mbps@20MHz |
| Weight | ≤8kg (with Battery) |
| Power Supply | AC220V |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
Product Description

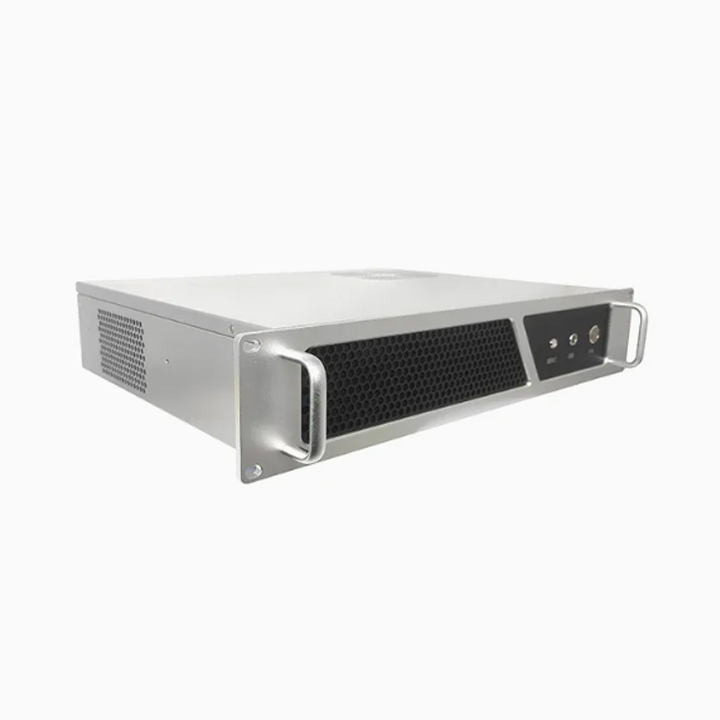

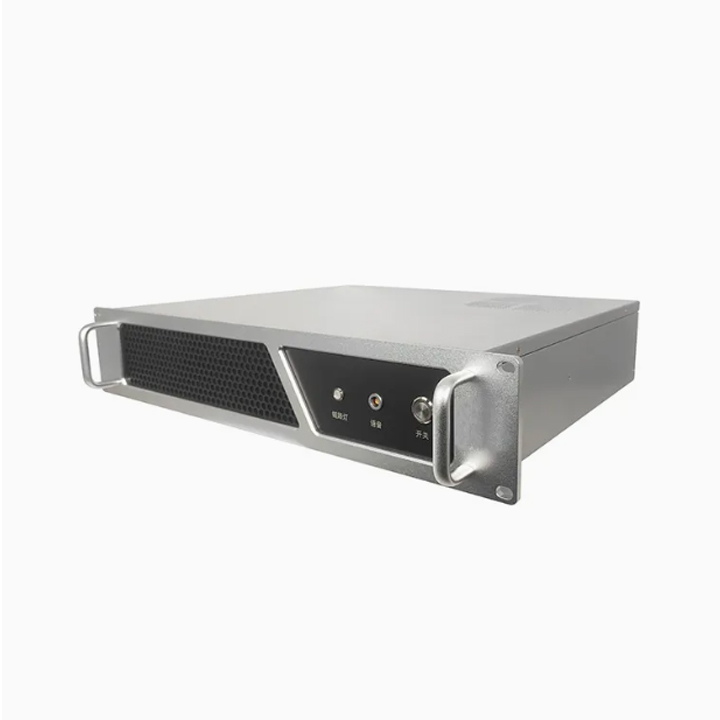

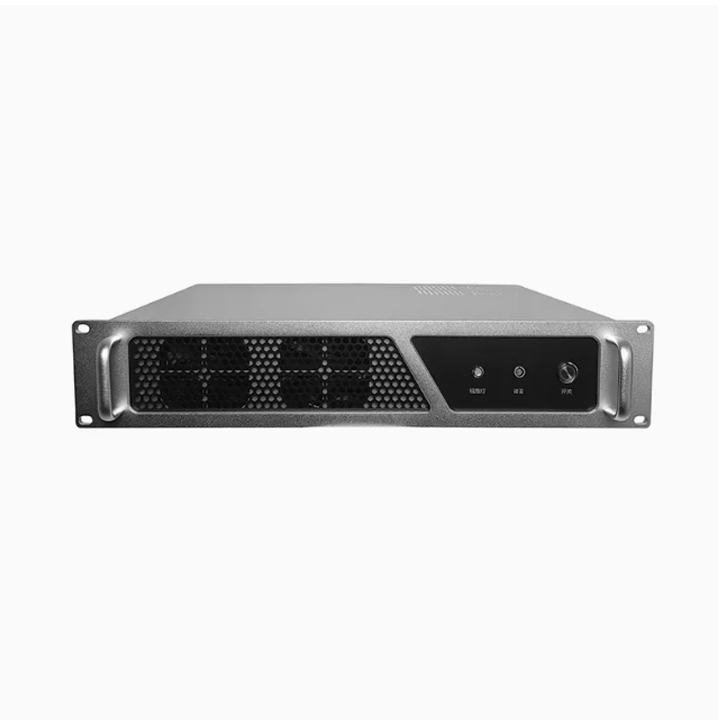

MV10/20 Vehicle Mesh Radio
2U Standard Rack Structure
10 / 20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance
10 / 20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

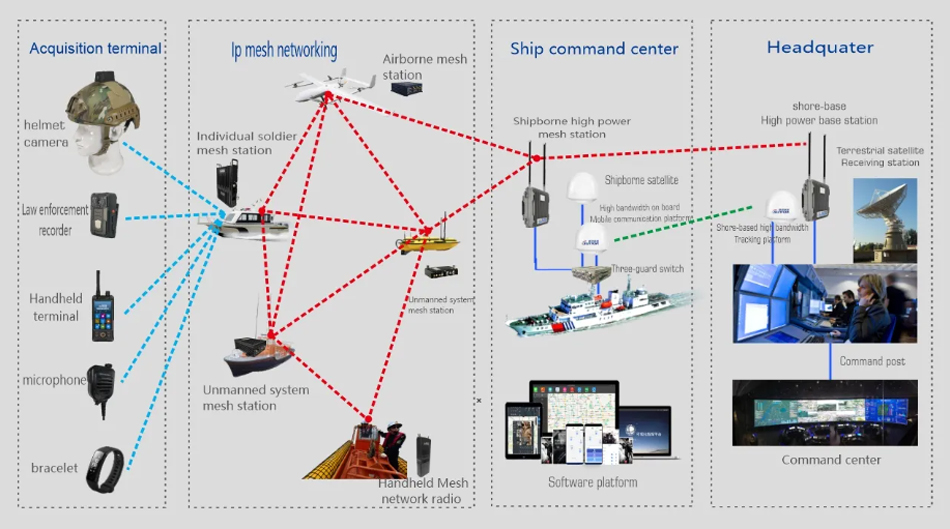

Mesh Radio – Typical System Solution
Specification
|
Wireless
|
|
|
Frequency Range
|
1428-1448MHz
|
|
Bandwidth
|
5M/10M/20MHz
|
|
Transmission System
|
COFDM
|
|
Modulation Mode
|
BPSK/QPSK/16QAM/64QAM
(Self-Adaption) |
|
Data Rate
|
90Mbps@20MHz (Peak)
|
|
RF Power
|
5W × 2 (10W × 2 for Optional)
|
|
Receive Sensitivity
|
≤ -92dBm @ 5MHz
|
|
System
|
|
|
Video Input
|
ETH (HDMI/SDI for Optional)
|
|
Audio Input
|
Remote Microphone or Earpiece
|
|
Security
|
AES128 / 256 Encryption
|
|
Power Supply
|
AC220V Power Supply
|
|
Power Supply
|
≤ 120W(Typical), ≤ 200W(Peak)
|
|
Networking
|
|
|
Networking Capability
|
≥ 52 Nodes
|
|
Networking Hops
|
≥ 10 Hops
|
|
Access Time
|
5s after Startup of System
|
|
Topology Type
|
Ad-Hoc Network, Star Network,Chain Network
|
|

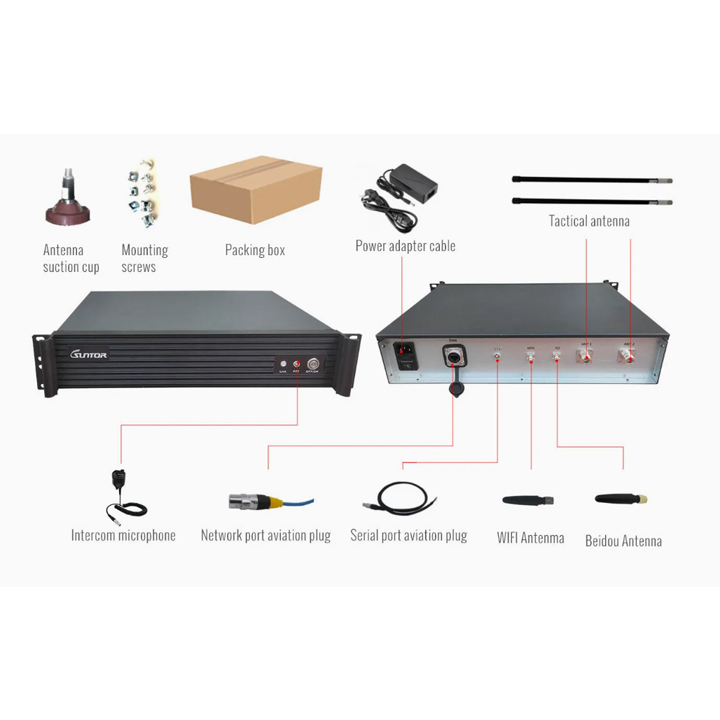

Interface
|
|
|
RF Antenna
|
N Type × 2
|
|
GPS Antenna
|
SMA
|
|
WIFI Antenna
|
SMA
|
|
Ethernet Interface
|
Aviation to RJ45 Connector
|
|
Serial Port Interface/Audio Interface/Power Interface
|
Aviation to Connector
|
|
Physical
|
|
|

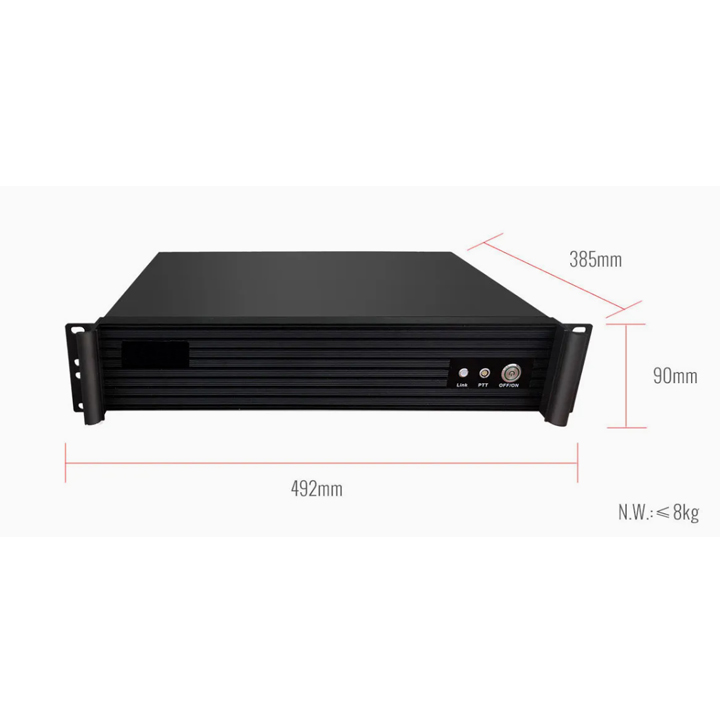

Dimension
|
≤ 482 × 385 × 90mm
|
|
Weight
|
≤ 7200g
|
|
Protection Level
|
IP54
|
|
Operating Temperature
|
-30°C-+65°C
|
Application

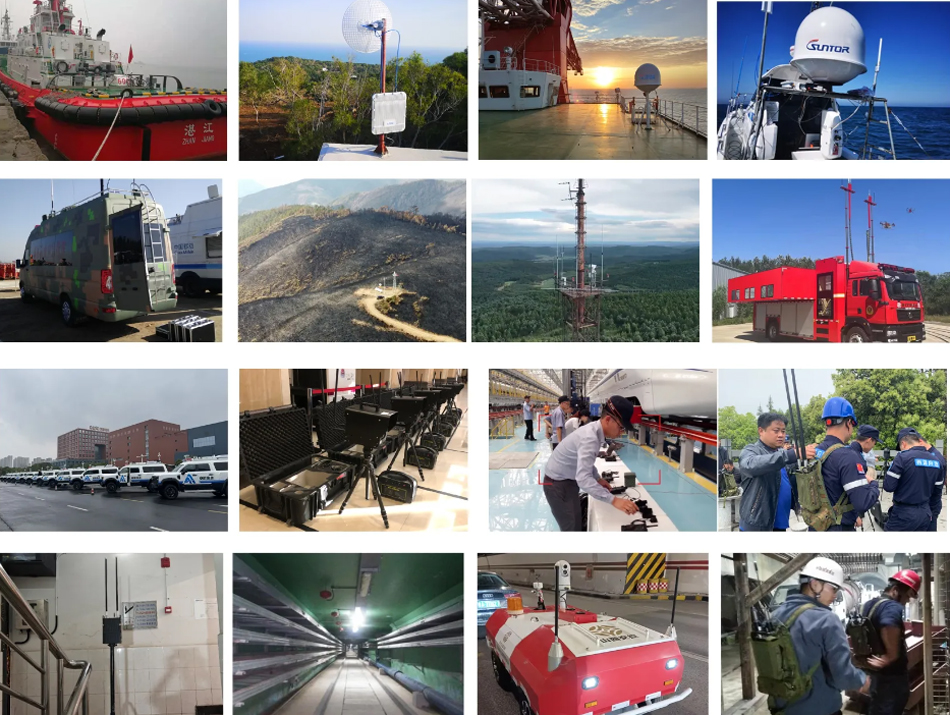

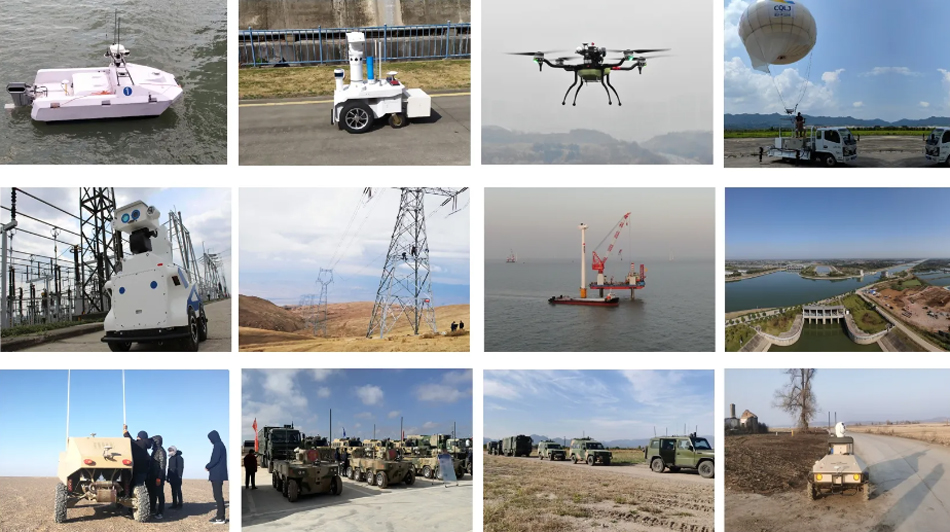

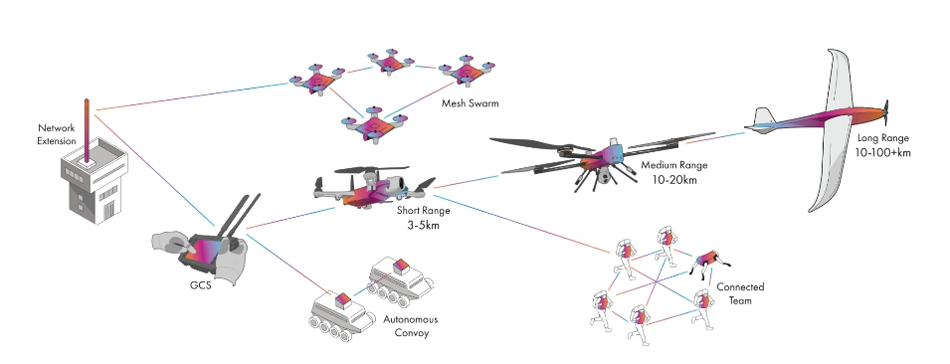

IP Mesh Radio Application Case
