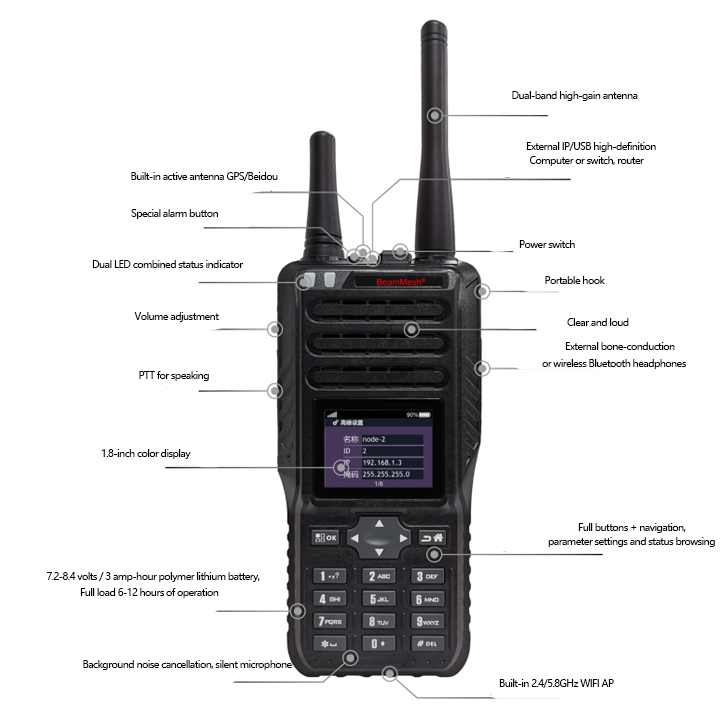

BEAMmesh Series MANET Broadband Ad Hoc Network Handheld Device Performance
● Supports two frequency band selections among UHF/L Band/S Band/C Band, and HTDMA, enabling large-scale networking with over 256 nodes.
● Features intelligent channel selection networking across different frequencies and powerful dynamic adaptive frequency hopping.
● Equipped with 1T2R, 0.5W high-efficiency linear silicon-based gallium arsenide power amplifier, dual antenna diversity reception, and -103dBm@5MHz high receiving sensitivity. Coverage: 1-5 kilometers in urban areas, 50-100 kilometers in open LOS.
● Supports DES/AES and other software encryption, as well as TF card hardware encryption.
● Features space-time coding for over 40Mbps high-speed throughput; spatial frequency reuse ensures no rate drop even with three or more hops.
● Compatible and interoperable with MIMOmesh/SMARTmesh/ULSC series.
● Supports PDT/DMR digital trunking and 4G/5G routing, with expandability.
● Based on a classic SDR platform, with full control over both software and hardware.
● Robust and reliable, with a friendly feel; IP54 waterproof, suitable for military-grade harsh environments.
BEAMmesh Series MANET Broadband Ad Hoc Network Handheld Device Technical Indicators
| Parameter | |
| Application processor | Eight-core A53 processor, maximum operating frequency 1.8GHz |
| Operating system | Android 6.0 |
| Screen parameters | 1.8 inches, TFT LCD (320 X 240) |
| Memory/Storage | 2GB RAM+16GB ROM, 128GMicro SD |
| Voice services | Supports PTT (VoIP), multi-party meetings, etc. |
| Data services | Supports file transfer, short messages, GIS, IoT data transmission, etc. |
| Video services | Supports video pull-up, video conferences, etc. |
| Audio, video and data interfaces | 9-pin Remo’s IP/USB, 5-pin aviation jack microphone, WIFI AP |
| Primary and backup batteries | 7.2 – 8.4V, 3000mAh |
| Battery life | ≥ 6 hours (transmit: receive: idle = 1:1:1) |
| Location and navigation | Built-in GPS/BD positioning |
| Device dimensions | 15.5 x 6.6 x 3.2 cm (including lithium battery, excluding antenna and back clip) |
| Device weight | 430g (including lithium battery, excluding antenna and back clip) |
| Environental Performance | |
| Dust and water resistance level | EC60529-IP54(1.5m,0.5h) |
| Impact and vibration | MIL-STD-810G |
| Working temperature | 40C ~+80’C |
| Storage temperature | -55’C ~+100°℃ |
| Humidity requirements | 10%~90% (no condensation) |
| Wireless Communication | |
| Communication standard | Mobile Ad-hoc NETworking Ad hoc network |
| Working frequency band (70M – 6GHz customizable) | 520-650, 1200-1500 MHz |
| Transmission system | TDD-COFDM |
| Receiving sensitivity | ≤-103dBm@5MHz |
| Transmitting power | 0.5W |
| Carrier bandwidth | Available in 1.25/2.5/5/10/20 MHz options |
| Transmission capacity | 48Mbps@20MHz |
| Modulation method | BPSK/QPSK/16QAM/64QAM/256QAM (adaptive) |
| Network scale | Supports 256 or more nodes in same-frequency networking |
| Anti-interference | Intelligent channel selection in different frequencies, full-band dynamic adaptive frequency hopping, multi-level anti-interference |
| Encryption method | DES56/AES128/AES256 selectable |
| Device Interface | |
| Antenna interface | SMA type x2 |
| IP connector | Waterproof aviation connector (shared with USB interface) |
| USB interface | Waterproof aviation connector (shared with IP interface) |
| Headset interface | Contact-type wired headset (PTT) |
| Basic peripherals | Microphone (double MIC), Speaker |
| Front buttons | Menu key, Home key, Confirm key, Back key, 4-way key, Number key |
| Side buttons | PTT key, Volume adjustment key, Power on key (top), SOS key (top) |
| WIFIAP | 2.4GHz/5.8GHz, 802.11b/g/h |

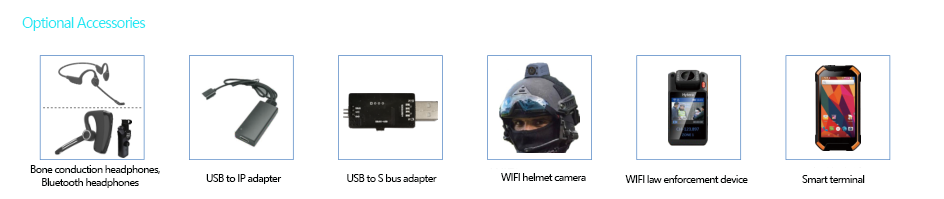

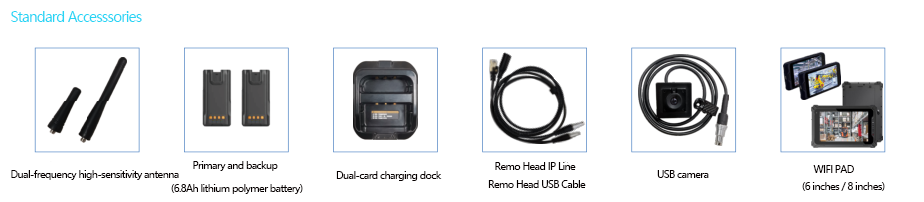

BEAMmesh Series MANET Broadband Ad Hoc Network Handheld Device Accessories
