Home » Unmanned System Products » China Moneypro 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Los&Nlos Wide Frequency Ranges Data Transmission Radio or Sensor Data Transmission Uav Drone Date Link Wireless Video Transmitter
Back to products
China Moneypro Unmanned Cofdm Tactical Mesh Ad Hoc Network Wireless Broadband Transceiver Communication TCP IP Radio MIMO Mesh Radios / Nodes

China Moneypro 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link

The China Moneypro 100km IP Mesh WiFi Radio is a cutting-edge UAV drone networking solution, integrating advanced IP Mesh technology, WiFi connectivity, and frequency hopping capabilities to deliver ultra-long-range, secure wireless transmission. Engineered for reliable performance over distances up to 100km, this mesh networking radio ensures seamless HD video streaming, real-time data transmission, and dynamic node-to-node communication—supported by frequency hopping’s robust anti-interference protection, ideal for complex environments like urban clusters, dense forests, or industrial zones. Optimized for drone integration with a lightweight, compact design, it enables flexible multi-drone mesh networking with self-healing functionality, ensuring uninterrupted connectivity even if individual nodes are disrupted. Perfect for large-scale aerial surveillance, long-range inspection missions, public safety operations, and collaborative drone projects, this all-in-one data link system balances extended range, stable performance, and easy deployment, empowering operators to execute high-efficiency, data-driven aerial operations with confidence.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M50Pro
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 118 × 76 × 40mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 33dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 350g (Air)
Frequency Range 1.4G / 2.4GHz
Transmission Distance 50km Air-to-Ground
Specification 350Grams
Origin China
Production Capacity 5000PCS/Month

Product Description

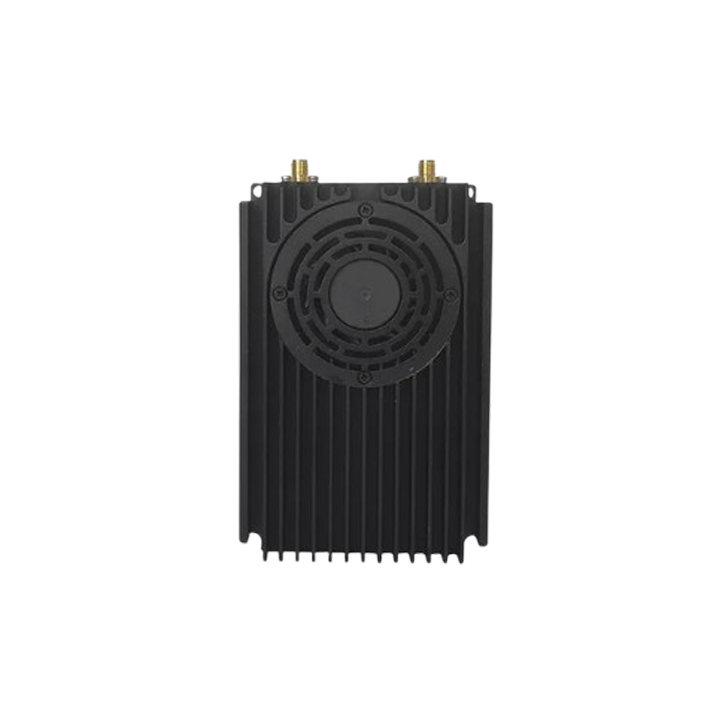

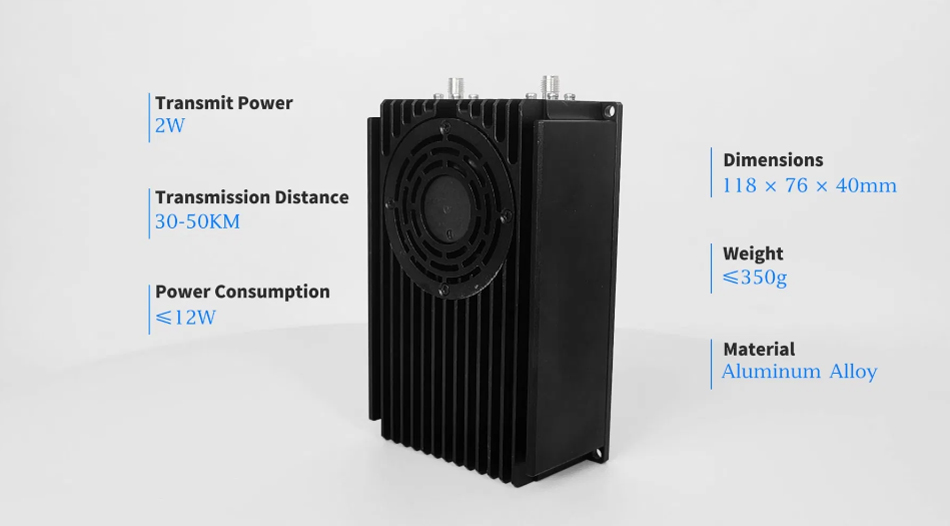

M50Pro Drone Video Transmission Radio

350 Grams Weight

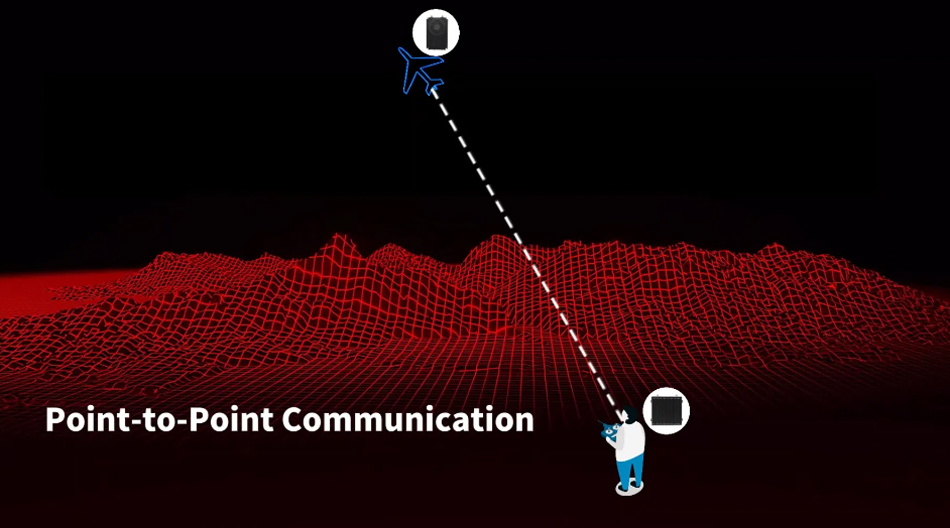

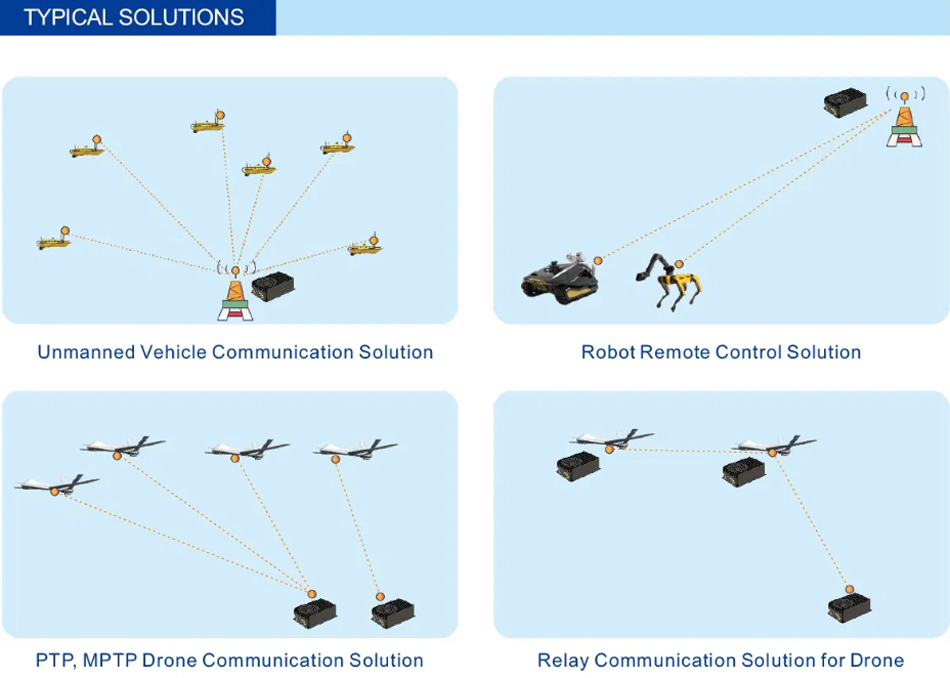

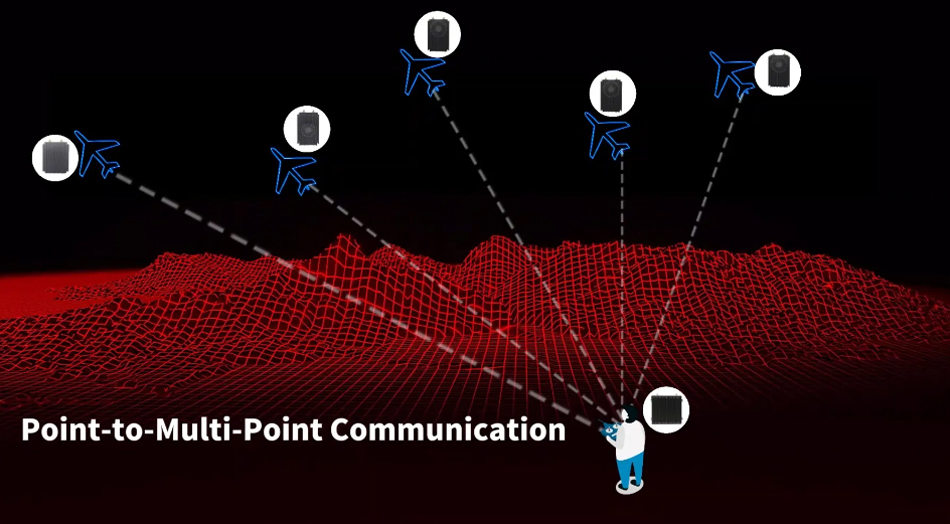

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
50KM Air-to-Ground Transmission Distance
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link

Specification

Wireless
Technology
TDD-OFDM / MIMO / 1T2R
Modulation
QPSK / 16QAM / 64QAM
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
33dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL + 1 RS232 + 1 S.BUS
Video Port
2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 12W @ DC12V Power Consumption (Air)

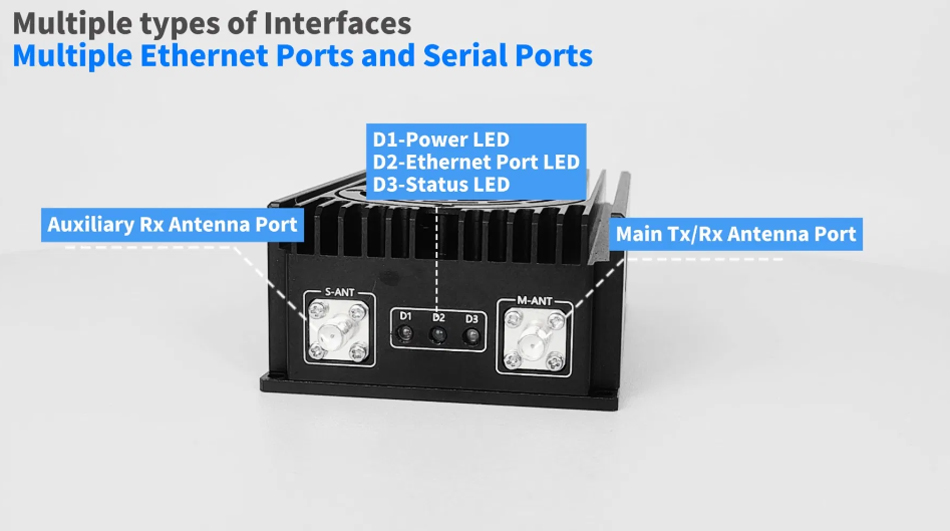

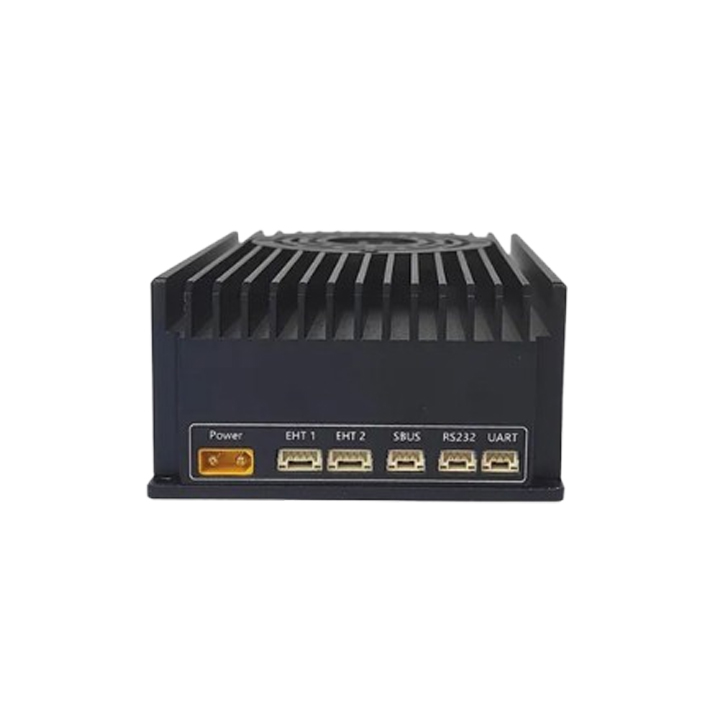

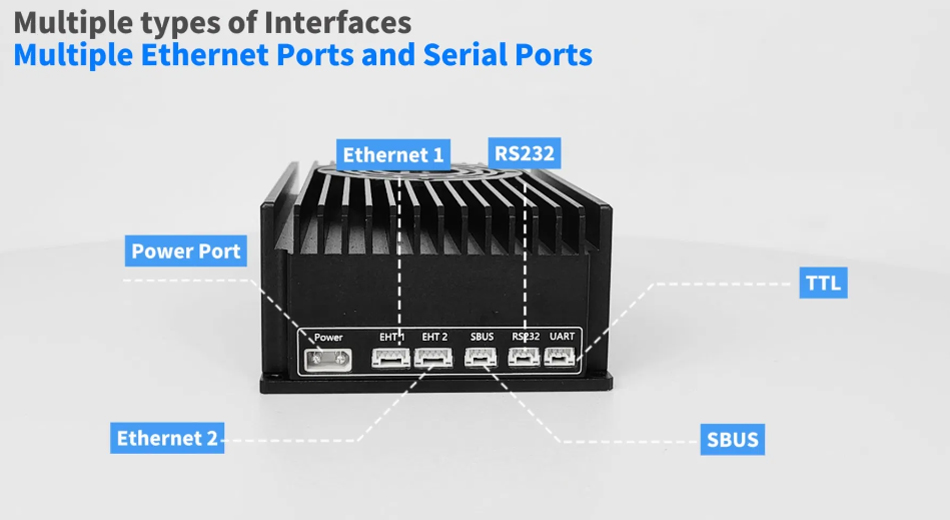

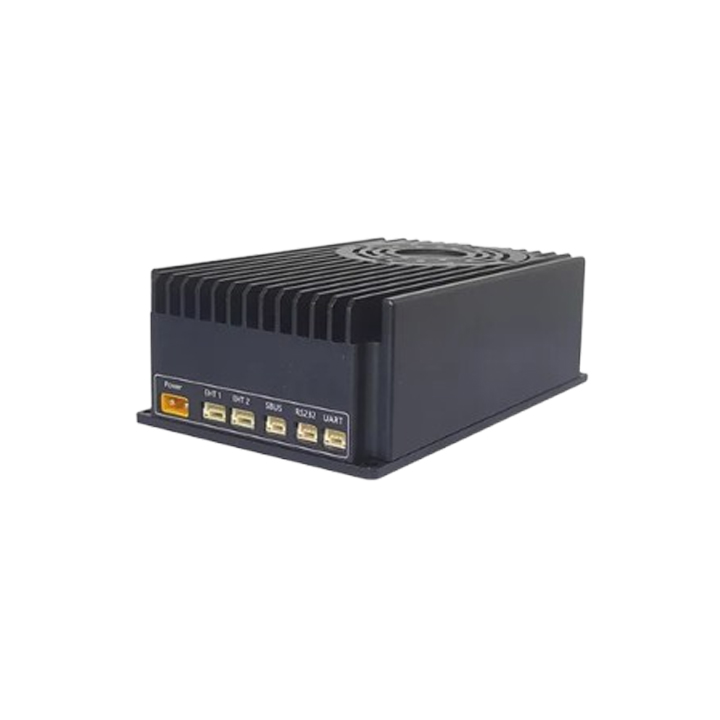

Interfaces

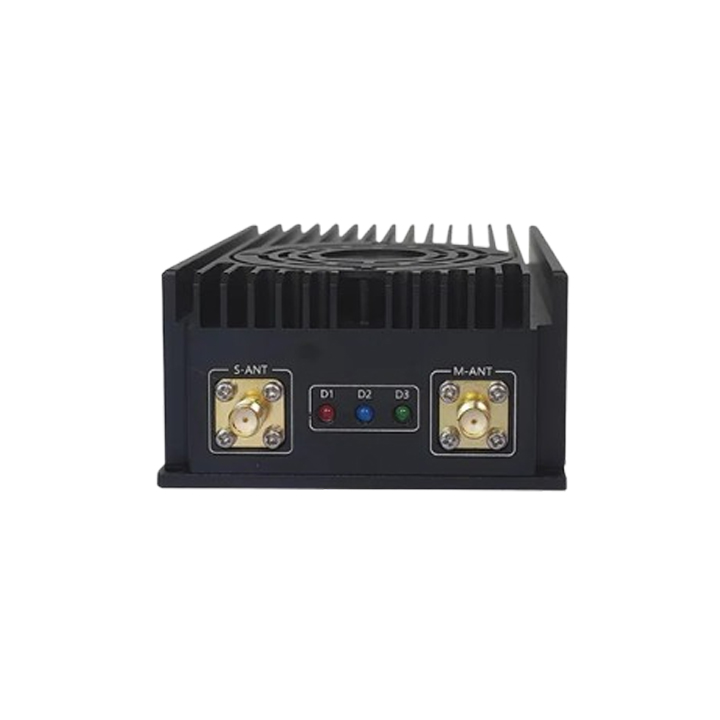

RF Antenna
SMA × 2
Serial Port Interface
JST × 2
S.BUS Interface
JST × 1
Video Port Interface
JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input
XT30

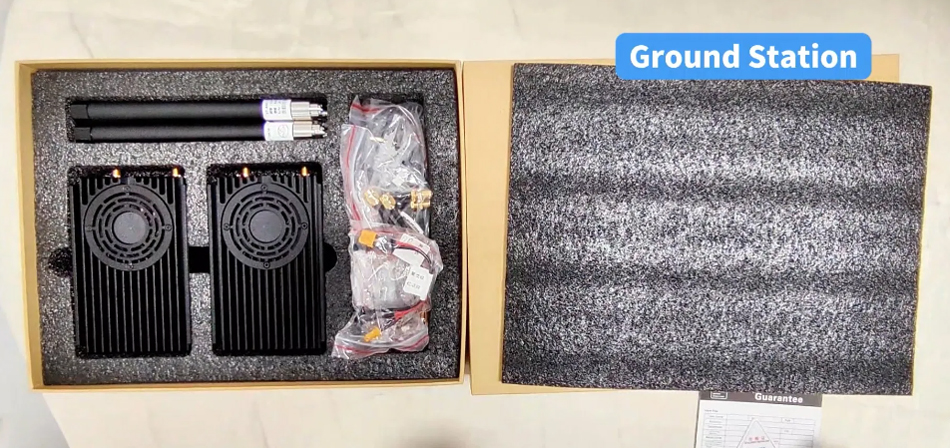

ACCESSORIES
OMNI Antenna for Air Unit × 2
Serial Cable × 2; S.BUS Cable × 1;
OMNI Antenna for Ground Unit × 1
XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
VTA-Manual (Manual Tracking Antenna System) × 1

Packing & Delivery

Suntor 100km IP Mesh WiFi Radio Uav Drone Mesh Networking Radio Video Link Frequency Hopping Data Link
