Home » Unmanned System Products » China Moneypro 15.6″ Triple Monitor Workstation for IP Mesh Radio Rugged Portable Laptop Screen Extender for Tactical Receiver
China Moneypro Vta-Autopro GPS Data Broadcast Tracking Antenna System for Uav & Drones
Back to products
Autotracking Telemetry Antennas for Uav Ground Base Station

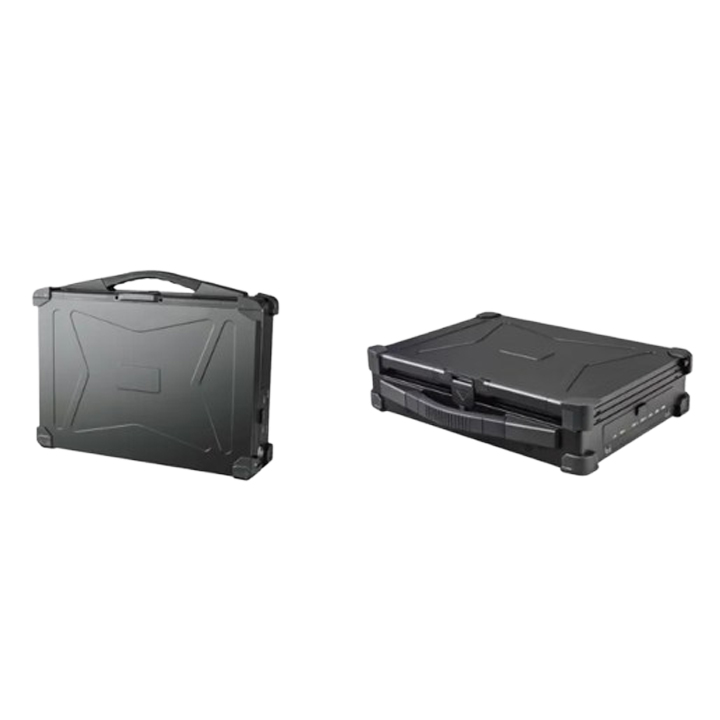

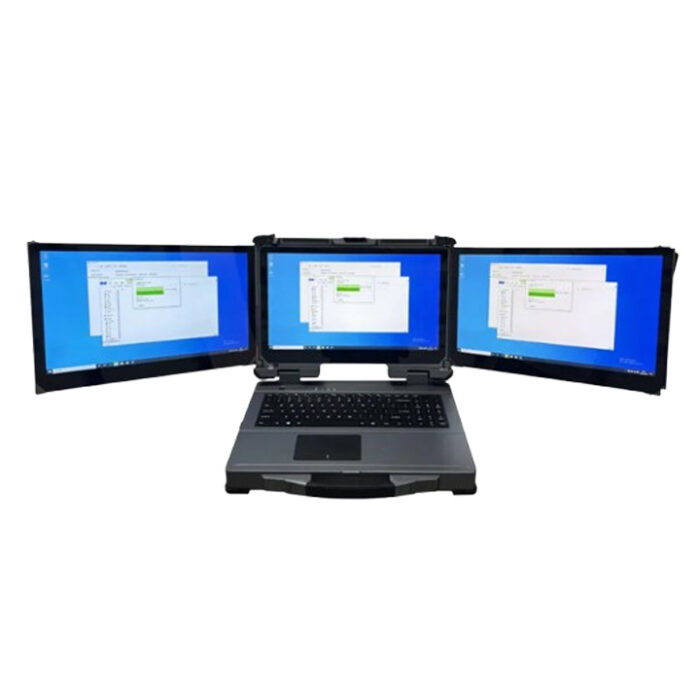

China Moneypro 15.6″ Triple Monitor Workstation for IP Mesh Radio Rugged Portable Laptop Screen Extender for Tactical Receiver

The China Moneypro 15.6″ Triple Monitor Workstation is a rugged, portable computing solution tailor-made for tactical scenarios relying on IP Mesh Radio and tactical receivers. Its defining triple 15.6-inch monitors expand the visual workspace exponentially, allowing users to simultaneously manage IP Mesh Radio communication interfaces, tactical receiver data feeds, and operational dashboards—eliminating the inefficiency of switching between single-screen windows during high-stakes tasks like field command, emergency response, or security operations. Built with ruggedized construction, it withstands harsh environmental conditions (e.g., dust, vibrations, temperature fluctuations) common in tactical settings, ensuring reliable performance in the field. As a dedicated screen extender for tactical receivers, it enhances data visibility and processing efficiency, while its portable design enables easy transport in field kits or vehicles. Optimized for seamless integration with IP Mesh Radio systems, this workstation acts as a centralized hub for real-time communication, data analysis, and receiver monitoring, making it an indispensable tool for tactical teams seeking robust, multi-functional computing support in mission-critical environments.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MLAP15
Information Content Text, Picture, Video, Audio
Material Housing Aluminum Magnesium Alloy
Battery 200wh
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000
Usage Radio, Satellite, Plane, Ship, Car
Screen Size 15.6inch
Duration Time 5 Hours
Protective Level IP65
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month

Packaging & Delivery

Package Size 40.00cm * 29.50cm * 8.50cm
Package Gross Weight 8.900kg

Product Description

MLAP15 Triple Screen Compact Laptop

Compact Size
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
5KM Open Area Transmission Distance
China Moneypro 15.6

Mesh Radio – Typical System Solution

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base StationChina Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

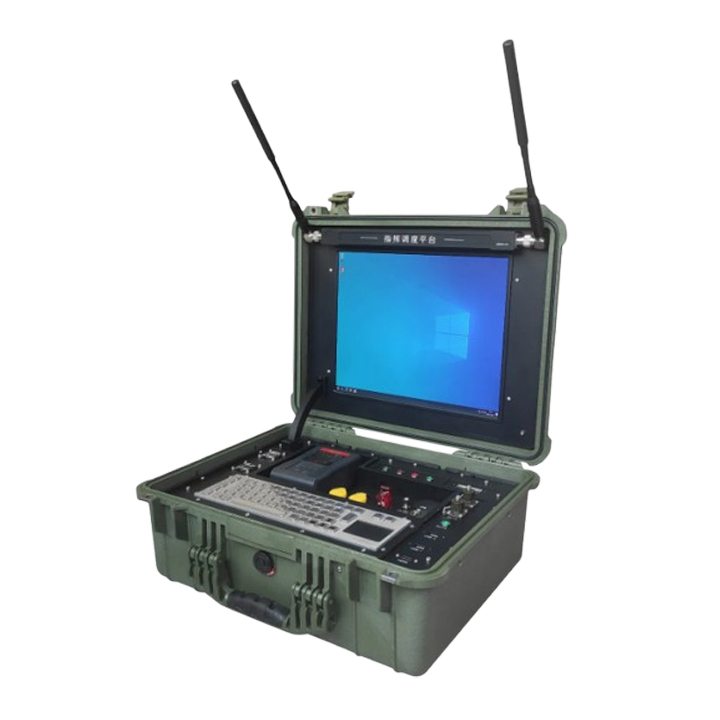

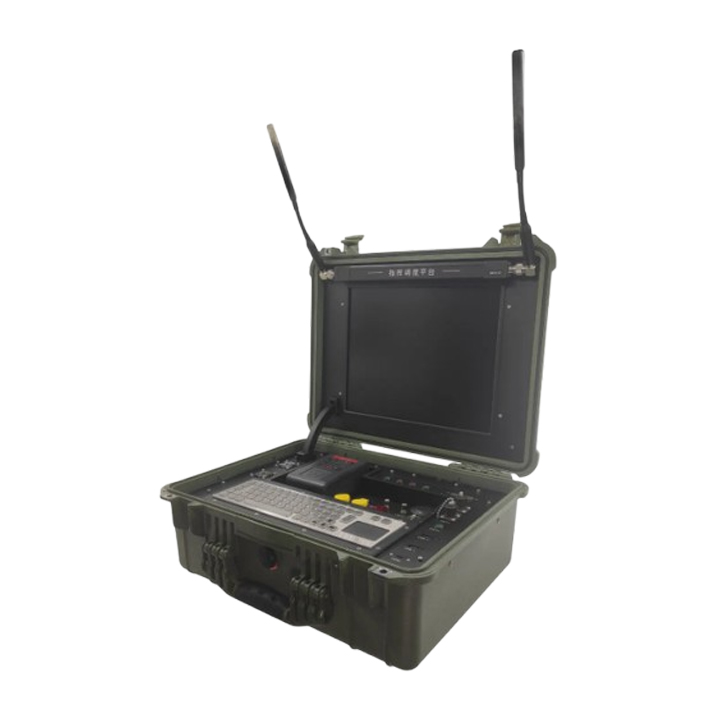

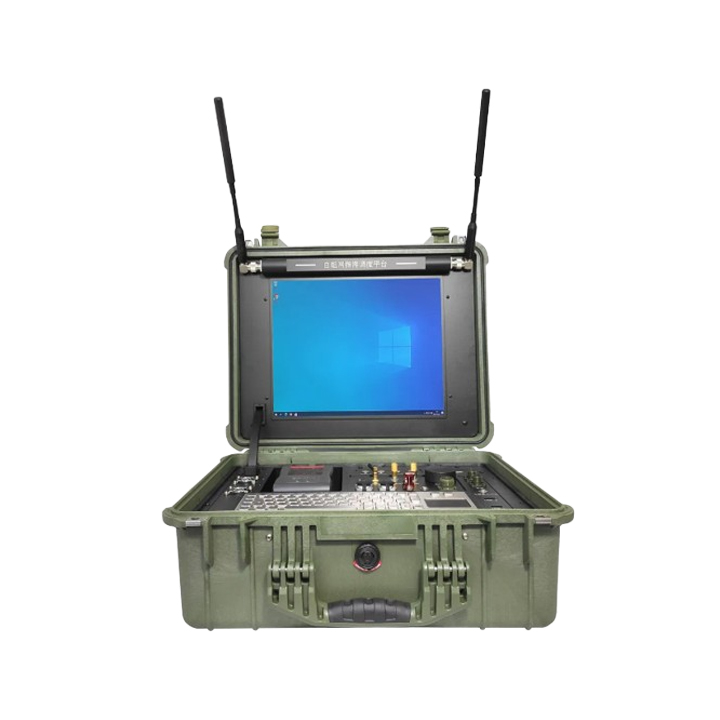

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

Specification

General
Processor
Intel i7-12700 12Cores 4.8GHz
Memory
DDR5 32GB
Hard Disk
1TB SSD
Display
15.6 Inch Triple Screen 500cd/m² Brightness
GPU
Standalone GPU MXM3060M
Extension
Mini PCIe / mSATA / M.2
System
Operation System
Windows
Duration
> 5 Hours
TF Card
Support
Power Supply
DC14.8V 200Wh Li-Ion Battery
DC19V Power Supply
Power Consumption
≤ 270W(Typical)
Connectivity
WIFI
N/A(Optional)
4G
N/A(Optional)
Camera
N/A(Optional)
Interface
LAN
1
USB 3.0
2
USB Type C
2
HDMI
1
2in1 Audio
1
Physical
Dimension
≤ 400 × 295 × 85mm
Weight
≤ 8900g (with Battery)
Protection Level
IP65
Operating Temperature
-20°C-+60°C

Packaging & Shipping

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base StationChina Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

Application

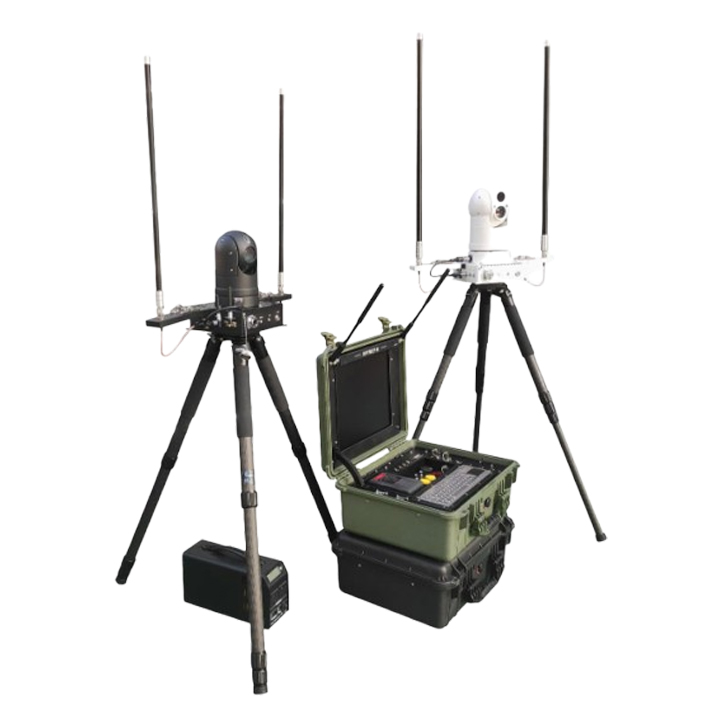

IP Mesh Radio Application Case

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

China Moneypro 15.6
