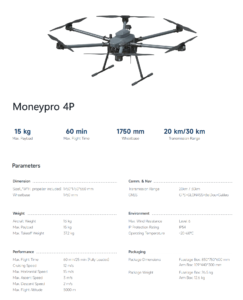

Key Features & Specifications
1. Unrivaled Payload & Flight Efficiency
✔ 15 kg max payload – Carries LiDAR, multispectral sensors, medical supplies, or equipment
✔ 60-minute max flight time (25 minutes at 15kg full load)
✔ 5000m max altitude – High-efficiency propulsion for mountainous/off-grid missions
2. Long-Range Secure Transmission
✔ 30 km HD real-time video feed (encrypted, low-latency)
✔ Dual-band GNSS (GPS+GLONASS+BeiDou+Galileo) with RTK/PPK support
✔ Advanced obstacle sensing for autonomous route planning
3. Rugged All-Weather Design
✔ IP54 rated (dust/water-resistant for harsh environments)
✔ Level 6 wind resistance (stable in 12 m/s gusts)
✔ -20°C to 60°C operating range – Arctic to desert operations
4. Modular & Scalable System
✔ Quick-swap payload mounts (compatible with DJI SkyPort, X-Port, custom rigs)
✔ 3 m/s ascent, 2 m/s descent (precise control under heavy loads)
✔ Redundant ESC & dual battery for fail-safe redundancy
Why Choose the Moneypro 4P?
✔ Industry’s Best Payload-to-Flight Time Ratio – 15kg lift with 60-minute endurance
✔ 30km BVLOS (Beyond Visual Line of Sight) Compliance – Ideal for remote inspections
✔ Military-Grade Durability – IP54, extreme temps, high wind resistance
✔ Plug-and-Play Payload Options – Supports 3rd-party sensors, comms, and cargo
Packaging & Dimensions
► Assembled Size: 1750 × 1750 × 660mm (propellers included)
► Wheelbase: 1750mm
► Weight:
- Aircraft Only: 13kg
- Max Takeoff Weight: 37.2kg
► Shipping: - Fuselage Box: 830 × 750 × 600mm (26.5kg)
- Arm Box: 1090 × 440 × 300mm (12.6kg)
Applications
✔ Heavy Cargo Transport (medical, disaster relief, military logistics)
✔ Industrial Inspections (oil rigs, power lines, wind turbines with thermal/zoom cameras)
✔ Large-Area Surveying (LiDAR, photogrammetry for mining, construction)
✔ Public Safety (search & rescue, firefighting, border patrol)
