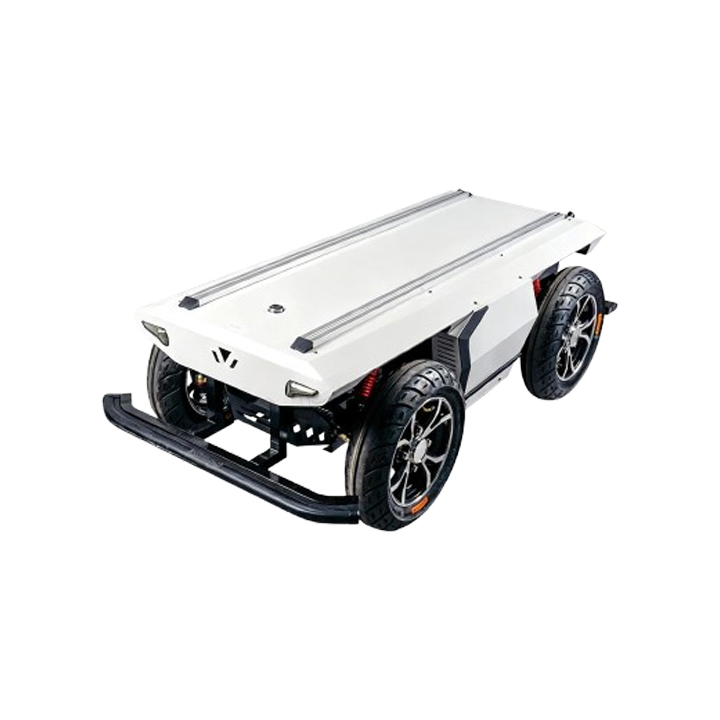

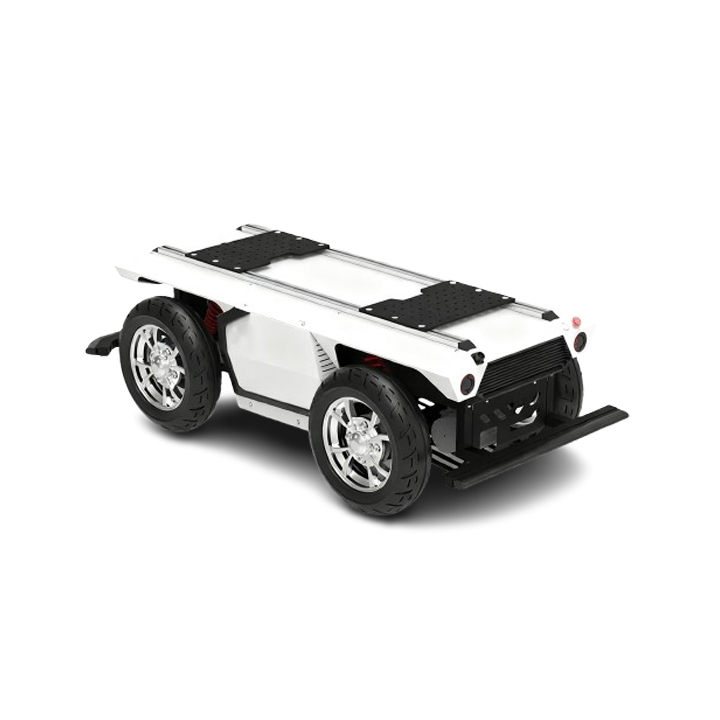

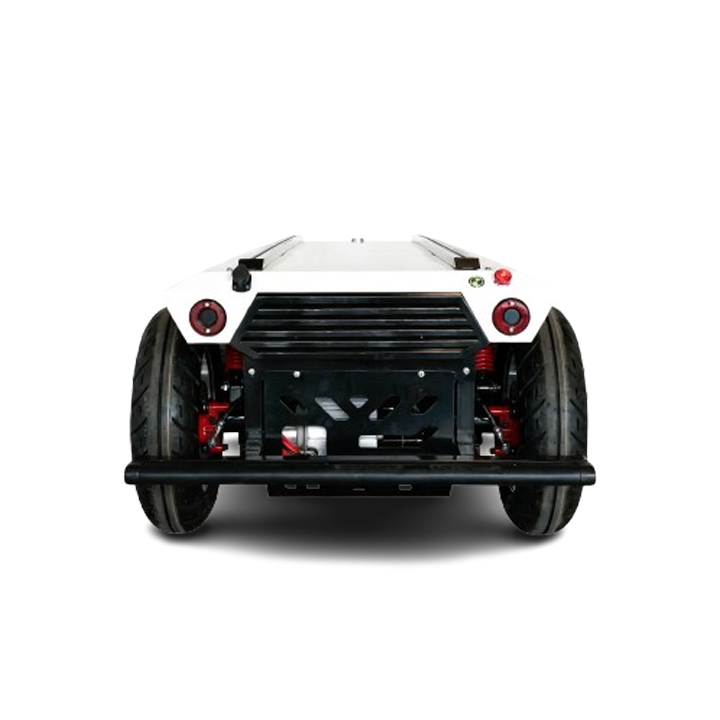

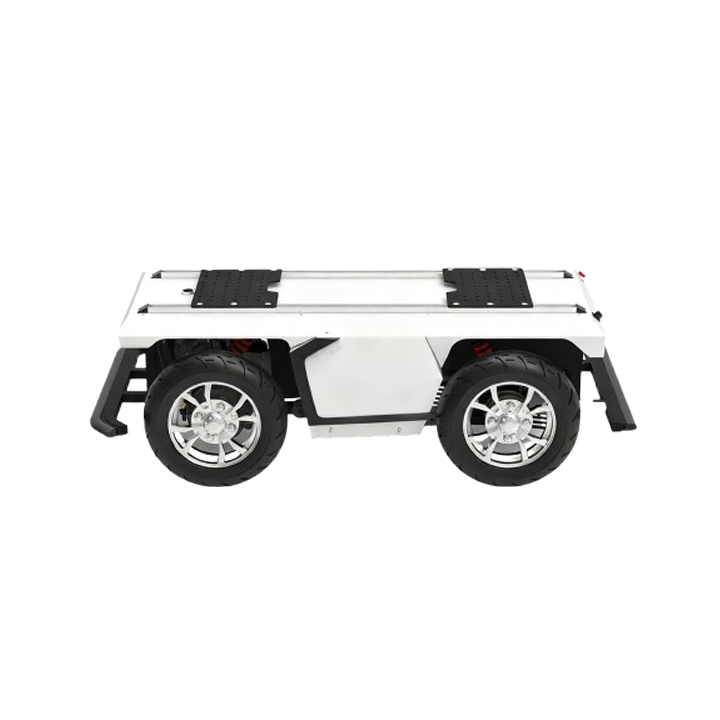

China Moneypro Ackermann MM850 UGV Craftd For Industrial Applications

The Ackermann MM850 UGV (Unmanned Ground Vehicle) is a purpose-built robotic solution engineered to address the evolving demands of modern industrial operations. Designed with industrial resilience and versatility at its core, this UGV integrates a robust Ackermann steering system—delivering precise maneuverability even in tight, cluttered environments such as factories, warehouses, construction sites, or logistics yards.

Category: Smart Robots & Cars
Share:
  • Description
Description

Product Detail

China Moneypro Ackermann MM850 UGV Craftd For Industrial Applications

Specification

Product Size 1600*820*520mm
Weight 156kg

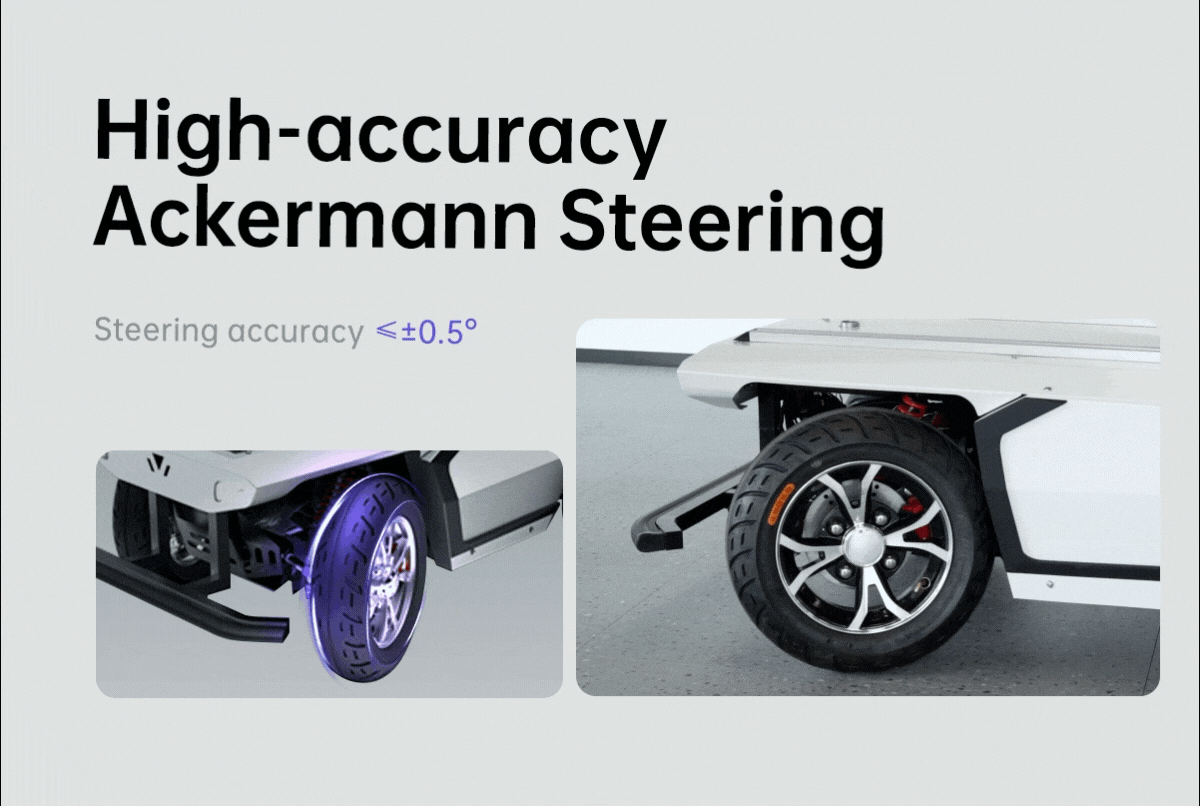

Drive Form Motor drive;Steer:Ackermann
Suspension Non independent suspension
Ground Clearance 110mm
Wheelbase 850mm
Wheel Track 645mm
Tire Outer Diameter 420mm
Drive Motor 1800W DC Brushless Motor
Battery 48V/40AH
Charging Time ≤4h
Charging Mode 48V/10A Manual Charger
External Power Supply 48V/10A-24V/15A-12V/15A
Braking Hydraulic Disc Brake
Parking Solenoid Park Lock
Payload 300kg
Speed 18km/h
Mileage 40km
Wading Depth 100mm
Climbing Capacity 10°
Span Width 200mm
Obstacle Surmounting Height 60mm
Protection Level IP44
Communication Interface CAN 2.0B
