Home » Unmanned System Products » China Moneypro Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio

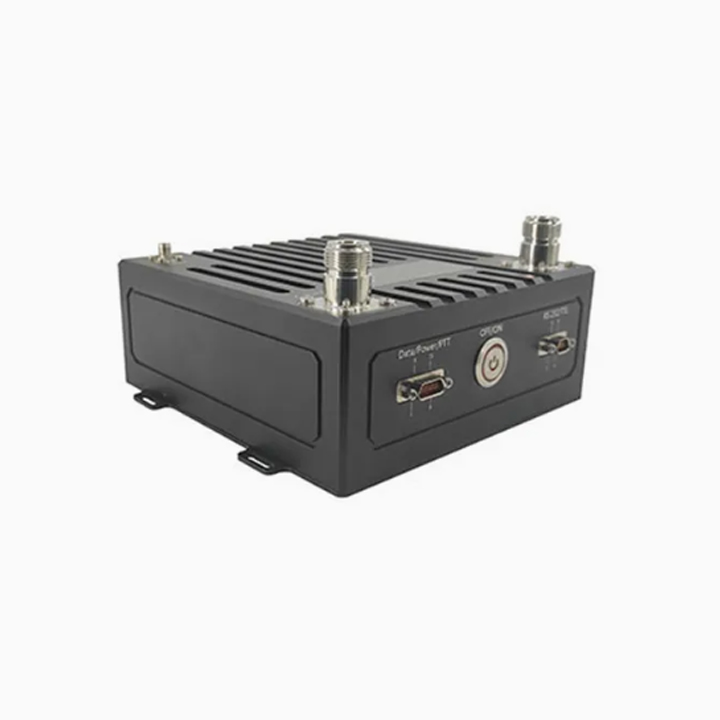

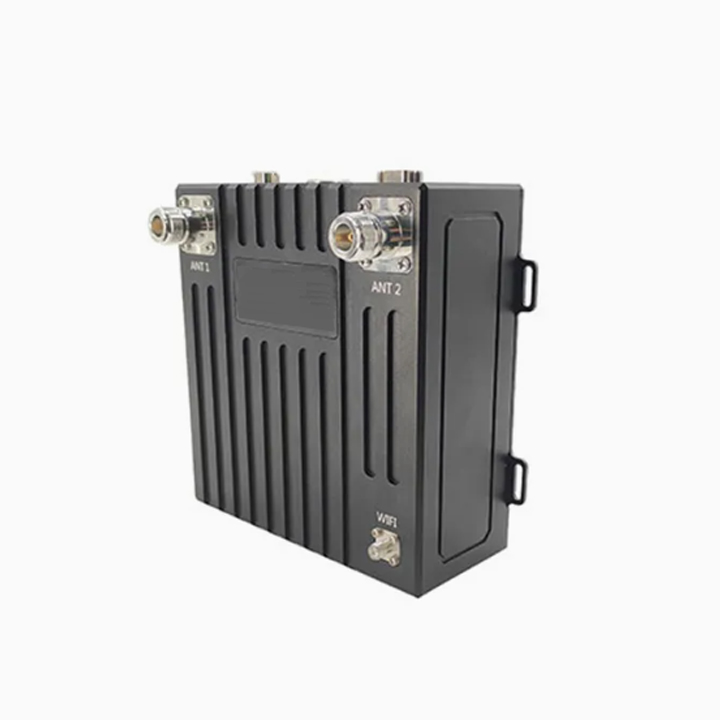

30-50km Light Weight Adhoc Network Wireless Broadband Ethernet Transceiver Radio for Marine Ship IP Mesh Radio
Back to products
Tactical Mesh Ad Hoc Network Transmitter and Receiver Wireless Vehicle Broadband Communication IP Radio

China Moneypro Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio

The China Moneypro Tactical MIMO Mesh Radio is a high-performance Ad Hoc network wireless broadband transceiver, designed as flexible communication nodes for unmanned systems and mission-critical tactical operations. Integrating advanced MIMO, mesh, and COFDM technologies, it delivers robust, low-latency broadband connectivity in dynamic, infrastructure-free environments—ideal for unmanned aerial vehicles (UAVs), ground robots, and tactical field deployments. As self-forming, self-healing Ad Hoc mesh nodes, these radios enable seamless multi-node communication, supporting real-time data transmission, video streaming, and command-and-control signals even in harsh or contested tactical scenarios. Engineered for reliability and adaptability, they are a critical asset for military, public safety, and industrial unmanned operations that demand secure, high-speed wireless connectivity without relying on fixed infrastructure.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MU08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 187*137*65mm
Power Consumption ≤ 80W
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 8W (4W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤ 1.4kg (Host Only)
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MU08 Unmanned System Mesh Radio

Compact Size
2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area or 30KM Air-to-Ground Transmission Distance

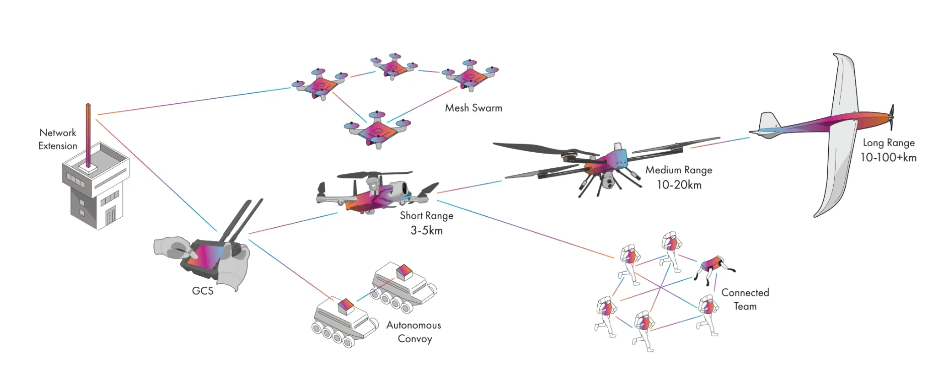

Mesh Radio – Typical System Solution

Suntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh RadioSuntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh RadioSuntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2 (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 30W
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

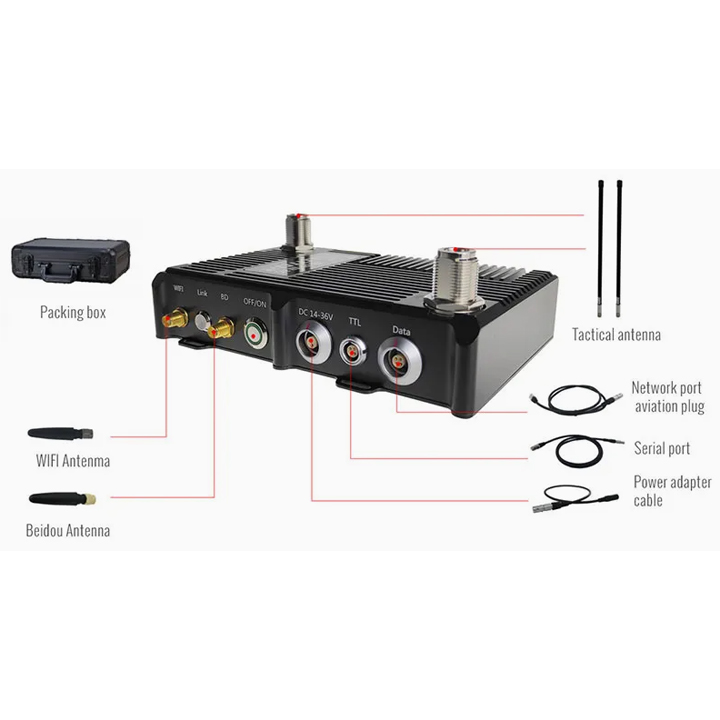

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 187 × 137 × 35mm
Weight
≤ 1400g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

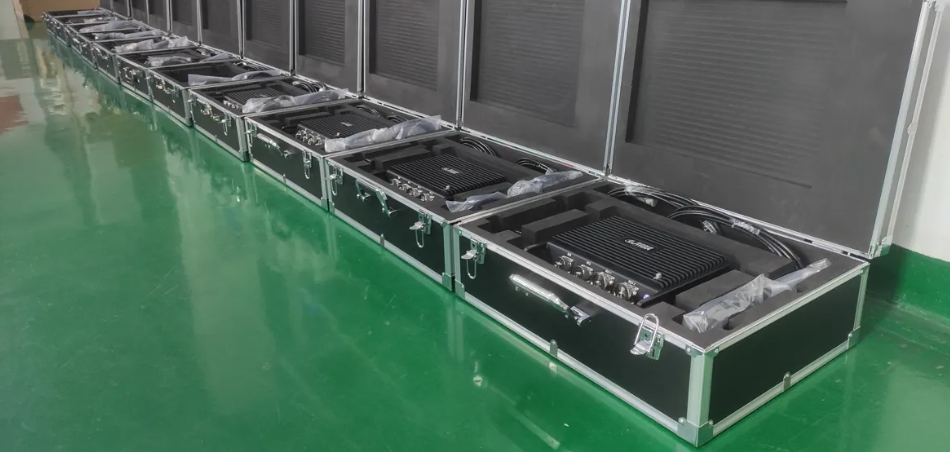

Packing & Delivery

Suntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh RadioSuntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio

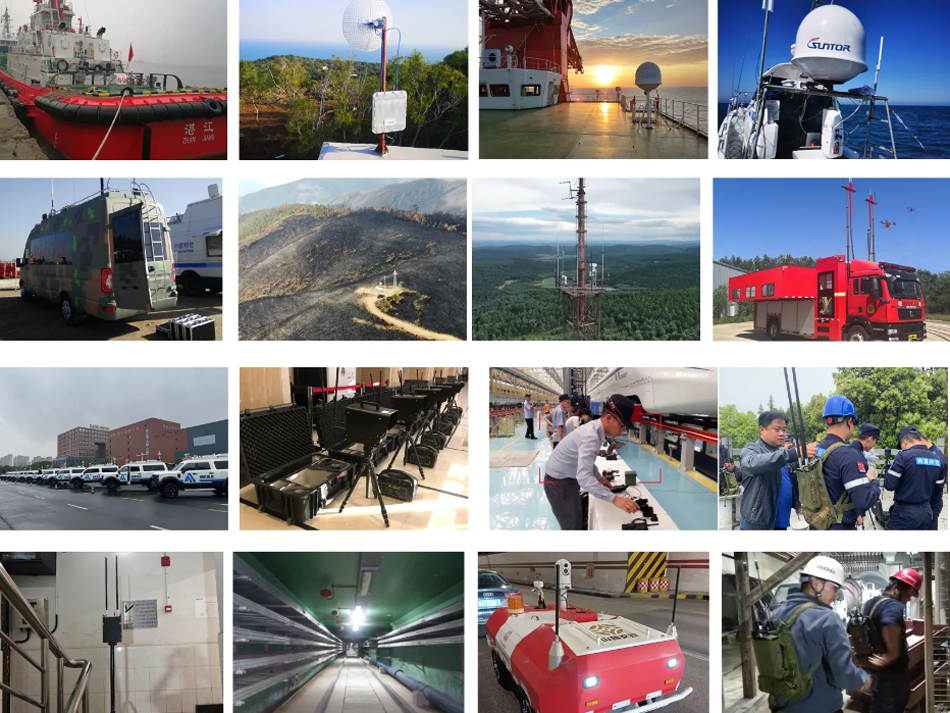

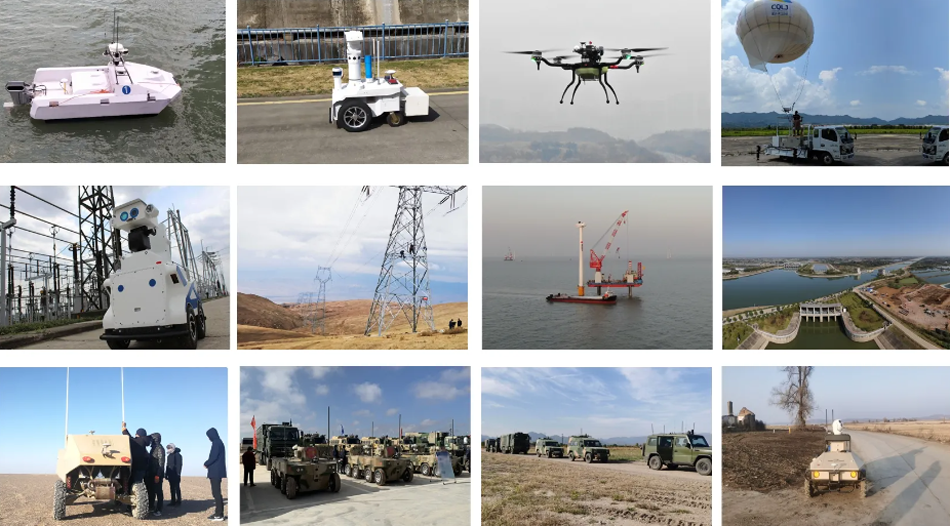

Application

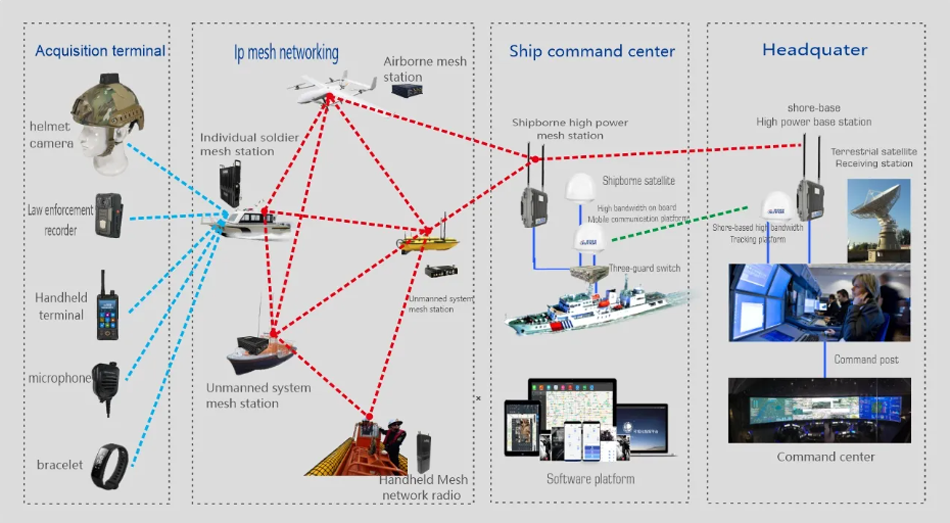

IP Mesh Radio Application Case

Suntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio

Suntor Ad Hoc Network Wireless Broadband Transceiver Communication MIMO Mesh Radios / Nodes Unmanned Cofdm Tactical Mesh Radio
