Home » Unmanned System Products » China Moneypro Auto-Tracking Antenna Systems for Stable Uav Wireless Communications
Portable MIMO Antennas Automate GPS Tracking for Drone (UAV) / Missile Shortrange Application
Back to products
Auto Tracking Antennas for Mobile Application or Long Range Flight Tests

China Moneypro Auto-Tracking Antenna Systems for Stable Uav Wireless Communications

China Moneypro Auto-Tracking Antenna Systems are purpose-built communication solutions designed to deliver stable, uninterrupted wireless connectivity for unmanned aerial vehicles (UAVs) across diverse operational scenarios. Leveraging advanced auto-tracking technology, these systems actively lock onto and dynamically follow UAVs during flight—whether in long-range missions, urban environments with obstacles, or low-visibility conditions—eliminating the need for manual adjustments and minimizing signal dropouts that risk mission disruption. Engineered for reliability, they feature anti-interference design to resist electromagnetic disturbances and rugged construction to withstand outdoor challenges like wind, rain, and temperature fluctuations, ensuring consistent performance in harsh field conditions. Optimized for seamless integration with UAV control setups, these antenna systems serve as a critical link for transmitting real-time data (e.g., video feeds, flight telemetry) and receiving ground commands, making them ideal for professional applications such as aerial surveying, emergency response, industrial inspections, and tactical operations where stable UAV wireless communications are essential to mission success.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. VAT-AutoPro
Information Content Text, Picture, Video, Audio
Gain 15dBi
Pan Range 360°
Pan Speed 0.1°-30°/S
Baud Rate 2400 / 4800 / 9600 / 19200BPS
Specification 8W (4W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Frequency Range 1300-1500MHz
Swr ≤ 2.0
Tilt Range 0°-+90° (90°+90° Cus.)
Tilt Speed 0.1°-8°/S
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 38.00cm * 38.00cm * 5.70cm
Package Gross Weight 1.580kg

Product Description

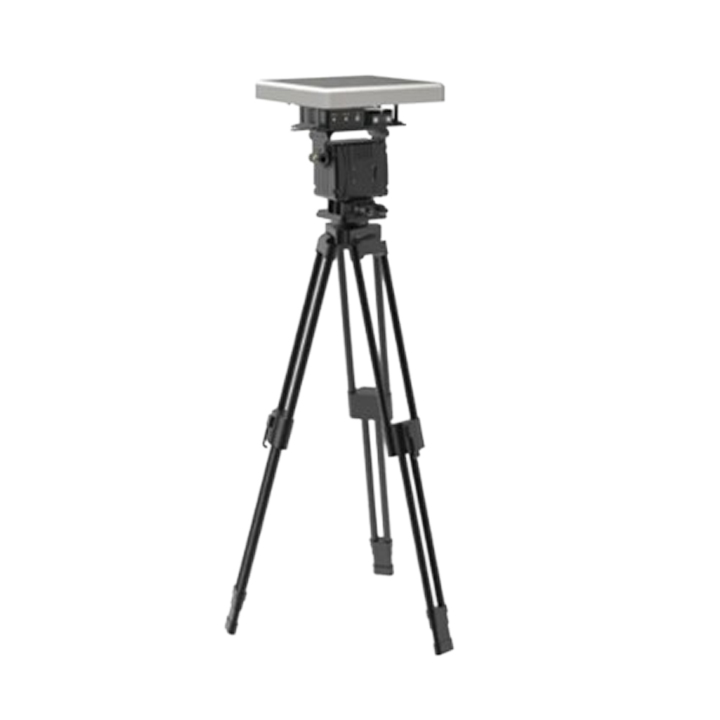

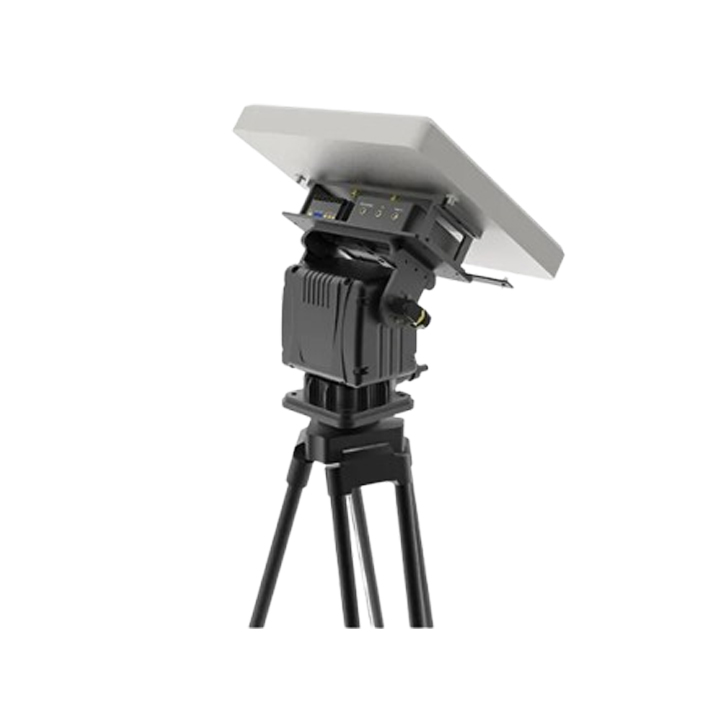

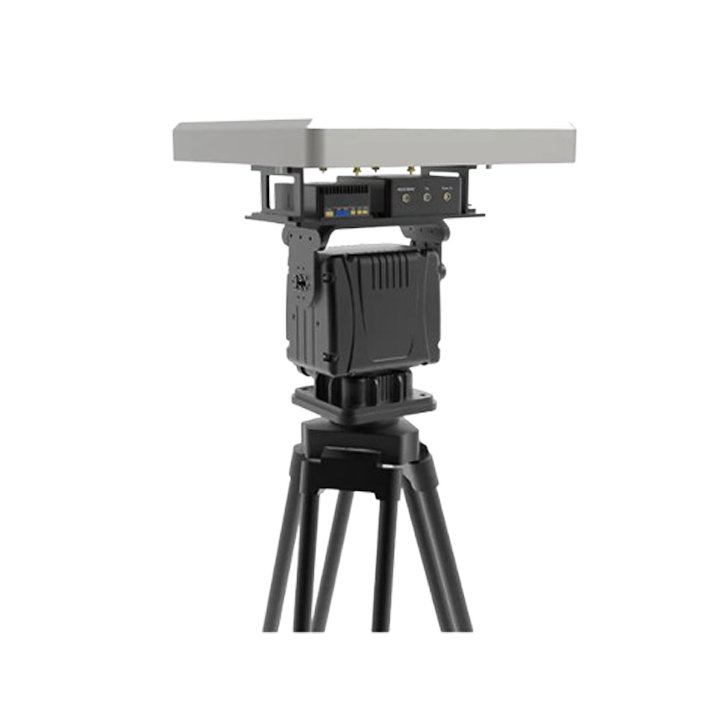

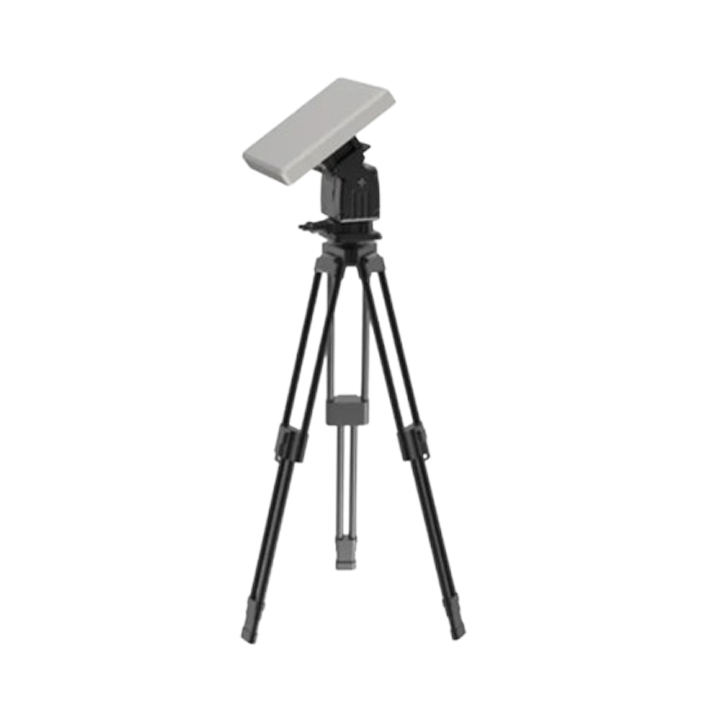

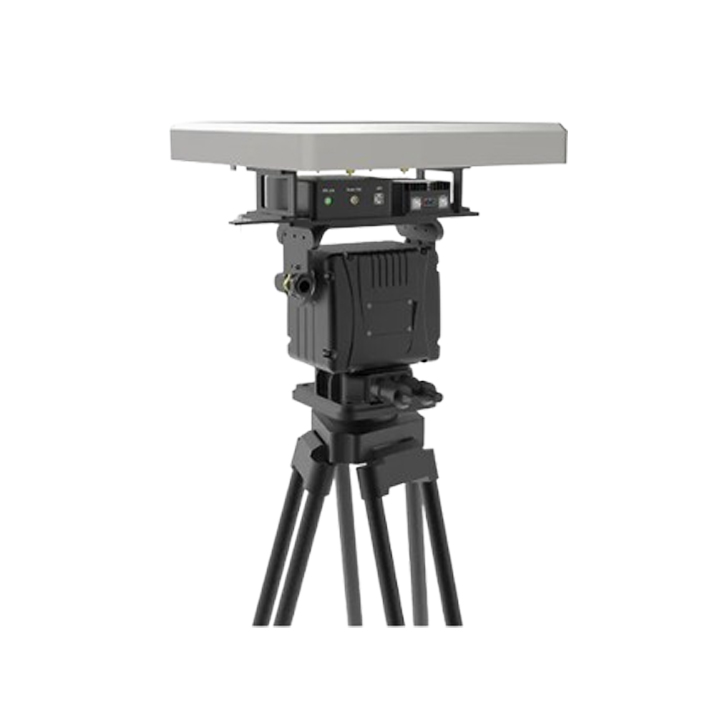

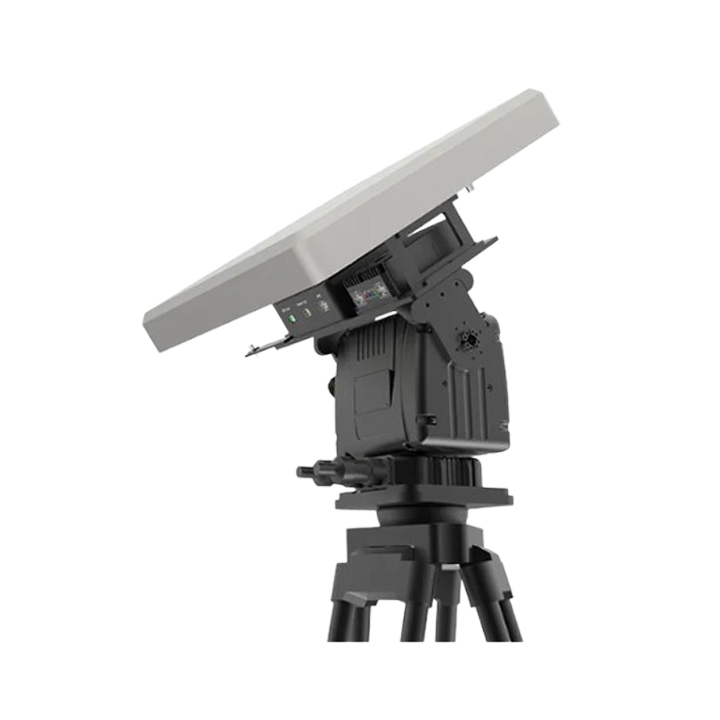

VTA-AutoPro Tracking Antenna System

Quick Deployment Solution
Directional Antenna
High Speed Automatic PTZ
360° Horizontal Continuous Rotation
Increase Transmission Distance
Improve Transmission Data Rate

Mesh Radio – Typical System Solution

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base StationChina Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

Specification

Directional Antenna
Frequency Range
1300-1500MHz
Gain
15dBi
SWR
≤ 2.0
Polarization
Vertical
Directional
Vertical 31°
Impedance
50Ohm
Connector
SMA
Dimension
380 × 380 × 57mm
Material
ABS
Weight
1580g
Professional Automatic PTZ
Pan Range
360°
Tilt Range
0°-+90° (-90°-+90° Cus.)
Pan Speed
0.1°-30° / s
Tilt Speed
0.1°-8° / s
Protocol
Pelco-D
Baud Rate
2400 / 4800 / 9600 / 19200bps
Communication
RS485
Load Bearing
10000g
Power Supply
DC28V (DC24V-36V)
Weight
6500g
Tracking Position
Mode
GPS / Beidou
Accuracy
≤ 1m
Antenna
33±2dB
Physical
Operating Temperature
-20°C-+75°C
Protection Level
IP65 (Customized)

Packaging & Shipping

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base StationChina Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

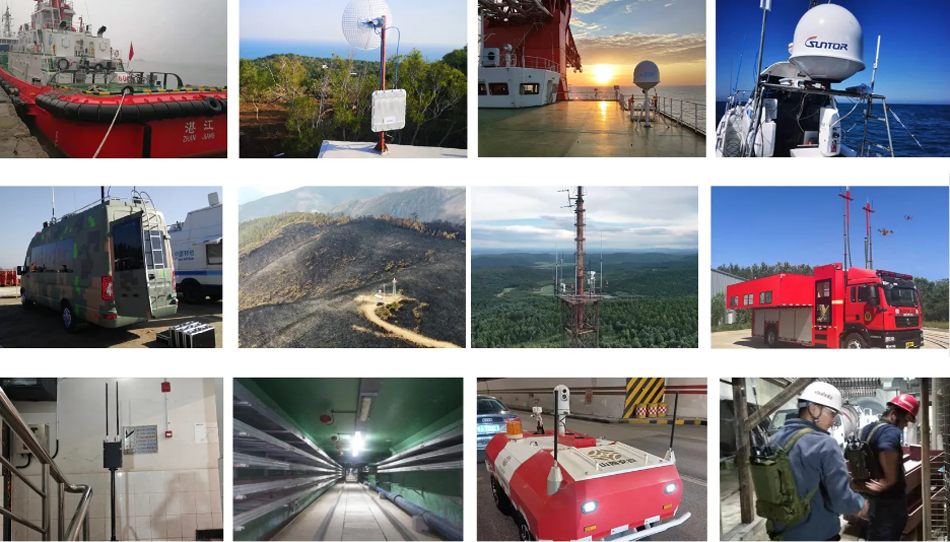

Application

IP Mesh Radio Application Case

China Moneypro Multi-Hop Narrowband IP Mesh Manpack Tactical Radio Base Station

China Moneypro 15.6
