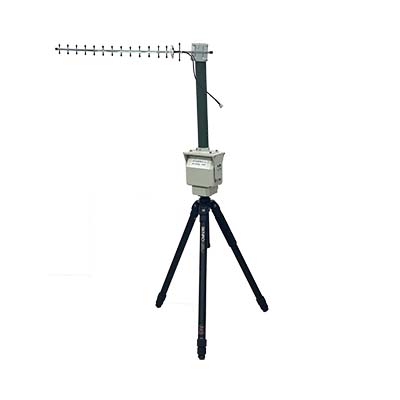

China Moneypro Automatically Tracking System for Directional Antenna

Main function & Technical index：

Manual tracking and GPS data tracking function

Adjust the rotation speed function

Collecting azimuth/pitch angle function

Self weight and bearing: 3kg/5kg(portability)

Antenna pedestal structure: position-pitch type

Rotation range: Position: 360°; Pitch: -10~+45°

Rotation accuracy: 0.1° Dynamic pointing precision of rotation: 0.1°

Rotary speed of rotation: 0.1°/s~ 20°/s Rotation acceleration: 10°/s²

Power: 12VDC/5A

Temperature: -25℃~+55℃
