Home » Unmanned System Products » China Moneypro Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio
High Powered Vehicle Mounted IP Mesh Radio for IP-Based Data and Video Transmission
Back to products
China Moneypro Wireless OEM Ugv/Drone Digital Data Link for Wireless Video and Telemetry Communications

China Moneypro Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio

The China Moneypro Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio is a lightweight, ruggedized communication solution engineered for frontline personnel operating in demanding tactical environments. Designed for body-worn or manpack deployment, it integrates high-speed broadband capabilities with self-healing mesh networking, delivering reliable IP-based data and video transmission even in remote, obstructed, or dynamic scenarios. Optimized for mobility and durability, the radio supports real-time streaming of high-definition video, mission-critical data sharing, and secure voice communications—empowering teams in law enforcement, military operations, emergency response, or field surveillance to maintain situational awareness and seamless collaboration. Its compact, ergonomic design ensures ease of carrying during extended missions, while the robust mesh architecture enables ad-hoc network formation with other tactical nodes (vehicles, fixed stations, drones) for scalable, resilient connectivity when traditional networks are unavailable.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB08
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤ 30W
Specification 2W(1W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

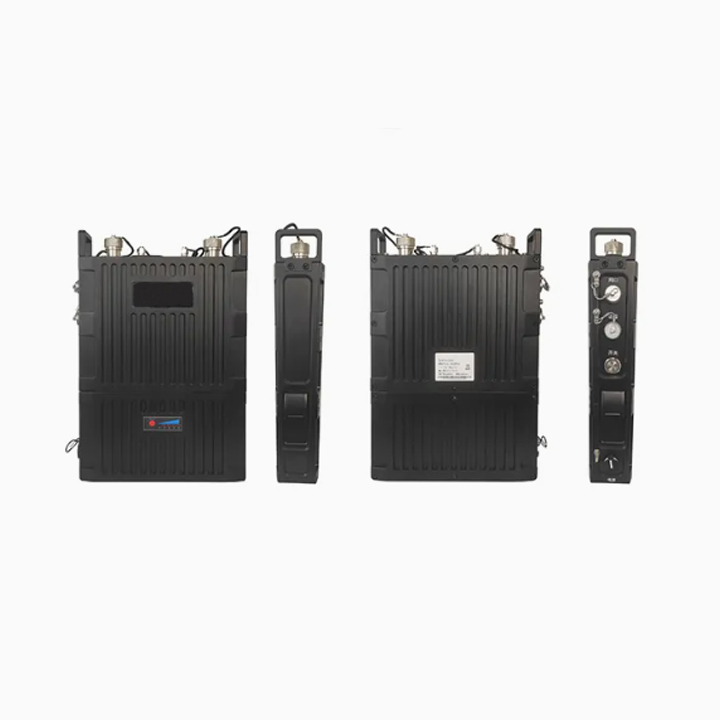

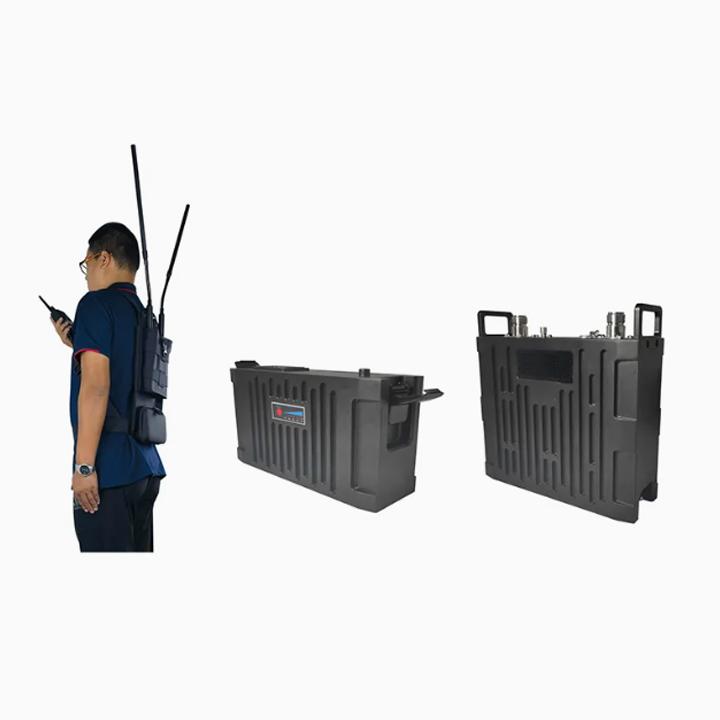

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

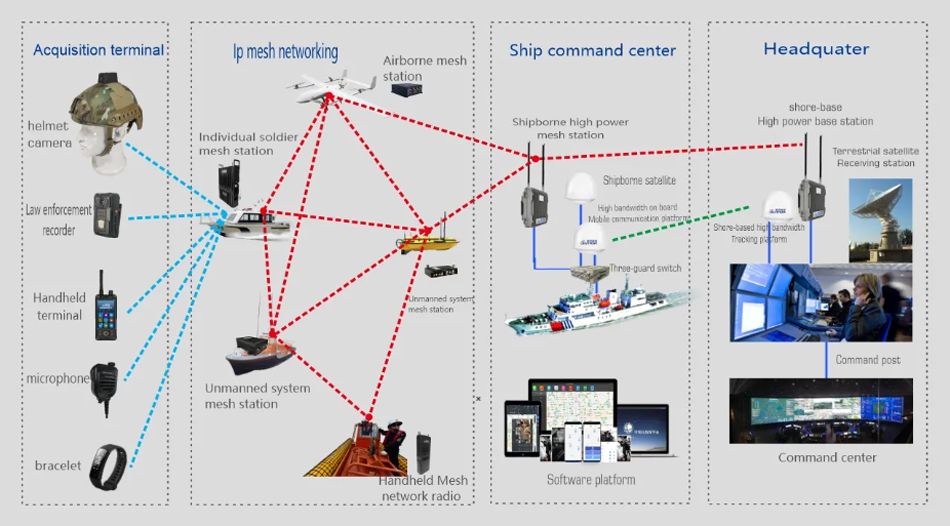

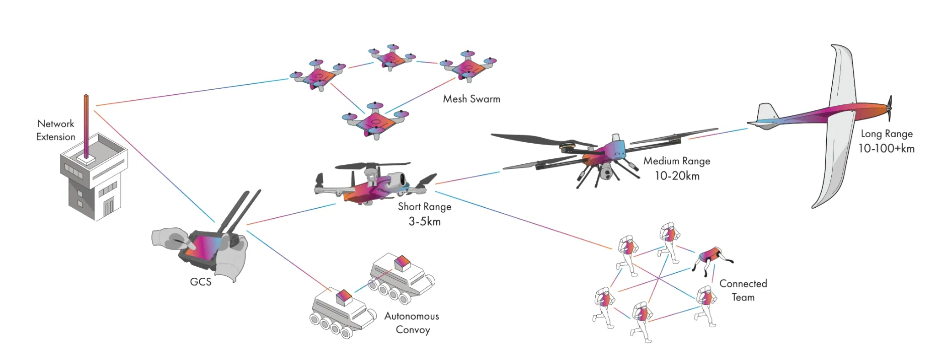

Mesh Radio – Typical System SolutionSuntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh RadioSuntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh RadioSuntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

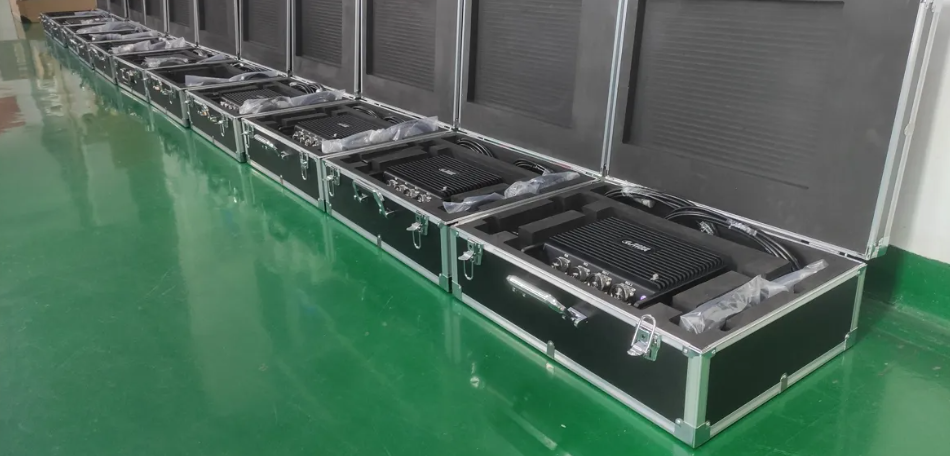

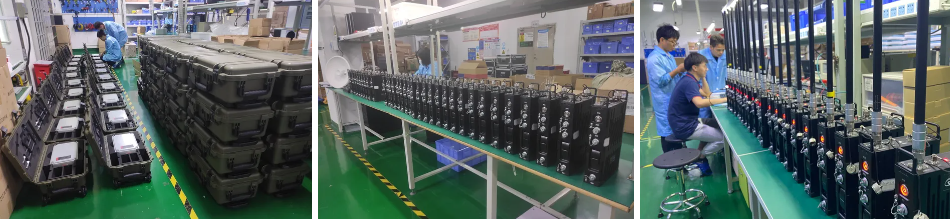

Packing & Delivery

Suntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh RadioSuntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio

Application

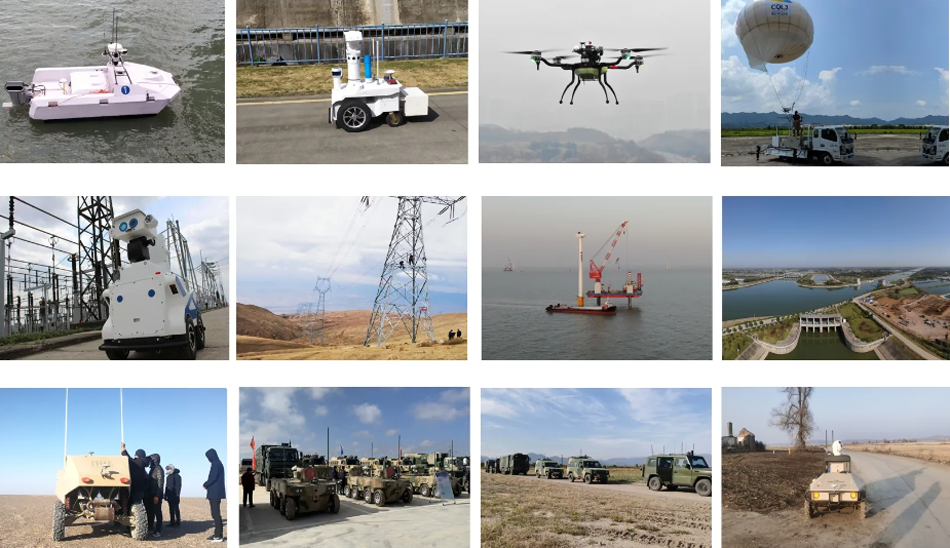

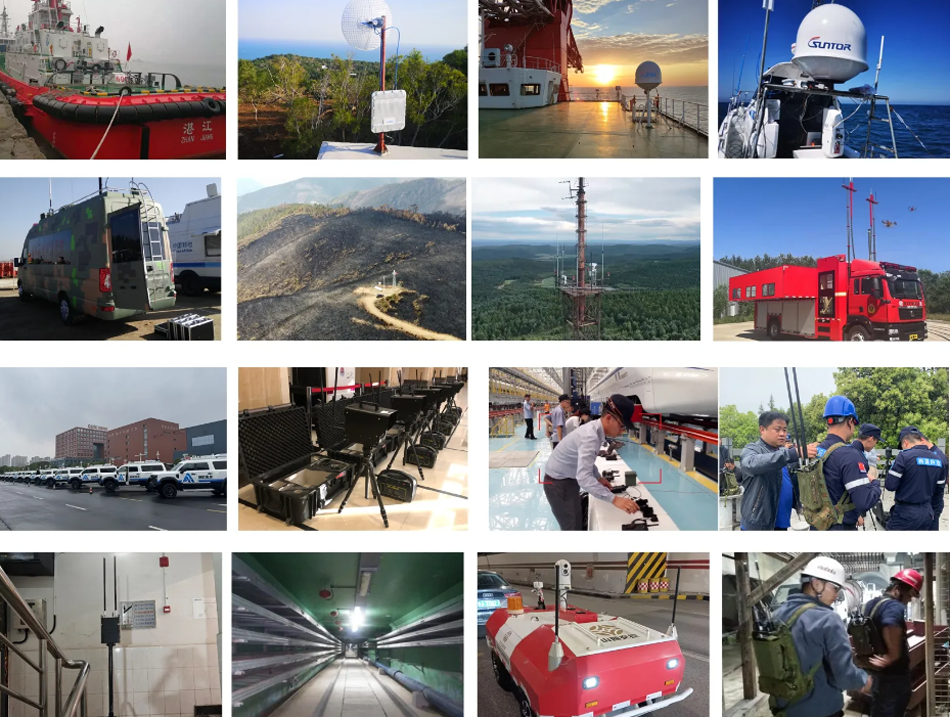

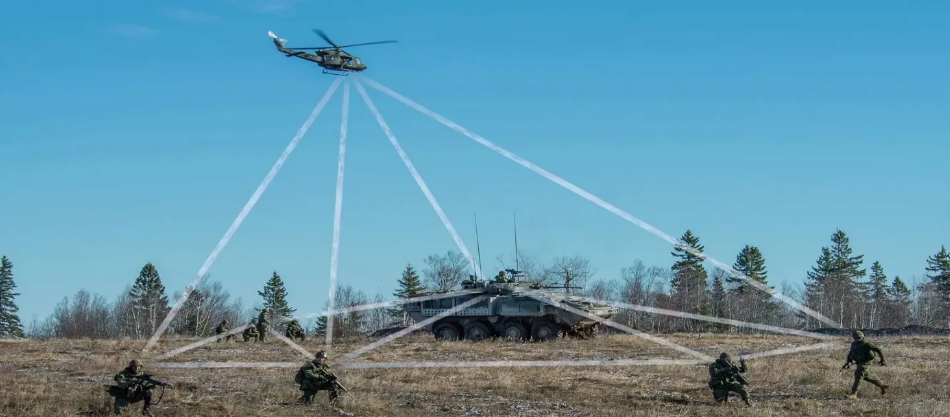

IP Mesh Radio Application Case

Suntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio

Suntor Broadband Wireless Tactical Body-Worn Manpack IP Mesh Radio
