Home » Unmanned System Products » China Moneypro Data and Video Transmission Systems Drone Data Link for Drones and Robotics
High Data Rate Digital Drone Datalink for Wireless Communications Radio
Back to products
Drone Radio Datalink Compatible with All Uav Data Radio & Image Link for Uavs

China Moneypro Data and Video Transmission Systems Drone Data Link for Drones and Robotics

China Moneypro’s Data and Video Transmission Systems Drone Data Link is a versatile, high-performance communication solution engineered for seamless integration with drones and robotics. Designed to bridge the data gap between unmanned systems and ground control, it enables stable, low-latency transmission of real-time video feeds, critical telemetry data (position, status, sensor readings), and control commands—supporting both professional UAV missions and robotic operations. Leveraging advanced digital communication technology, the system delivers robust anti-interference capabilities and consistent connectivity, even in dynamic or electromagnetic complex environments, while accommodating the diverse data needs of industrial inspections, aerial surveying, autonomous robotics, and other precision-focused applications. Blending reliable Chinese manufacturing with user-centric design, this datalink offers broad compatibility and scalable performance, making it a trusted choice for users seeking efficient, all-in-one data and video transmission for drones and robotic platforms.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20Pro
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 94.5 × 77 × 32mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Specification 330Grams Weight
Origin China
Production Capacity 5000PCS/Month
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 25dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 330g (Air)
Transmission Distance 20km Air-to-Ground
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Product Description

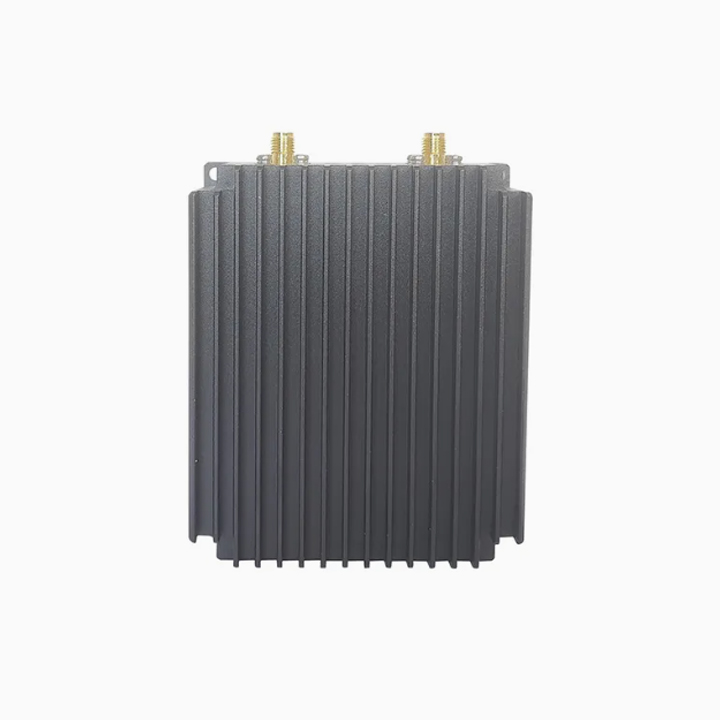

M20Pro Drone Video Transmission Radio

330 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission DistanceChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and RoboticsChina Moneypro Data and Video Transmission Systems Drone Data Link for Drones and Robotics

Specification

Wireless TDD-OFDM / MIMO / 1T2R
Technology QPSK / 16QAM / 64QAM
Modulation 24Mbps @ 10MHz (Peak)
Data Rate 24Mbps @ 10MHz (Peak)
Frequency Range 1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth 5MHz / 10MHz / 20MHz
Tx Power 25dBm ± 2
Rx Sensitivity -99dBm @ 5MHz
System

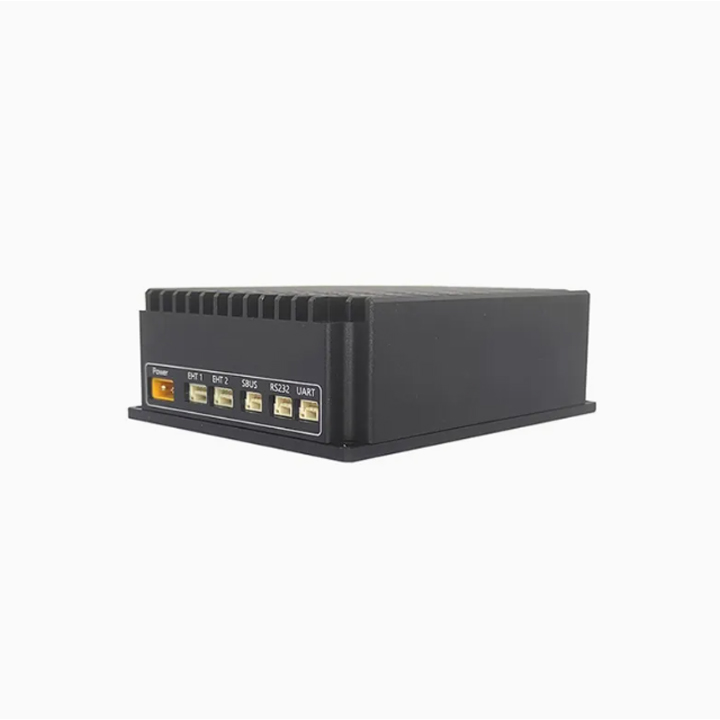

Serial Port 1 TTL + 1 RS232 + 1 S.BUS
Video Port 2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security AES128 Encryption
Power DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air)
Interfaces

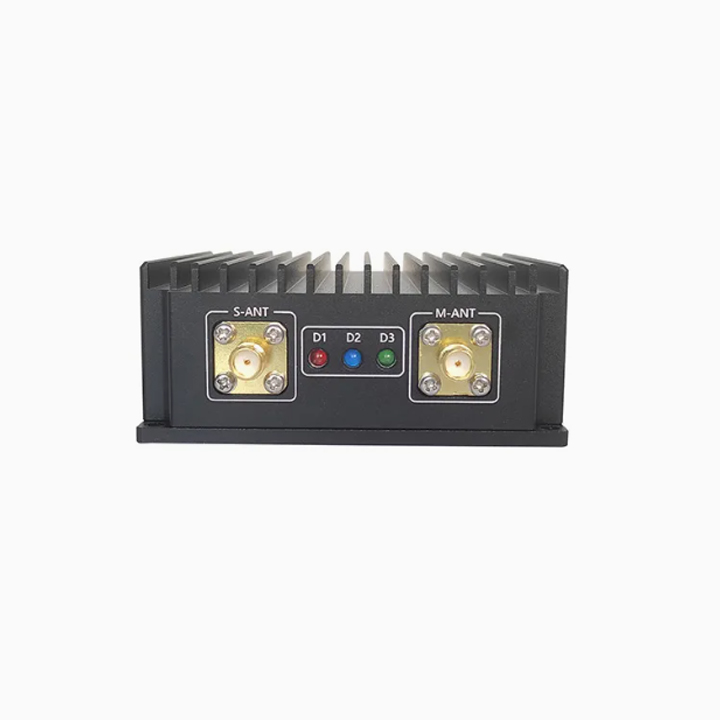

RF Antenna SMA × 2
Serial Port Interface JST × 2
S.BUS Interface JST × 1
Video Port Interface JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input XT30
Physical
Dimension ≤ 94.5 × 77 × 32mm (Air)
Weight ≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2 Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

Packing & Delivery

China Moneypro Data and Video Transmission Systems Drone Data Link for Drones and Robotics
