Home » Unmanned System Products » China Moneypro Data Link and Video Link Systems MS232 Los Datalink for Drones
China Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & Uav
Back to products
China Moneypro Drone Video Transmission Radio 20km Data Links for Drones and Robotics

China Moneypro Data Link and Video Link Systems MS232 Los Datalink for Drones

The MS232 LOS Datalink by China Moneypro is a dedicated integrated data and video transmission system engineered for drone operations. Optimized for line-of-sight (LOS) scenarios, it enables high-reliability, low-latency delivery of flight telemetry, control signals, and high-definition video between drones and ground stations. Built with robust anti-interference technology and compact, drone-friendly design, this system caters to professional applications—including industrial inspection, aerial surveying, and public safety—ensuring consistent communication even in demanding field conditions. It seamlessly integrates with various drone platforms, offering a trustworthy solution for real-time data sharing and precise remote operation.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20Pro
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 94.5 × 77 × 32mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Specification 330Grams Weight
Origin China
Production Capacity 5000PCS/Month
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 25dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 330g (Air)
Transmission Distance 20km Air-to-Ground
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Product Description

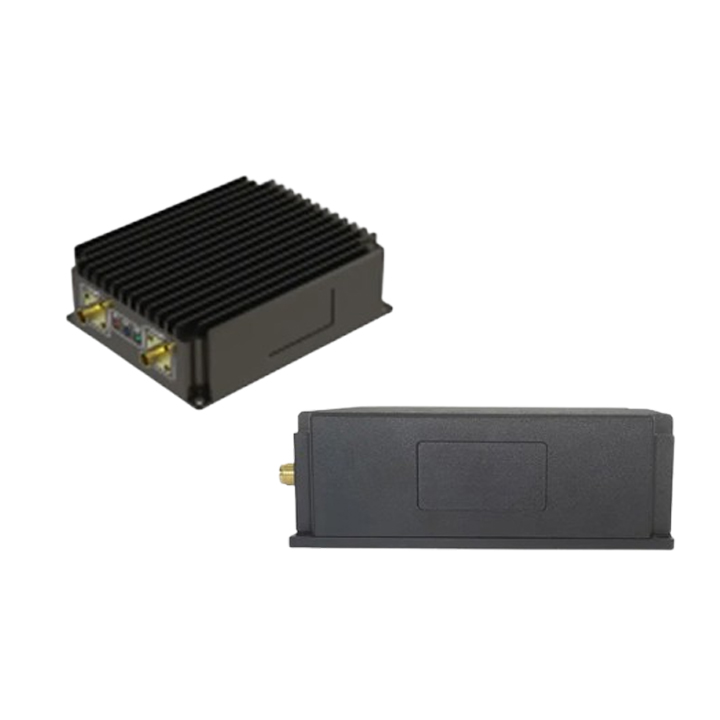

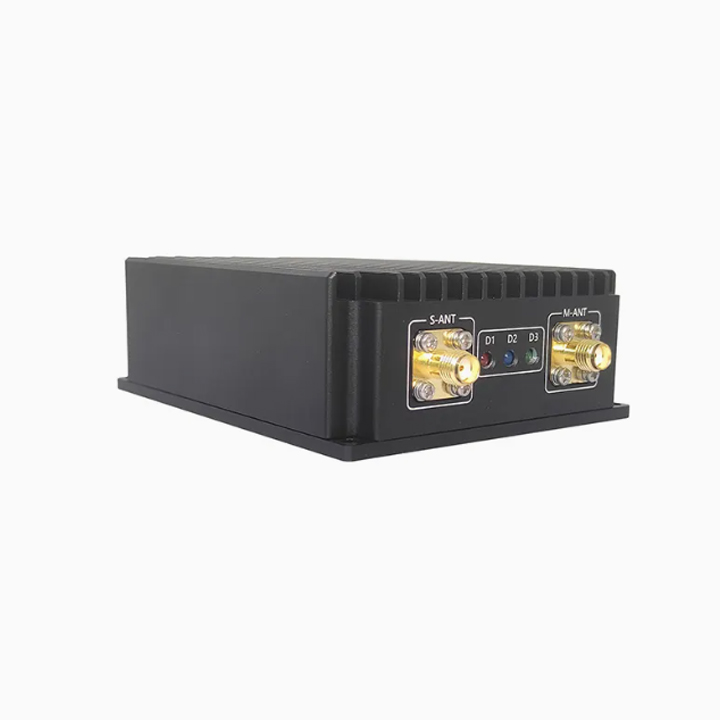

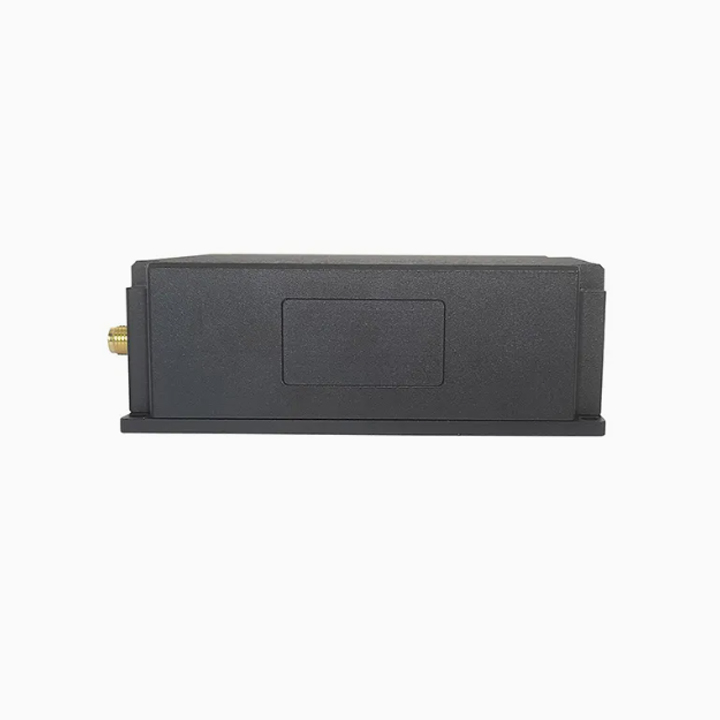

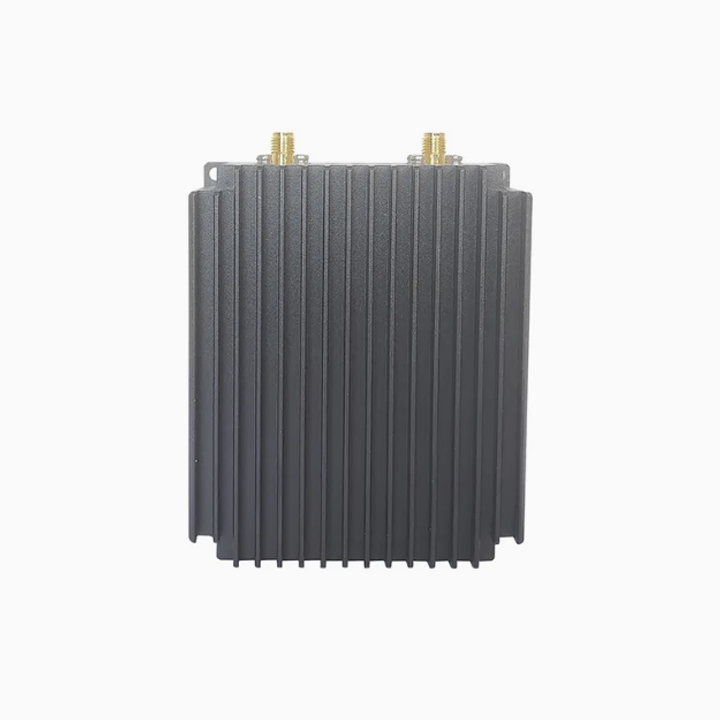

M20Pro Drone Video Transmission Radio

330 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
China Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & UavChina Moneypro Data Link and Video Link Systems MS232 Los Datalink for Drones China Moneypro Data Link and Video Link Systems MS232 Los Datalink for Drones China Moneypro Data Link and Video Link Systems MS232 Los Datalink for DronesChina Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & UavChina Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & UavChina Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & UavChina Moneypro Data Link and Video Link Systems MS232 Los Datalink for Drones

Specification

Wireless TDD-OFDM / MIMO / 1T2R
Technology QPSK / 16QAM / 64QAM
Modulation 24Mbps @ 10MHz (Peak)
Data Rate 24Mbps @ 10MHz (Peak)
Frequency Range 1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth 5MHz / 10MHz / 20MHz
Tx Power 25dBm ± 2
Rx Sensitivity -99dBm @ 5MHz
System
Serial Port 1 TTL + 1 RS232 + 1 S.BUS
Video Port 2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security AES128 Encryption
Power DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air)
Interfaces
RF Antenna SMA × 2
Serial Port Interface JST × 2
S.BUS Interface JST × 1
Video Port Interface JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input XT30
Physical
Dimension ≤ 94.5 × 77 × 32mm (Air)
Weight ≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2 Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

Packing & Delivery

China Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & Uav
