China Moneypro M50 Customized Drone Wireless Video Transmitter for Uav and Robotics with Video and Control Data Transmitting
Back to products
100-150km Drone Data Link Long Range Drone Video Transmitter for HD Video and Full Duplex Data

China Moneypro Drone Data Link IP Mesh Radio Advanced Digital Data Wireless Communication System

The China Moneypro Drone Data Link IP Mesh Radio represents a cutting-edge advancement in digital wireless communication for unmanned aerial systems (UAS). Built on state-of-the-art IP Mesh technology, this system delivers reliable, low-latency data transmission across complex operating environments, enabling seamless connectivity between drones, ground control stations, and other network nodes. Designed specifically for drone applications, it supports high-bandwidth data streams—including real-time video, telemetry, and command signals—while maintaining robust performance in scenarios with obstacles, signal interference, or dynamic flight paths. Its advanced digital modulation and error-correction algorithms ensure stable communication even at extended ranges, making it ideal for professional use cases such as aerial surveying, inspection, search and rescue, and industrial monitoring. With plug-and-play integration, scalable network capacity, and resistance to signal degradation, the China Moneypro IP Mesh Radio empowers drones to operate with enhanced situational awareness and operational efficiency, setting a new standard for UAS data communication reliability.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M50
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 126 × 69 × 22mm (Air)
Interfaces Eth × 1, Ttl × 1, Pwr × 1
Security Protection AES128
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 33dBm ± 2
Data Rate 24Mbps @ 10MHz (Peak)
Weight ≤ 180g (Air)
Frequency Range 1.4G / 2.4GHz
Transmission Distance 50km Air-to-Ground
Specification 180Gram
Origin China
Production Capacity 5000PCS/Month

Product Description

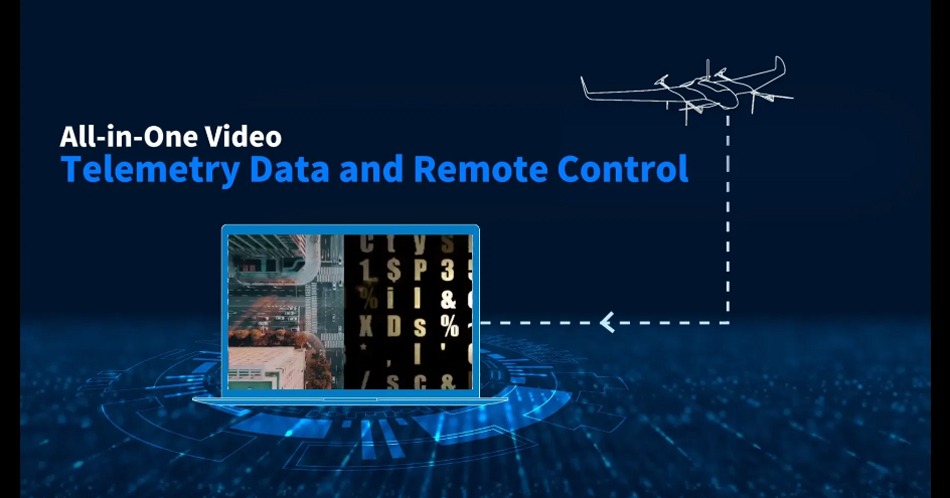

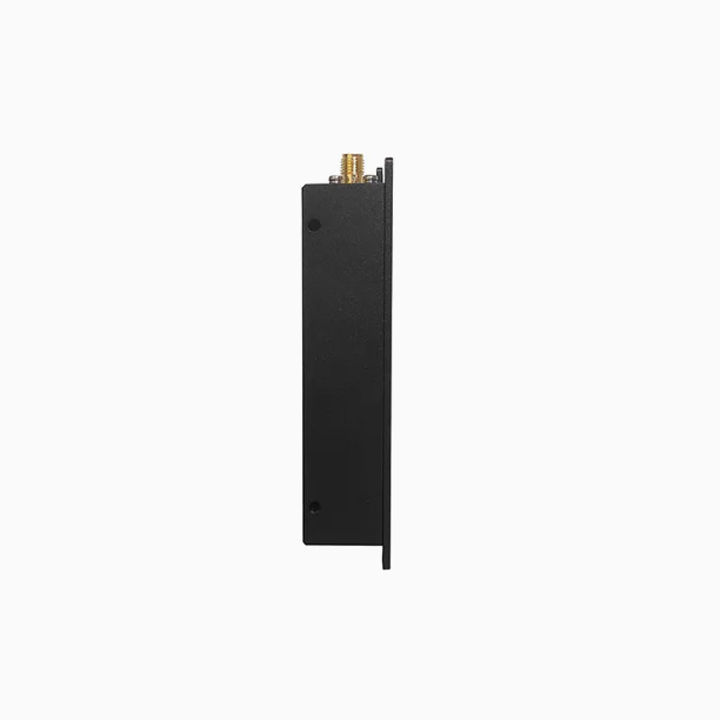

M50 Drone Video Transmission Radio

180 Grams Weight

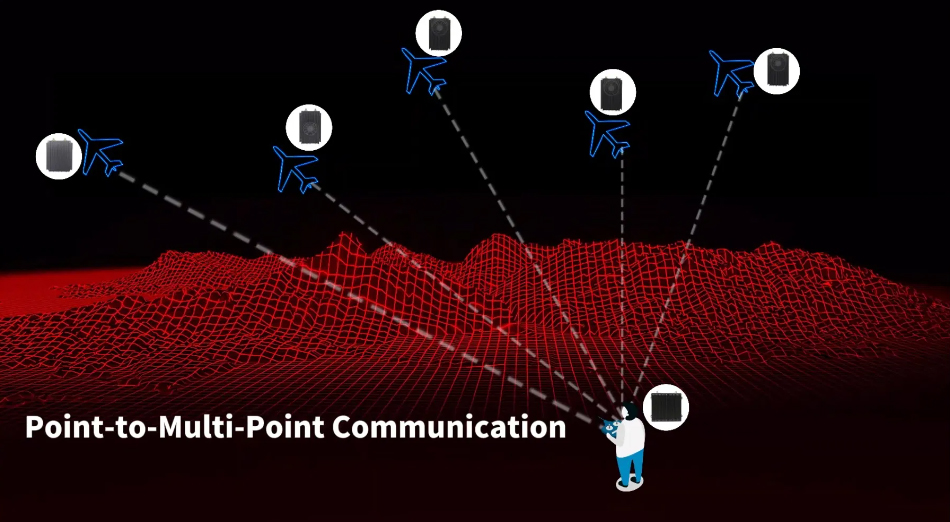

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
50KM Air-to-Ground Transmission Distance
Suntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex DataSuntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex DataSuntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex DataSuntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex DataSuntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex DataSuntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex Data

Specification

Wireless
TDD-OFDM / MIMO / 1T2R
Technology
QPSK / 16QAM / 64QAM
Modulation
24Mbps @ 10MHz (Peak)
Data Rate
24Mbps @ 10MHz (Peak)
Frequency Range
1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth
5MHz / 10MHz / 20MHz
Tx Power
33dBm ± 2
Rx Sensitivity
-99dBm @ 5MHz
System
Serial Port
1 TTL
Video Port
1 ETH
Security
AES128 Encryption
Power
DC12V-24V Power Supply
≤ 12W @ DC12V Power
Consumption (Air)

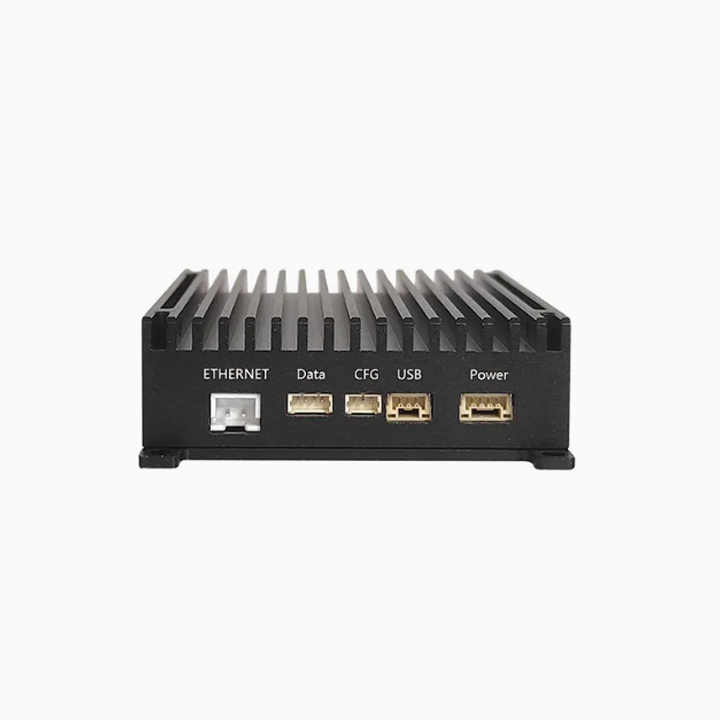

Interfaces
RF Antenna
SMA × 2
Serial Port Interface
JST × 1
S.BUS Interface
N/A
Video Port Interface
JST(ETH) × 1
Power Input
JST × 1
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2
ETH Cable × 1; Serial Cable × 1; JST Power Cable × 1

Packing & Delivery

Suntor M150PRO Long Range Drone Video Transmitter for HD Video and Full Duplex Data
