Home » Unmanned System Products » China Moneypro Drone Mesh Radio Wireless Datalink Technology for Uav & Drones
Wireless Drone and Robotics Uav Data Link Technology Long Range Datalinks for Unmanned Systems
Back to products
China Moneypro Multi-Hop Mesh Manpack Mesh Radio Wireless Transmitter Base Station

China Moneypro Drone Mesh Radio Wireless Datalink Technology for Uav & Drones

China Moneypro’s Drone Mesh Radio Wireless Datalink is a game-changing connectivity solution tailored for UAVs and drones, blending reliable long-range performance with innovative mesh networking capabilities. Engineered for seamless collaboration in complex scenarios, this datalink enables multi-drone swarm operations through self-healing mesh technology—ensuring uninterrupted transmission of control signals, HD video, and sensor data even if individual nodes are disrupted. Built with industrial-grade durability and anti-interference resilience, it thrives in harsh environments (remote areas, urban landscapes, or industrial zones) while offering easy integration with various drone platforms. Ideal for mission-critical applications like surveillance, search and rescue, infrastructure inspection, and precision agriculture, China Moneypro’s mesh radio datalink empowers UAVs to operate efficiently beyond visual line of sight (BVLOS), delivering consistent, high-performance connectivity for demanding drone operations.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MD02
Information Content Text, Picture, Video, Audio
Frequency Range 1300~1500MHz
Networking ≥ 52 Nodes
Security Protection AES128/256
Power Consumption ≤ 30W
Specification 350Grams
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Packaging & Delivery

Package Size 10.70cm * 8.40cm * 3.70cm
Package Gross Weight 0.350kg

Product Description

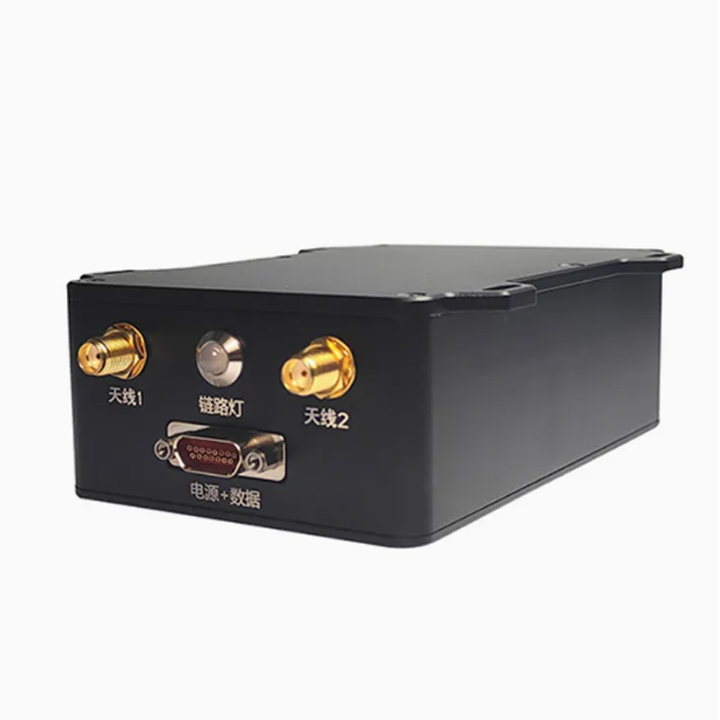

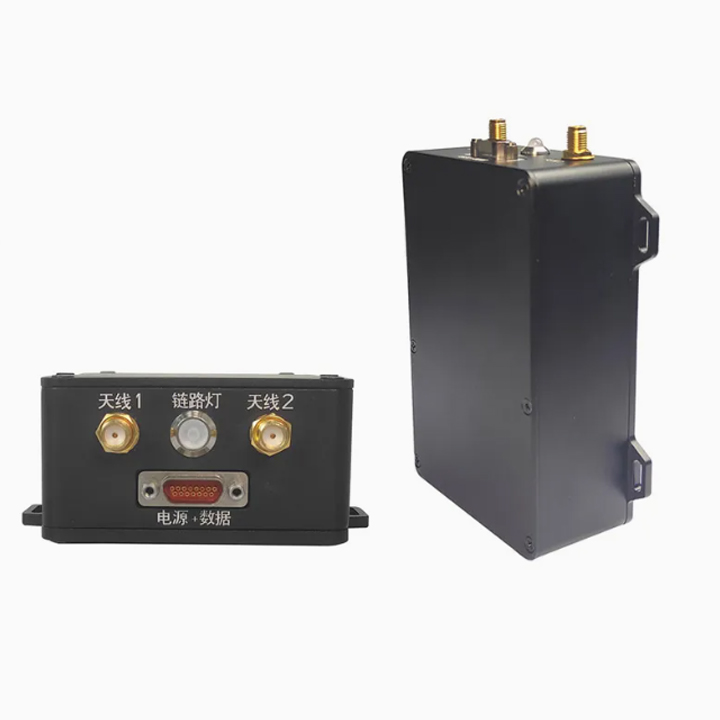

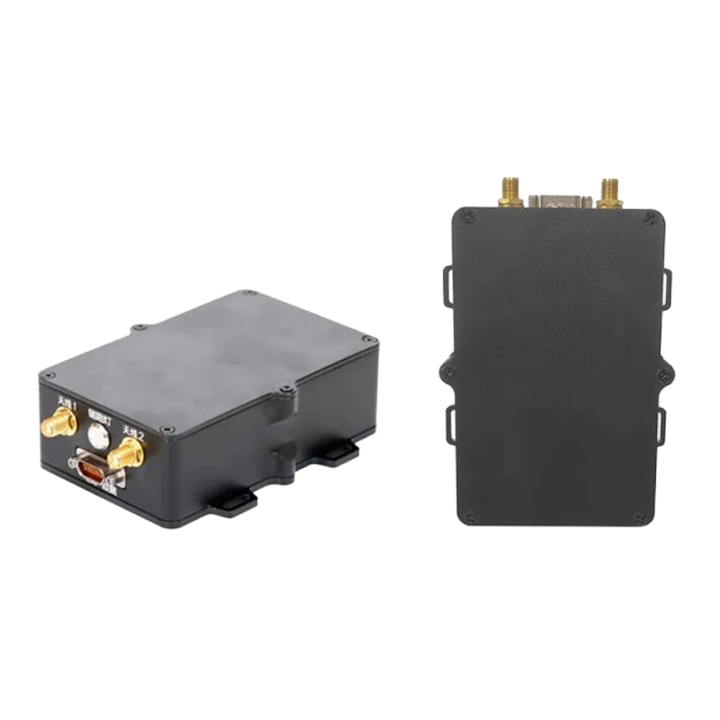

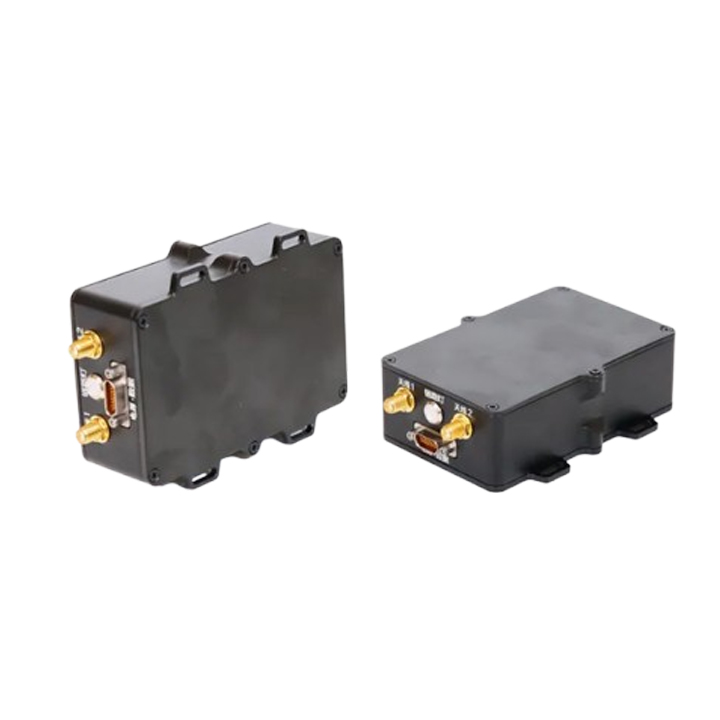

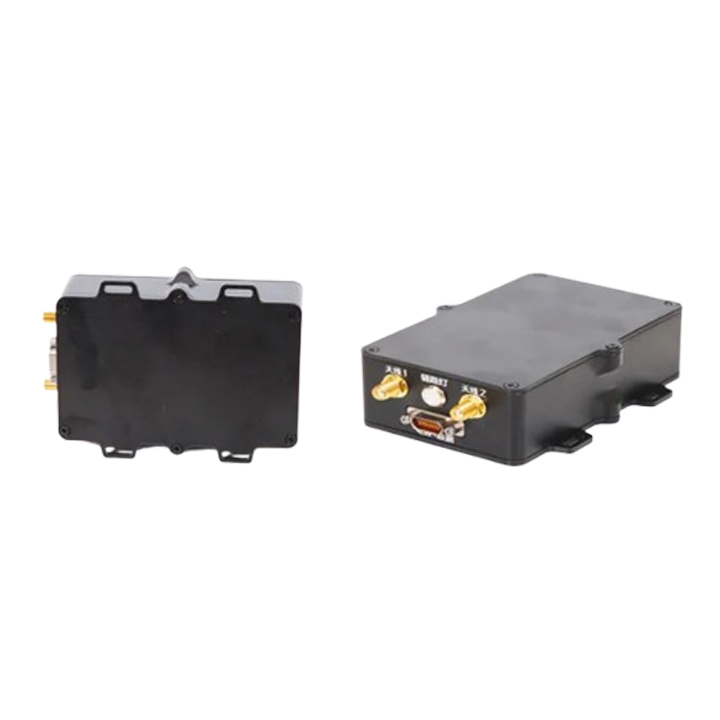

MD02 Drone Mesh Radio

Small Size & Light Weight
2 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
30KM Air-to-Ground Transmission Distance

Mesh Radio – Typical System Solution

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
SMA × 2
GPS Antenna
N/A
WIFI Antenna
N/A
Ethernet Interface
J30J Connector
Serial Port Interface
J30J Connector
Power Interface
J30J Connector
Physical
Dimension
≤ 107 × 84 × 37mm
Weight
≤ 350g (Host Only)
Protection Level
IP65
Operating Temperature
-30°C-+65°C

Packing & Delivery

China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module

Application

IP Mesh Radio Application Case

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver
