Overview
Basic Info.
| Model NO. | V20Pro-J30J |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Frequency | 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.) |
| Power Supply | DC12V-24V |
| Dimension | ≤ 94.5 × 77 × 32mm (Air) |
| Interfaces | 1 Ttl + 1 RS232 + 1 S.Bus |
| Security Protection | AES128 |
| Specification | 330Grams Weight |
| Origin | China |
| Production Capacity | 5000PCS/Month |
| Work Mode | TDD |
| Information Content | Text, Picture, Video, Audio |
| RF Power | 25dBm ± 2 |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Weight | ≤ 330g (Air) |
| Transmission Distance | 20km Air-to-Ground |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
Product Description
M20Pro Drone Video Transmission Radio
330 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
Specification
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
Specification| Wireless | TDD-OFDM / MIMO / 1T2R |
| Technology | QPSK / 16QAM / 64QAM |
| Modulation | 24Mbps @ 10MHz (Peak) |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Frequency Range | 1428-1448MHz (Standard) 2401-2481MHz (Optional) 806-826MHz (Optional) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Tx Power | 25dBm ± 2 |
| Rx Sensitivity | -99dBm @ 5MHz |
| System | |

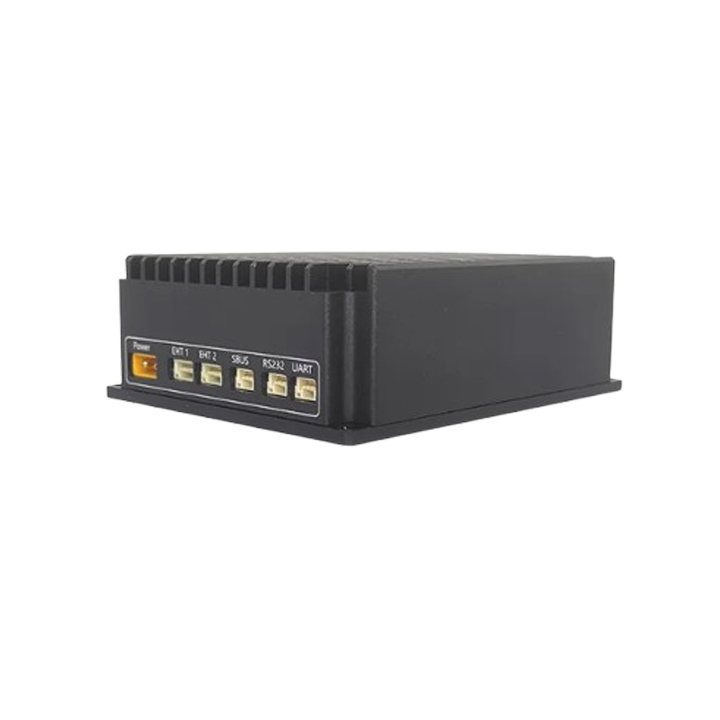

| Serial Port | 1 TTL + 1 RS232 + 1 S.BUS |
| Video Port | 2 ETH or 1 ETH + 1 SDI/HDMI(Customized) |
| Security | AES128 Encryption |
| Power | DC12V-24V Power Supply ≤ 6W @ DC12V Power Consumption (Air) |

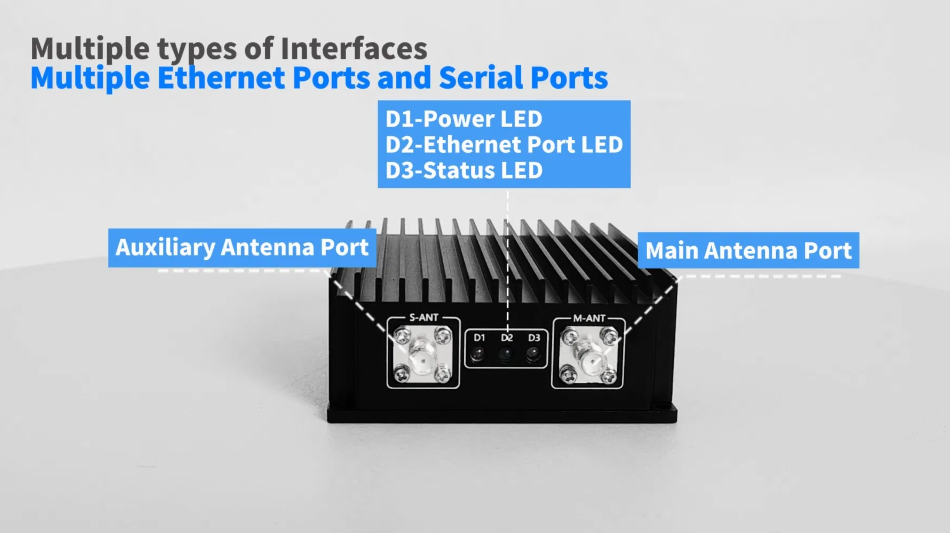

| Interfaces | |
| RF Antenna | SMA Ă— 2 |
| Serial Port Interface | JST Ă— 2 |
| S.BUS Interface | JST Ă— 1 |
| Video Port Interface | JST(ETH) Ă— 2 or JST(ETH) Ă— 1 + SDI/HDMI Ă— 1(Cus.) |
| Power Input | XT30 |
| Physical | |
| Dimension | ≤ 94.5 × 77 × 32mm (Air) |
| Weight | ≤ 330g (Air) |

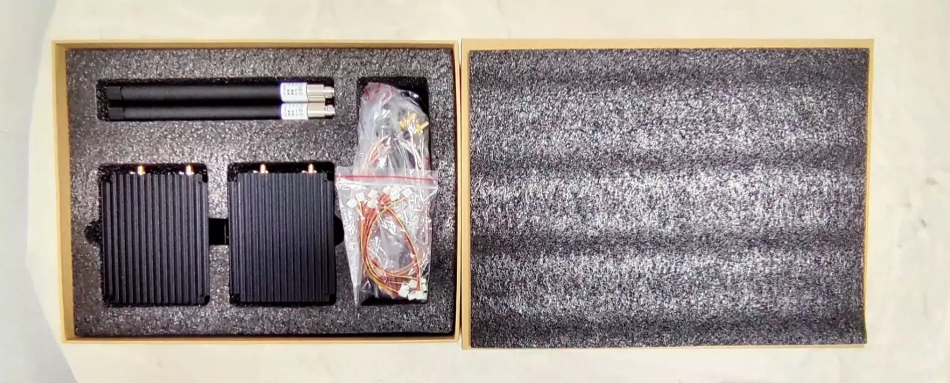

| ACCESSORIES | |
| OMNI Antenna for Air Unit Ă— 2; OMNI Antenna for Ground Unit Ă— 2 | Serial Cable Ă— 2;S.BUS Cable Ă— 1;XT30 Power Cable Ă— 1 |
| ETH Cable Ă— 2 or ETH Cable Ă— 1 + SDI/HDMI Cable Ă— 1 (Customized) |
