Specification

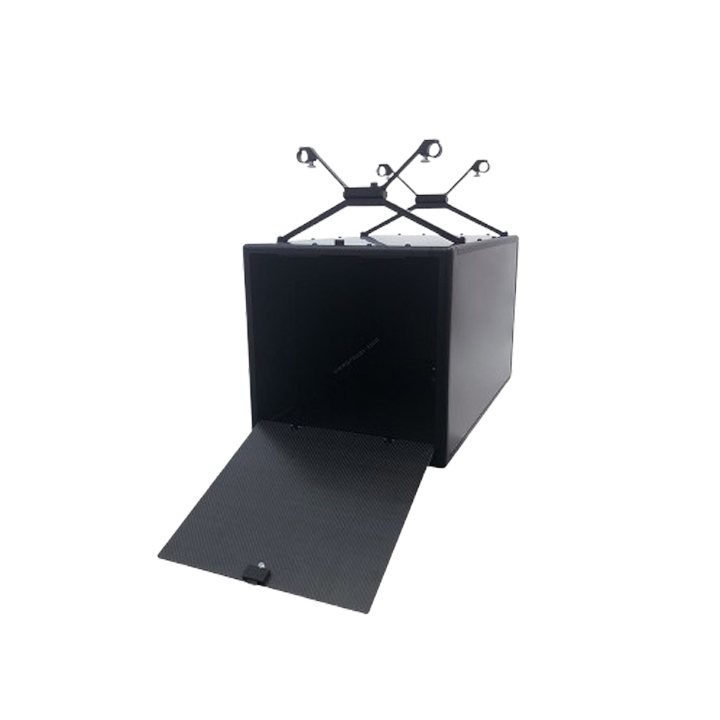

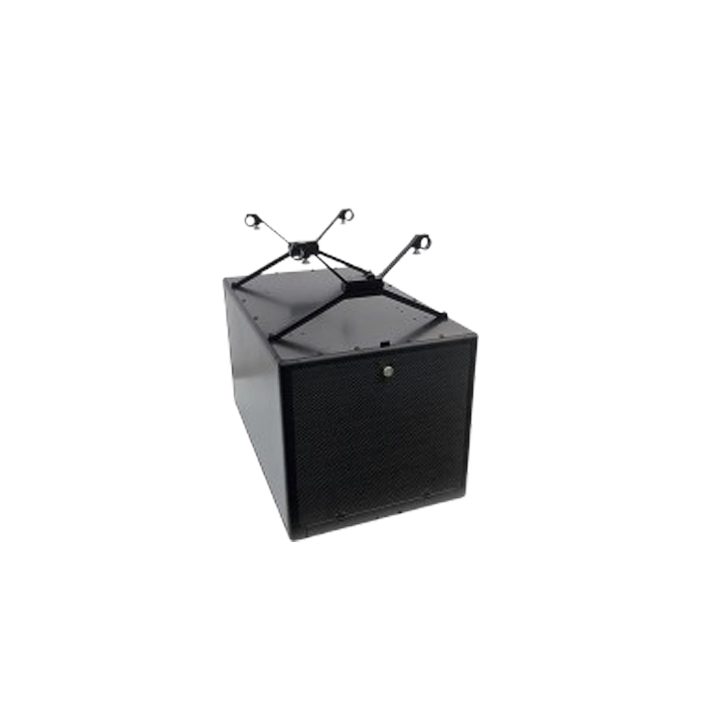

| Drop box | Remote control device |
| Product Size: 378*230*274mm (Model M600 Pro) | Overall size: 180 *82*161mm |
| Packing size: 466*390*351mm | Weight: 392g |
| Internal cavity size: 218*215*366mm | Input power supply: 1.5A A44 |
| Side Door Size: 207*190mm | Data output: P52 interface PPM |
| Installation mode: Quick disassembly | Frequency range: 2.4055-2475GHZ |
| Net weight: 1.70KG | Band Width: 500KHZ |
| Volume of approximately: 17L | Transmiter power: not above 20dBm |
| Max load capacity: 5KG | Low voltage alarm is below 4.2V |

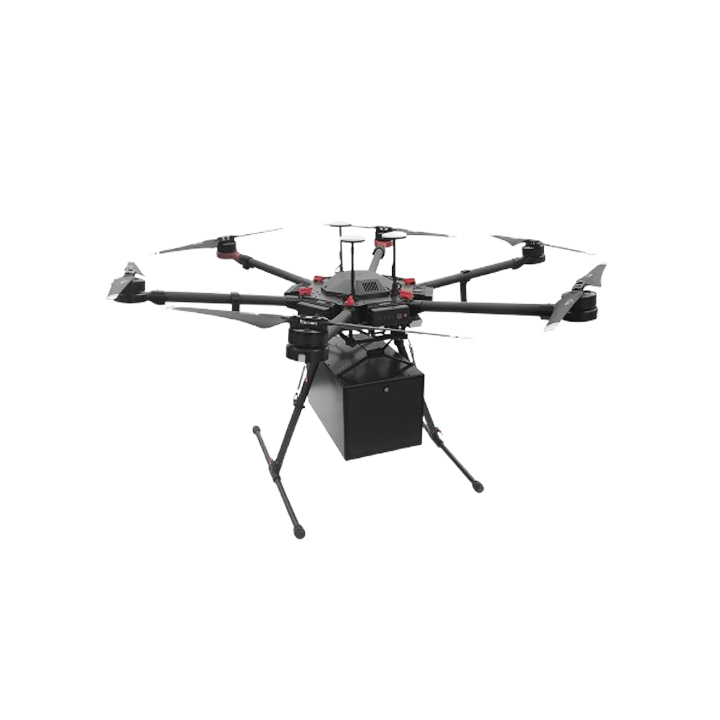

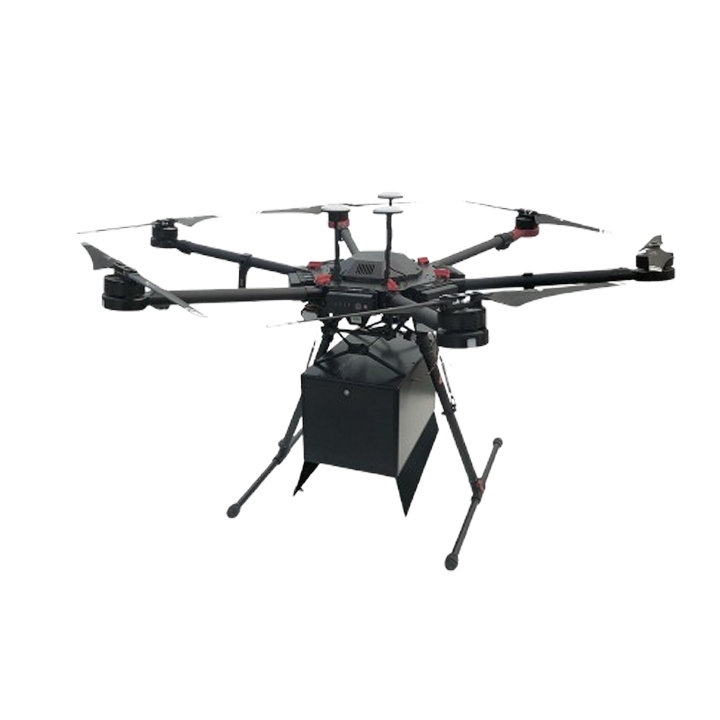

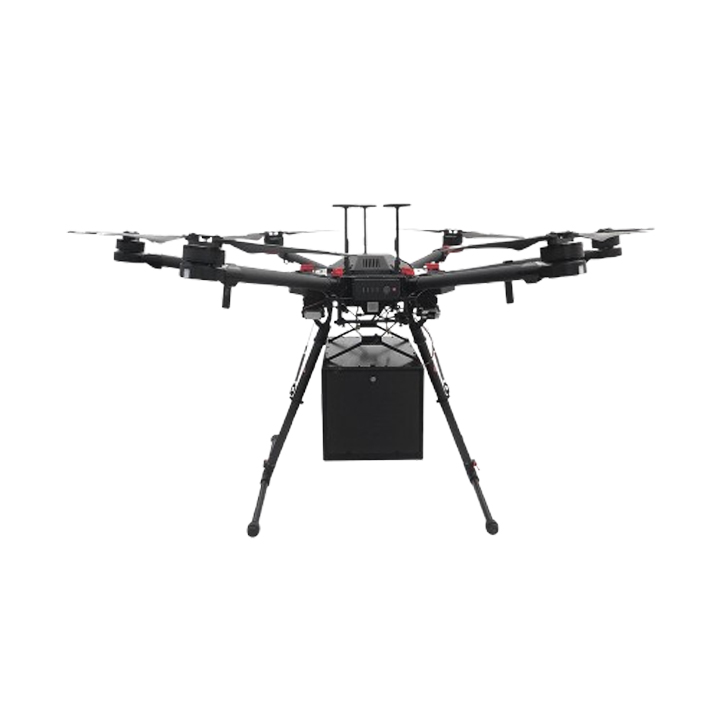

| Support platforms: Viewpro M115, Viewpro Herc M180, DJI M600 Pro and vehicles above 5KG | No charging interface |
| Antenna length: 26 mm*2 (built-in dual antenna) | |
| Control mode: Independent remote control | Display mode: STN semi transparent positive display |
| Control distance: 800M LOS | 128×64 lttice |
| Expand channel: M600 expansion Channel enabled (contact Sales first) | VA73*39 mm LED White backlight |
| Notes: provide support for custom airbore or independent power | supply |
