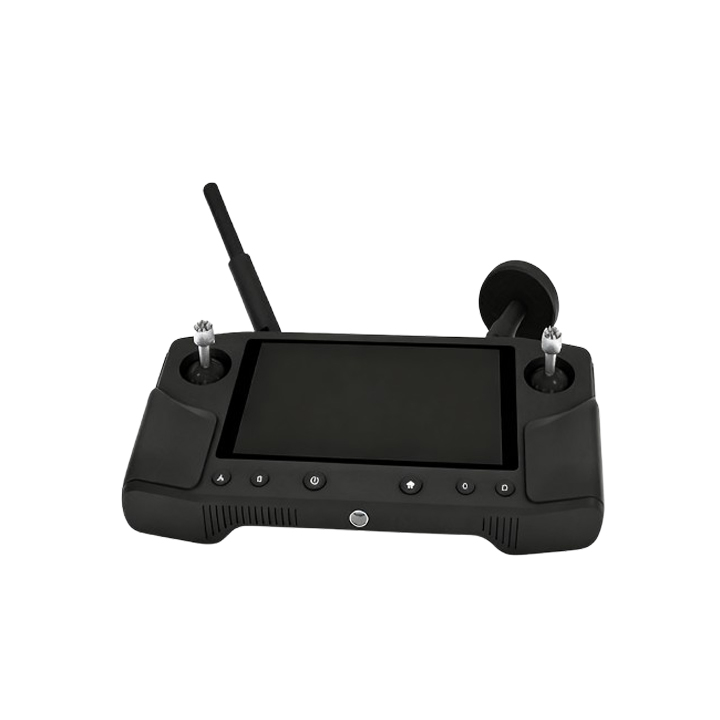

This HD Video Transmission System leverages PineSync technology powered by the S1 processor. It serves as a user-friendly device designed for transmitting HDMI video and audio signals, all offered at a budget-friendly price point.
Smooth signal transmission over long distances
This system delivers an impressive signal transmission range of up to 20 kilometers, paired with an ultra-low minimum latency of just 110ms—ensuring smooth, near-real-time video and audio delivery. It is equipped with two HDMI input ports to accommodate multiple signal sources, and supports a range of high-definition video formats, including 720p at 30fps, as well as 1080p at both 30fps and 60fps for crisp, clear visual output.
Powerful image processing capabilities

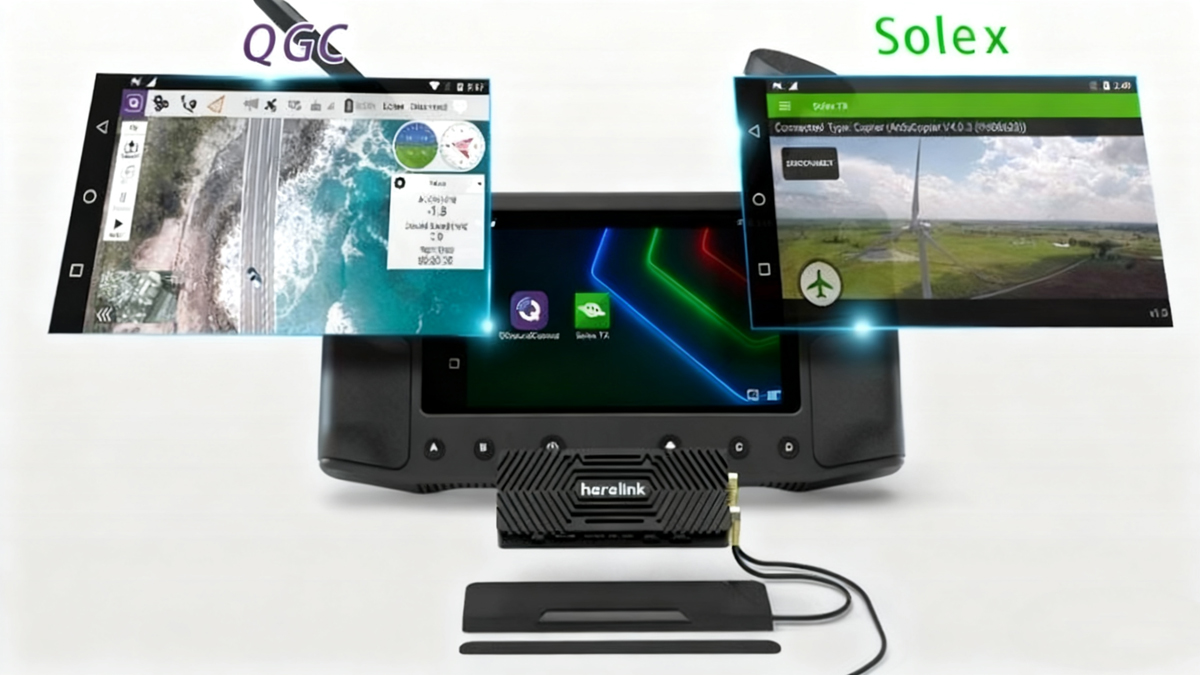

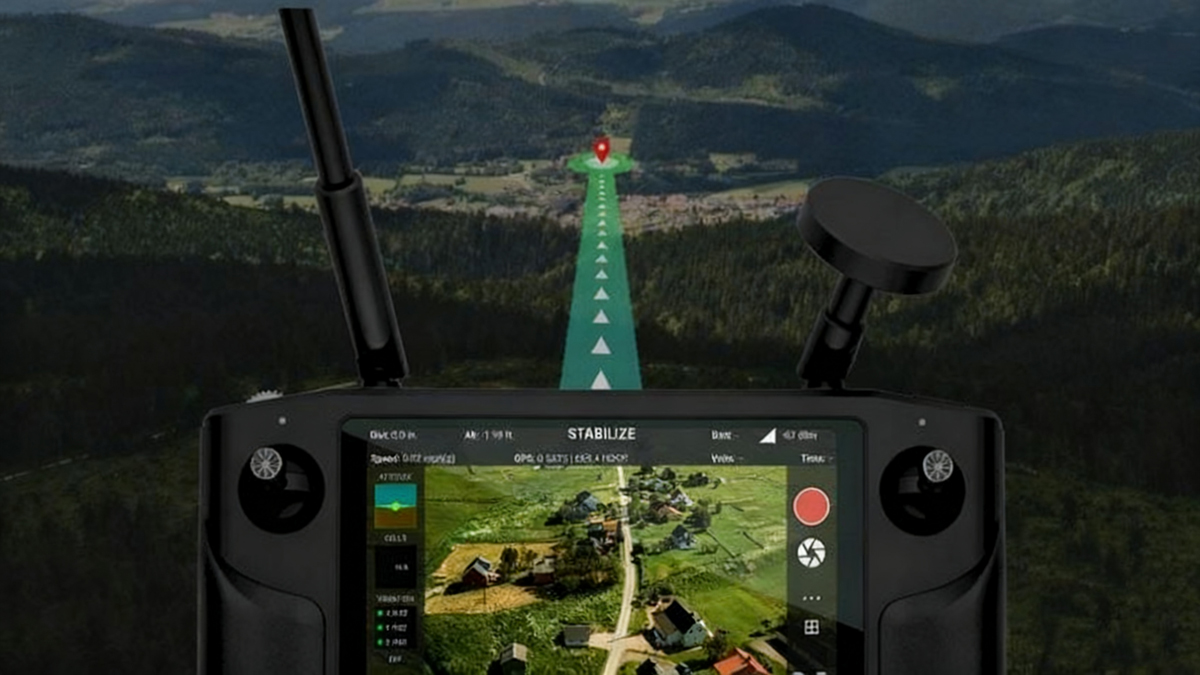

QGC and Solex app support
OEM support features

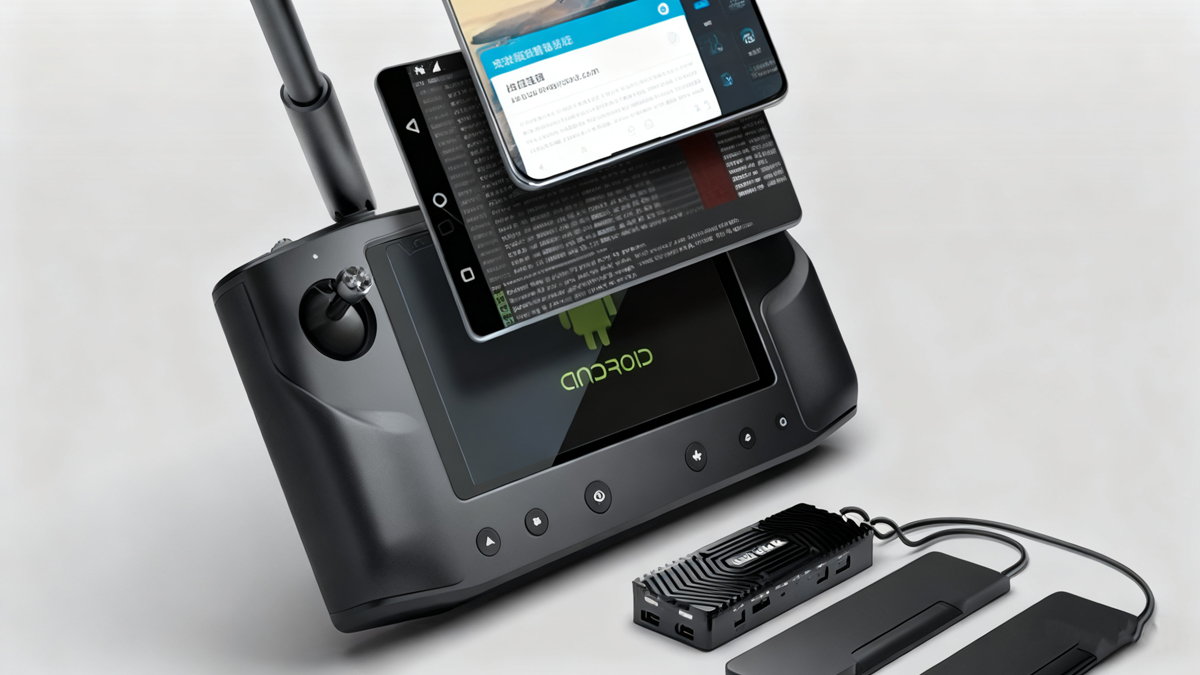

Herelink supports the installation of an OEM image, enabling you to customize various settings according to your needs. This includes modifications to the boot animation, adjustments to system configurations, changes to Android applications, and edits to Android properties. For OEM support, please contact our sales team through your current reseller.
Over The Air (OTA)updates support

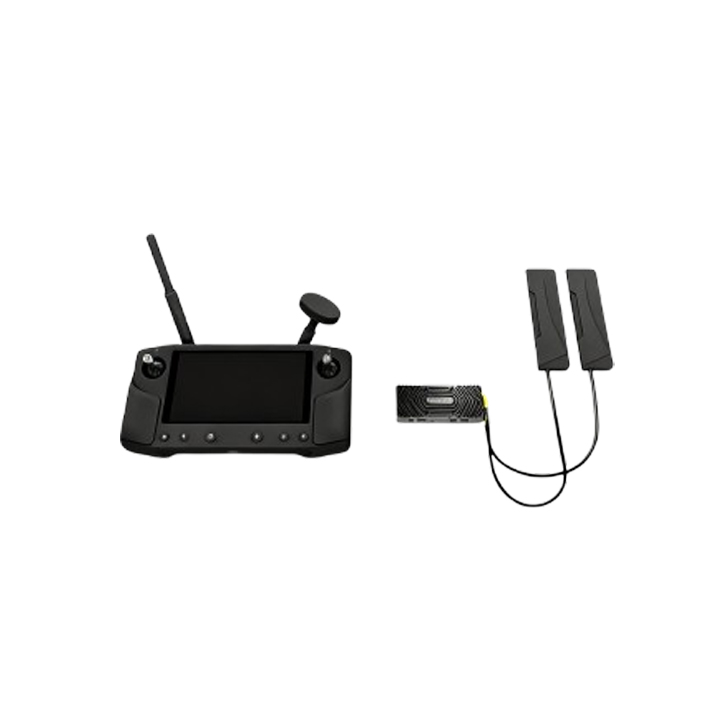

Multiple Units in One
It combines the data link unit, remote control link, and video display unit into one single device, which integrates and miniaturizes the complex device system.
Specification
| Hardware specification | |

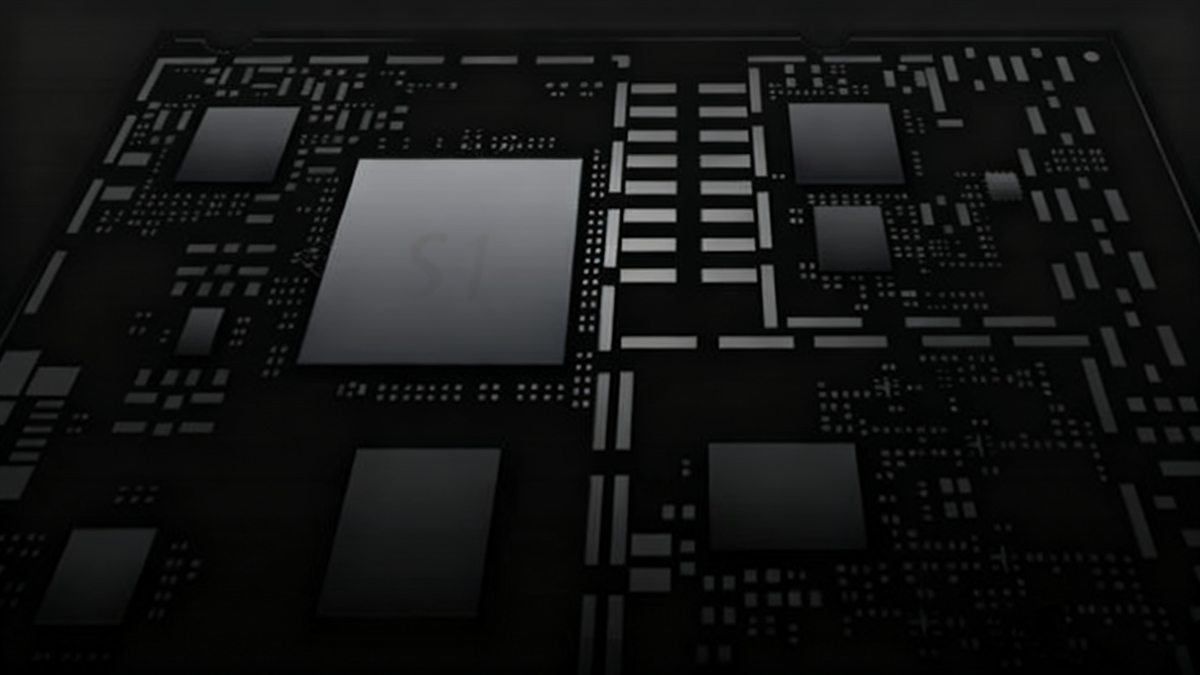

| Processor | SoC – Pinecone S1 |
| AP: 4 x large core, Cortex A53, 2.2GHz | |
| 4 x small core, Cortex A53, 1.4GHz | |
| GPU: 4 core, Mali-T860 | |
| SDR: A7 + DSP | |
| Storage | Air Unit LPDDR3 1GB |
| Controller LPDDR3 2GB | |
| Air Unit/Controller | EMMC 4GB |
| Transmission Range | FCC 20km CE/SRRC 12km |
| Latency | Min 110ms |
| Resolution | 720p@30fps, 1080p@30/60fps |
| Frequency Band | 2.4GHz ISM |
| Receive sensitivity | -99dBm@20MHz BW |
| Interference recovery | < 1s |
| Air Unit | |
| Housing | Aluminum |
| Weight | 95g (w. antennas) |

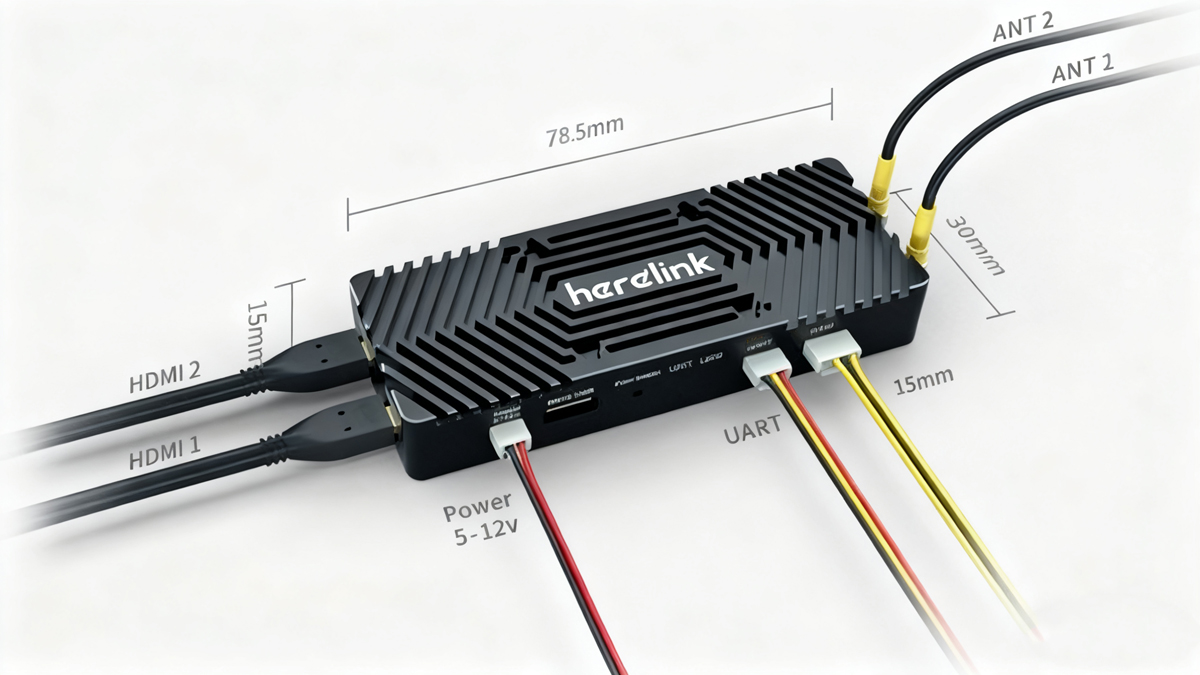

| Dimension | 78.5x30x15mm (w/o antennas) |
| Signal Bandwidth | 20MHz/10MHz |
| Power Consumption | < 4W |
| HDMI 1 | Micro HDMI, for video input (preferred) |
| HDMI 2 | Micro HDMI, for video input |
| Power | Recommended supply voltage ~7V, minimum 6V, maximum 12V and avoid sharing BEC with servos |
| Micro USB | For debug or upgrade, support OTG |
| Pair/Reset | For pairing and reset |
| LED 1, 2 | To indicate pairing status and transmission status |
| UART | 3.3V / 5V UART |
| S.bus | Two 3.3V RC output |

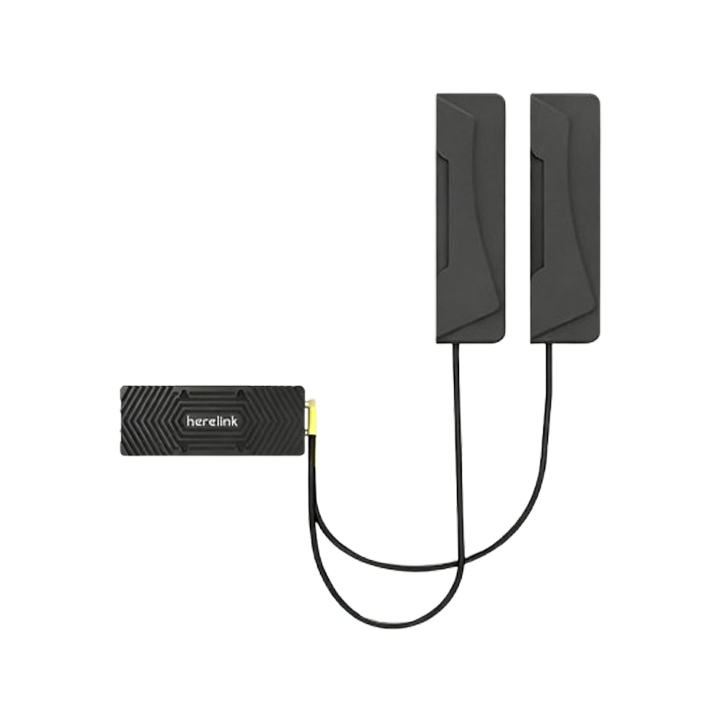

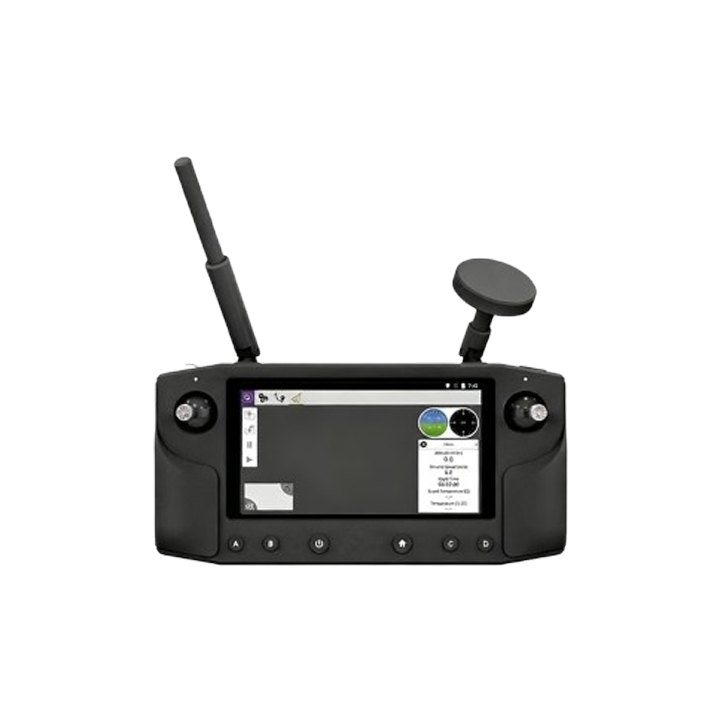

| ANT 1, 2 | MMCX, for signal transmission and communication |
| Controller | |
| Housing | Plastic |
| Weight | 516g (w. antennas) |
| Dimension | 217Ă—106.5x31mm (w/o antennas, joysticks ) |
| Screen | 5.46 inch, 1080P, 16 million colors, |
| capacitive touch screen | |
| Audio | 1 x built-in speaker, 2 x built-in microphone |
| Remote control | 2 x joystick, 1 x wheel, |
| 6 x button (w. blacklight), 1 x upper right button | |
| Communication | WIFI/GPS 2.4GHz on the controller side |
| LED | 2 x tricolor LED (left, right) |
| Interface | 1 x MicroUSB, 1 x Micro SD card slot |
| (extendable to max. 64GB) | |
| Antenna | 1 x detachable directional (5dBi), |
| 1 x detachable omni-directional (2dBi), | |
| built-in WIFI antenna, built-in GPS antenna, | |
| external GPS antenna interface | |
| Power | 4950mAh built-in Lipo Battery |
| Charging | Support micro USB 5V 2A charging |
| Power consumption | < 4W average (With transmission on, medium screen brightness, WIFI off, GPS off) |
