Overview
Basic Info.
| Model NO. | MN900 |
| Information Content | Text, Picture, Video, Audio |
| Transmit Power | 1 Watt |
| Frequency Hopping | Support |
| Transmission Distance | 60km Open Area |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| HS Code | 8517799000 |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Weight | 20 Grams |
| Data Rate | up to 230kbps |
| Forward Error Correction | Support |
| Frequency Range | 902-928MHz |
| Specification | 20 Grams Weight |
| Origin | China |
| Production Capacity | 5000PCS/Month |
Product Description

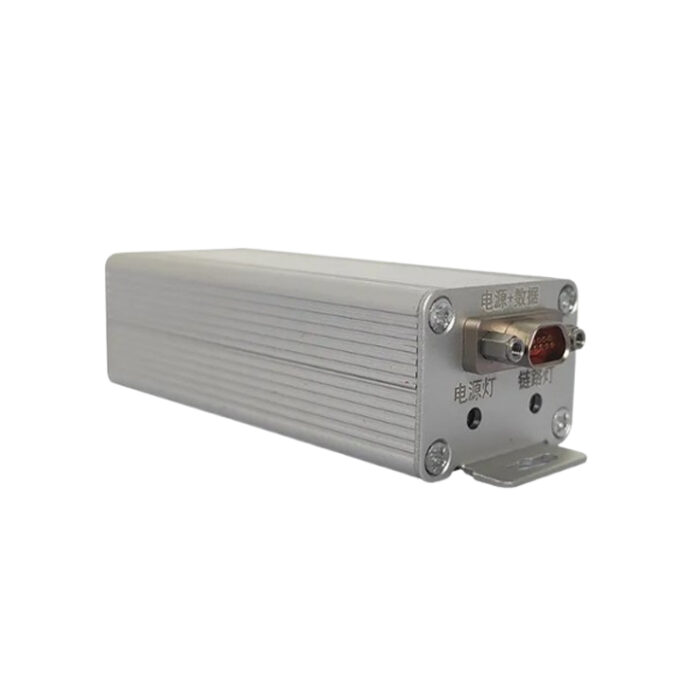

MN900 Data Transmission Module
20 Grams Light Weight
1 Watt Transmit Power
Up to 230Kbps Data Rate
Frequency Hopping Support
Forward Error Correction Support
60KM Open Area Transmission Distance
1 Watt Transmit Power
Up to 230Kbps Data Rate
Frequency Hopping Support
Forward Error Correction Support
60KM Open Area Transmission Distance
Specification
| Wireless | |
| Frequency Range | 902-928MHz |
| Modulation | GMSK, 2GFSK, 4GFSK, QPSK |
| Data Rate | 230.4Kbps (Peak) |
| Tx Power | 100mW-1W (Adjustable) |
| Receive Sensitivity | ≤ -109dBM@115.2kbps |
| FEC | Hamming Code, BCH, Gray Code, Reed-Solomon Code, Viterbi |
| System | |
| Baud Rate | 300-230400bps (Adjustable) 115200bps (Default) |
| Error Detection | 32bits CRC, ARQ |
| Current | 1.0-1.4A |
| Power Supply | DC12V-60V Power Supply |
| Topology Type | Point-to-Point, Point-to-Multi-Point, Relay Mode |
| Interface | |
| RF Antenna | IPEX × 1 |
| Serial Port Interface | TTL × 1 |
| Power Interface | Support |
| Physical | |
| Dimension | ≤ 55 × 30 × 8mm |
| Weight | ≤ 20g |
| Operating Temperature | -50°C-+125°C |
| ACCESSORIES | |
| OMNI Antenna × 1; Serial Port Cable × 1; Power Supply Cable × 1 |
