Home » Unmanned System Products » China Moneypro IP Mesh Radio for Unmanned System Uav Ugv Data Link
China Moneypro Vehicle Mounted IP Mesh Radio for Nlos Long Range Video Transmitting
Back to products
China Moneypro IP Mesh Module for Unmanned System MIMO Digital IP Module Transmitter

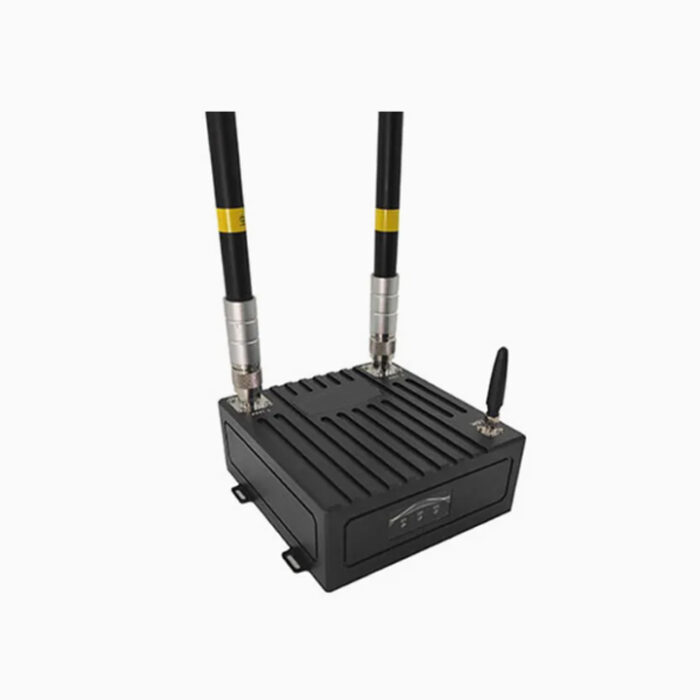

China Moneypro IP Mesh Radio for Unmanned System Uav Ugv Data Link

The China Moneypro IP Mesh Radio is a purpose-engineered communication backbone for unmanned systems (UAVs and UGVs), delivering robust, seamless data linking for critical mission operations. Built on advanced IP mesh technology, it enables self-forming, self-healing network connectivity—ensuring uninterrupted transmission of video feeds, control signals, and telemetry data even as UAVs/UGVs navigate dynamic environments, encounter obstacles, or operate in remote areas. Designed for low latency and high reliability, this radio integrates effortlessly with diverse unmanned platforms, supporting applications like aerial surveillance, industrial inspection, search and rescue, and autonomous navigation. Compact, lightweight, and ruggedized to withstand harsh conditions, it empowers operators to maintain full situational awareness and precise control, making it an essential component for next-generation unmanned system connectivity.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MU02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 18713765mm
Power Consumption ≤80W
Specification 8W (4W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 8W (4W*2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤ 1.4kg (Host Only)
Power Supply DC15~36V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MU08 Unmanned System Mesh Radio

Compact Size
2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area or 30KM Air-to-Ground Transmission Distance

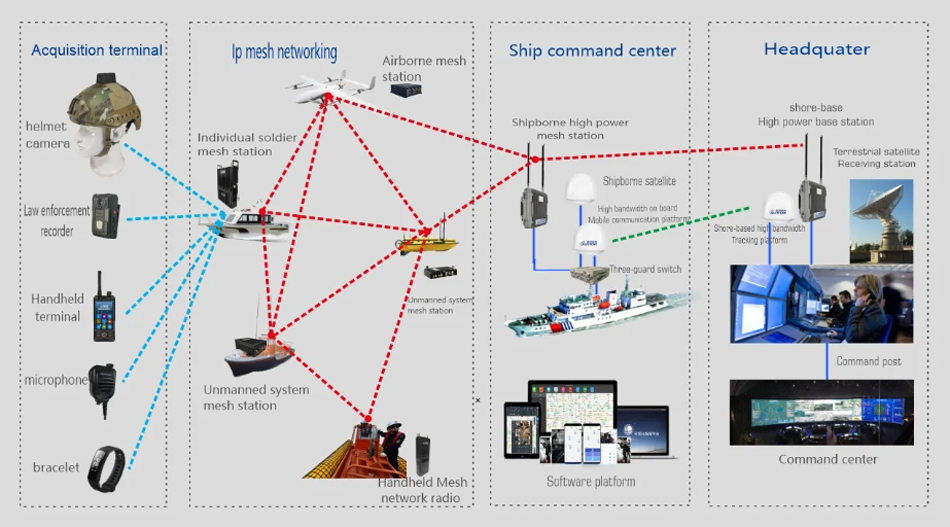

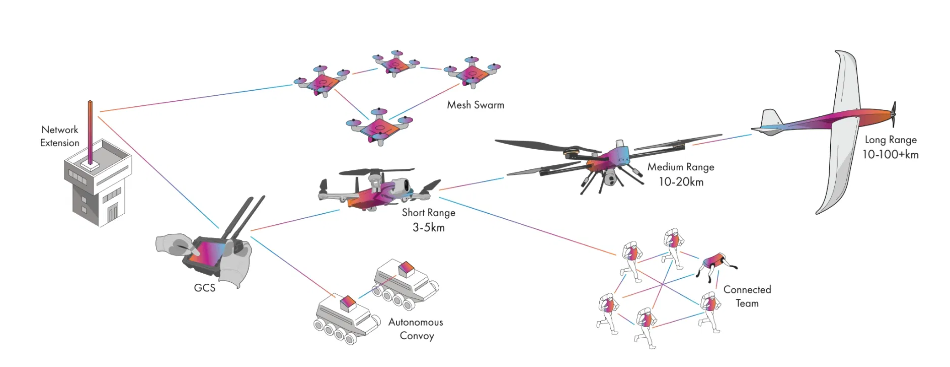

Mesh Radio – Typical System SolutionSuntor IP Mesh Radio for Unmanned System Uav Ugv Data LinkSuntor IP Mesh Radio for Unmanned System Uav Ugv Data LinkSuntor IP Mesh Radio for Unmanned System Uav Ugv Data Link

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2 (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
N/A
Security
AES128 / 256 Encryption
Power Supply
DC15 -36V Wide Range Voltage
Power Supply
Power Supply
≤ 30W
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 187 × 137 × 35mm
Weight
≤ 1400g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

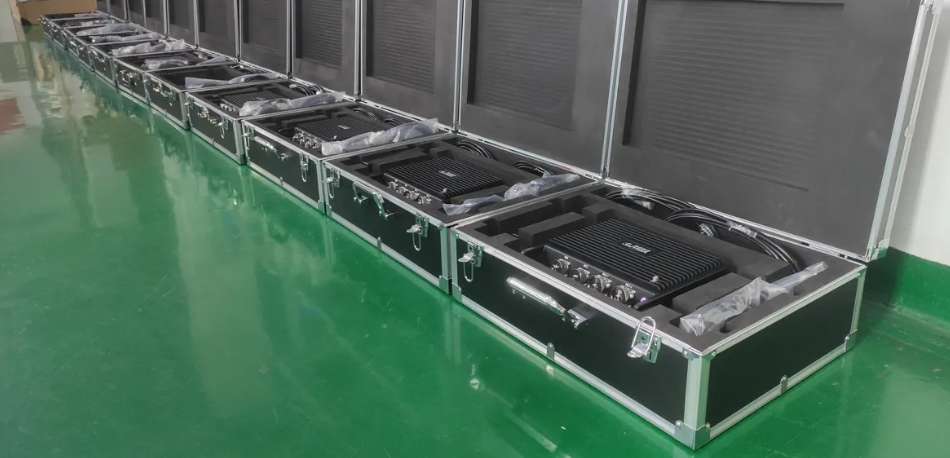

Packing & Delivery

Suntor IP Mesh Radio for Unmanned System Uav Ugv Data LinkSuntor IP Mesh Radio for Unmanned System Uav Ugv Data Link

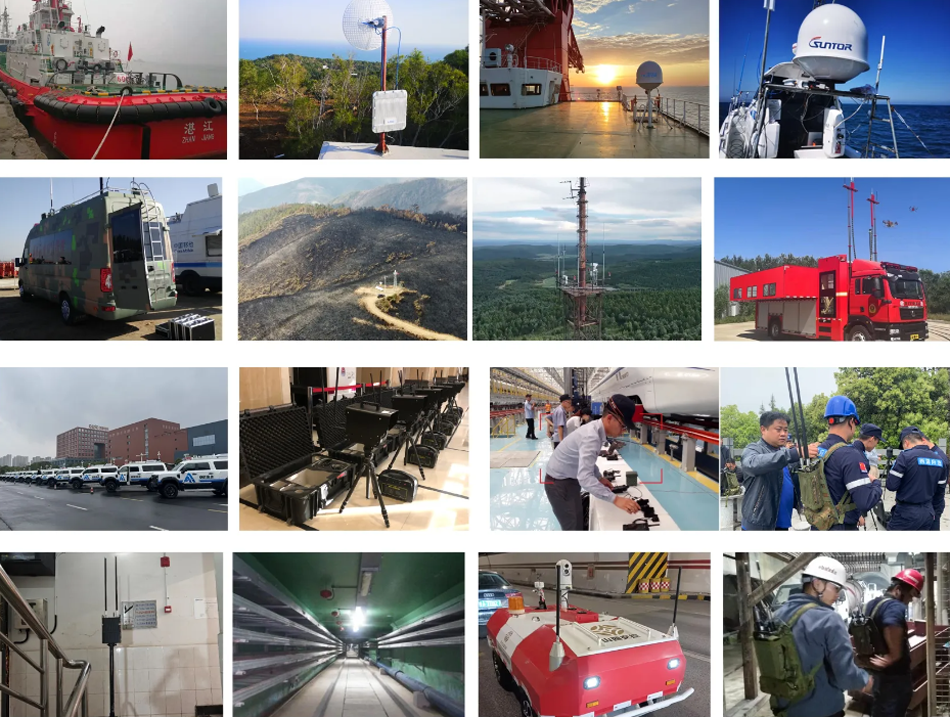

Application

IP Mesh Radio Application Case

Suntor IP Mesh Radio for Unmanned System Uav Ugv Data Link

Suntor IP Mesh Radio for Unmanned System Uav Ugv Data Link
