China Moneypro 150-300km Drone Wireless Video Transmitter for HD Video and Full Duplex Data
Back to products
China Moneypro Drone Data Link 1.4GHz 2.4GHz Frequency Band IP Mesh MIMO Digital UVA Data Transmitter

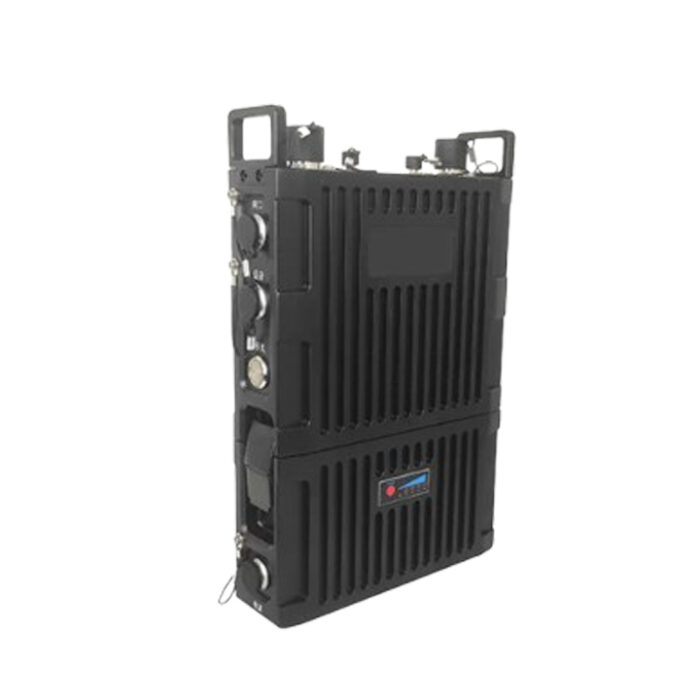

China Moneypro IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video Transmitting

The China Moneypro Tactical Handheld IP Mesh Radio is a rugged, portable communication solution engineered for mission-critical video transmitting in tactical and field operations. Integrating advanced IP Mesh networking and MIMO technology, this smart radio enables self-organizing, ad-hoc connectivity—delivering stable, low-latency video streaming and bidirectional data exchange even in non-line-of-sight (NLOS) or dynamic environments like urban combat zones, search and rescue sites, or disaster response areas. Designed for handheld usability, it features a compact, durable build that withstands harsh conditions, while its mesh capability supports multi-node collaboration for extended coverage. Ideal for military, law enforcement, and emergency services, this radio empowers teams to share real-time visual intelligence seamlessly, enhancing situational awareness and operational coordination in high-stakes scenarios.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MB02
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 27519852mm
Power Consumption ≤30W
Specification 2W (1W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 2W (1W*2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤3kg (with Battery)
Power Supply DC25.2V 5000mAh Removable Li-ion Battery
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MB02/08 Manpack Mesh Radio

2 / 8 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
10KM Open Area Transmission Distance

Mesh Radio – Typical System SolutionSuntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video TransmittingSuntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video TransmittingSuntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video Transmitting

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
1W × 2  (4W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
DC25.2V 5000mAh
Removable Lithium Battery
Power Supply
≤ 20W(Typical), ≤ 30W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface
Aviation to Connector
Physical
Dimension
≤ 275 × 198 × 52mm (with Battery)
Weight
≤ 850g (with Battery)
Protection Level
IP66
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video TransmittingSuntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video Transmitting

Application

IP Mesh Radio Application Case

Suntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video Transmitting

Suntor IP Mesh Radio Tactical Handheld MIMO Mesh Smart Radio for Video Transmitting
