Home » Unmanned System Products » China Moneypro IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter
China Moneypro Video & Data & Voice Tactical Mesh Radios Handheld Wireless Video Transmitter with Battery
Back to products
China Moneypro Dmimo Mesh Unmanned Drone Data Link System for Uav Ugv Video Data Transmitter

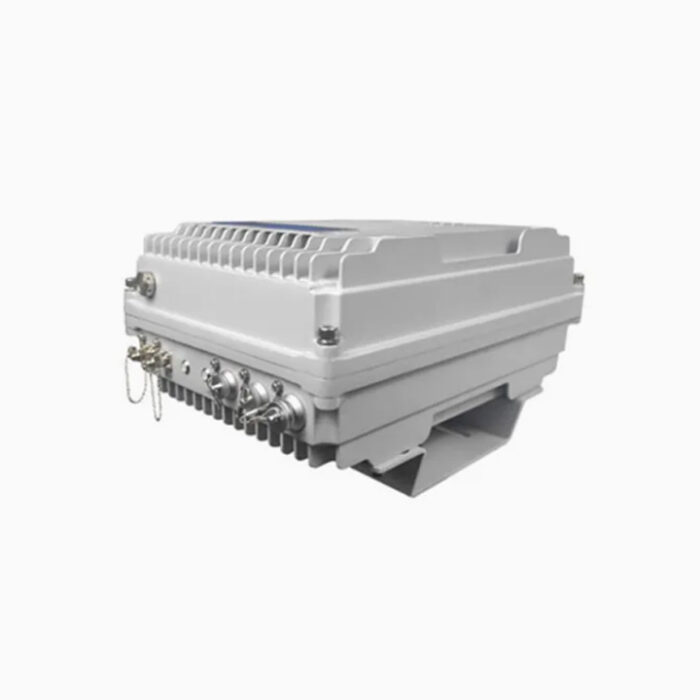

China Moneypro IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter

The China Moneypro IP66 Outdoor Fixed Wireless IP Mesh Link is a high-performance, weatherproof broadband solution engineered for reliable non-line-of-sight (NLOS) communication in harsh outdoor environments. Boasting IP66-rated rugged construction, it resists dust, heavy rain, and extreme temperatures, ensuring uninterrupted operation in demanding field conditions. Equipped with advanced MIMO technology and mesh networking capabilities, this fixed transmitter delivers high-speed data transmission and seamless live video streaming, eliminating dependencies on traditional wired infrastructure. Ideal for scenarios like outdoor surveillance, emergency response networks, smart city deployments, or remote site connectivity, it enables stable, low-latency connectivity even across obstructed terrain—empowering teams to maintain critical communication and data sharing in mission-critical outdoor applications.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MF10
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 340240135mm
Power Consumption ≤ 120W
Specification 10W(5W*2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 10W (5W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight 7kg (Host Only)
Power Supply DC28V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Product Description

MF10/20 Fixed Mesh Radio

Rugged Protective Structure
10 /20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

Mesh Radio – Typical System SolutionSuntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video TransmitterSuntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video TransmitterSuntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
5W × 2  (10W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Security
AES128 / 256 Encryption
Power Supply
DC28V Power Supply
Power Supply
≤ 120W(Typical), ≤ 200W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface/Audio Interface/Power Interface
Aviation to Connector
Physical
Dimension
≤ 340 × 240 × 135mm
Weight
≤ 7000g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

Packing & Delivery

Suntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video TransmitterSuntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter

Application

IP Mesh Radio Application Case

Suntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter

Suntor IP66 Outdoor Fixed Wireless IP Mesh Link MIMO Broadband Wireless Nlos Video Transmitter
