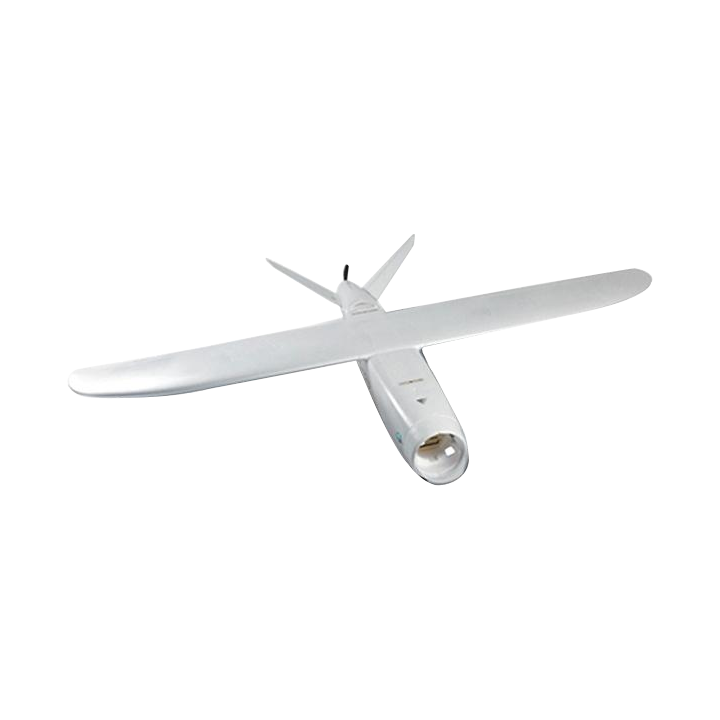

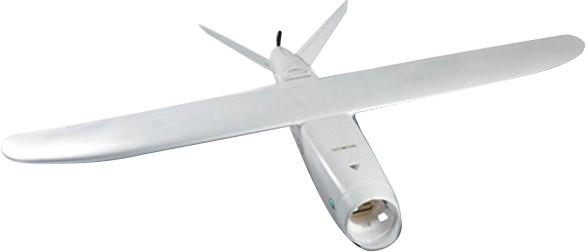

China Moneypro M1

Professional mapping UAV with 1718mm wingspan and 60-minute endurance for precision surveying and long-distance inspections.

Categories: ,
Description

Unmatched Flight Performance

  • Range & Duration: 120km max distance / 60min flight time
  • Speed: 25m/s max horizontal (72km/h) / 20m/s cruise
  • Payload Capacity: 1kg (4kg MTOW)
  • Altitude: 5000m operational ceiling

Professional Surveying Suite

  • FPV System:
    • 5km HD transmission (5.8GHz/40ch)
    • 1/2.8″ CMOS sensor + 2.5mm lens
    • Goggles: 1280×800 resolution (-20~45°C tolerant)
  • Modular Payload: RTK/PPK/LiDAR readiness

Robust Power Architecture

  • Battery:
    • 16,000mAh LiPo (6S)
    • 15C discharge / 22.2V rated
    • -20~45°C operational range
  • Charger: 90W rapid-charging (220V input)

Industrial-Grade Control System

  • Controller: 15km range / 16-channel
  • Frequency: 2.4-2.483GHz dual-band
  • Ergonomics: 191×175×64mm compact body
  • Power: Dual 18650 batteries (210mA draw)

Critical Infrastructure Applications

  • Energy: Power line corridor inspections
  • Agriculture: Large-scale crop health analysis
  • Environment: Wildlife tracking & forest management
  • Emergency: Disaster zone reconnaissance

Operational Advantages

  • Efficiency: 10x coverage area vs. multirotors
  • Transport: 1100mm fuselage (quick-deploy)
  • Durability: Military-grade components

Technical Credibility Boosters

  1. Certifications Highlight: FCC/CE compliant
  2. Precision Metrics: <0.5m survey-grade accuracy
  3. Data Security: AES-256 encrypted transmission



China Moneypro M1

China-Moneypro-M1-Download
