Product Detail

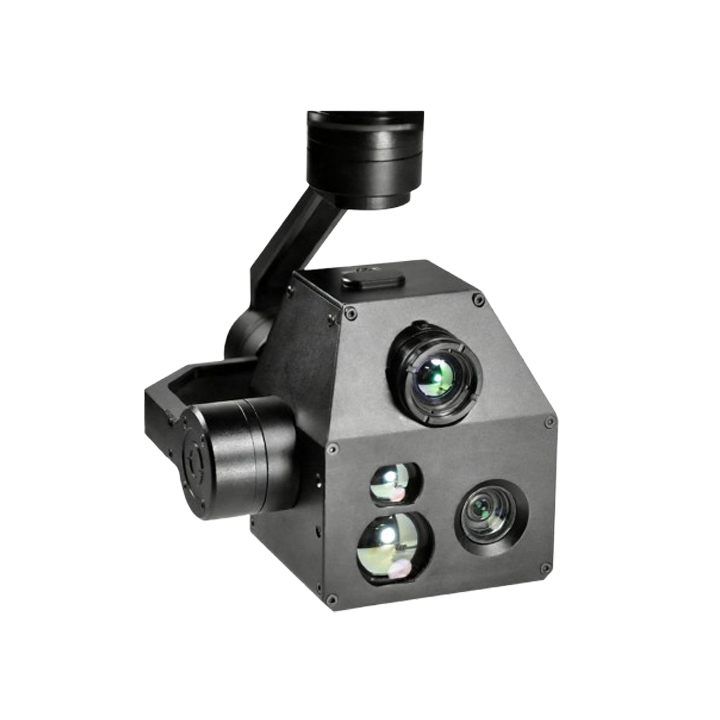

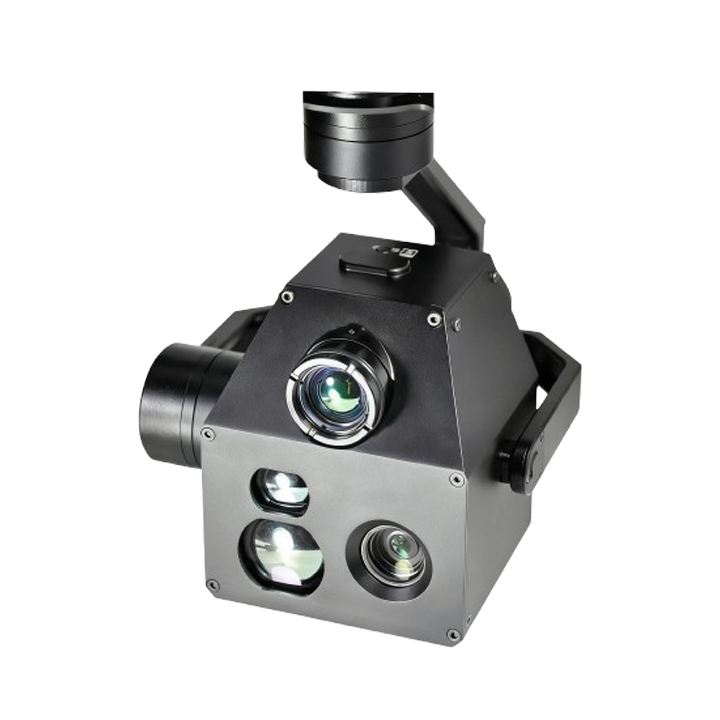

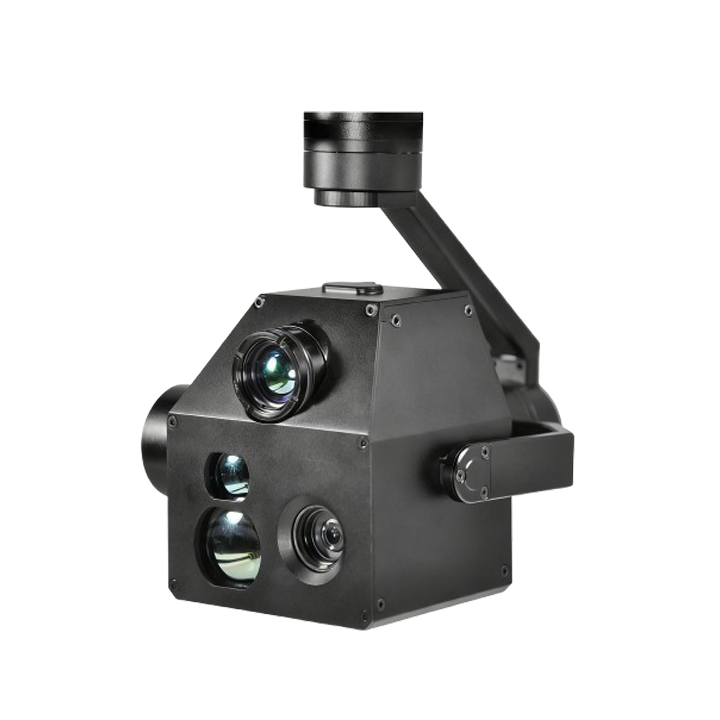

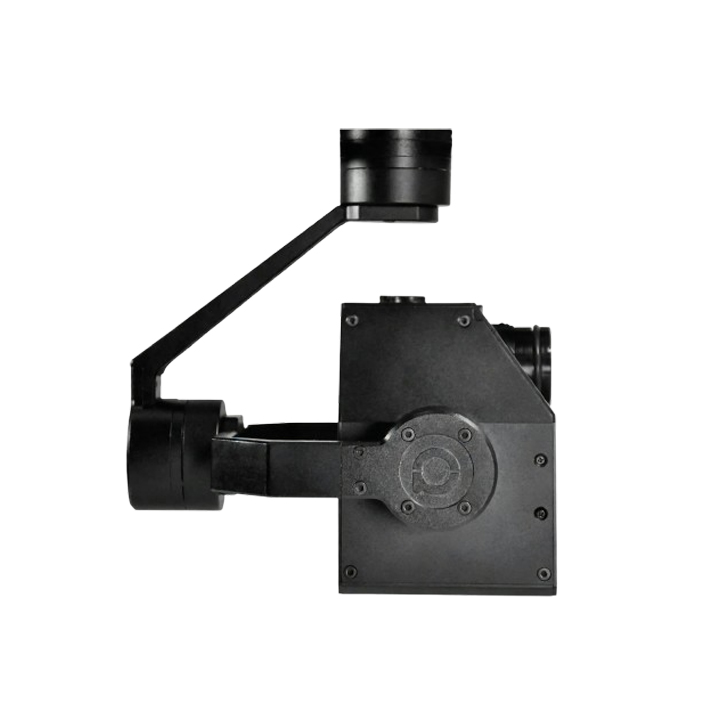

The M10TIRM is stabilized by a highly optimized 3-axis camera gimbal, which features pinpoint-precise motor rotation with ±0.01° control accuracy—all powered by a dedicated processor. It adopts a unique mechanically limited design and concealed wires, ensuring more stable data transmission and enhanced durability. Vibration is effectively eliminated via four damping balls and a lightweight damping board, resulting in seamlessly smooth video output. Despite this stabilization, 360° rotation remains achievable through gimbal movement, allowing the M10TIRM to capture stable, smooth footage even during high-speed flight.
10x Optical Zoom Camera
The M10TIRM is stabilized by a highly optimized 3-axis camera gimbal. This gimbal boasts pinpoint-precise motor rotation, with a control accuracy of ±0.01°, and is powered by a dedicated processor. While ensuring stabilization, the gimbal still enables 360° rotation—allowing the M10TIRM to capture stable, smooth footage even during high-speed flight.
IR+EO Dual Sensors Object Tracking
It comes with built-in normalization, cross-correlation, and tracking algorithms. Combined with an object missing recapture algorithm, these features enable stable target tracking. The system also supports user-customizable OSD characters, adaptive gating, cross cursors, and trace information display. It delivers a tracking speed of up to 32 pixels per frame, accommodates object sizes ranging from 16×16 pixels to 160×160 pixels, and operates with a minimum signal-to-noise ratio (SNR) of 4 dB. Additionally, the root mean square (RMS) value of pulse noise in the object position is less than 0.5 pixels—greatly enhancing tracking accuracy and performance.
GPS Location Resolving
An advanced location-calculation algorithm enables the device to compute the distance of objects within 1,500 meters. It also accurately analyzes the object’s longitude and latitude, with this data displayed directly on the screen—providing significant auxiliary support for military operations.
Specifications
| Hardware Parameter | |
| Working voltage | 14V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 550mA @ 12V |
| Idle current | 450mA @ 12V |
| Power consumption | ≤ 6.6W |
| Working environment temp. | -40℃ ~ +60℃ |
| Output | HDMI/Network/SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM/S.BUS/TTL |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±170° / ±360°*N (IP/SDI/Skyport Output) |
| Vibration angle | Pitch/Roll: ±0.01°, Yaw：±0.01° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/3″ CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 4.08MP |
| Lens optical zoom | 10x, F=3.2~33.6mm |
| Digital zoom | None |
| Min object distance | 10mm(wide end) to 800mm(tele end) |
| Horizontal viewing angle | Wide 62° ~ Tele 6.5° |
| Sync system | Progressive scanning |
| S/N ratio | more than 52dB |
| Min illumination | 0.5lux@F1.8, 50%, 1/30s |
| Illumination range | 100 lx ~100,000 lx |
| Gain | Auto/Manual |
| White balance | ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Exposure compensation | -12dB ~ +12dB (13steps in total) |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| OSD | Yes |
| Fotoformate | JPEG |
| Videoformate | MP4 |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Thermal imager spec | |
| Lens size | 19mm |
| Horizontal FOV | 32° |
| Vertical FOV | 24° |
| Diagonal FOV | 39.4° |
| Detective Distance (Man: 1.8×0.5m) | 559 meters |
| Recognize Distance (Man: 1.8×0.5m) | 140 meters |
| Verified Distance (Man: 1.8×0.5m) | 70 meters |
| Detective Distance (Car: 4.2×1.8m) | 1714 meters |
| Recognize Distance (Car: 4.2×1.8m) | 428 meters |
| Verified Distance (Car: 4.2×1.8m) | 214 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | Gray Scale, pseudo color, Iron Oxide Red, Rainbow, Color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x, 3x |
| Sync correct time | Yes |
| Thermometry type | Not Support |
| Temperature warning | 0℃~100℃ |
| Thermal Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Laser Rangefinder | |
| Range | 5~1500 meters |
| Resolution | 0.5m |
| Working current: | 80mA （max） |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | ＜ 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| Packing Information | |
| N.W. | 612g |
| Product meas. | 110.5*128*155.5mm |
