Product Detail

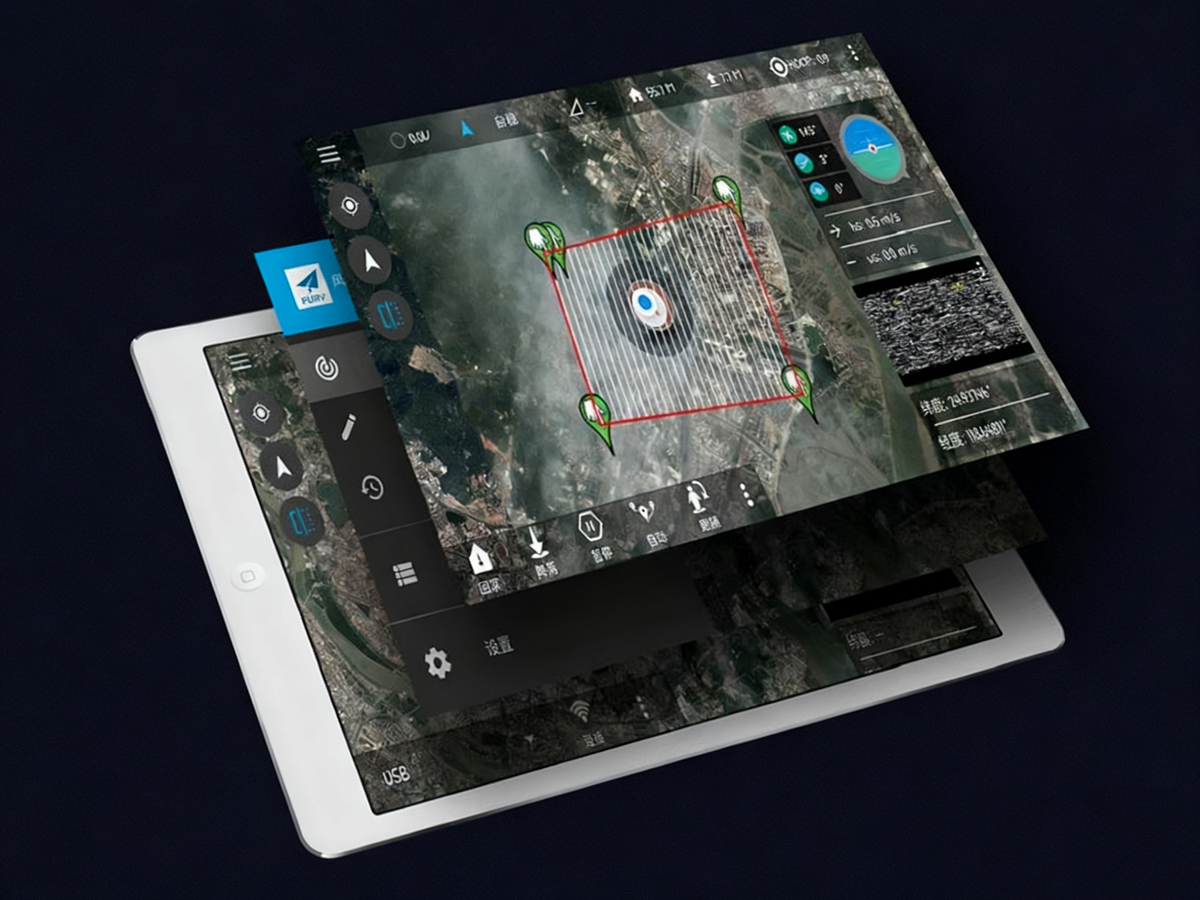

Ground Station APP
F-Tower is developed based on tower-based architecture, with extensive optimizations implemented and an enhanced interactive interface that expands the operator’s field of view. This system enables control of aircraft to achieve intelligent waypoint planning, automatic execution of missions, and follow-mode operations. Additionally, its one-key return function significantly boosts work efficiency in professional scenarios.
Superstrong Expansibiility

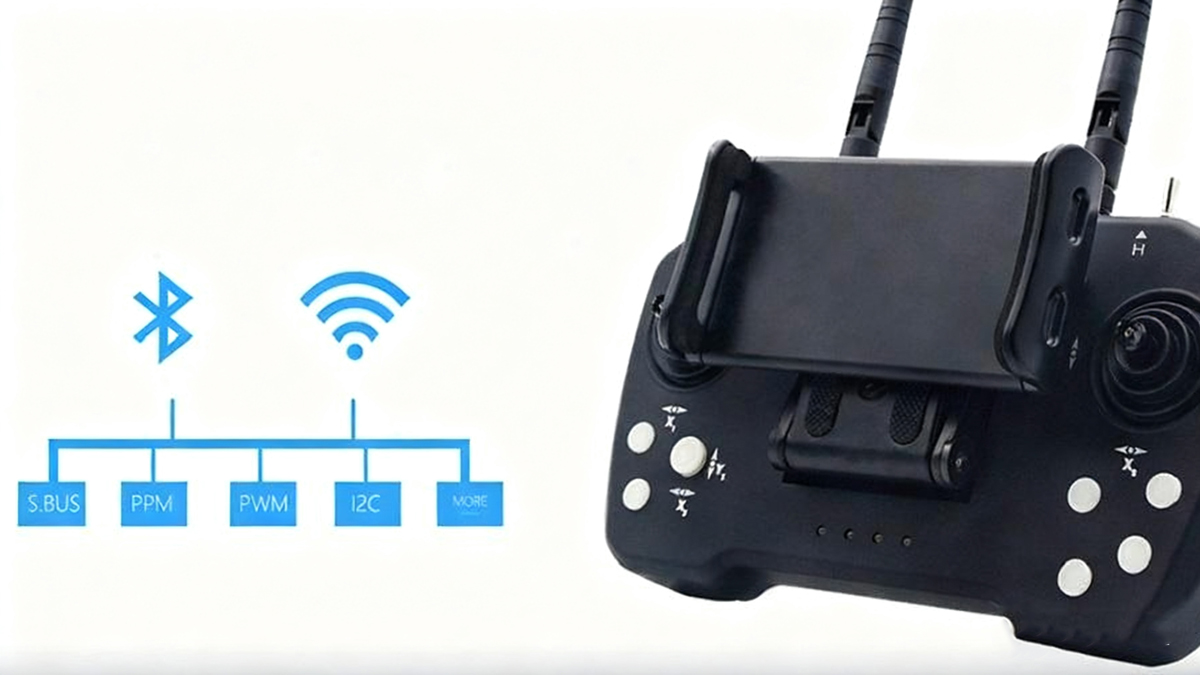

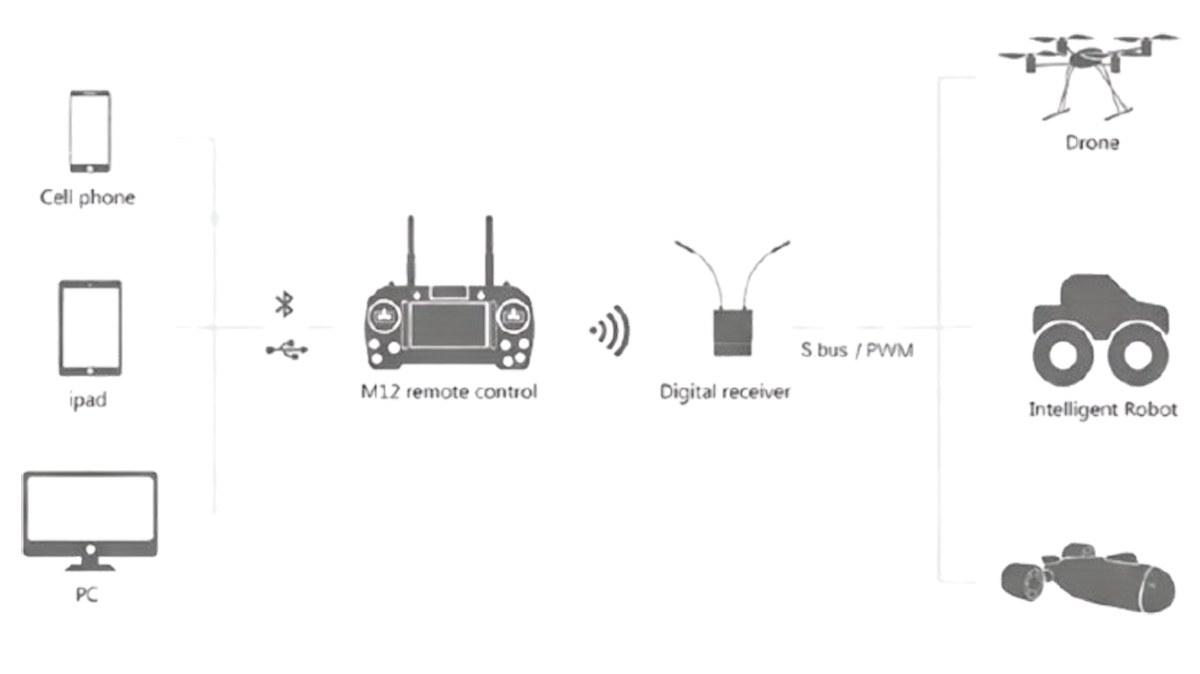

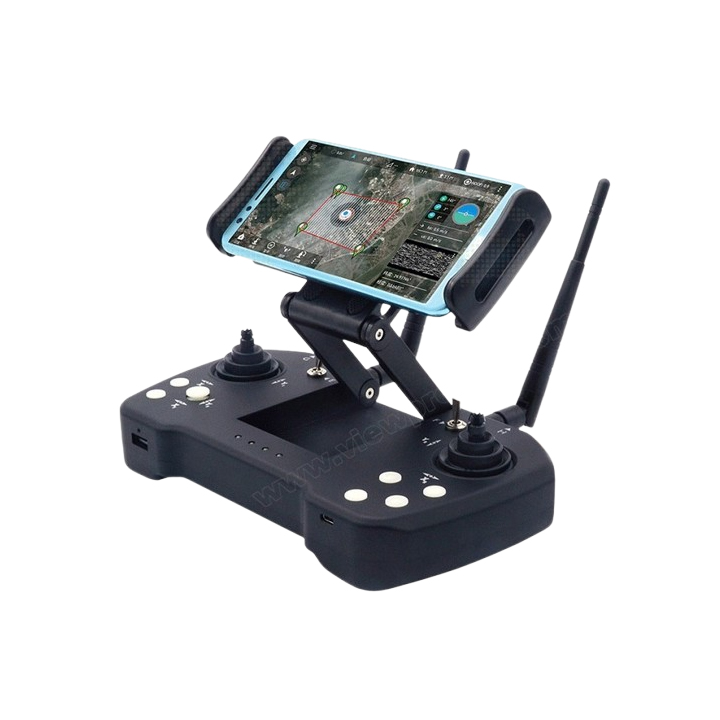

In addition to its integrated RC, data link, and video link capabilities, the M12 Ground Station System further enhances operational flexibility with versatile connection options—including Bluetooth and USB. It also supports a wide range of ports such as S.BUS, PPM, PWM, I2C, and serial ports, ensuring compatibility with various UAV components and peripheral devices. Beyond that, the system is designed with strong equipment expansibility, allowing users to easily integrate additional modules or tools as needed to adapt to diverse professional mission requirements.
Digital Graph Control Link System
Small volume, light and handy, easy to carry

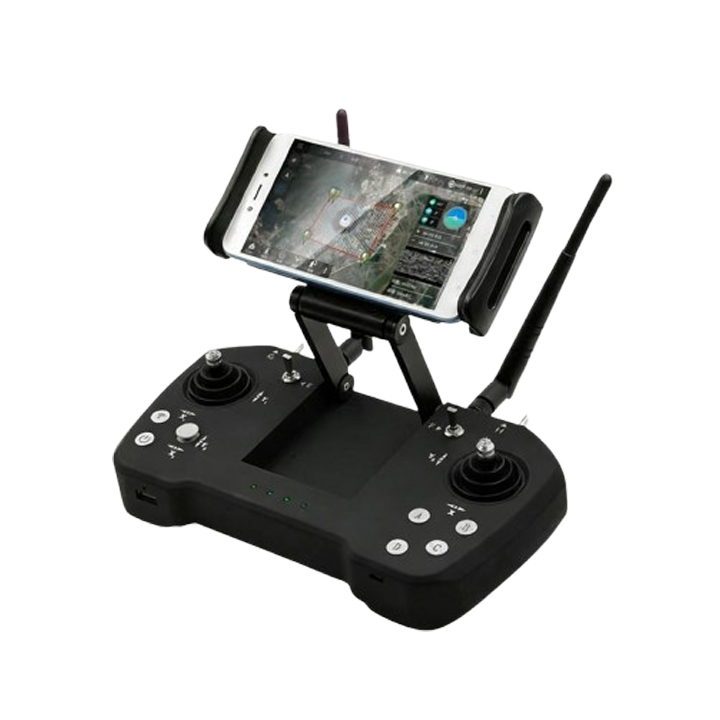

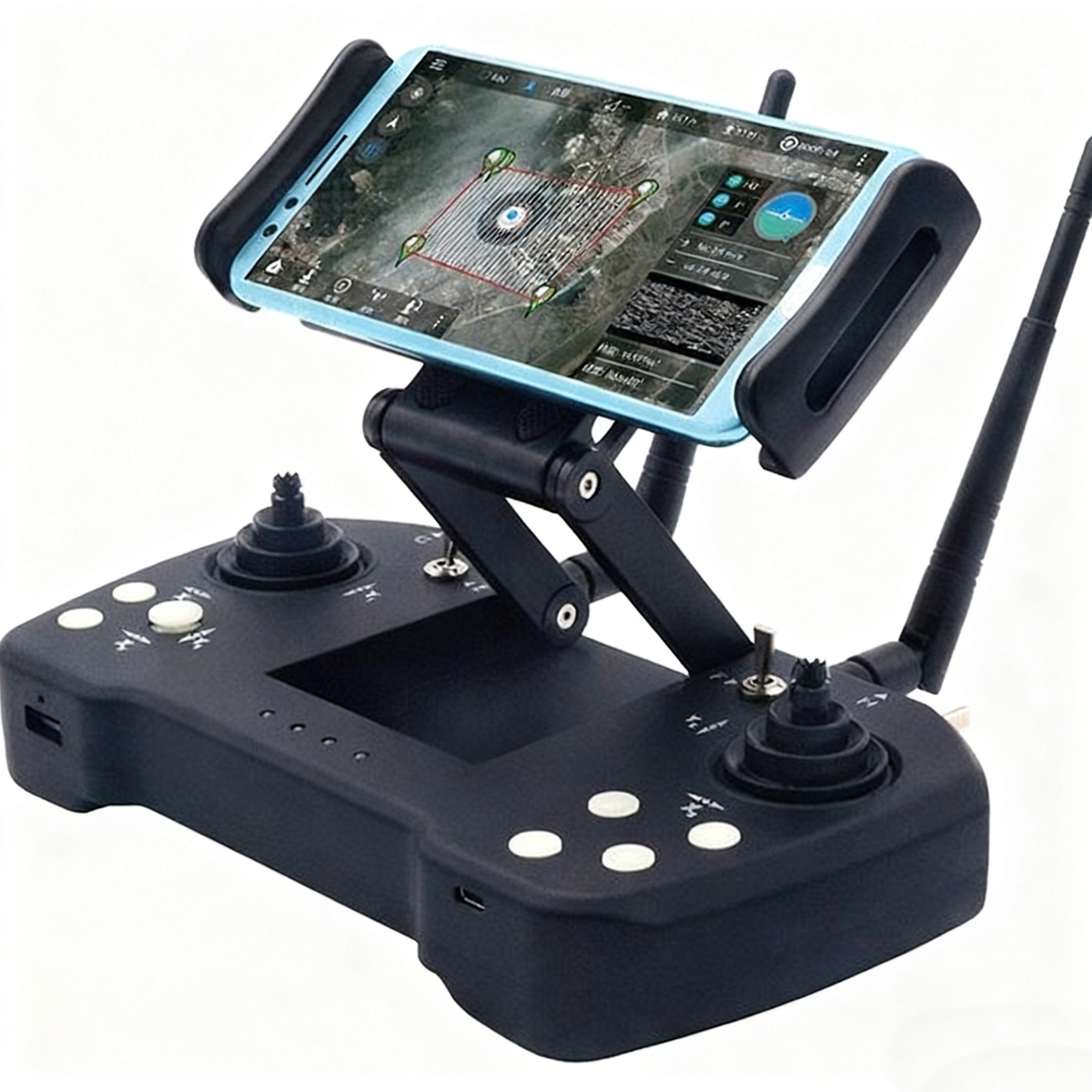

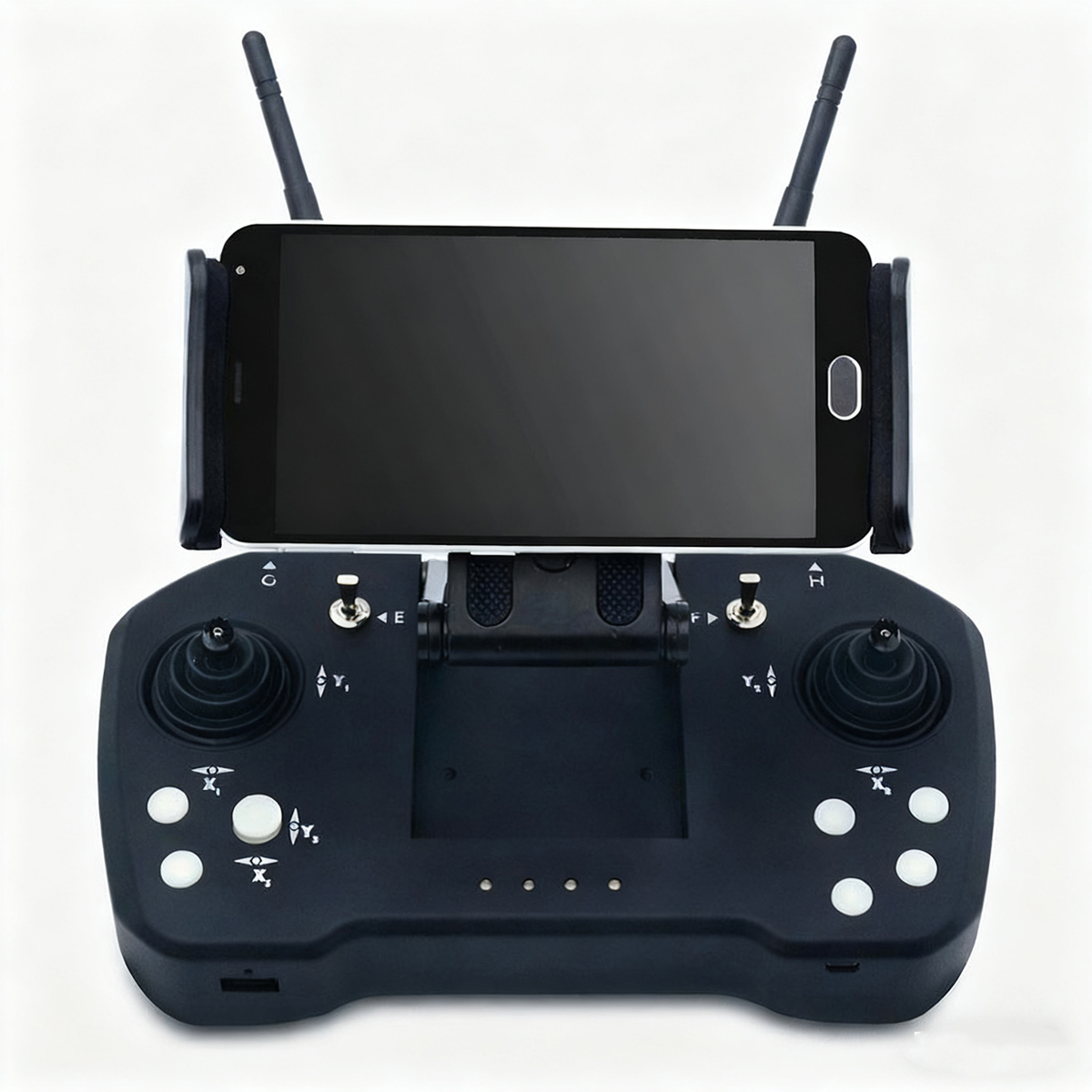

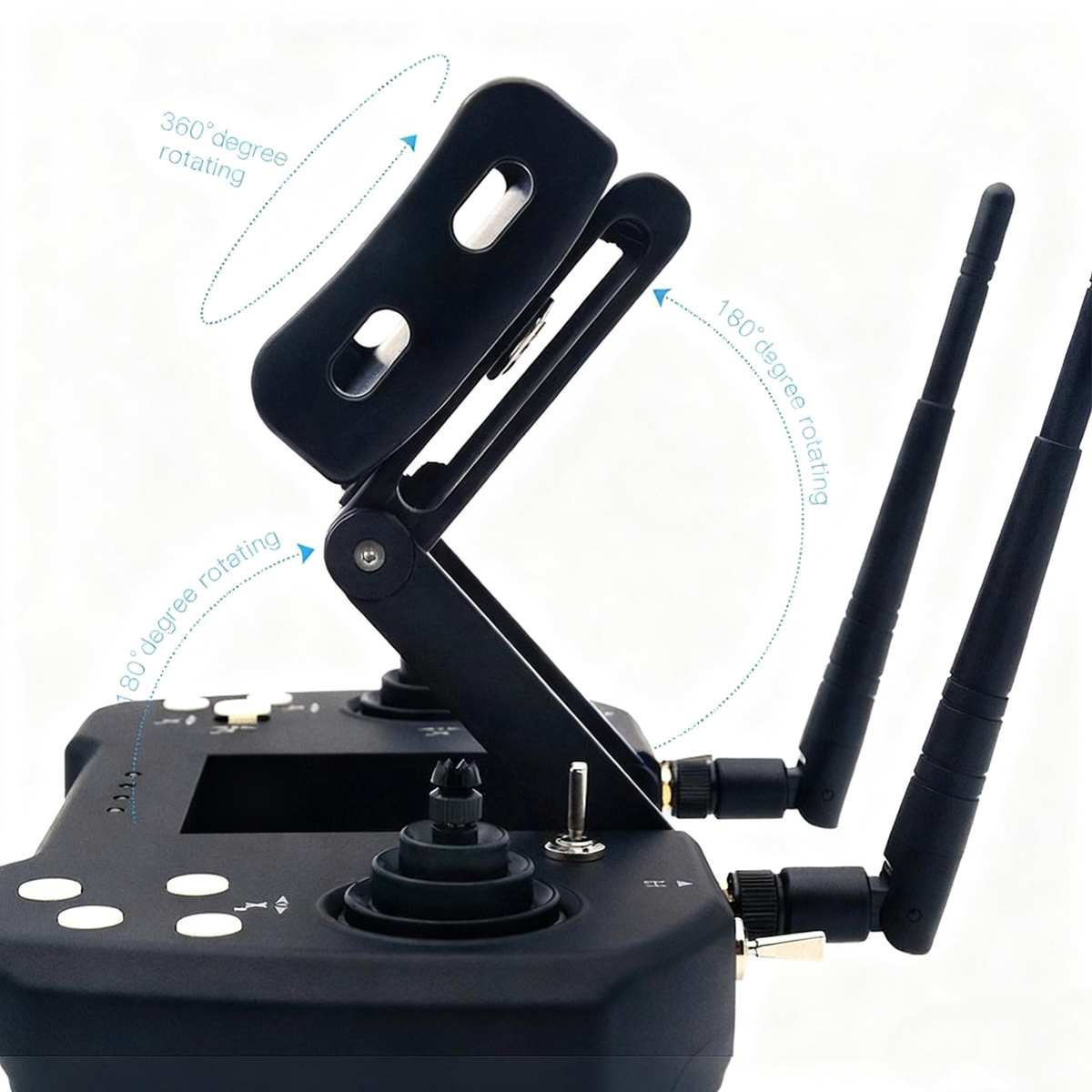

Metal Holder, Free Angle
To further enhance usability during field operations, the M12 Ground Station System adopts an aluminum alloy holder—engineered for exceptional stability and sturdiness. This holder supports flexible adjustments, including 360-degree rim locking and 180-degree angle adjustment, with an intuitive design that makes fine-tuning quick and easy. Whether operators need to reposition the ground station for better signal reception or optimal viewing angles, the robust aluminum alloy holder ensures reliable performance while simplifying on-site adjustments.
Remote Control make fly being more intelligent and easier Smart & Speed Humanity Design
Product Information
| Product Type | Skydroid-T12 Series | Duration | 25h |
| Product Net Weight | 560g | Frequency | 2.4G |
| Channel No | 12 | Data Transfer Power | 100mw |
| Work Voltage | 4.2V | Communication Technology | FHSS Frequency-hopping spread spectrum |
| Work Electricity | 130mA | Distance | 5~30kilometers |
| Battery Capacity | 4000mAh | Signal Output | SBUS PWM I2C |

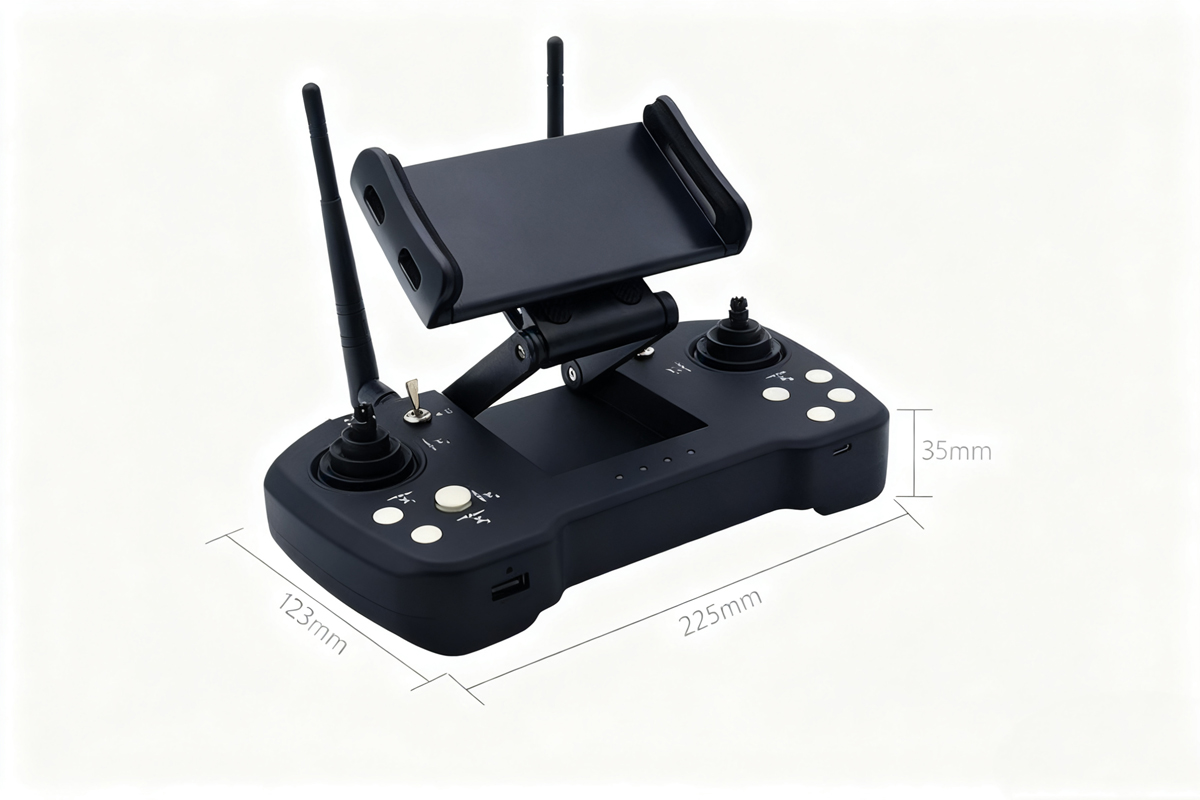

Light and Handy, easy to carry
With small volume, light weight, and a handy design, it enables convenient carrying for on-site use.
Dual Reception and Send,High efficiency and Speed
The device can receive signals independently, and its ultra-strong signal strength and long-distance transmission capability work together to implement double redundancy technology—enhancing communication reliability.
Digital receiver for night navigation lights
M12 Advantages

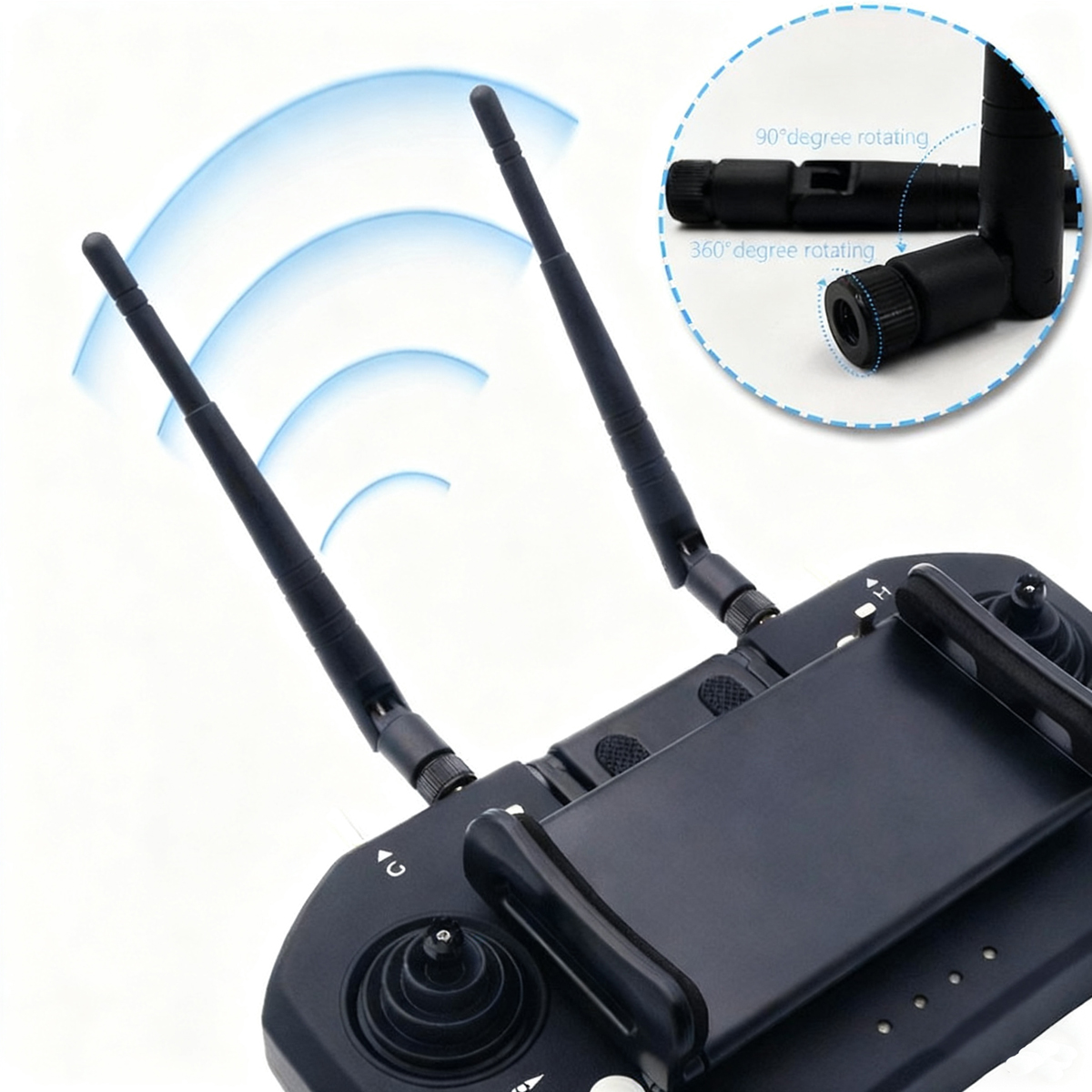

It is equipped with a built-in high-efficiency antenna, which prevents delays in digital transmission to ensure safe UAV flight.
The device also integrates intelligent communication capabilities, enhancing the stability of long-distance transmission. Supported by FHSS technology, it features dual antennas and dual modules, enabling a maximum transmission distance of up to 20km.
Its gimbal adopts a Hall sensor paired with a permanent magnetic sensor, extending the service life to 30 years; additionally, it is fitted with a military-grade dustproof gimbal cover for enhanced durability.

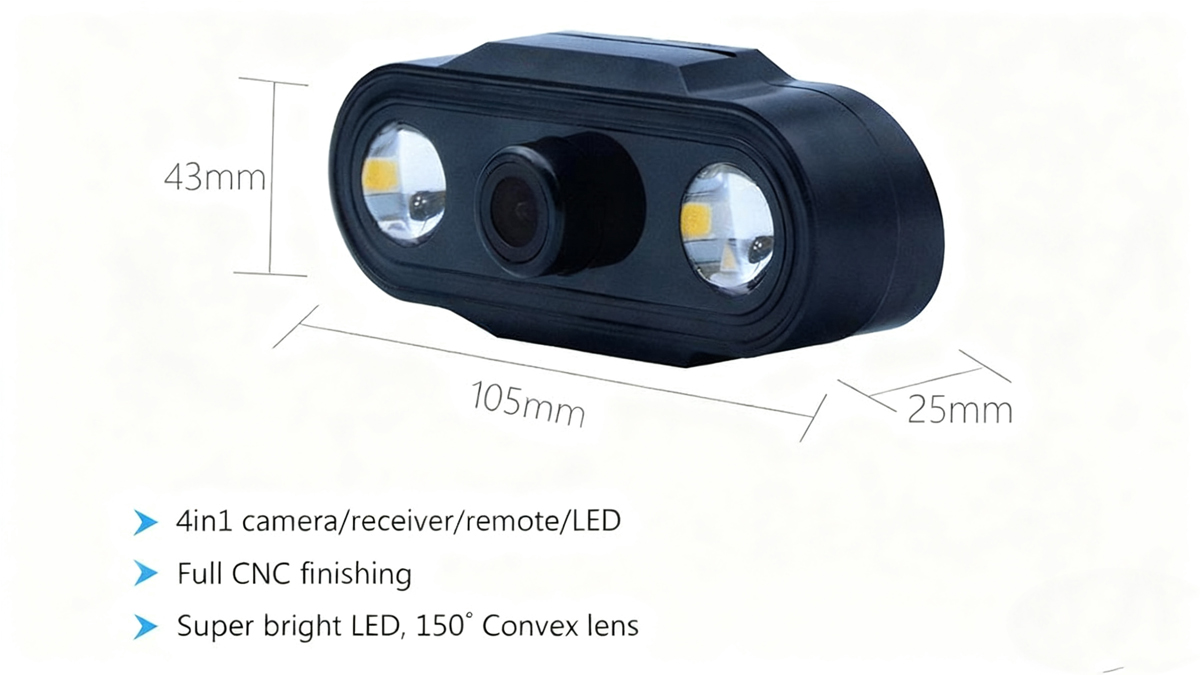

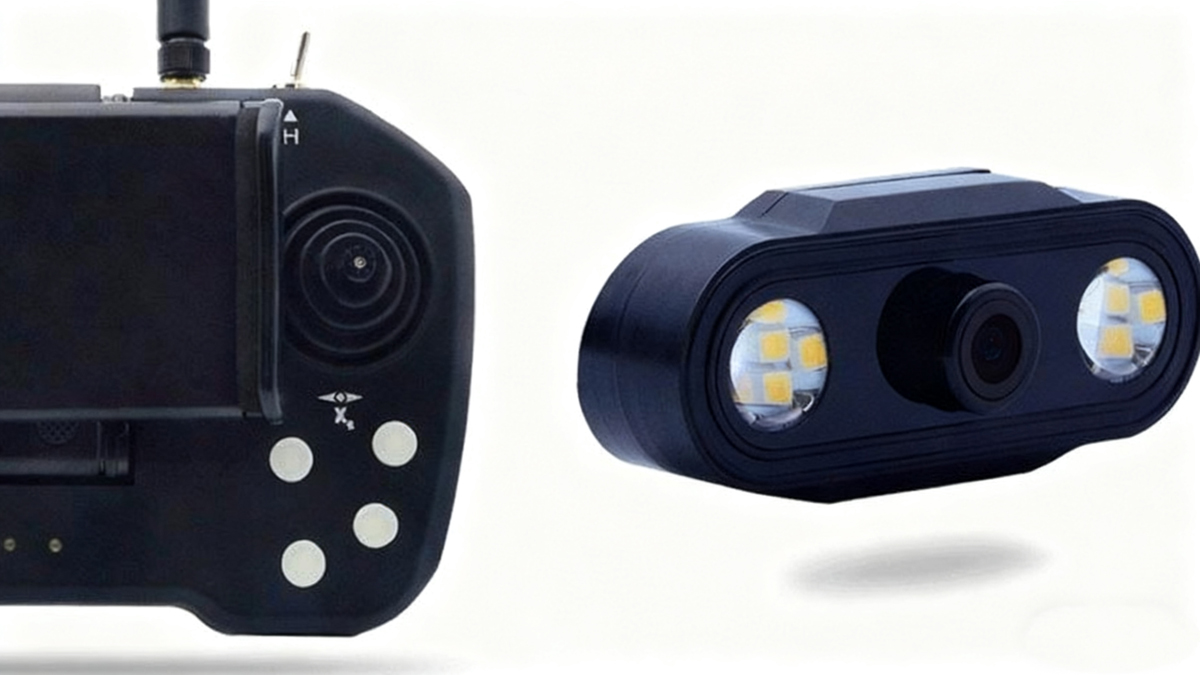

The remote dimming camera, equipped with an 8W LED, ensures clear video capture even at night.
For connectivity, it offers both Bluetooth and USB wired options, providing reliable links between devices.
With a single charge, it supports 24 hours of continuous operation.
It has a legal output power of 100mW, complying with relevant certifications for export. Moreover, the battery holds MSDS certification, making it permissible to carry on aircraft.
Powerful Transmission Links
In terms of communication reliability, the device adopts a dual-antenna and dual-module redundancy design, which is paired with algorithm control and anti-step-out algorithms to significantly enhance its ability to communicate with weak signals—ensuring stable connectivity even in challenging signal environments.
When receiving remote control signals, the device stores TX (transmit), RX (receive), and flight data, then transmits this data to the ground remote controller. This design fully leverages the 2.4G wireless broadband, effectively alleviating the congestion issues in the 433MHz frequency band and addressing the instability of the 915MHz band, while achieving interference-free operation.
Built-In Intelligent Transmission
The remote controller integrated within the system is equipped with a high data transfer rate. By integrating advanced technologies, it further enhances both the remote control data transmission distance and overall stability—ensuring reliable data exchange between the remote controller and the UAV.
It is also compatible with a dedicated mobile APP parameter adjustment software, allowing users to set and modify parameters anytime and anywhere, which greatly improves the flexibility of on-site operation.
In terms of flight control compatibility, the system supports most of the existing mainstream flight controllers, including those from brands/models such as JIYI, BOING, Chiao, Wujutuogong, efy, Pix, and APM—widening its application scope across different UAV setups.
Mobile APP Parameter Adjust Software
Specifications
| M15 Agriculture vs.M15 Enterprise | ||
| M15 Agriculture |
M15 Enterprise |
|
| Transmitter HDMI Output |
N | Y |
| Receiver Video Input |
Viewpro Private Video Stream | Standard RTSP Video Stream (compatible with third-party lP cameras) |
| Range optimization |
Ground to Ground (Height 3 meters) 4+ kilometers |
Ground to Air (Height 120 meters) 15+ kilometers |
| Overall | ||
| Max Transmission Distance |
15 km(unobstructed, free of interference) | |
| AG Control Range | 3.5 km(flying at 3-meter height) | |
| channels | 13 | |
| Datalink supported Fc | PIX APM | |
| Videolink Supported Gcs (Standard RTSP video stream) |
QGroundControl MissionPlanner |
|
| Transmitter (Ground Unit) | ||
| Monitor | 5.5-inch High Definition and High BrightnessLCD Touchscreen |
|
| system | Android 9.0 2G RAM,16G ROM |
|
| Dimension (Antenna Foled) |
189x 138x 41 mm | |
| Weight | 850g | |
| Battery Capacity &Type | 10200 mAh7.4V 2S Li-on | |
| FastCharging Protocol | PD 30w | |
| Charging Time | 3 hours | |
| Battery Life | 15 hours | |
| lnterface & Ports | Charging: Type-C Firmware Upgrade: DATA(4-Pin) Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA(4-Pin) Data Transfer: USB-A |
|
| Waterproof Level | lP53 | |
| Working Temperature | -10℃~55℃ | |
| Receiver (Air Unit) | ||
| Signal Output | 16 channels of S.BUS 5 channels of PWM |
|
| lnterface & Ports | S.BUS: 3-Pin Datalink (to FC): UART 4-Pin PwM Channel 1-5:6-Pin Video lnput: 8-Pin Firmware Upgrade: Type-c |
|
| Dimension (Antenna Excluded) |
70x 55x 16mm | |
| Weight (Antenna Excluded) |
100g | |
| Antenna Gain | 5dBi | |
| power Input | 25.2~58.8V (6s~14s) |
|
| Working Temperature | -10℃～55℃ | |
