Core Engineering Breakthroughs
Detachable Modular Design | GPS Anti-Interference Fairing | Semi-Solid Battery Tech
- Quick-Release Arms/Landing Gear: Folded size reduced by 55% for SUV transport
- 520mm High Clearance: Unobstructed 360° FOV for gimbals/LiDAR
- Dual 30,000mAh Batteries: 150+ min endurance with 10kg payload
Modular Design Advantages
1. Detachable Frame System

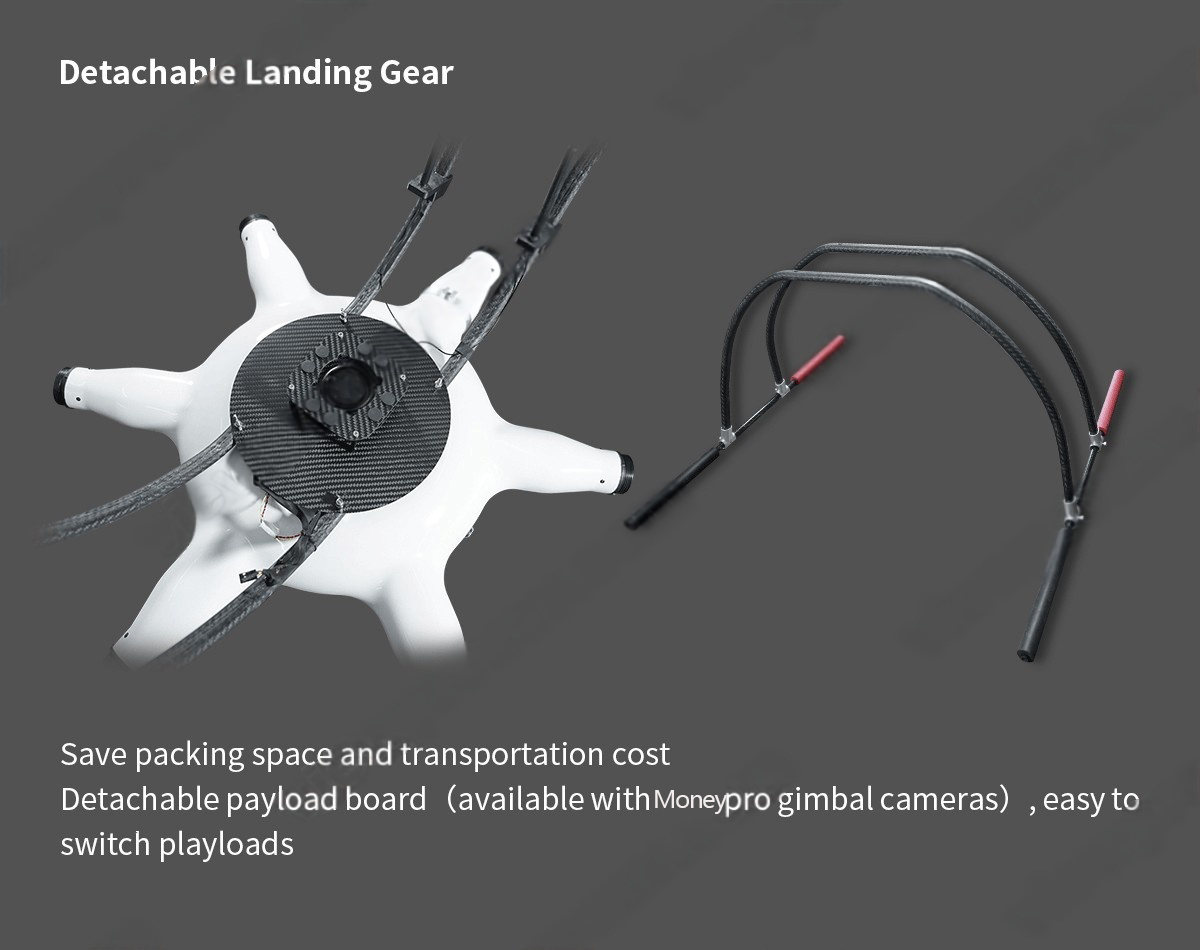

- Landing Gear: Tool-free removal cuts storage volume by 40%
- Payload Bay: Hot-swap boards for Moneypro cameras, med kits, extinguishers

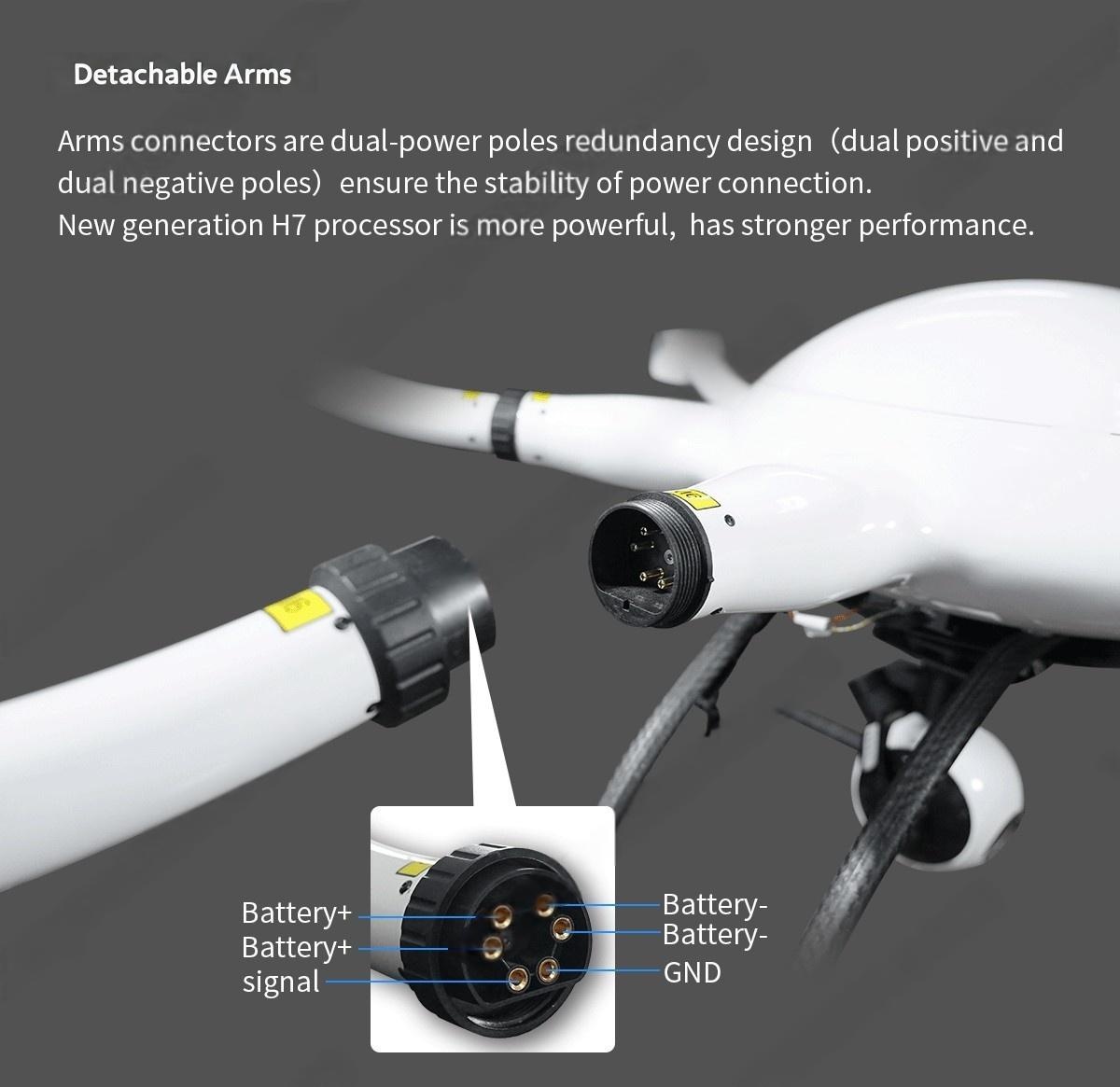

- Dual-Power Arm Connectors: Redundant poles prevent mid-flight disconnects
2. Extreme Environment Readiness

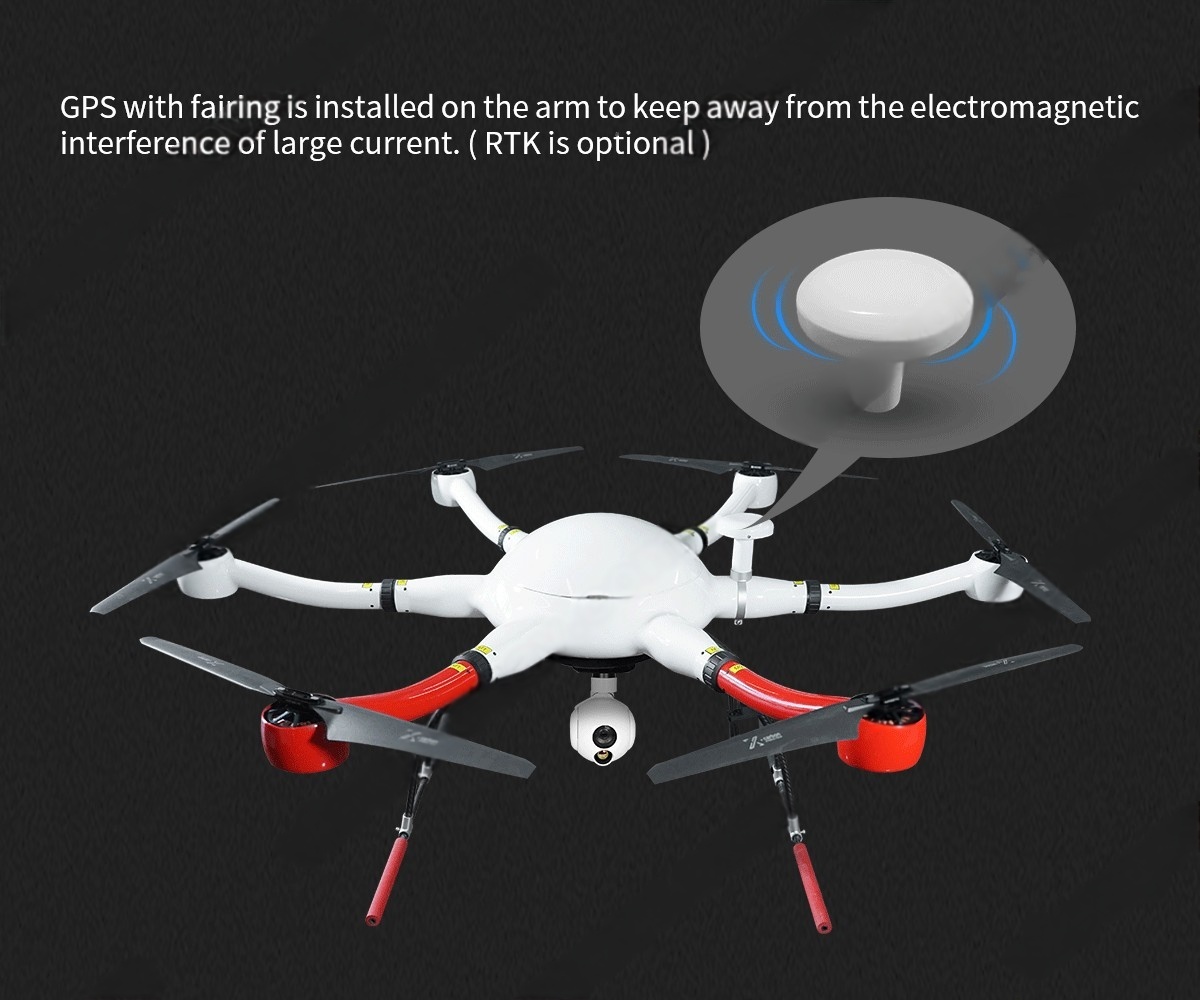

- Arm-Mounted GPS: Faraday cage fairing blocks electromagnetic interference

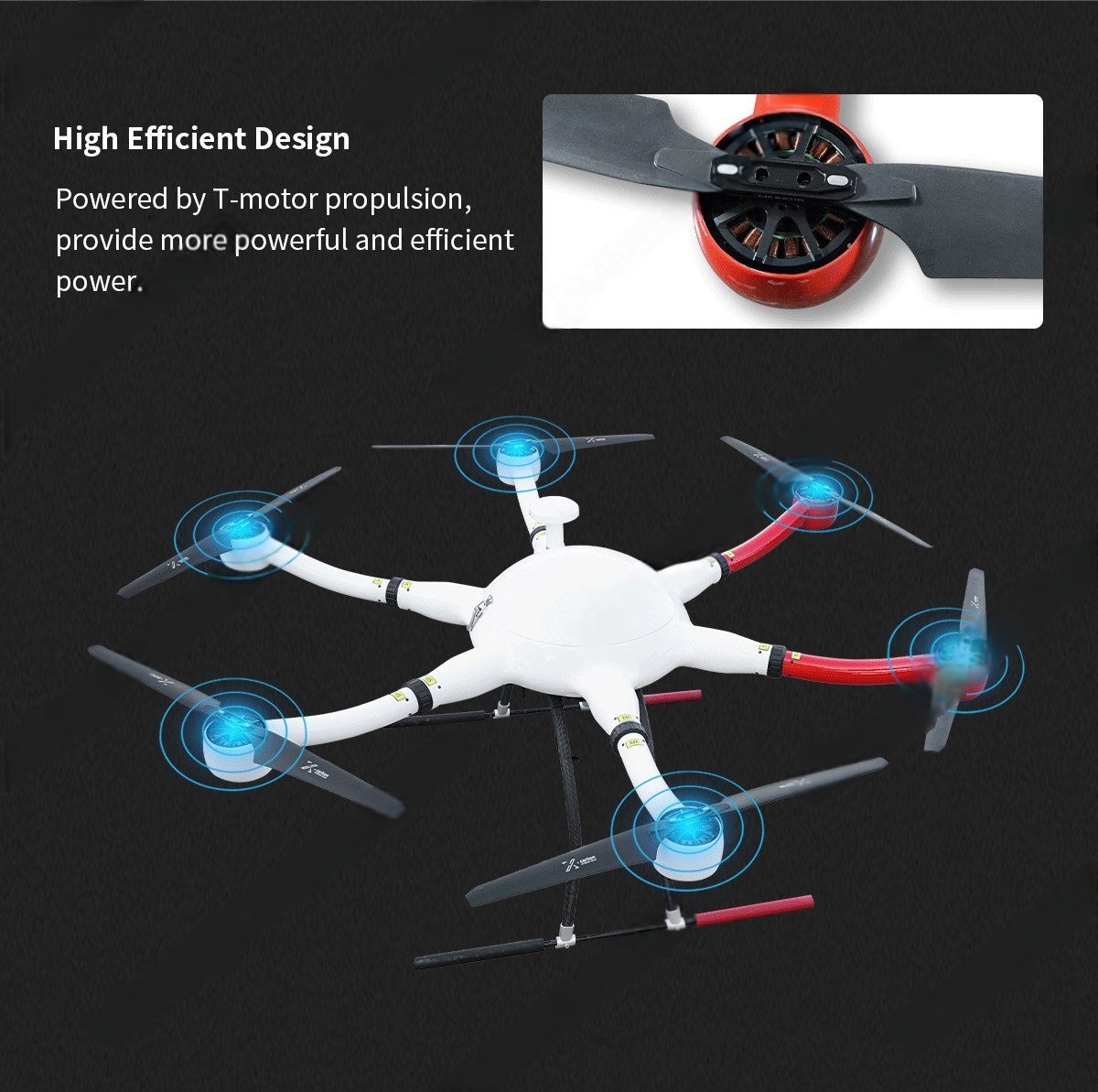

- Aerodynamic Frame: T-Motor propulsion for 20m/s winds (Level 6)
- Operating Spectrum: -20℃ to 60℃ (arctic to desert)
Payload & Power Specifications
| Category | Specification |
|---|---|

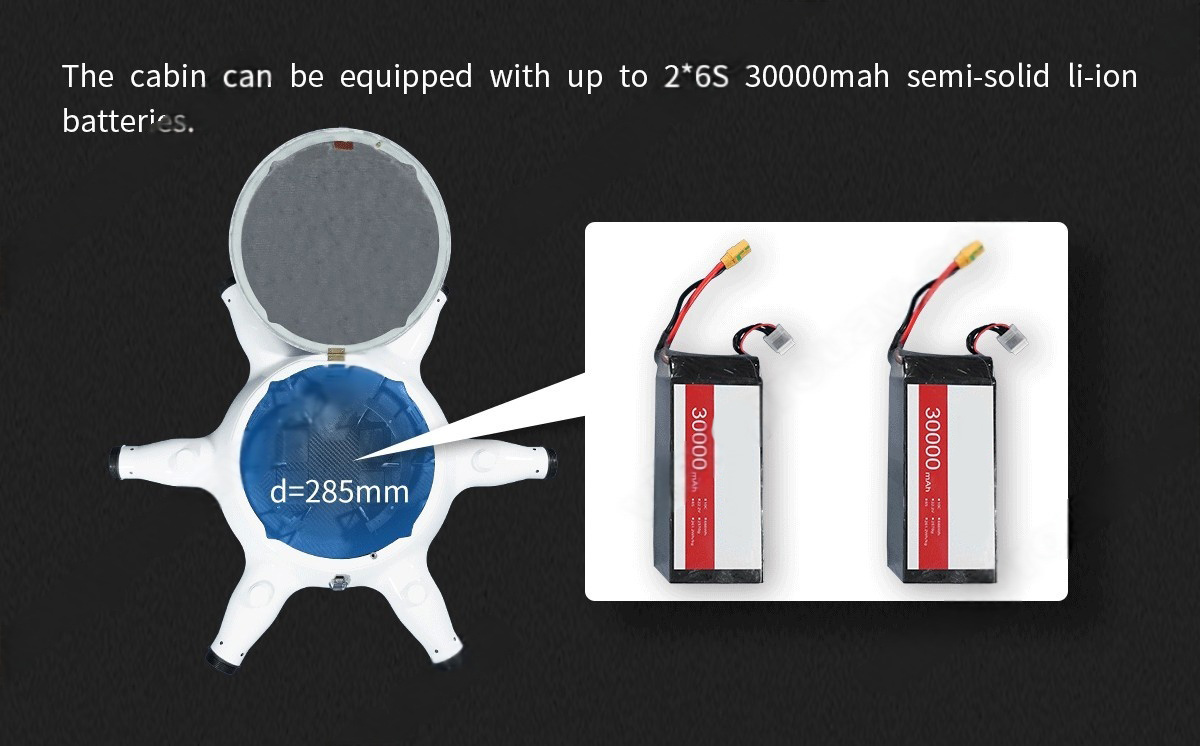

| Battery System | 2×6S 30,000mAh semi-solid li-ion |

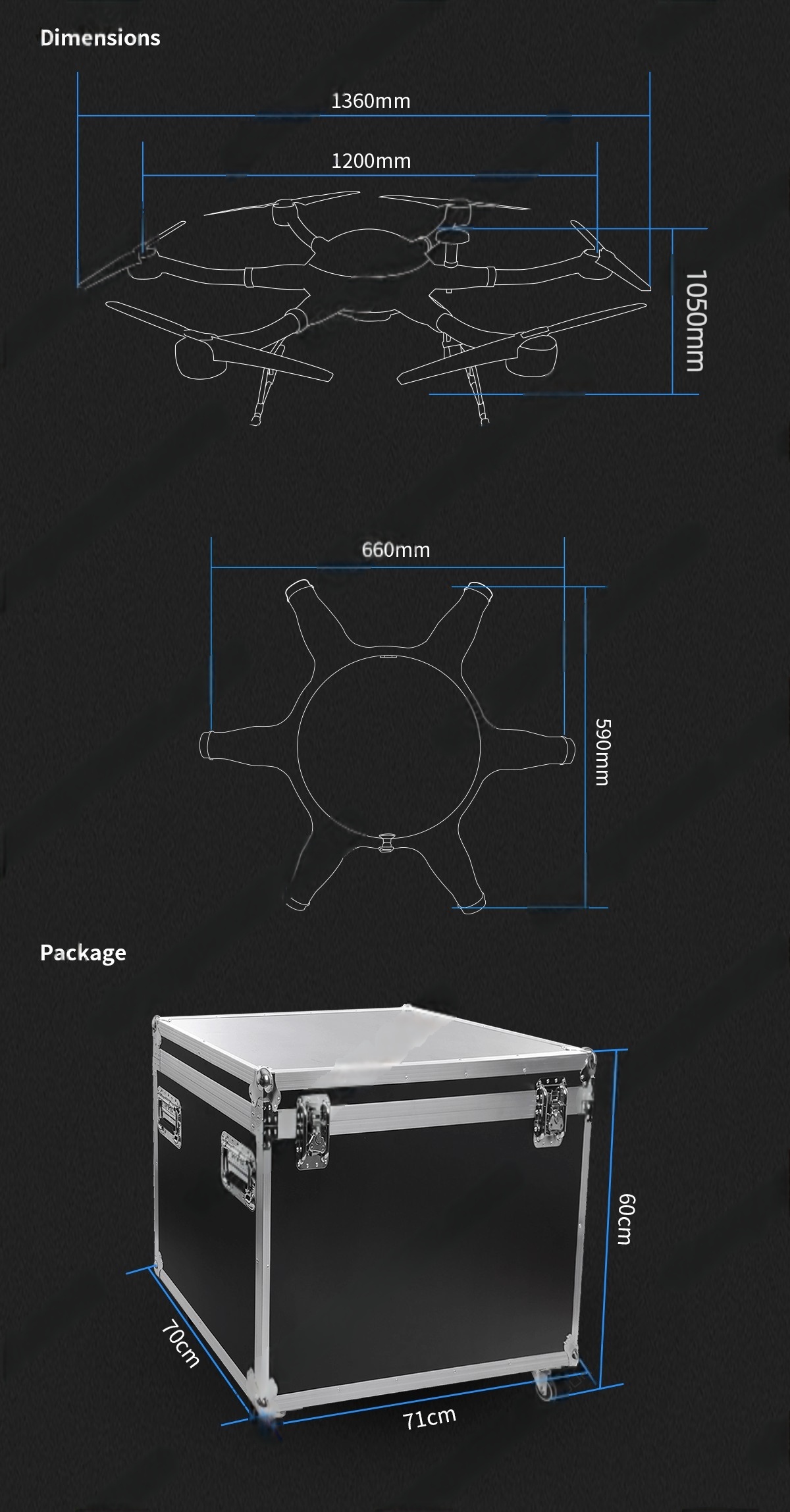

| Unfolded Dimensions | 1090×1247×642mm |

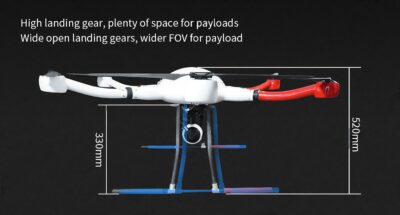

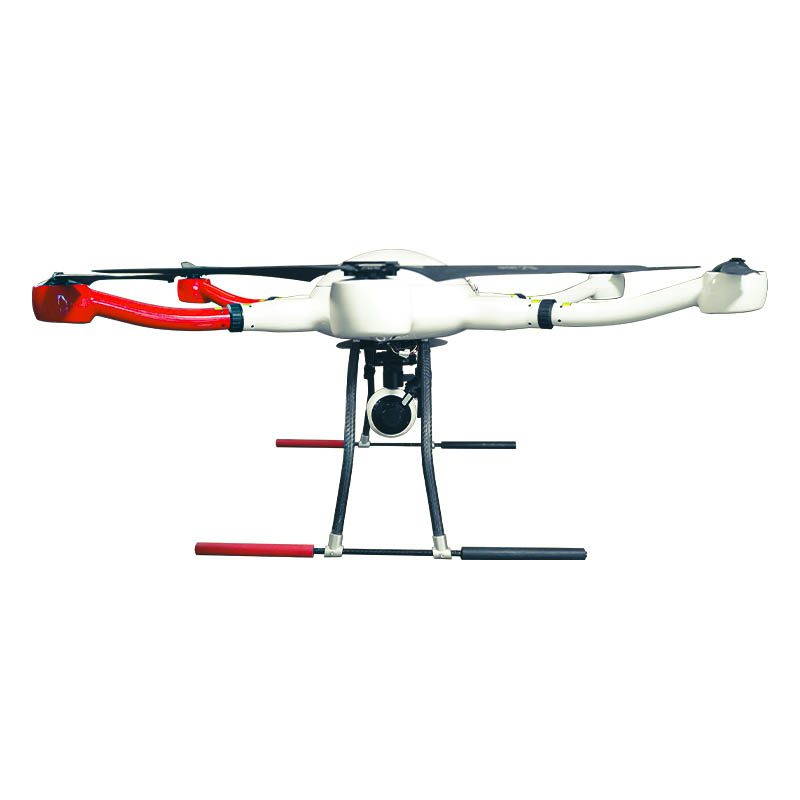

| Landing Gear Height | 520mm (detachable for 330mm low-profile) |
| Payload Compartment | 210×180mm optimized space |
| Max Endurance | 150min (0 payload) / 95min (8kg) |
Mission Customization Hub

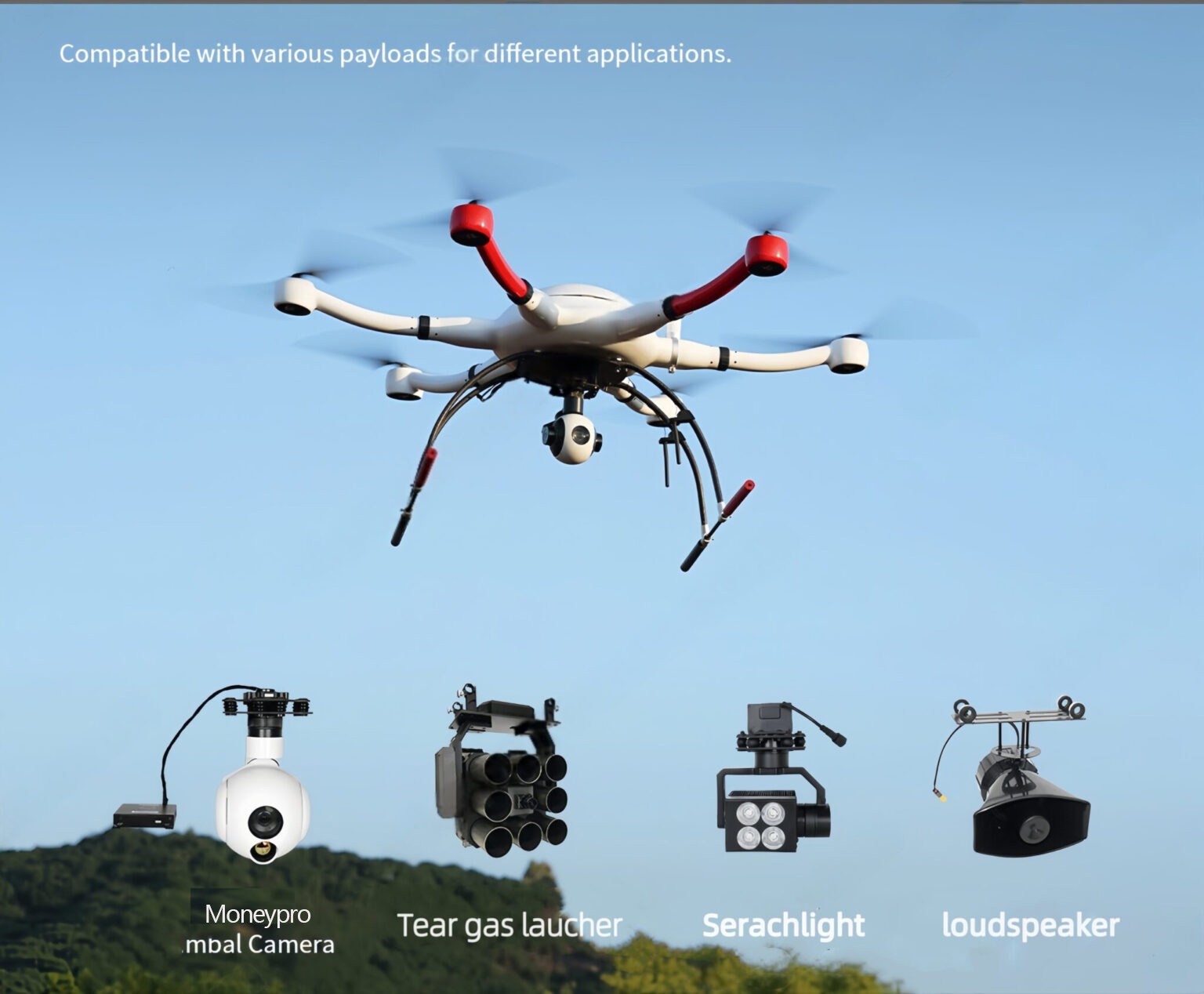

Detachable Payload Solutions
| Equipment | Function | Sector Use Case |
|---|---|---|
| Moneypro Gimbal Camera | 4K/120fps + 30× zoom | Border surveillance |
| Medical Delivery Box | Cold-chain vaccines/blood transport | Disaster relief triage |
| 6kg Fire Extinguisher | Precision drops on wildfire hotspots | Forestry protection |
| Gas Sensor Array | Methane/CO2 leak mapping | Industrial safety |

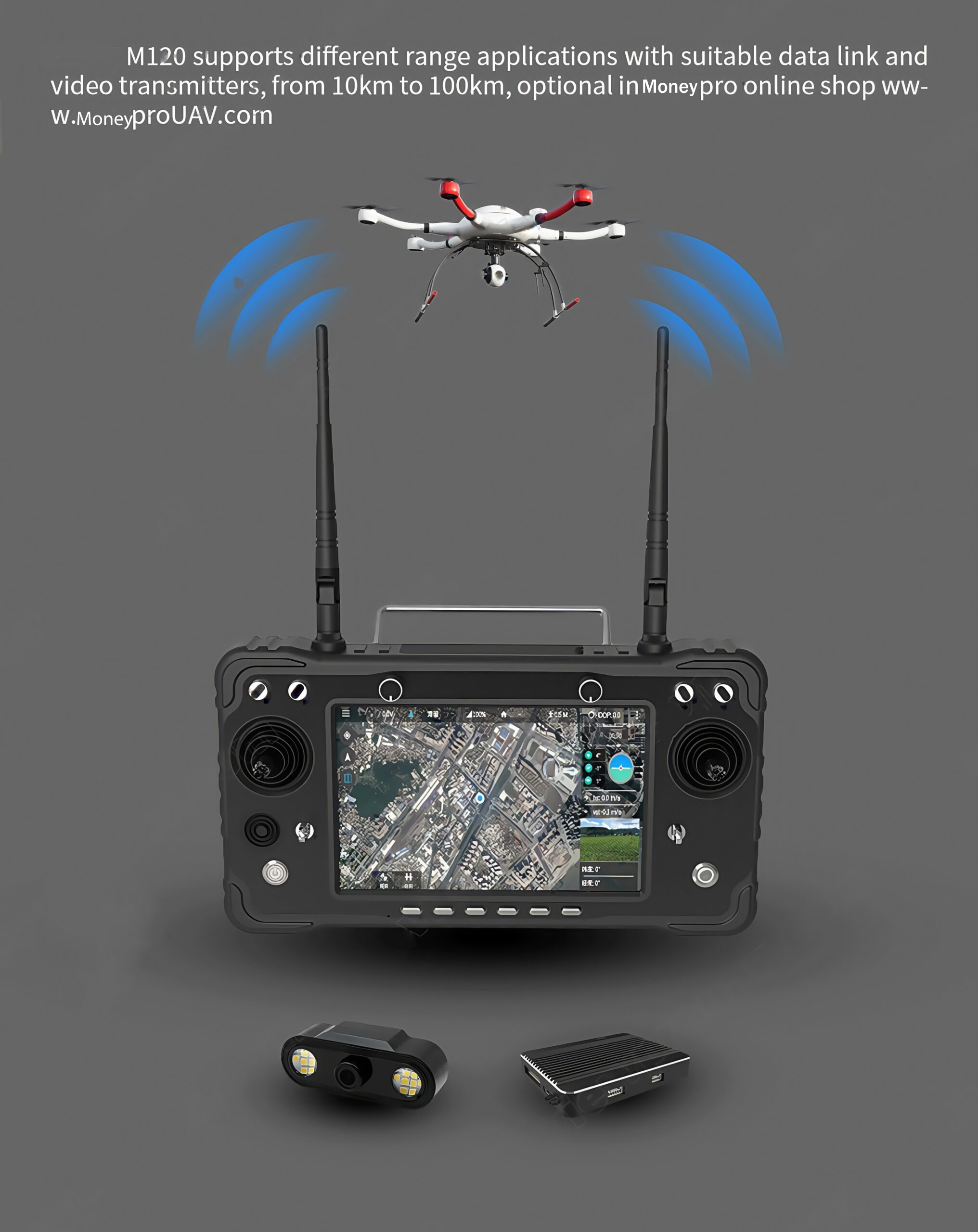

Data Link Options:
- Standard Kit: 10km OcuSync 3.0 (urban operations)
- Extended Kit: 100km encrypted mesh network (rural/maritime)
Industry-Specific Applications
Critical Infrastructure Protection
- Power Line Inspection: 120KV tower corrosion scans with LiDAR payloads
- Pipeline Monitoring: 200km/day patrols with gas sensors + thermal imaging
Emergency Response
- Night Rescue: 520mm clearance for stretcher attachments in rubble
- Flood Relief: Medical supply airdrops via detachable cargo pods
Defense & Security
- Comms Relay: 100km real-time video intel for SWAT operations
- RTK Border Mapping: Centimeter-accurical terrain models
Technical Superiority vs Competitors
| Feature | Moneypro M120 | DJI Matrice 300 |
|---|---|---|
| Battery Capacity | 60,000mAh (semi-solid) | 48,000mAh (standard LiPo) |
| Transmission Range | 100km (customizable) | 15km |
| Assembly Time | 3 minutes (modular arms) | 8+ minutes |
| Payload Access | Front-loading + top bay | Bottom-mount only |
Operational Advantages
- Field Flexibility: Swap landing gear height (330mm↔520mm) for terrain adaptability
- H7 Processor: Real-time obstacle avoidance at 15m/s speeds
- Signal Integrity: RTK positioning in high-interference zones (cell towers/radar)
- Cost Efficiency: 50% smaller storage than fixed-frame competitors
