Product Detail
1. Professional 3-axis High-precise FOC Program

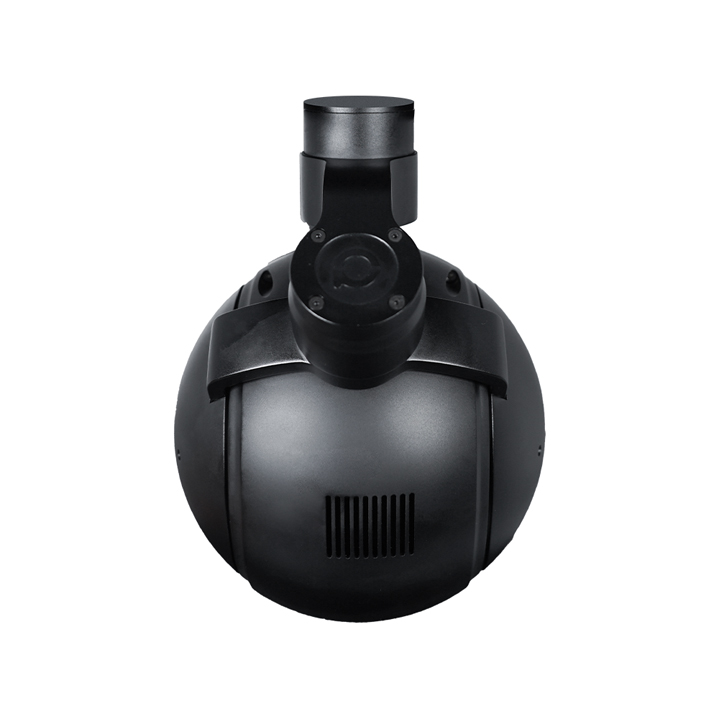

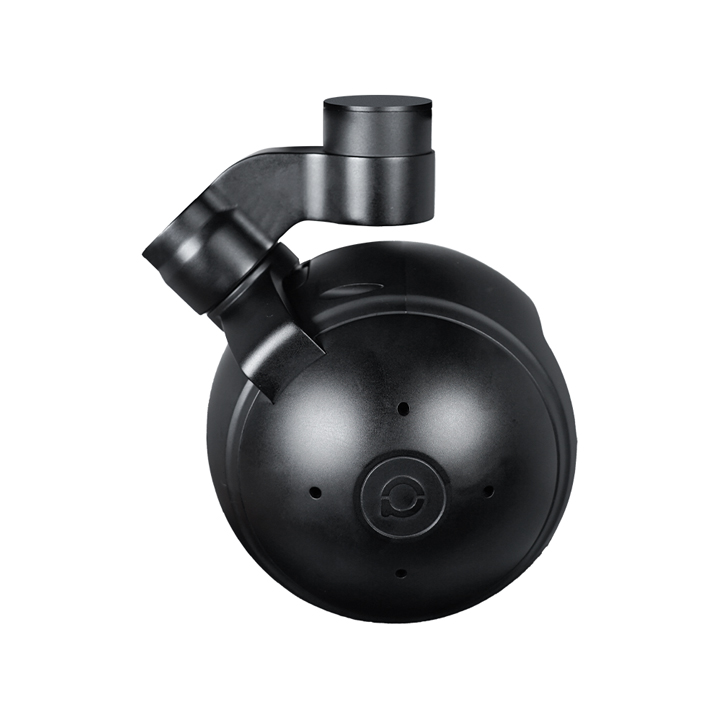

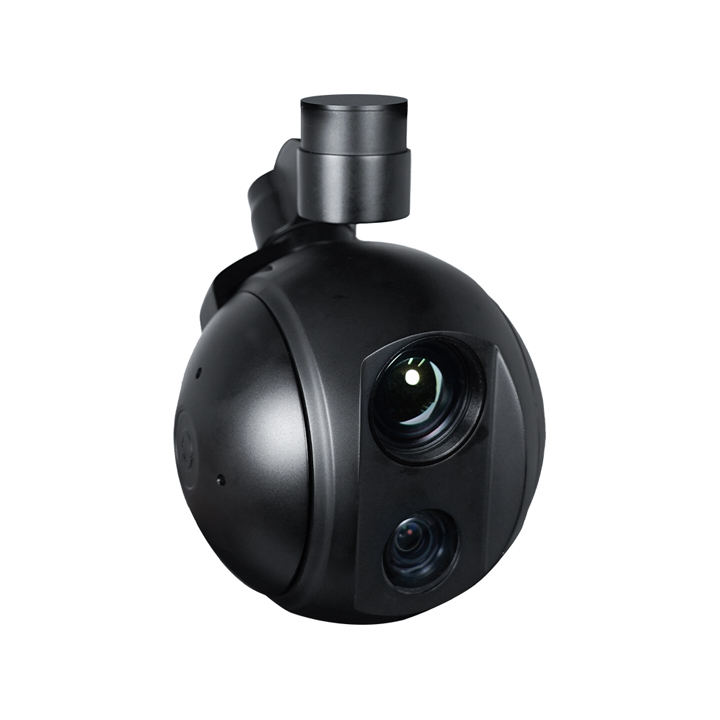

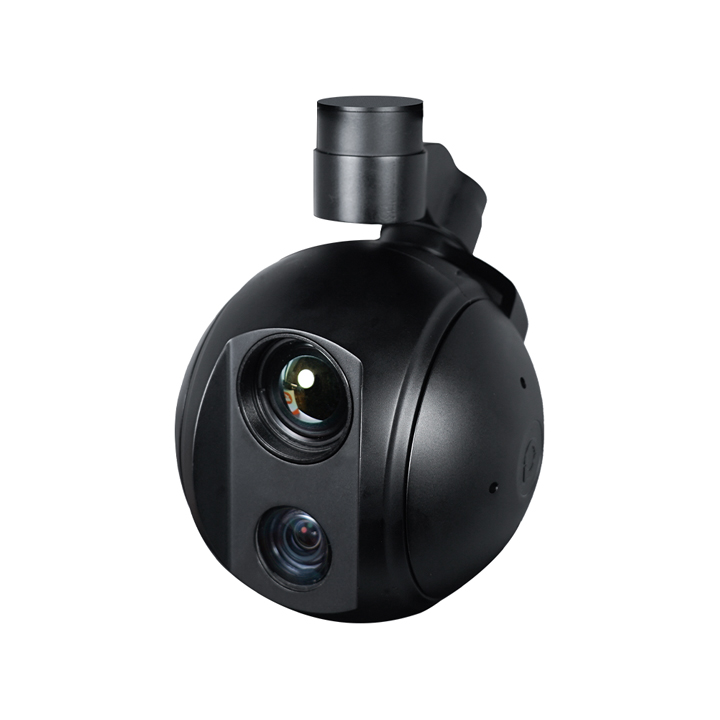

The M20KTIR Pro is a highly optimized 3-axis gimbal payload featuring stabilized performance, with pinpoint motor rotation boasting a control accuracy of ±0.01°—all powered by a dedicated processor. Unlike many gimbals that rely on electrical slip rings, it employs a unique mechanically limited design paired with concealed wiring, ensuring more stable data transmission and enhanced durability. Vibration is effectively eliminated through four damping balls and a lightweight damping board, resulting in seamlessly smooth video output. Despite this design, 360° rotation remains achievable via gimbal movement. Even during high-speed flight, the system captures stable, fluid footage with exceptional clarity.
2. High Resolution SONY 20x Zoom 4K Camera
Driven by a SONY 1/2.5″ “Exmor R” CMOS module, the device delivers 8.51 megapixels of effective resolution and 4K video quality. Paired with 20x advanced optical zoom technology, it achieves an observation range of up to 3000 meters—capable of meeting application needs across diverse domains.
3. Advanced HD IR Thermal Imager
The M20KTIR Pro integrates a high-precision 35mm thermal image sensor—featuring 1280×1024 HD resolution, uncooled technology, a long-wave detection range of 8μm ~14μm, and a 12μm pixel pitch. It can simultaneously record and transmit thermal images and visible images in PIP (Picture-in-Picture) format. The IR sensor delivers clear visuals of distant targets, while digital zoom further extends its capability for long-range surveillance and inspection tasks.
4. Visible Light and Thermal Imager Dual Sensors Object Tracking
It incorporates built-in normalization, cross-correlation, and tracking algorithms, paired with an object missing recapture algorithm, to achieve stable target tracking. It supports user-customizable OSD (On-Screen Display) characters, adaptive gates, cross cursors, and trace information display. Boasting a tracking speed of up to 32 pixels per frame, it accommodates object sizes ranging from 16×16 pixels to 160×160 pixels. With a minimum signal-to-noise ratio (SNR) of 4dB and a root mean square (RMS) value of pulse noise in the object position of less than 0.5 pixels, it significantly enhances tracking accuracy and performance.
Multi Output Methods Optional
The M20KTIR Pro offers both HDMI and Ethernet/IP output options. Both HDMI and Ethernet outputs deliver 1080p resolution, while Ethernet recording supports 4K quality by default. Additionally, versions with IP output enable 360-degree endless pan functionality.
Multi Control Methods
The M20KTIR Pro comes with default PWM and Serial Port TTL control, while SBUS control is offered as an optional feature. For the IP output version, TCP control is an additional capability accessible via an Ethernet cable. All key control functions—including IP output management, TTL control, and TCP control—can be implemented using Viewpro’s Viewlink software.
Control box signal interfaces:
Compatible with Viewport
The M20KTIR Pro is compatible with the Viewpro Quick Release Connector Viewport. This Viewport option features easy assembly and plug-and-play functionality.
Application
It is primarily supplied for law enforcement, firefighting, power tower and pipeline inspections, search and rescue operations, and more. In emergency scenarios, extensive monitoring and searching are essential to rapidly relay on-site conditions, enhance response efficiency, and minimize casualties.
Dimensions
Specifications
| M20KTIR Pro | |
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1250~1900mA @ 12V |
| Idle current | 1250mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P25/30fps)/IP (4K/1080p 25/30fps ) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG (4K:3840*2160) |
| Video storage format | MP4 (1080P/4K 30fps) |
| Control method | PWM / SBUS / TTL / TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60°～135°, Roll: ±50°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera Spec | |
| Imager Sensor | SONY 1/2.5″ “Exmor R” CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele) |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H ) | 70.2°(Wide end) ~ 4.1°(Tele end) |
| Sync system | Internal/External |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) |
| 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) | |
| 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) | |
| 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) | |
| Back light compensation | On/Off |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Lens size | 35mm |
| Horizontal FOV | 24.8° |
| Vertical FOV | 19.9° |
| Diagonal FOV | 31.4° |
| Detective Distance (Man: 1.8×0.5m) | 1458 meters |
| Recognize Distance (Man: 1.8×0.5m) | 356 meters |
| Verified Distance (Man: 1.8×0.5m) | 182 meters |
| Detective Distance (Car: 4.2×1.8m) | 4472 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1118 meters |
| Verified Distance (Car: 4.2×1.8m) | 559 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 1280*1024 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1692g(Viewport Version) |
| Product meas. | 139*160.2*230.5mm（Standard Version）139*160.2*236.2（Viewport Version） |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| Package meas. | 350*300*250mm |
