Overview
Basic Info.
| Model NO. | M20Pro |
| Usage | Radio, Satellite, Plane, Ship, Car |
| Frequency | 1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.) |
| Power Supply | DC12V-24V |
| Dimension | ≤ 94.5 × 77 × 32mm (Air) |
| Interfaces | 1 Ttl + 1 RS232 + 1 S.Bus |
| Security Protection | AES128 |
| Specification | 330Grams Weight |
| Origin | China |
| Work Mode | TDD |
| Information Content | Text, Picture, Video, Audio |
| RF Power | 25dBm ± 2 |
| Data Rate | 24Mbps @ 10MHz (Peak) |
| Weight | ≤ 330g (Air) |
| Transmission Distance | 20km Air-to-Ground |
| Transport Package | Carton/Wooden/Flight Case |
| Trademark | China Moneypro |
| Production Capacity | 5000PCS/Month |
Product Description

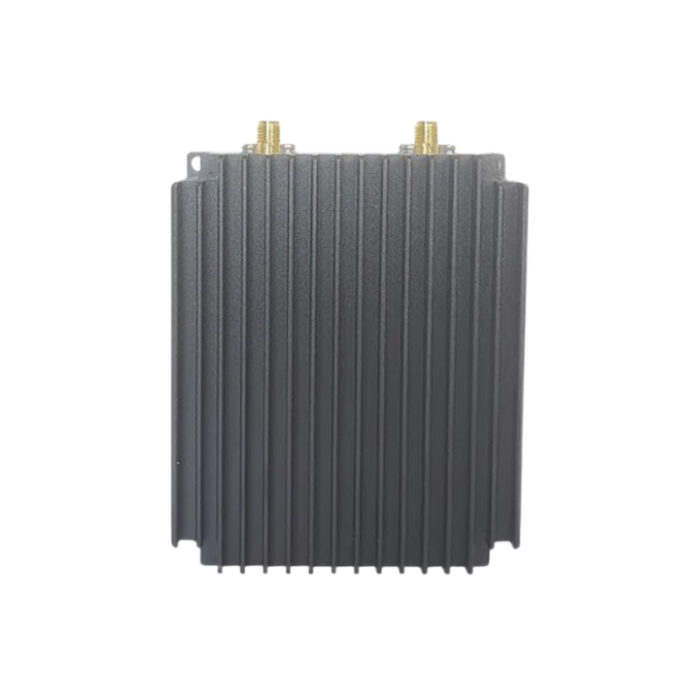

M20Pro Drone Video Transmission Radio
330 Grams Weight

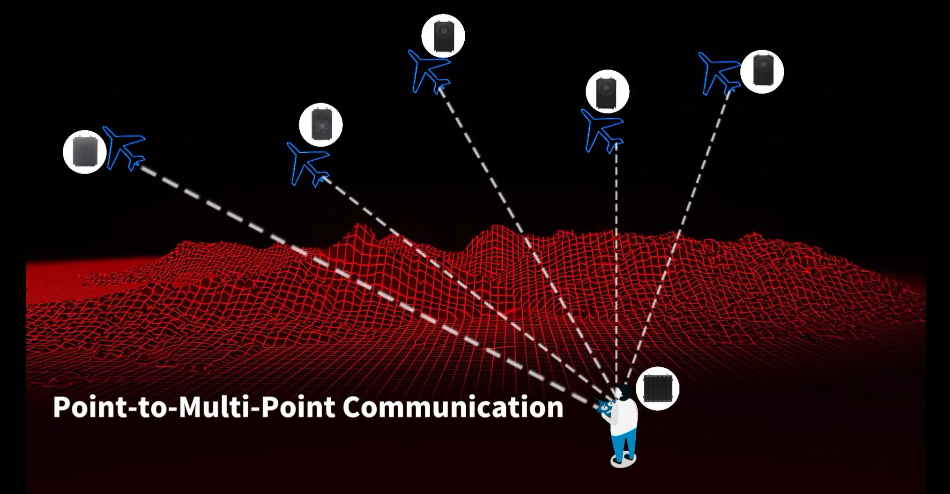

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
Specification
|
Wireless
|
TDD-OFDM / MIMO / 1T2R
|
|
Technology
|
QPSK / 16QAM / 64QAM
|
|
Modulation
|
24Mbps @ 10MHz (Peak)
|
|
Data Rate
|
24Mbps @ 10MHz (Peak)
|
|
Frequency Range
|
1428-1448MHz (Standard)
2401-2481MHz (Optional) 806-826MHz (Optional) |
|
Bandwidth
|
5MHz / 10MHz / 20MHz
|
|
Tx Power
|
25dBm ± 2
|
|
Rx Sensitivity
|
-99dBm @ 5MHz
|
|
System
|
|
|
Serial Port
|
1 TTL + 1 RS232 + 1 S.BUS
|
|
Video Port
|
2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
|
|
Security
|
AES128 Encryption
|
|
Power
|
DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air) |
|
Interfaces
|
|
|
RF Antenna
|
SMA × 2
|
|
Serial Port Interface
|
JST × 2
|
|
S.BUS Interface
|
JST × 1
|
|
Video Port Interface
|
JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.) |
|
Power Input
|
XT30
|
|
Physical
|
|
|
Dimension
|
≤ 94.5 × 77 × 32mm (Air)
|
|
Weight
|
≤ 330g (Air)
|
|

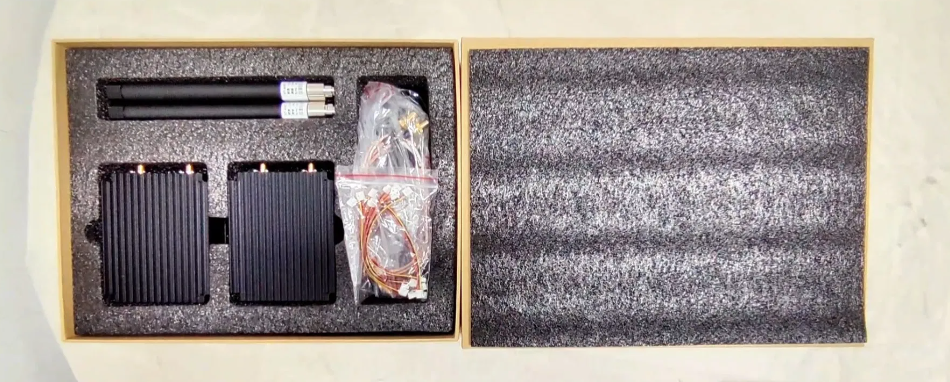

ACCESSORIES
|
|
|
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2
|
Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
|
|
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
|
