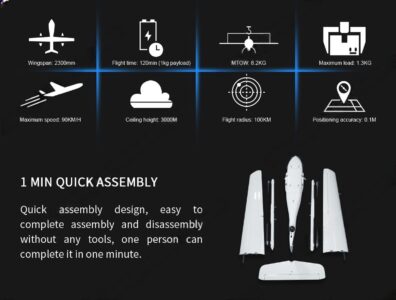

Revolutionary Quick Deployment System
- 60-Second Assembly: Tool-free snap-lock mechanism enables solo operation
- Portable Configuration: Breaks down for compact transport (fits standard survey backpacks)
- One-Person Workflow: Eliminate ground crew requirements for border/rural ops

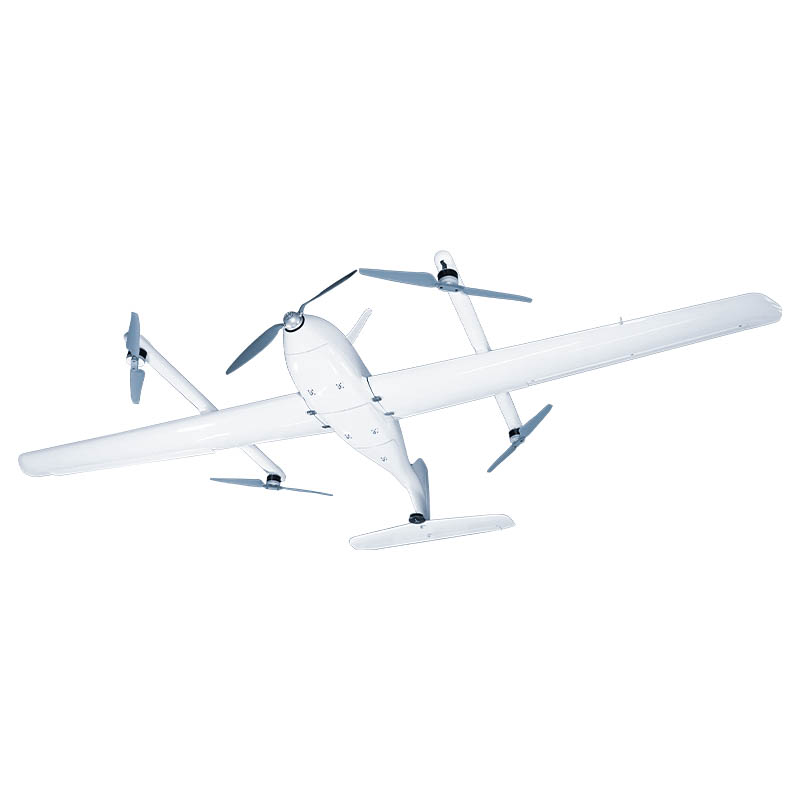

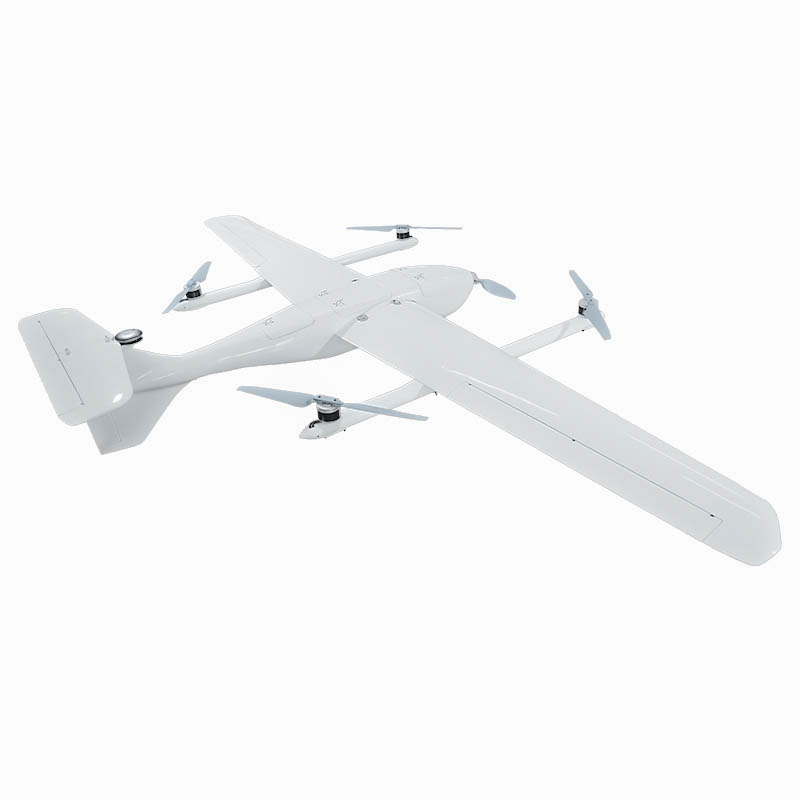

Aerodynamic Engineering Excellence
- T-Tail Lift Design: 15% increased payload capacity versus conventional tails
- Composite Airframe: Glass-fiber reinforced body at 8.2kg MTOW withstands 12m/s gusts

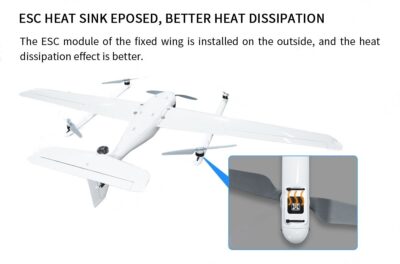

- Exposed ESC Cooling: Aluminum heat sinks maintain optimal temps during 120-min flights
Military-Grade Endurance Performance
| Capability | Spec | Mission Impact |
|---|---|---|
| Flight Duration | 120min (1kg payload) 160min (unloaded) |
2x longer than DJI M300 |
| Operational Radius | 100km | Survey remote sites without relocation |
| Max Speed | 90km/h | Rapid area coverage during emergencies |
| Ceiling Altitude | 3,000m | Mountain/coastal surveillance unlocked |
Sector-Specific Mission Solutions
| Application | Payload Recommendation | Operational Advantage |
|---|---|---|
| Disaster Response | Thermal cam + loudspeaker | Locate survivors in 8km²/120min |
| Precision Agriculture | Multispectral sensors | Scan 300ha per flight at 2cm GSD |
| Pipeline Inspection | 30x zoom camera | Document 50km infrastructure/day |
Power & Reliability Engineering
- Custom Propulsion System: Brushless motors optimized for low-RPM efficiency
- Redundant Flight Control: Triple IMU/GNSS failover architecture
- Environmental Hardening: -10℃ to 50℃ operational range (IP43-rated)
Technical Specifications Overview
| System | Parameters | Field Value |
|---|---|---|

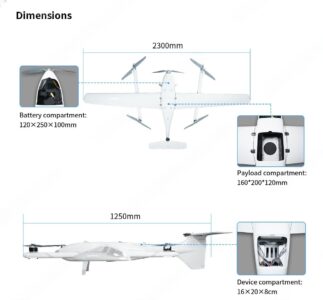

| Physical | Wingspan: 2,300mm MTOW: 8.2kg Payload Bay: Custom-mount rails |
Backpack portable |
| Performance | Cruise Speed: 90km/h Endurance: 120min@1kg Climb Rate: 5m/s |
Outpaces quadcopters |

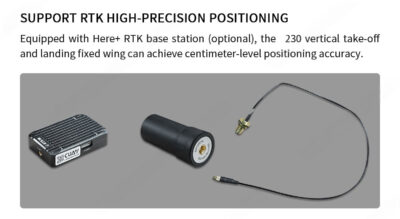

| Precision | Native Accuracy: 0.1m RTK Accuracy: 0.03m Wind Resistance: Level 5 |
Survey-grade output |
