Specifications: Precision Performance for Demanding Operations
-
- 2500mm Wingspan | 13.5kg MTOW | 3000m Max Altitude
- 100 km/h Max Speed | 210-min Flight Time (1kg payload)
- 2kg Payload Capacity with zero-balance optimization
(Include visual: Specs table comparison vs competitors)

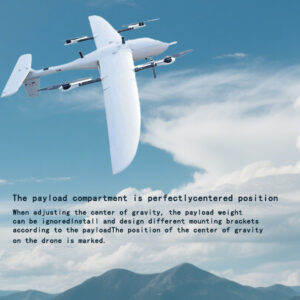

Patented Balance Technology™: Effortless Payload Integration
-
- CoreLock Payload System: Perfectly centered compartment eliminates CG recalibration needs.
- Smart Weight Ignition: Integrated brackets adapt to any sensor while ignoring payload weight during adjustments.
- CG Markers: Tool-free visual indicators for rapid field deployment.
Defense & Inspection Applications: Mission-Ready Deployment
-
- Border Surveillance: Night patrols, intrusion detection, and rugged terrain mapping.
- Critical Infrastructure: Power line/corridor inspections, pipeline monitoring, and dam assessments.
- Rapid Response: Search & rescue coordination, disaster zone mapping, and checkpoint security.
Key differentiator for industrial buyers:
-
- Reinforced airframe handles crosswinds and high-altitude turbulence.
- Low-noise propulsion for covert border operations.
- IP54-rated components (dust/moisture resistance certified).
Why Choose Moneypro Military-Grade Drones?
-
- Compliance Ready: Pre-certified mounting for FLIR/thermal payloads (ISO-certified integration).
- Global Logistics: Shenzhen-Hong Kong port advantage = 30% faster shipping + export documentation support.
- Moneypro Integration: Seamless compatibility with 100+ camera systems (zoom/LiDAR/telemetry verified).
Packing List for Different Versions:
| Version | CUAV V5+ RTF | Cube Orange RTF | CUAV X7+ RTF |
|---|---|---|---|
| Flight Controller | CUAV V5+ | Cube Orange | CUAV X7+ |
| GPS | NEO3 GNSS | Here 3 GNSS | NEO3 Pro GNSS |
| VTOL Airframe | √ | √ | √ |
| VTOL Motor | 4pcs | 4pcs | 4pcs |
| VTOL ESC | 4pcs | 4pcs | 4pcs |
| Airplane Motor | 1pc | 1pc | 1pc |
| Airplane ESC | 1pc | 1pc | 1pc |
| VTOL Propeller | 2Pairs | 2Pairs | 2Pairs |
| Airplane Propeller | 1pc | 1pc | 1pc |
| Servo | 4pcs | 4pcs | 4pcs |
| UBEC | 1pc | 1pc | 1pc |
| Night Light | 1pc | 1pc | 1pc |
| RC&Ground Station | 1x FT24 14Channels RC | 1 x DK32S 16Channels RC | 1 x DK32S 16Channels RC |
| Video Transmitter | / | / | / |
| Battery | / | / | / |
| Battery Charger | / | / | / |
| Flight Case | √ | √ | √ |
| Assembling, tuning and flight test service | √ | √ | √ |
Recommended options:
Battery: 2 x 6S 30000mAh HED Li-ion Battery
Battery charger: PC1080, UP600+, UP1200
Data and image link: 15km, 30km, 50km, 100km
Ground station: VTX20, VTX30, VTX-YH50
Specification:
| Model No | China Moneypro M250 Pro |
|---|---|
| Type | VTOL fixed wing |
| Color | White color as default （support customization) |
| Wingspan | 2500mm |
| Length | 1500mm |
| Belly to Ground | 160mm(land gear height support customized) |
| Battery compartment size | 280*160*100mm |
| Device compartment size | 150*130*120mm |
| Payload compartment size | 220*170*110mm |
| Material | Carbon fiber+Glass fiber |
| Airframe Weight | 3.5kg |
| MTOW | 13.5kg(include batteries) |
| Max Payload | 2kg |
| Suggested load | 1.5kg (A30TR ) |
| Flight time | 4hrs (no load), 3.5hrs@1.2kg load |
| Max Flight Speed | 100km/h |
| Suggest cruising Speed | 75-90km/h |
| Max climb rate | 5m/s |
| Max angel of roll | 35° |
| Max Flight Altitude | 3000m |
| Max Wind resistance | Grade 6 |
| Battery (Recommended) | 2*6S 30000mAH HED Li-ion |
| Working Temperature | -20℃~50℃ |
| IP Grade | IPX3 |
| Package Size | 1260x486x405mm |
