Product Detail

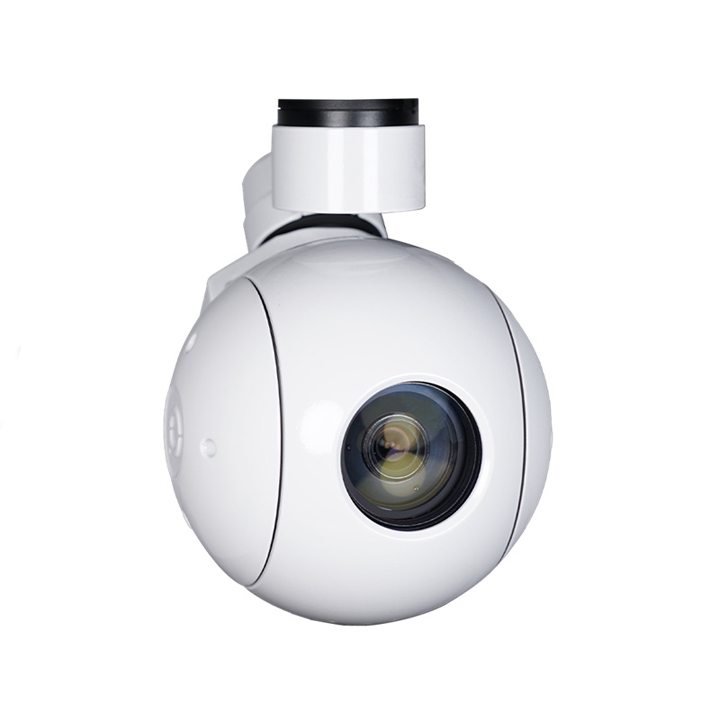

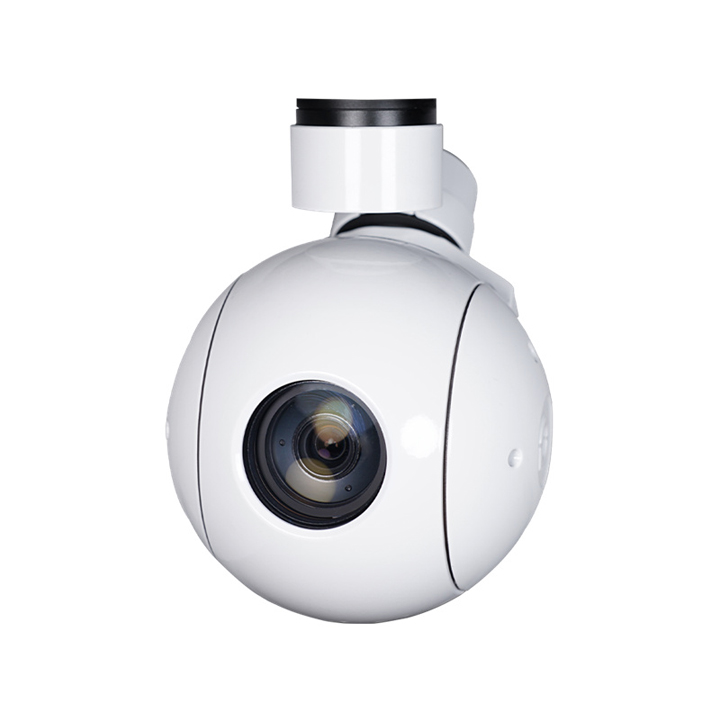

The M30T Pro II is equipped with a 30x optical zoom lens, tailored specifically for UAV aerial photography. It leverages a SONY 1/2.8” “Exmor R” CMOS module as its core, supporting FHD 1080p video recording and delivering fast auto-focus performance for sharp, timely captures.
Its lightweight build, when paired with a 3-axis gimbal, ensures the gimbal motors respond with ultra-high reactivity. The integrated FOC (Field-Oriented Control) solution significantly mitigates UAV vibrations, preserving image stability. The yaw axis enables 360° continuous rotation, with SDI output included as a default feature.
Additionally, the M30T Pro II offers reliable target tracking capabilities. Even when using the full 30x optical zoom, the image remains steady and clear. All parameters come pre-calibrated to optimal settings—simply mount the gimbal camera onto your UAV, and it’s ready for flight.
SONY 30x Optical Zoom Camera
Driven by a SONY 1/2.8” Exmor R CMOS module, the M30T Pro II boasts an ultra-low minimum illumination of 0.01lux@F1.6—reaching starlight-level performance. This enables it to still render image details clearly even in extremely low-light environments.
Featuring 2.13-megapixel effective resolution and 1080p HD image quality, the device is further enhanced by 30x advanced optical zoom technology. It achieves an observation range of up to 500 meters, making it capable of meeting application needs across a variety of fields.
Built-in Object Tracking
The M30T Pro II integrates three core tracking algorithms—normalization, cross-correlation, and object missing recapture—to deliver stable, uninterrupted target tracking. This combination ensures consistent lock-on even in dynamic scenarios, minimizing tracking loss and re-engaging targets quickly if briefly obscured.
Beyond tracking performance, it offers versatile display customization options, including user-defined OSD (On-Screen Display) characters, adaptive gating, crosshairs, and real-time trace information. These features enhance operational visibility and ease of use across different scenarios.
In terms of technical precision, the device achieves a tracking speed of up to 32 pixels per frame, supports target sizes ranging from 16×16 pixels to 160×160 pixels, and operates reliably with a minimum signal-to-noise ratio (SNR) of 4dB. Additionally, the root mean square (RMS) value of pulse noise in the target position is less than 0.5 pixels—all of which collectively elevate tracking accuracy and overall performance.
Multi Output Methods Optional

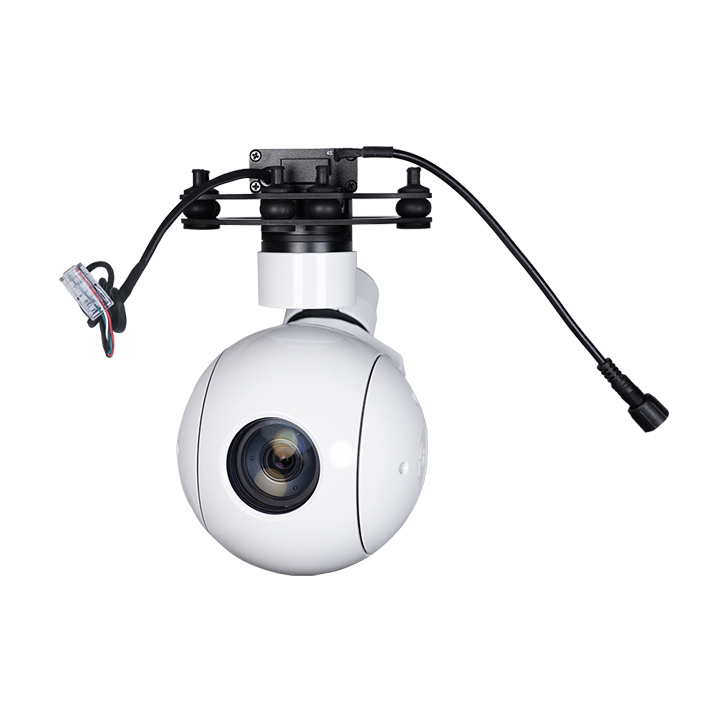

The M30T II offers versatile connectivity with three key output options: HDMI, Ethernet/IP, and SDI. For resolution performance, both the HDMI and SDI outputs support 1080p signals, ensuring high-definition image transmission. The Ethernet output defaults to 720p for real-time streaming, while recording via this interface maintains a crisp 1080p quality—balancing bandwidth efficiency and image clarity.
Notably, the IP output and SDI output versions of the M30T II come with an enhanced pan function, supporting 360-degree endless rotation. This feature enables unobstructed, continuous monitoring or shooting without mechanical limits, ideal for scenarios requiring full-circle coverage.
Multi Control Methods
The M30T II comes with two default control options: PWM (Pulse-Width Modulation) and Serial Port TTL, ensuring compatibility with standard hardware setups for straightforward operation. For expanded flexibility, SBUS control is available as an optional add-on, catering to users with specific remote control or integration needs.
Additionally, the IP output version of the M30T II introduces TCP control functionality, which can be accessed via an Ethernet cable—enabling stable, network-based remote operation for scenarios requiring long-distance or centralized control.
To streamline these control capabilities, the dedicated Viewpro software (Viewlink) provides a unified platform: through Viewlink, users can seamlessly manage IP output, TTL control, and TCP control in one interface, simplifying setup and day-to-day operation.

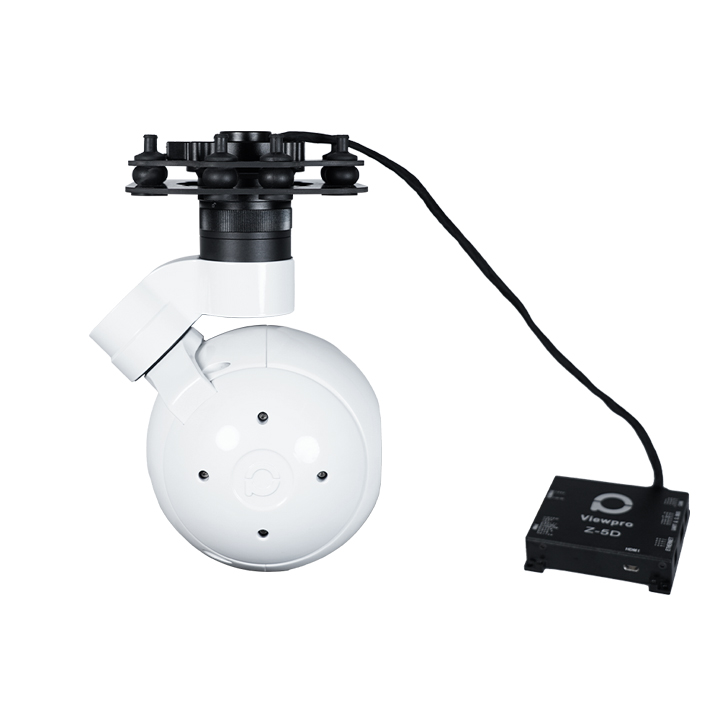

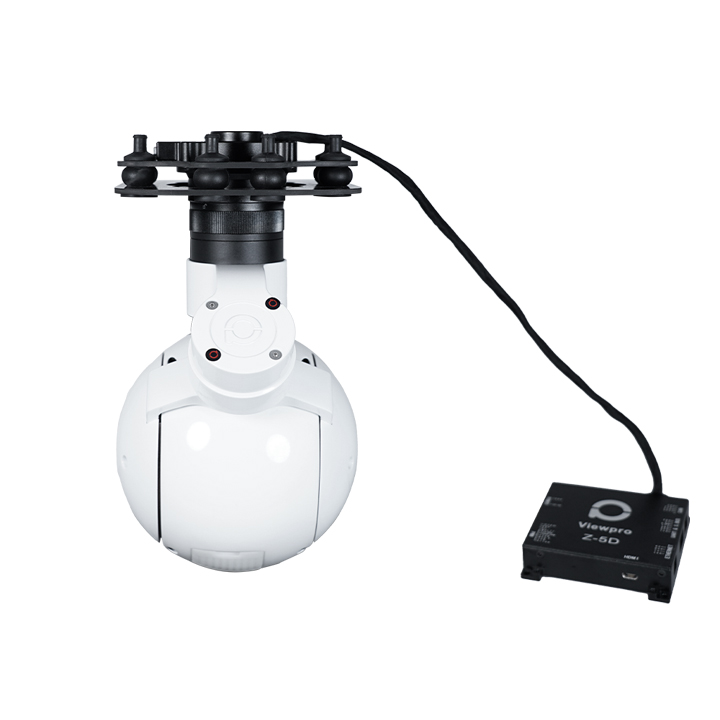

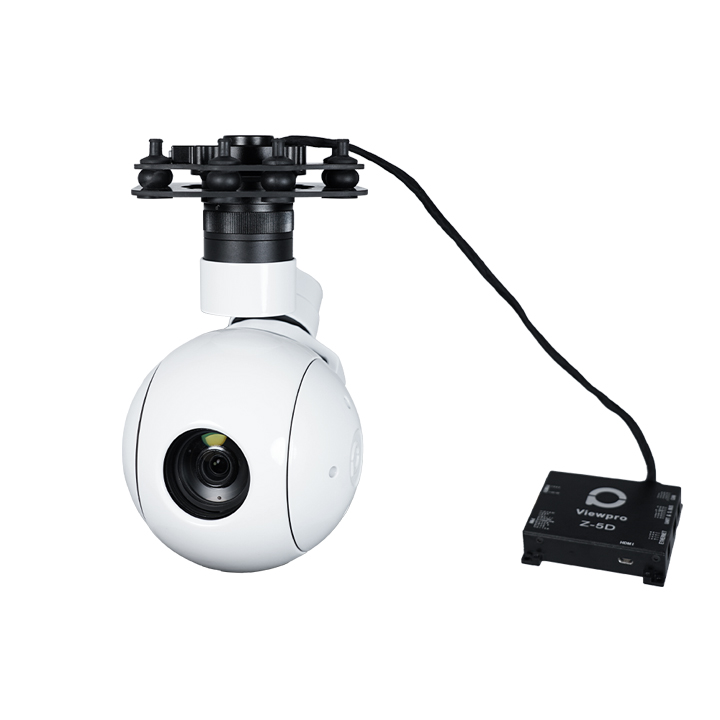

Control box signal interfaces:
Compatible with Viewport
The M30T Pro II is fully compatible with Viewport, Viewpro’s dedicated quick-release connector. Designed as an optional accessory, Viewport stands out for its user-friendly design: it enables easy assembly, allowing for hassle-free attachment and detachment, and supports plug-and-play functionality—eliminating complex setup steps and letting users get the system up and running in no time.
Dimensions
Applications
The M30T Pro II is primarily suited for professional fields including law enforcement, firefighting, power tower & pipeline inspection, and search-and-rescue operations. In emergency scenarios within these domains, there is a critical need for wide-range monitoring and searching capabilities—capabilities the device delivers to quickly transmit on-site conditions. This real-time information transfer not only enhances emergency response efficiency but also helps minimize casualties by enabling faster, more informed decision-making.
Specifications
| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
520~1500mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage |
SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |
| Card reading online |
SMB read / HTTP read |
| Control method |
PWM / TTL / S.BUS/ TCP (IP output version)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |
| Gimbal spec |
| Mechanical Range |
Pitch/Tilt: -55°～120°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Controllable Range |
Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| Camera spec |
| Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| Defog |
Yes |
| OSD |
Yes |
| Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames (4s) |
| The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Packing Information |
| N.W. |
895g / 960g (Viewport version) |
| Product meas. |
128.2*104.9*183.9mm / 128.2*104.9*189.6mm(Viewport version) |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards， 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2052g |
| Package meas. |
300*250*200mm |
