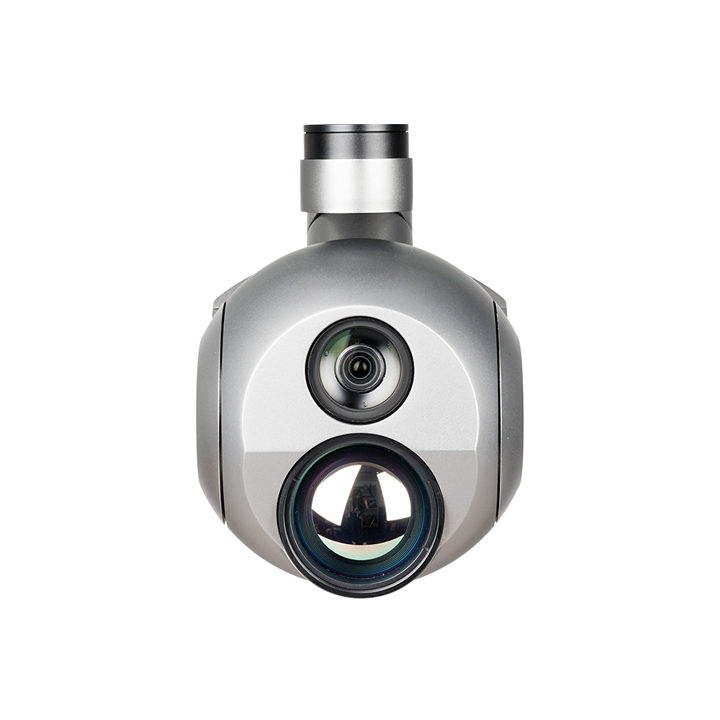

Product Detail
Specification
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1350~2000mA @ 12V |
| Idle current | 1350mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 25fps/30fps/50fps/60fps) / IP (720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P/720P 25fps/30fps) |
| Control method | PWM / TTL / S.BUS / TCP(IP output) |
| Gimbal Spec | |
| Angle range of structure design | Pitch/Tilt:-60°～135°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Angle range of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| EO Camera spec | |
| Imager Sensor | 1/1.8 Type STARVIS CMOS Sensor |
| Picture quality | 4170K pixels |
| Lens optical zoom | 30x, f=6.5~162.5mm,F1.6 to F4.8 |
| Digital zoom | 12x (max. 432x with StableZoom) |
| Min object distance | 100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle | 58.1°(wide end) ~ 2.3°(tele end) |
| Sync system | Internal |
| Image S/N | 50 dB (Weight On) |
| Min illumination | In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) |
| High Sensitivity mode On/Off | Off |
| Recommended illumination | 100 lx to 100,000 lx |
| Gain | Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode | On/Off |
| Shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off | Off |
| Image Stabilizer On/Off/Hold | Off |
| ICR On/Off | Off |
| Aperture control | 16 steps |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps) |
| Defog | On/Off (low, mid, high) |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 17.5° |
| Vertical FOV | 14° |
| Diagonal FOV | 22.3° |
| Detective Distance (Man: 1.8×0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8×0.5m) | 521 meters |
| Verified Distance (Man: 1.8×0.5m) | 260 meters |
| Detective Distance (Car: 4.2×1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1597 meters |
| Verified Distance (Car: 4.2×1.8m) | 799 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 1280*1024 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 1570g(Viewport Version) |
| Product meas. | 162.8*146*240.1mm / 162.8*146*245.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 350*300*250mm |
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 820~1500mA @16V |
| Power consumption | Average 13.1W, Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output (optional) | IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4(1080P 30fps) |
| Control method | PWM / TTL / S.BUS / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -110°(Up)～130°(Down), Roll: ±40°, Yaw/Pan: ±360°*N |
| Controllable Range | Pitch/Tilt: -45°～125°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0°(wide end) ~ 2.4°(tele end) |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 17.5° |
| Vertical FOV | 14.0° |
| Detective Distance (Man: 1.8×0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8×0.5m) | 521 meters |
| Verified Distance (Man: 1.8×0.5m) | 260 meters |
| Detective Distance (Car: 4.2×1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1597 meters |
| Verified Distance (Car: 4.2×1.8m) | 799 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 1280*1024 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@25℃,F #1.0 |
| MRTD | ≤400mK@25℃,F #1.0 |
| Shutter | Bistable Shutter |
| Color palette | White, black, pseudo color |
| Digital zoom | 1x ~ 4x |
| Thermometry type | Not supported |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Features | |
| OSD | Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |
| Card reading online | SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |
| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output | Not support(EO and IR two stream output) |
| Packing Information | |
| N.W. | 1432±10g(Viewport version with Viewport) |
| Product meas. | 140.9*120*216.1mm / 140.9*120*221.8mm(Viewport version with Viewport) |
| Accessories | 1pc gimbal camera device, screws, aluminum cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | About 3159g |
| Package meas. | 350*300*250mm |
