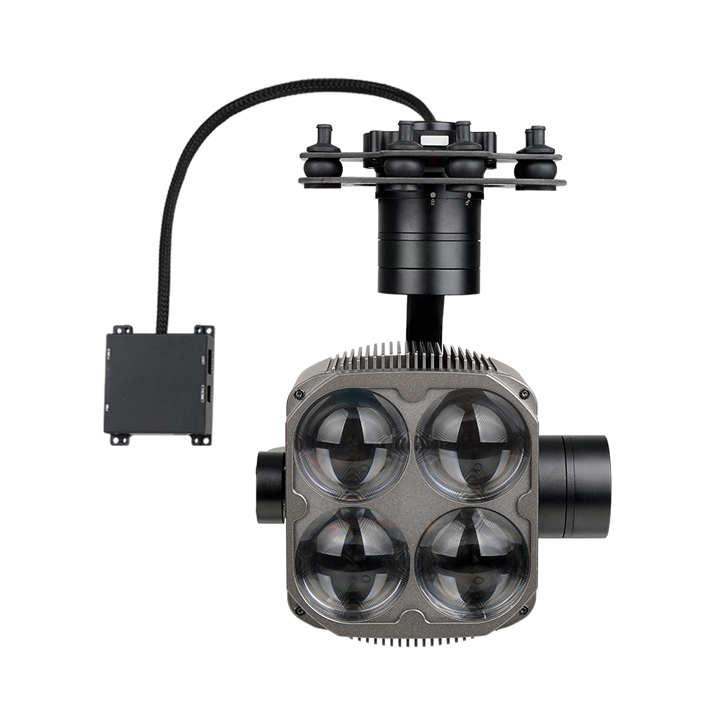

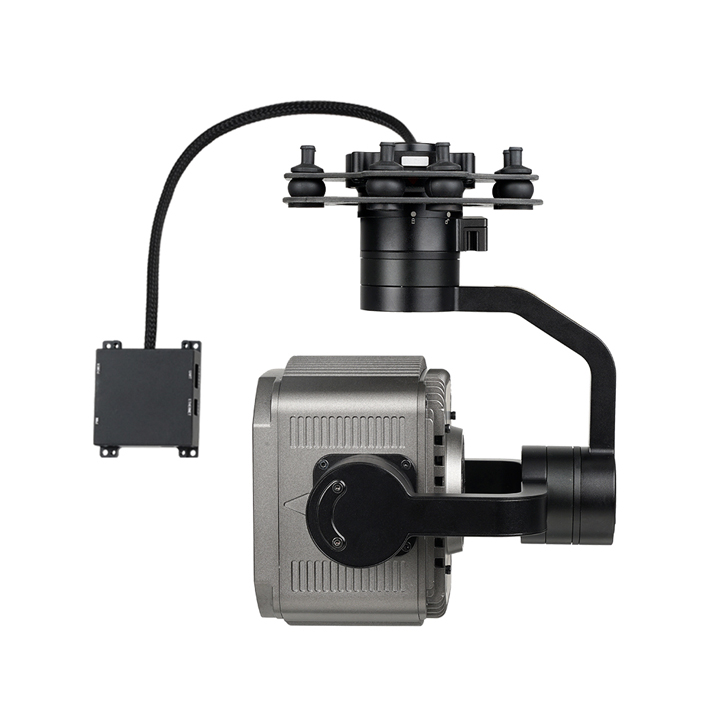

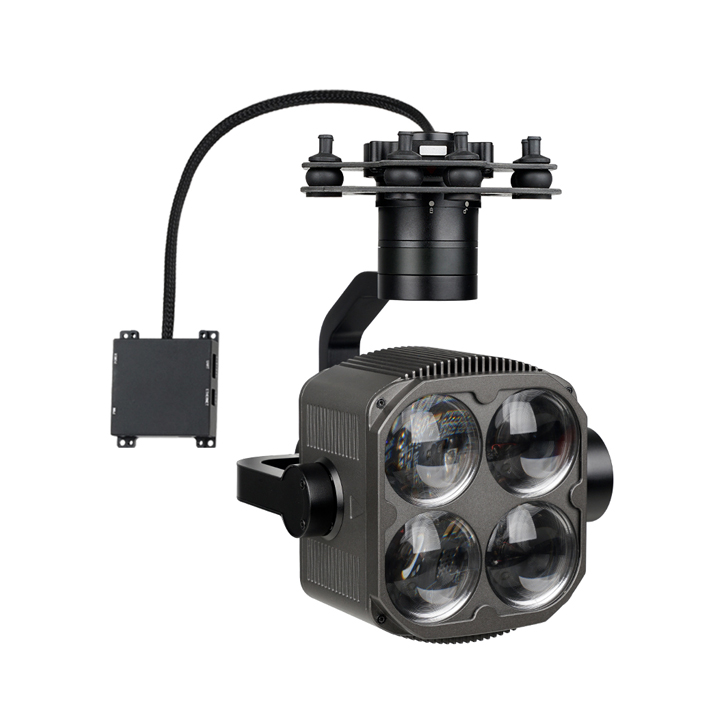

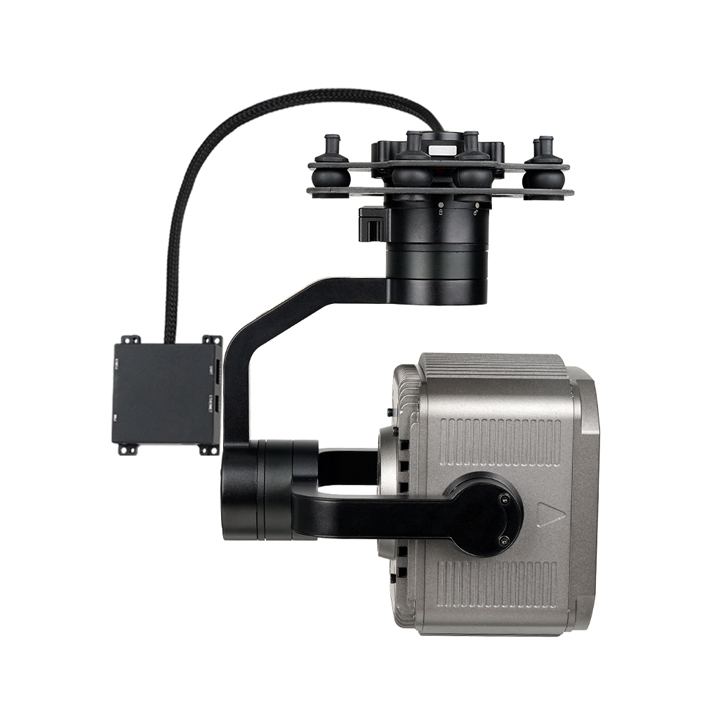

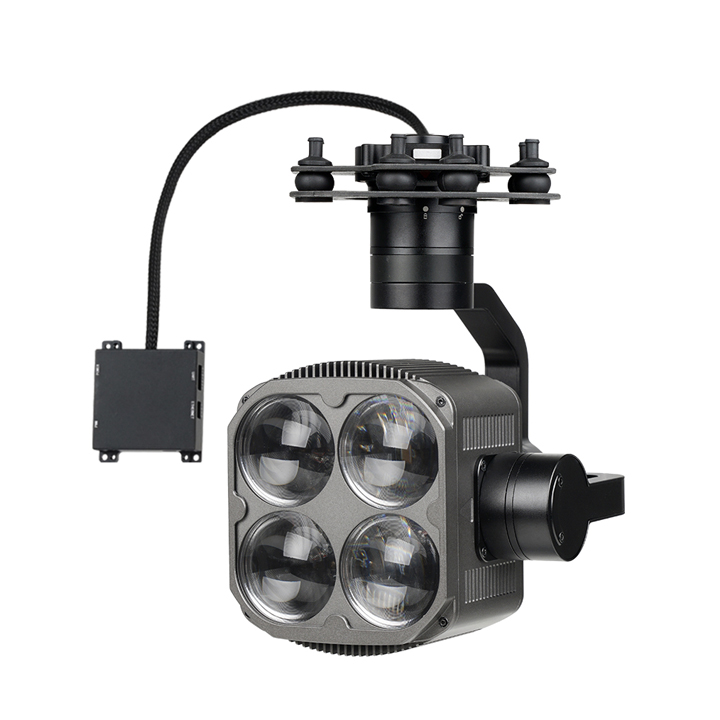

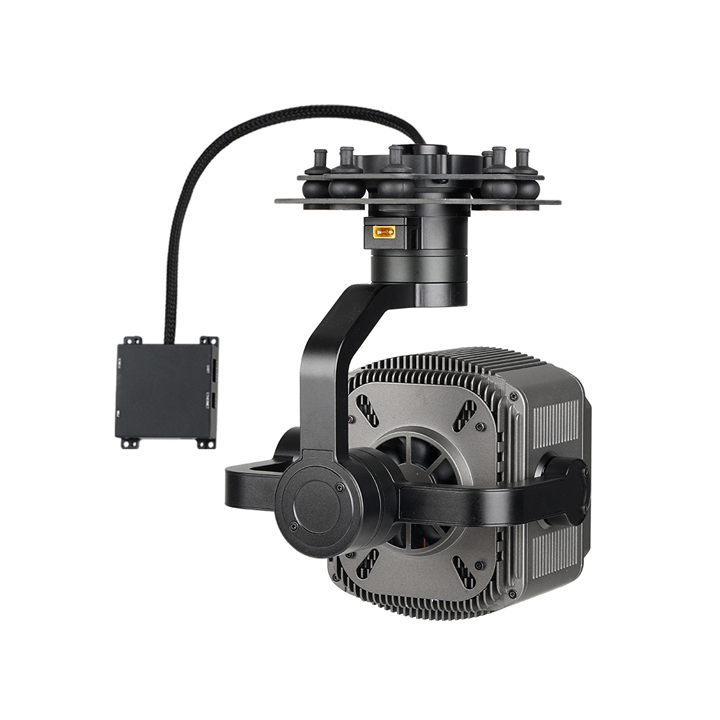

Specification
| Hardware Parameter | |
| Working voltage | 24V |
| Input voltage | 6S (22.2V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Maximum current | 6000mA @ 24V |
| Power consumption | Minimum power: 1W (LED off), Peak power: 144W (LED maximum consumption) |
| Working environment temp. | -20℃ ~ +50℃ |
| Control method | PWM / SBUS / TTL |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -30°(Upward)～123°(Downward), Roll: ±70°, Yaw/Pan: ±120° |
| Controllable Range | Pitch/Tilt: -25°～90°, Yaw/Pan: ±115° |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| LED Spec | |
| LED power | 0~128W(Adjustable) |
| Luminous flux | 13500lm+3% (power 128W) |
| 8050lm+3% (power 64W) | |
| Luminous | 113lm/W (power 128W) |
| Spot diameter | 40m (power 128W, 50m distance) |
| 40m (power 128W, 50m distance) | |
| Illumination area | 1230㎡ (power 128W,150m distance) |
| Central illuminance | 15Lux (power 128W,150m distance) |
| 8Lux (power 64W,150m distance) | |
| Operating mode | Normally on: 128W , 64W(DJI version) |
| Sharp flash: 128W , 64W(DJI version) | |
| Packing Information | |
| N.W. | 925±10g(Viewport version with Viewport) |
| Product meas. | 141.1*134*194.9mm(Viewport version with Viewport) |
| Accessories | 1pc gimbal device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. | 2652g |
| Package meas. | 350*300*250mm |
