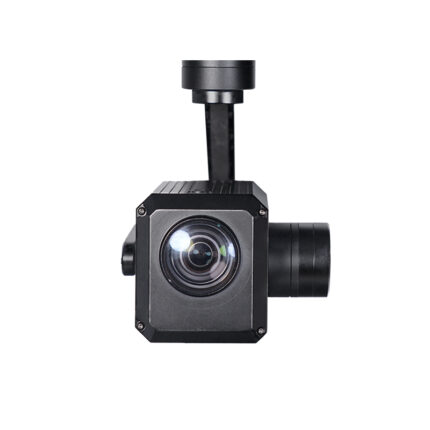

Technical Superiority
Imaging Performance Comparison
| Sensor | Specifications | Advantage |
|---|---|---|
| 4K EO Camera | 20x Optical Zoom • 4K@30fps • 0.001lux Starlight | Read license plates @1KM |

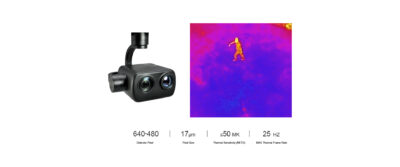

| IR Thermal | 640×512 • <40mk • 19mm/35mm lenses | Detect humans @1.2KM |
| AI Tracking | Deep learning algorithms | 95%+ tracking accuracy |
Gimbal Stabilization
- 3-Axis FOC Stabilization (±0.01°)
- 360° Continuous Pan – Unlimited yaw rotation
- -90° to +30° Tilt Range – Ground-to-sky coverage
- IP54 Rating – Operational in rain/dust
Smart Integration Features
- KLV Metadata (GPS coordinates, timestamp, sensor angles)
- Upside-Down Mounting – Flexible airframe installation

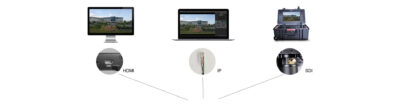

- Low-Latency HD (HDMI/SDI) – Real-time monitoring
Target Applications
| Industry | Use Cases | Why M40TIR? |
|---|---|---|
| Border Security | Night patrols, illegal crossing detection | Thermal + 4K zoom fusion |
| Firefighting | Heat source identification through smoke | Dual-sensor verification |
| Power Inspection | Overheated components detection | 20x zoom for precise diagnosis |
| Law Enforcement | Suspect pursuit & evidence collection | AI tracking + 4K recording |
| Search & Rescue | Missing person location at night | Thermal signature detection |
Competitive Advantage
| Feature | M40TIR | DJI H20T | FLIR Vue TZ20 |
|---|---|---|---|
| Optical Zoom | 20x | 20x | 8x |
| Thermal Resolution | 640×512 | 640×512 | 320×240 |
| AI Tracking | ✔ Auto-classification | Manual | None |
| Video Output | HDMI/SDI/Network | HDMI only | HDMI only |
| Weight | 1.2kg | 1.4kg | 1.6kg |
Why Choose China Moneypro?
- Complete Ecosystem – From drones to control software
- Moneypro Camera Expertise – 100+ successful gimbal designs
- Rapid Shenzhen Logistics – Sample delivery in 72 hours
