Core Technology Advantages
Unmatched Optical Performance
- 40x Optical Zoom (2.13MP sensor) – Detect vehicles @3KM

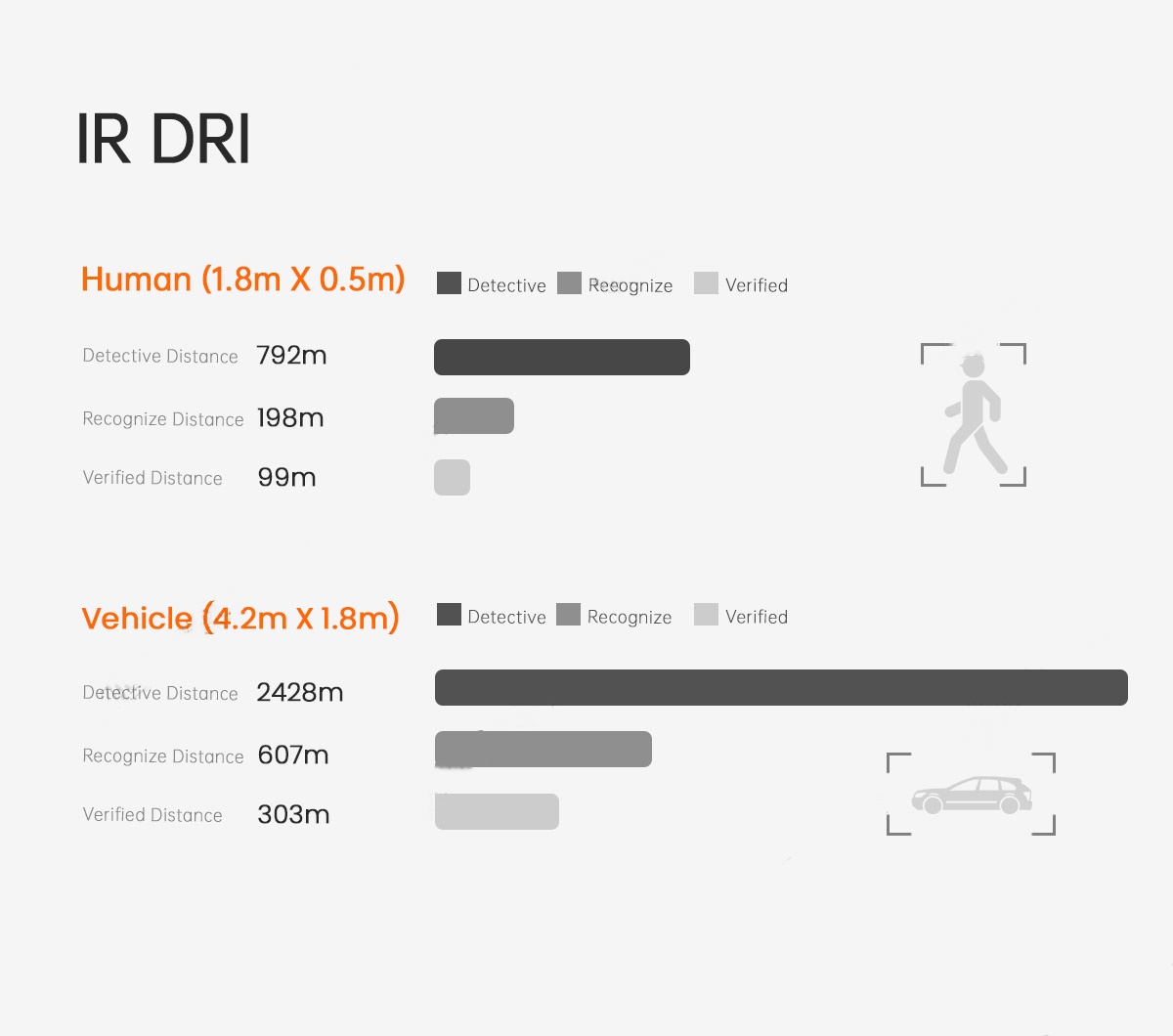

- 640×512 IR Thermal (12μm) – Identify human heat signatures @792m
- Laser Rangefinder – Pinpoint target GPS coordinates within 3000m
AI Tracking Breakthroughs
| Capability | Performance | Military/Police Benefit |
|---|---|---|
| Auto-Classification | Recognizes vehicles/humans/boats | Reduce operator workload by 70% |
| Custom AI Models | Train for armored cars/animals | Adapt to unique mission needs |

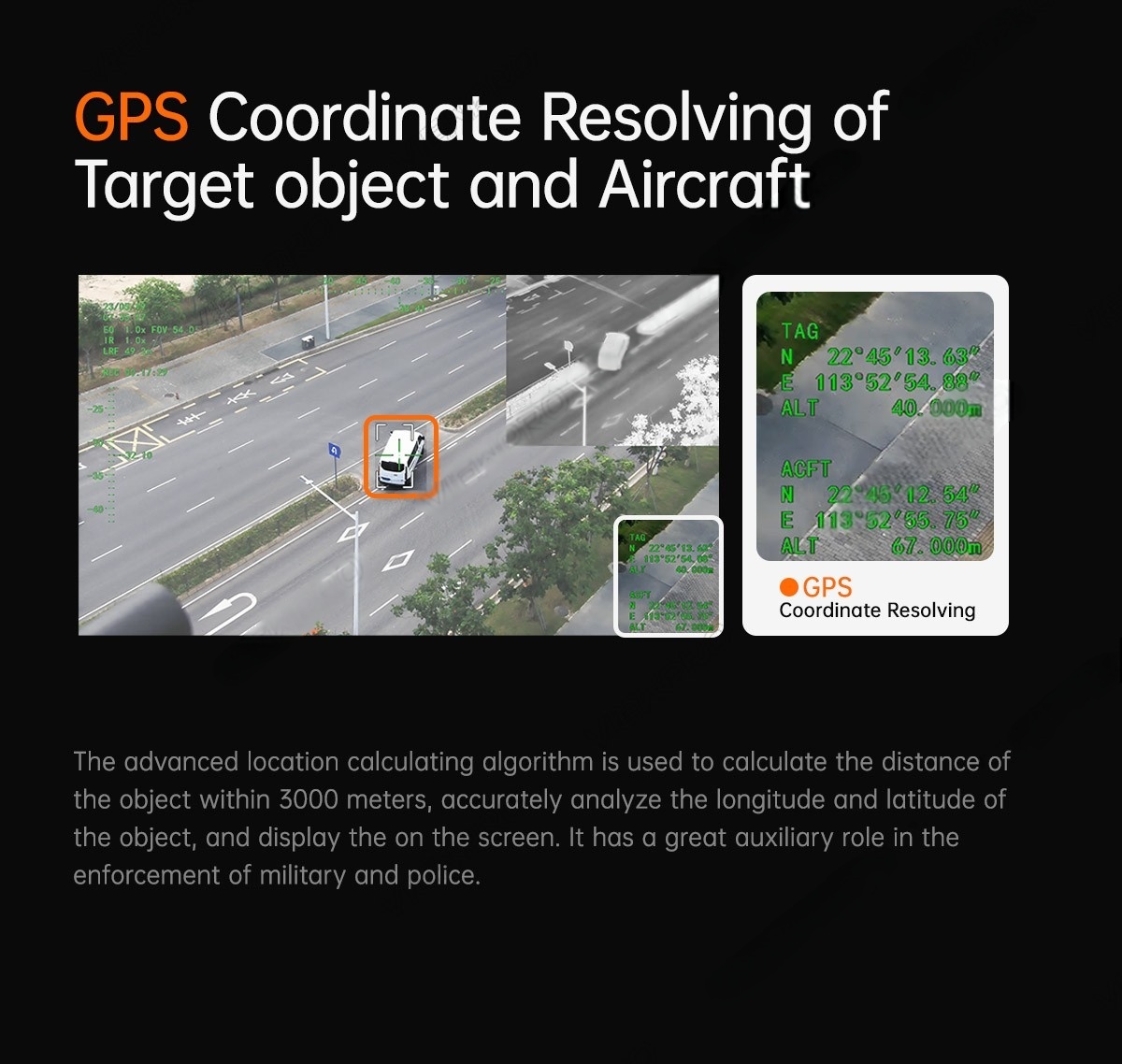

| Geo-Tagging | Displays target GPS coordinates | Enable precision responses |
Stabilization & Control

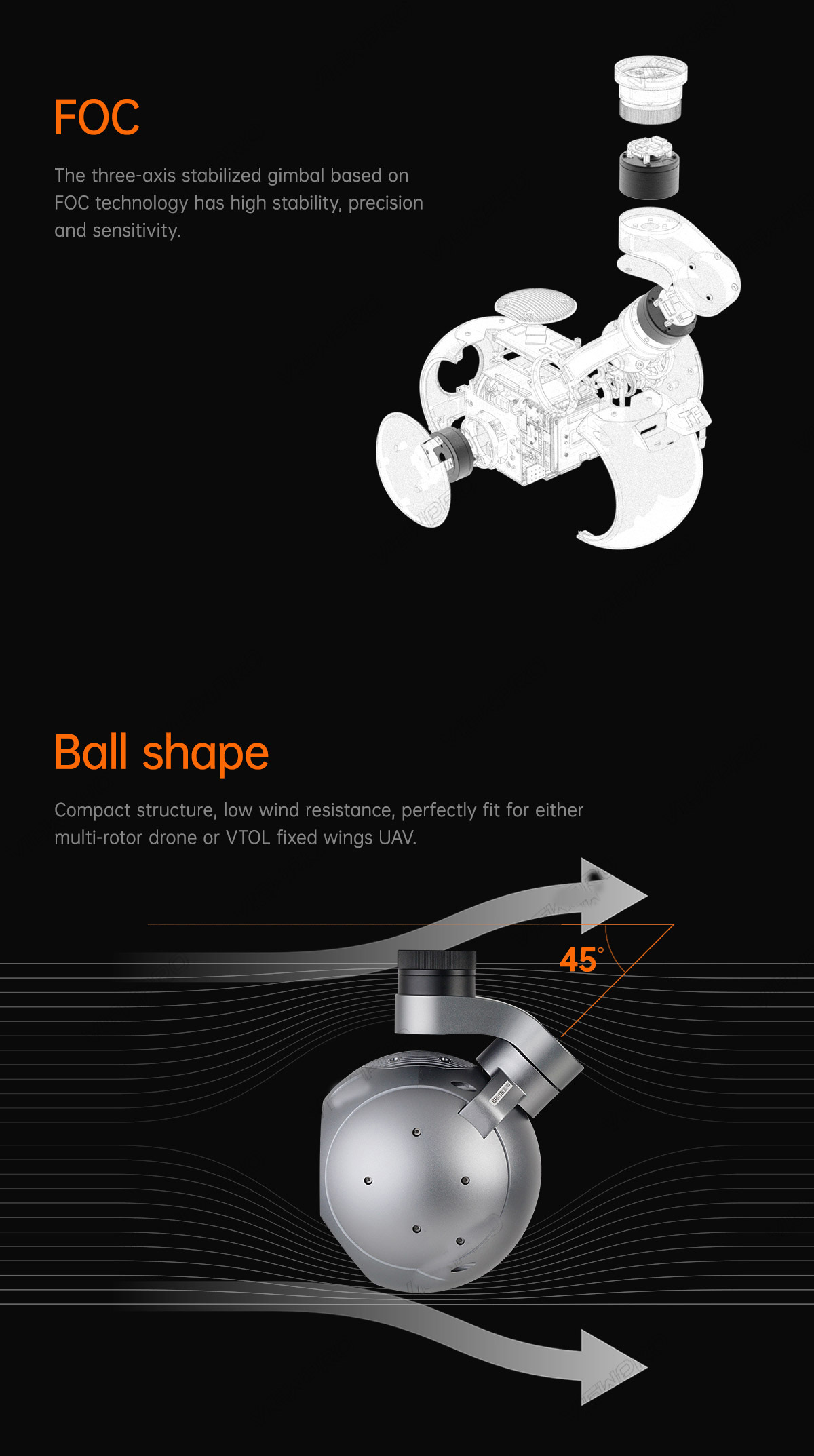

- 3-Axis FOC Gimbal (±0.01° stability in 40mph winds)

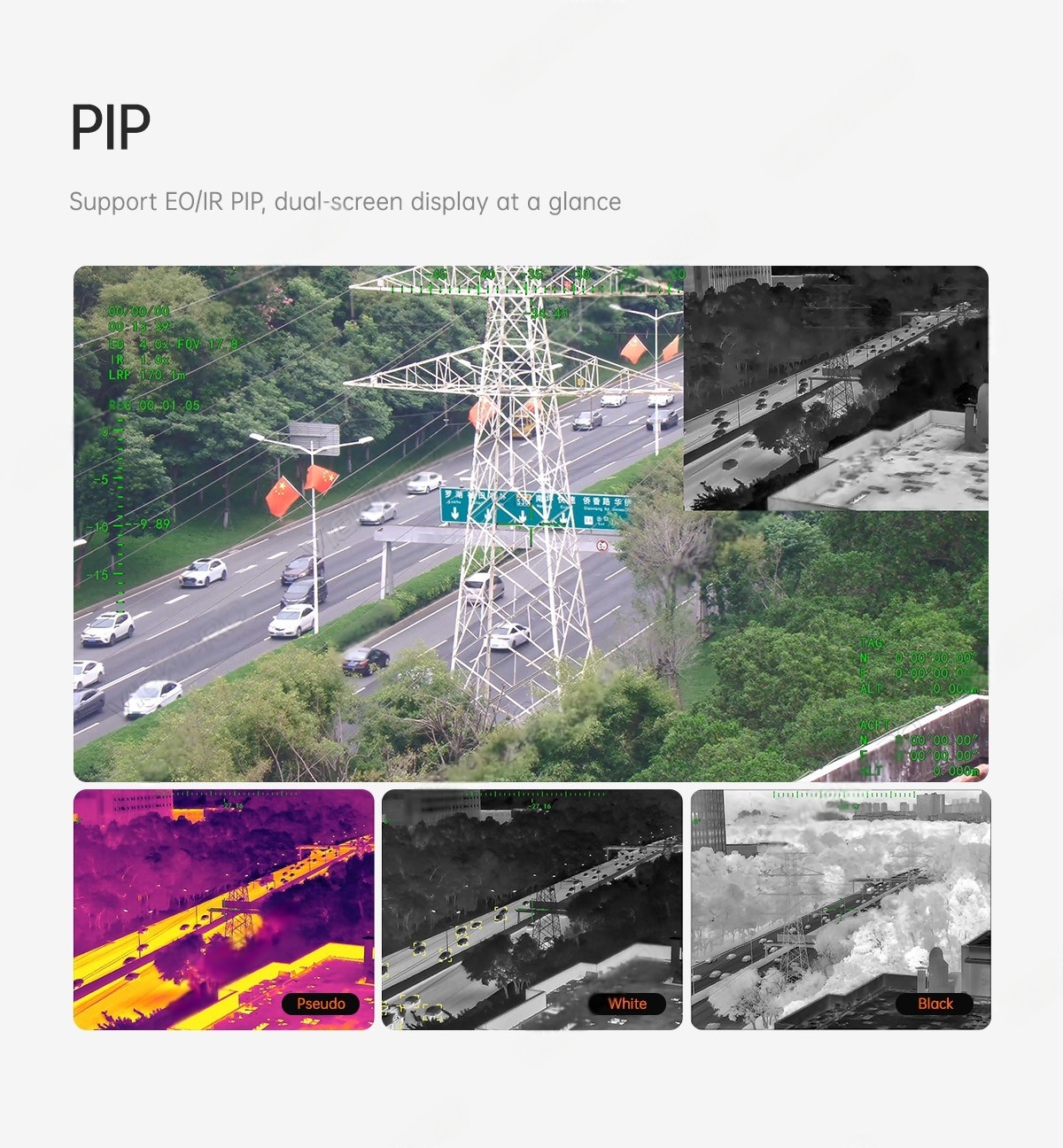

- PIP Display – Simultaneous EO/IR viewing
- Moneyport Compatible – <15s installation on China Moneypro VTOLs
Advanced Software Integration
- Onboard H.264/H.265 encoding
- MAVLink/RTSP/ONVIF compatible
- Works with Moneylink, MStation, QGroundControl
Target Applications
| Sector | Use Case | M40TPro Advantage |
|---|---|---|
| Border Patrol | Illegal crossing interdiction | AI alerts + 40x zoom verification |
| Military Recon | Forward observation post | Laser rangefinder + coordinate solving |
| Coast Guard | Dark vessel detection | Thermal + AI boat identification |
| Energy Security | Pipeline surveillance | Custom AI for intrusion alerts |
| Disaster Response | Victim location in smoke | Thermal imaging + zoom combo |
Technical Comparison
| Feature | M40TPro | DJI Zenmuse H20N | Teledyne FLIR Vue TZ50 |
|---|---|---|---|
| Optical Zoom | 40x | 20x | 8x |
| AI Tracking | Custom Models | Fixed categories | None |
| Rangefinder | 3000m Laser | 1200m | N/A |
| Geo-Tagging | Real-Time Coords | Waypoints only | No |
| Weight | 1.5kg | 1.7kg | 1.9kg |
Why China Moneypro?
- Complete Systems Provider – Drones, gimbals, and control software
- Moneypro Imaging Expertise – 100+ successful gimbal designs
- Shenzhen Manufacturing – Samples in 5 days, volume orders in 3 weeks
