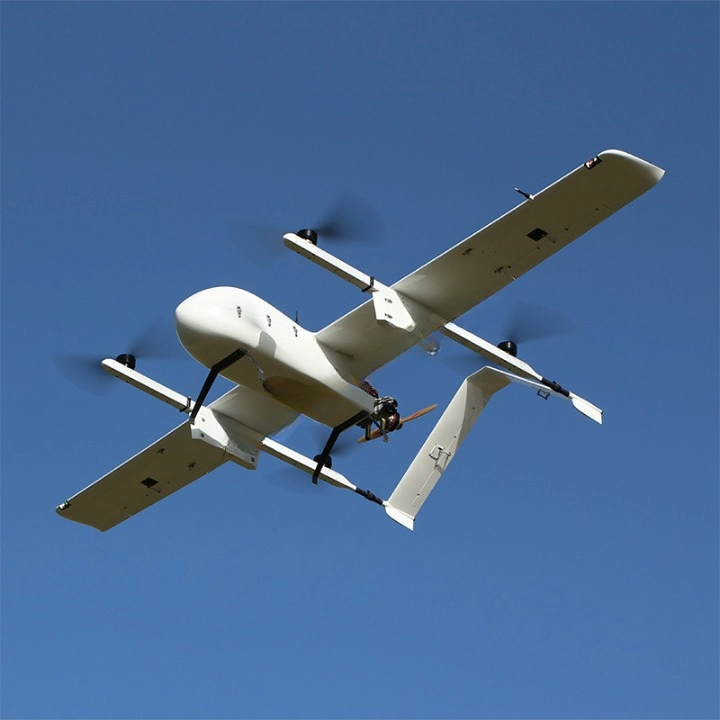

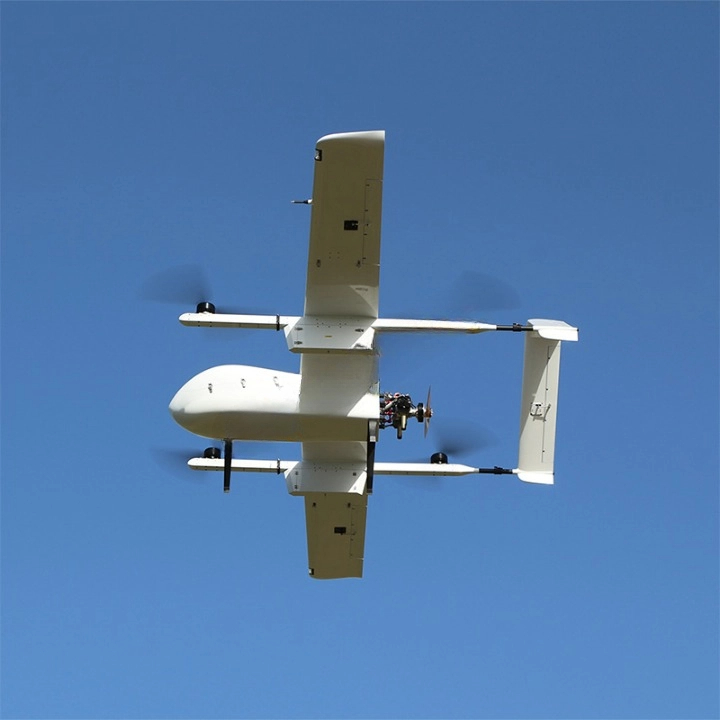

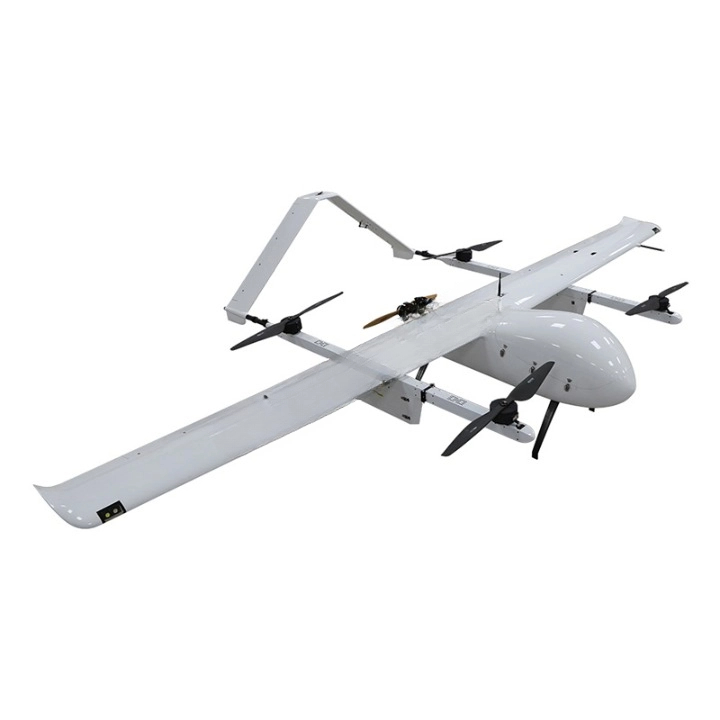

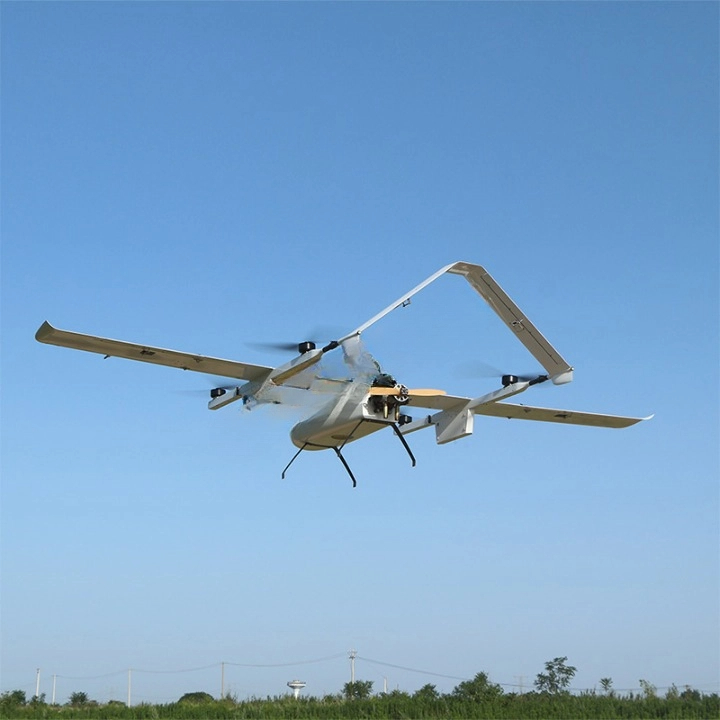

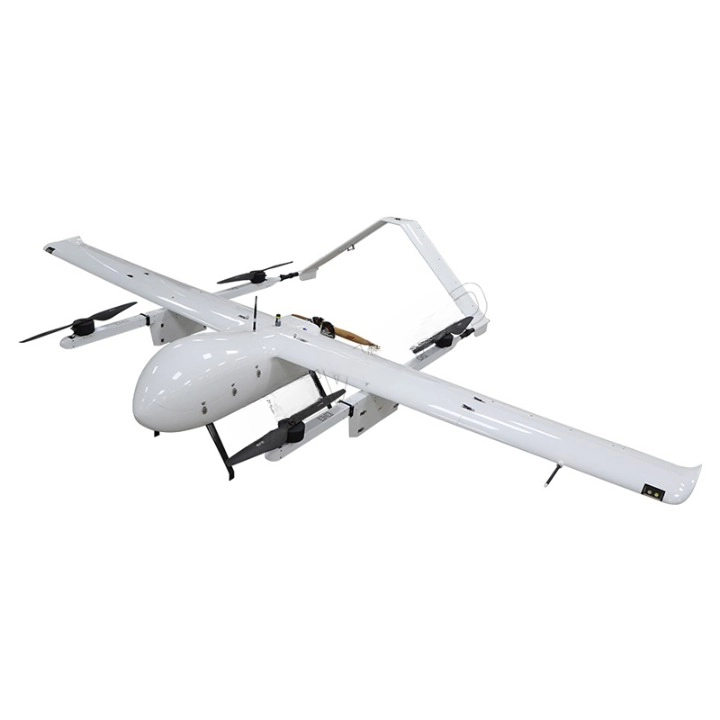

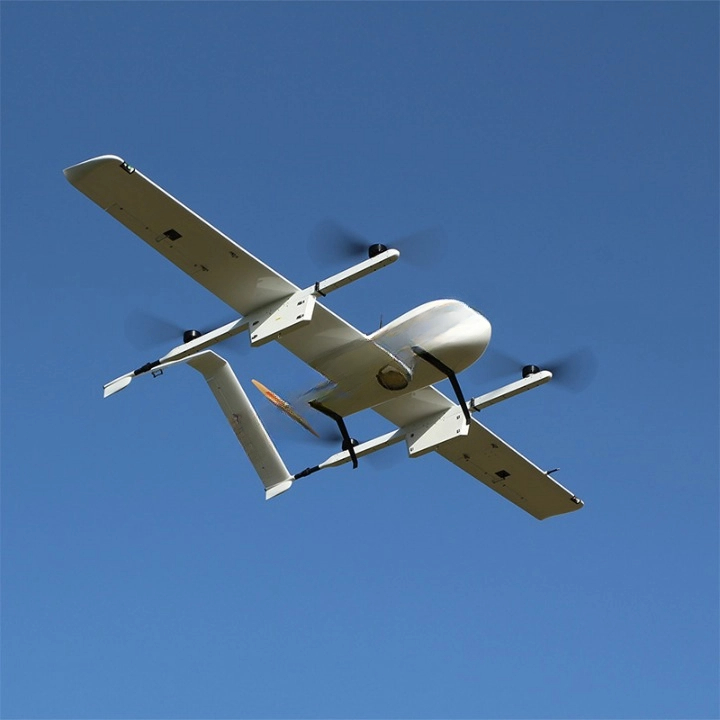

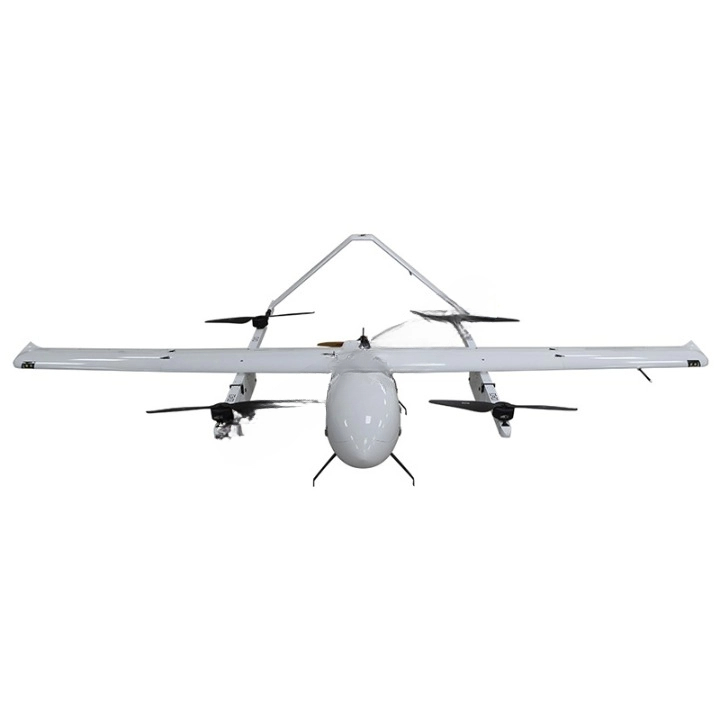

Redefining BVLOS: 4.6m wingspan hybrid VTOL delivers 740km operational range via satellite link, overcoming terrain/curvature limitations with 59kg MTOW.
Key Specs:
| Parameter | Value | Class Leadership |
|---|---|---|
| Wingspan | 4.6m | Largest in 60kg MTOW segment |
| Endurance | 8hrs (5kg load) | 40% > gas competitors |
| Payload Capacity | 18kg | Dual-sensor + comms capability |
| Satellite Data Range | 1000km+ | Unconstrained by ground stations |
Core Technology Sections
- Military-Grade Satellite Integration
Control assets continent-wide:
✓ Terrain Immunity: Overcomes mountains/curvature with Ku-band broadband
✓ Real-Time HD Feed: 1080p video @ 30km altitude
✓ Signal Security: AES-256 encryption (NATO-compatible)
→ Use Case: 12-hour Arctic pipeline patrol with zero ground support - Extreme Environment Endurance

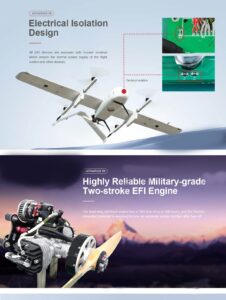

Hybrid efficiency for critical ops:- EFI Thrust Engine: 120km/h cruise at 2.1L/hr fuel consumption
- Battery Thermal System: Maintains 35°C in -30°C/+55°C extremes
- Rapid Power Swap: Tool-free battery compartment (90-second change)
Efficiency Data: 740km range per sortie with 10kg payload
- Field Deployment System
Operational in <5 minutes:
→ Quick-Detach V-Tail: Anti-vibration locks secure assembly (3-minute setup)
→ Hang-Mounted Batteries: 35% reduced cable loss vs. internal mounting
→ IP55 Core Electronics: Monsoon/dust resistance (MIL-STD-810G)
Field Data: 20 sorties/day disaster response capability - Multi-Role Payload Architecture
Hot-swap 18kg modules for mission agility:- Triple-Bay Design:
Comms Zone: Satellite antenna/4G base station (Witcom)
Imaging Zone: Moneypro gimbals (Q30TIR Pro/A40TR-35)
Cargo Zone: 280×300×320mm transport compartments - Configuration Scenarios:
→ SAR: Thermal cam + parachute drops
→ Logistical: 12kg medical supplies + comms relay
- Triple-Bay Design:
High-ROI Applications
Distributor profit multipliers:
- Border Security: 800km night patrols (navigation light system)
- Energy Inspection: 50km²/day thermal mapping @ 4500m ceiling
- Disaster Comms: 4G base station deployment to 40km² zones
- Medical Logistics: -30°C vaccine delivery to remote clinics
Application ROI Metrics:
| Mission | Daily Coverage | Cost Savings |
|---|---|---|
| Forest Fire Patrol | 880km² | 80% vs helicopters |
| Smart City Mapping | 250ha @ 1cm GSD | 50% faster than crewed aircraft |
Manufacturing Advantages
Distributor margin drivers:

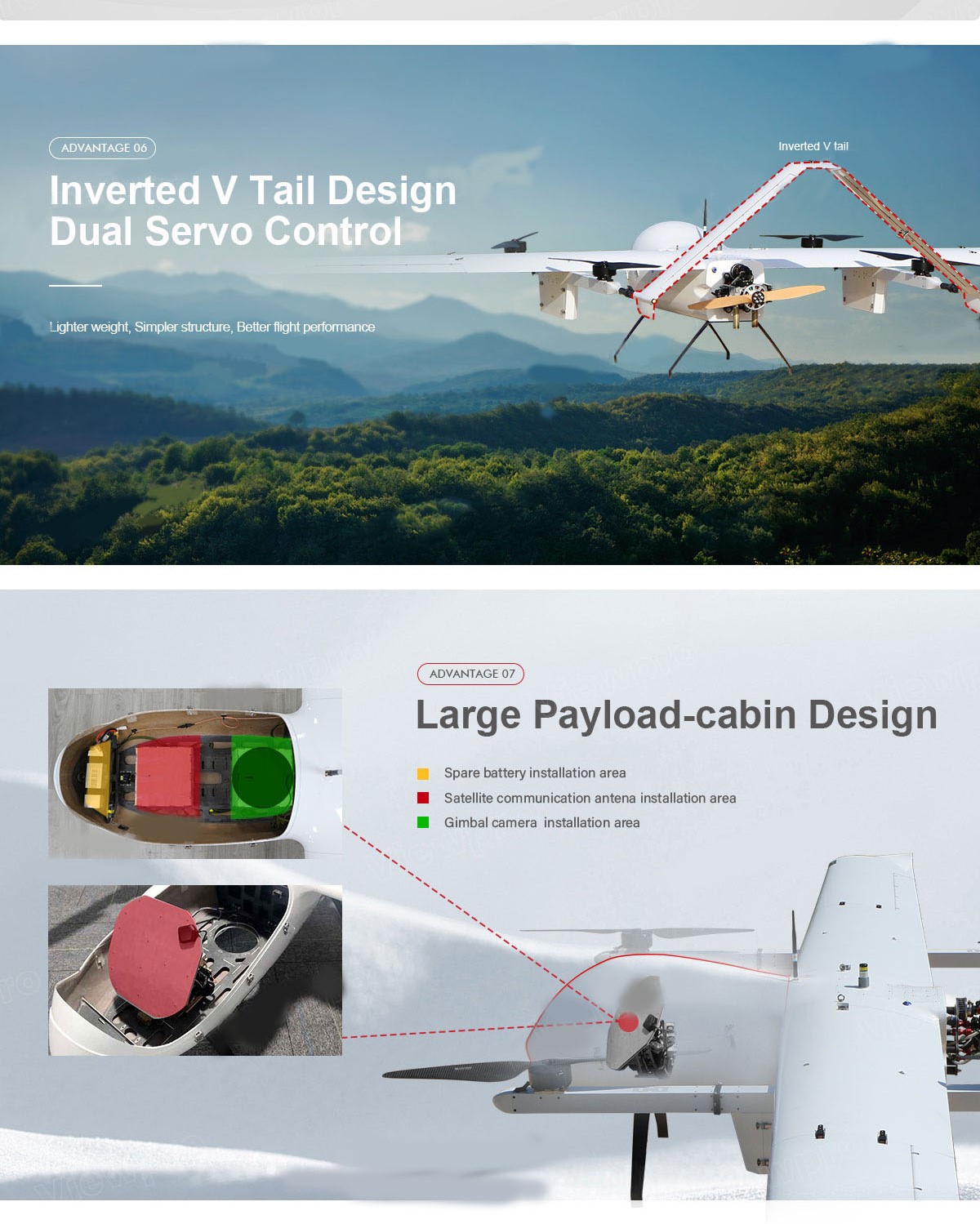

- Carbon V-Tail Design: 9kg weight reduction (patented inverted structure)
- Export Compliance: Pre-certified for FCC/CE/ROHS
- Supply Chain: Shenzhen-based satellite module integration
- Customization: Payload pre-calibration for local markets
