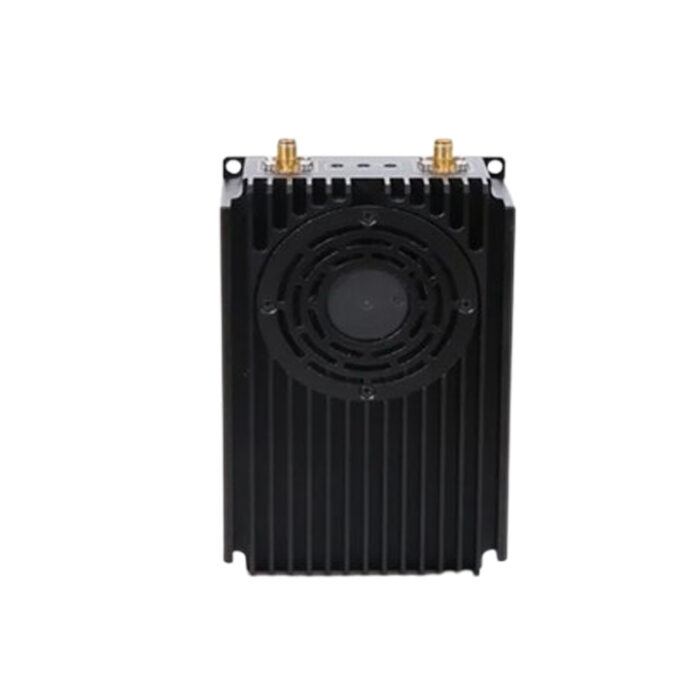

China Moneypro M50PRO Drone Video Transmission Radio Video & Data Transmitter

The China Moneypro M50PRO Drone Video Transmission Radio is an advanced all-in-one video and data transmitter engineered for professional UAV operations. Designed to deliver seamless dual-channel communication, it streams high-definition (1080p/60fps) video and critical flight telemetry—paired with bi-directional control signals—with ultra-low latency (≤40ms) and exceptional stability. Leveraging robust anti-interference technology and AES-256 encryption, the M50PRO ensures secure, uninterrupted connectivity even in complex electromagnetic environments, while its optimized transmission architecture supports long-range line-of-sight (LOS) operations for demanding missions. Compact (≤220g) and integration-friendly, it features versatile interfaces (HDMI, SDI, Ethernet, RS232/485) and a rugged build that withstands -25℃ to +75℃ operating temperatures, making it ideal for industrial inspection, aerial surveying, public safety, and disaster response. A trusted choice for professional UAV operators, the M50PRO balances high-performance video streaming with reliable data transmission for mission-critical scenarios.

Overview

Basic Info.

Model NO.	M50Pro
Usage	Radio, Satellite, Plane, Ship, Car
Frequency	1428~1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Consumption	≤36W
Dimension	227357mm(Air) / 27827895mm(Ground)
Interfaces	Eth × 1, Ttl × 1, Pwr × 1
Security Protection	AES128
Transport Package	Carton/Wooden/Flight Case
Trademark	China Moneypro
HS Code	851779000

Work Mode	FDD
Information Content	Text, Picture, Video, Audio
RF Power	10W
Data Rate	20Mbps
Weight	650g(Air)
Frequency Range	1.4G / 2.4GHz
Transmission Distance	150km Air-to-Ground
Specification	680Grams
Origin	China
Production Capacity	5000PCS/Month

Packaging & Delivery

Package Size	11.80cm * 7.60cm * 4.00cm
Package Gross Weight	0.350kg

Product Description

M150Pro Drone Video Transmission Radio

680 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
150KM Air-to-Ground Transmission Distance

China Moneypro Wireless Radio 20km Video Data Links (VDL) for Drones & Uav

China Moneypro M50PRO Drone Video Transmission Radio Video & Data Transmitter

Specification

Wireless
Technology	TDD-OFDM / MIMO / 1T2R
Modulation	QPSK / 16QAM / 64QAM
Data Rate	24Mbps @ 10MHz (Peak)
Frequency Range	1428-1448MHz (Standard) 2401-2481MHz (Optional) 806-826MHz (Optional)
Bandwidth	5MHz / 10MHz / 20MHz
Tx Power	40dBm ± 2
Rx Sensitivity	-99dBm @ 5MHz
System
Serial Port	1 TTL + 1 RS232 + 1 S.BUS
Video Port	2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security	AES128 Encryption
Power	DC12V-24V Power Supply ≤ 30W @ DC12V Power Consumption (Air)
Interface
RF Antenna	SMA × 2
Serial Port Interface	JST × 2
S.BUS Interface	JST × 1
Video Port Interface	JST(ETH) × 2 or JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input	XT30
ACCESSORIES
OMNI Antenna for Air Unit × 2	Serial Cable × 2
OMNI Antenna for Ground Unit × 1	S.BUS Cable × 1
Directional Antenna for Ground Unit × 1	XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)	VTA-Manual (Manual Tracking Antenna System) × 1
