Product Detail

Specification
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 600~900mA @ 12V |
| Idle current | 600mA @ 12V |
| Working environment temp. | -40℃ ~ +60℃ |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

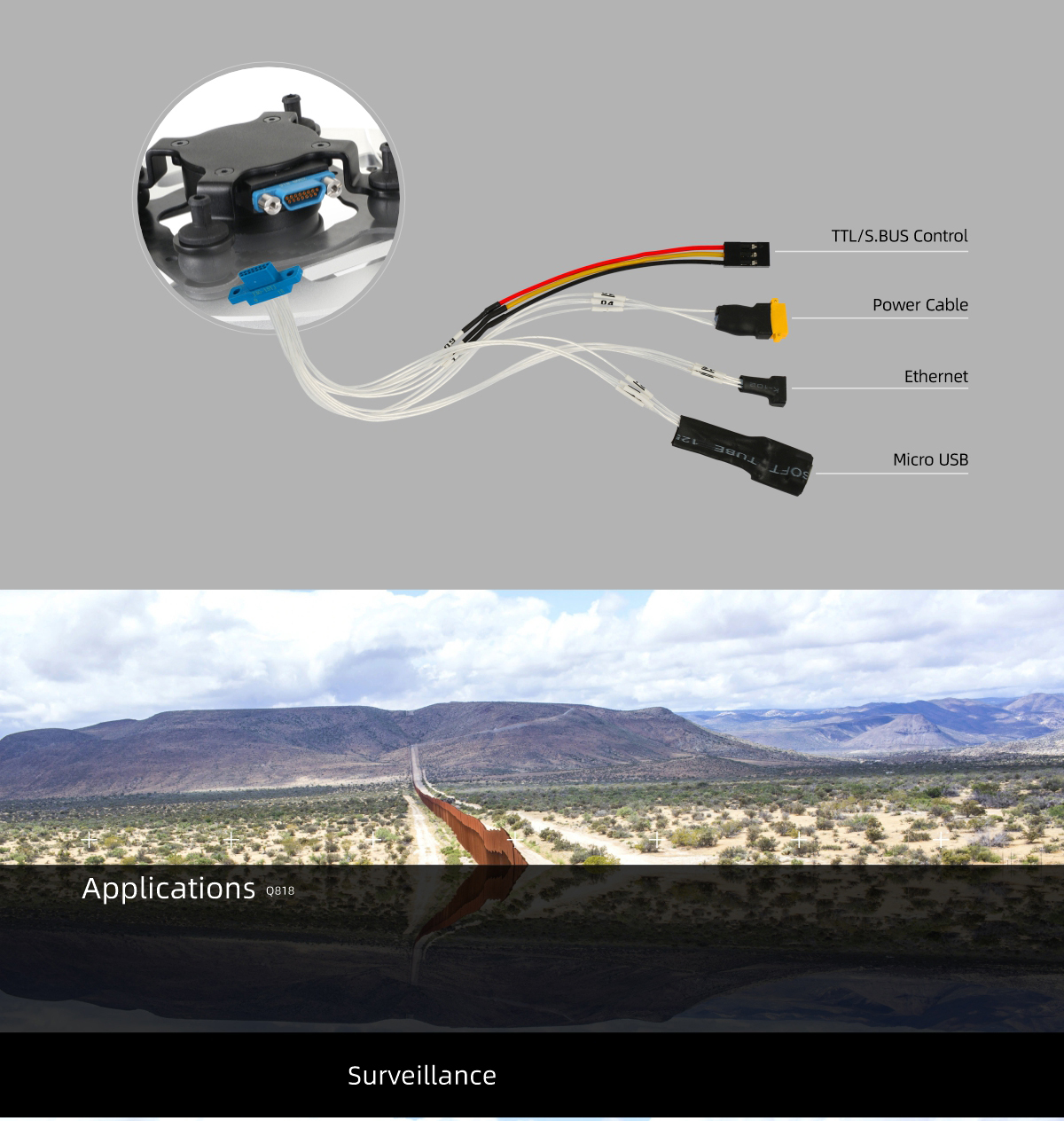

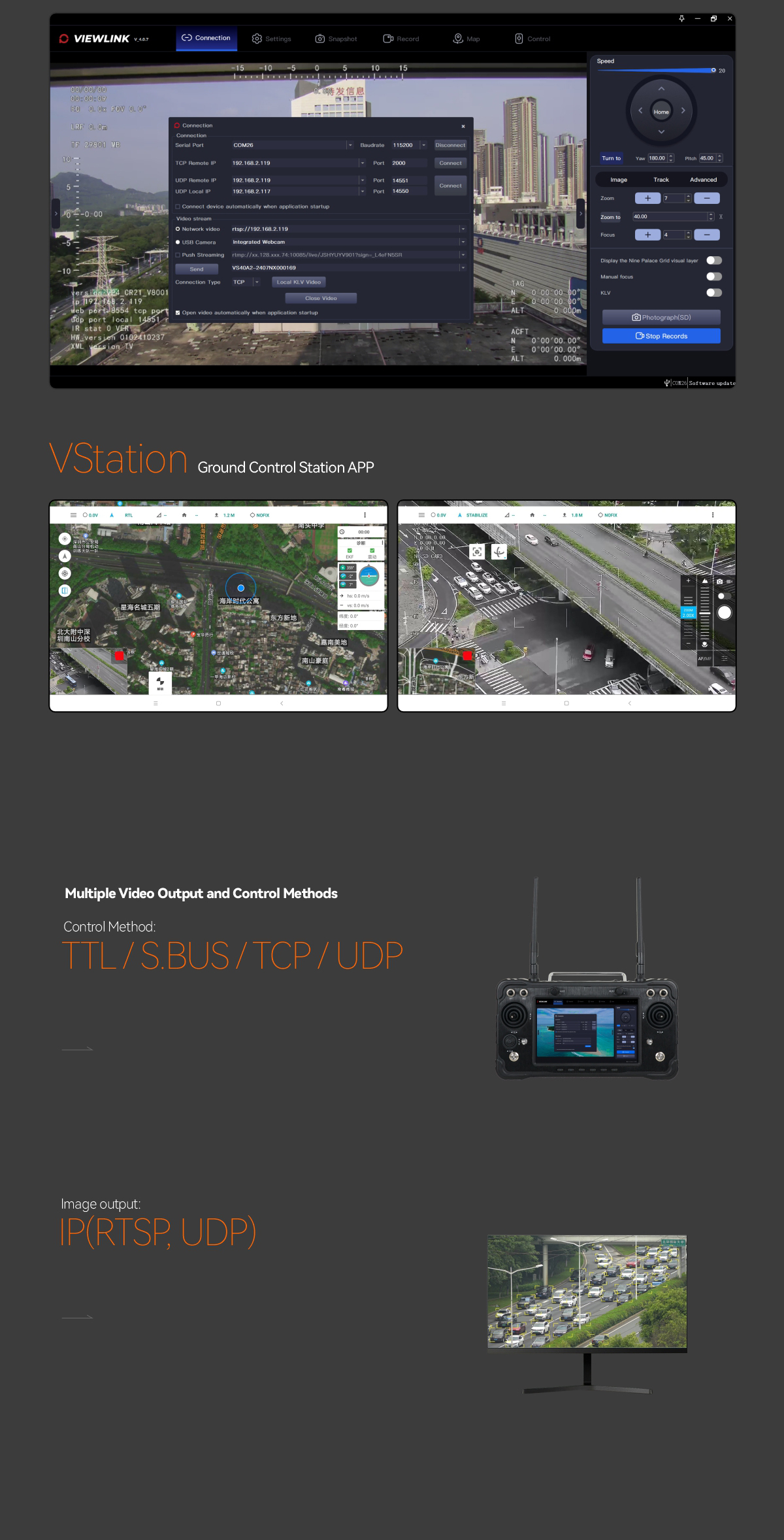

| Control method | TTL / S.BUS/ TCP |

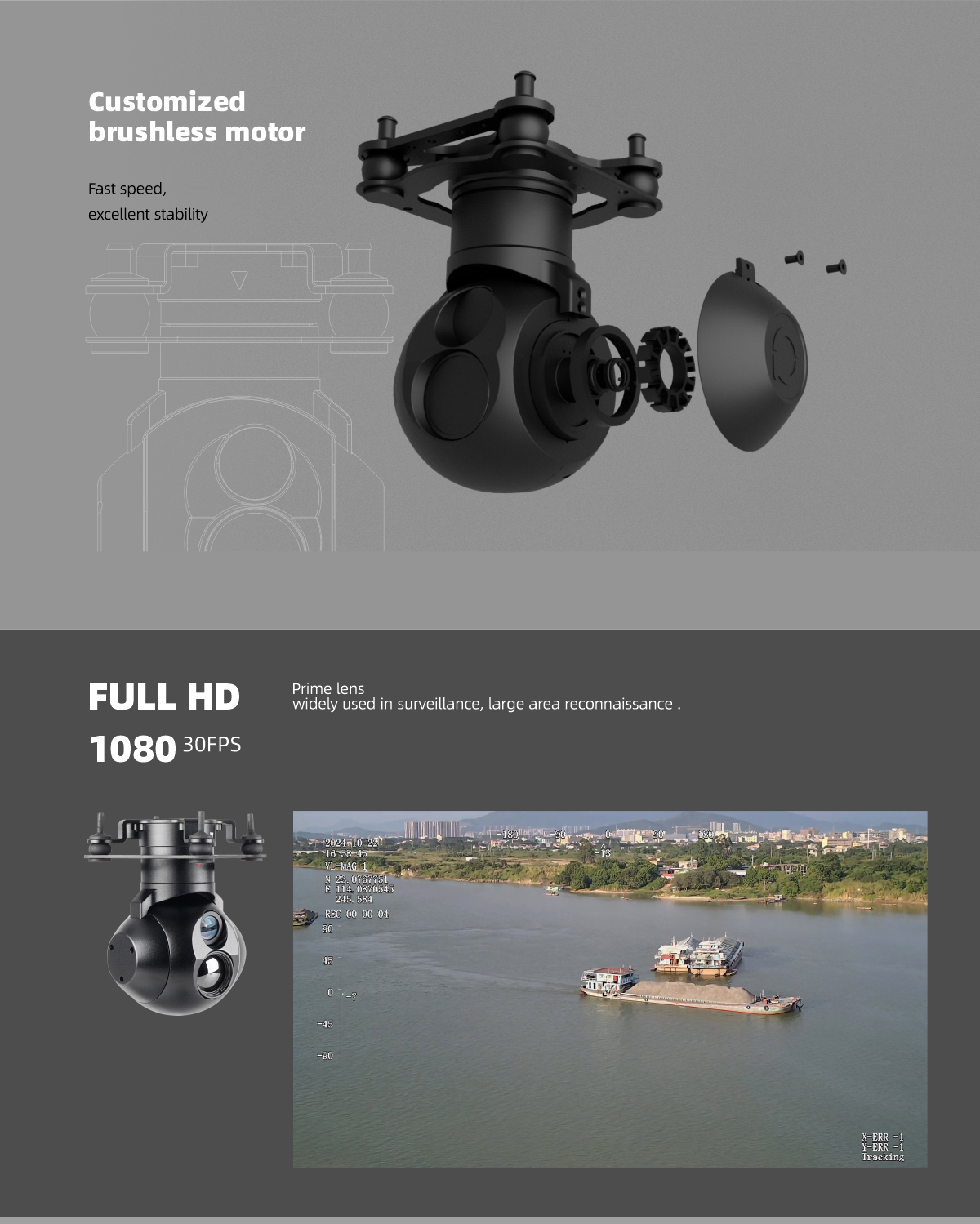

| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -90°~120°, Yaw/Pan: ±360°*N |
| Angle scope of software design | Pitch/Tilt: -45°~90°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
| One-key to center | √ |

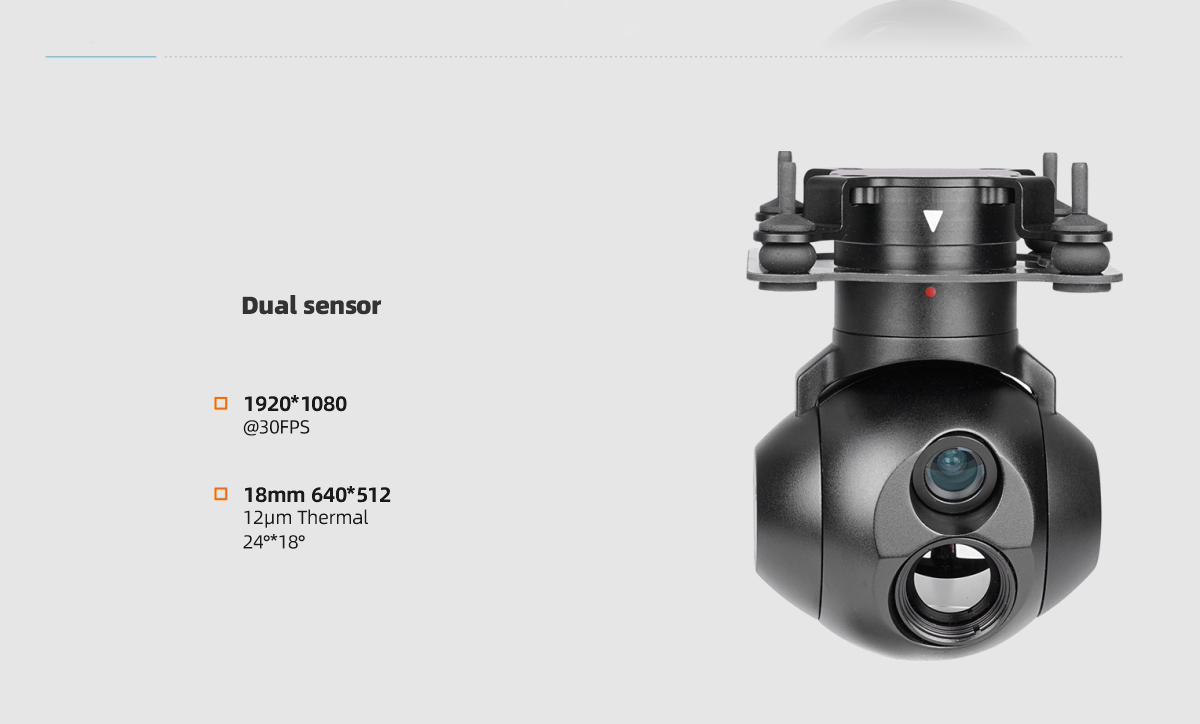

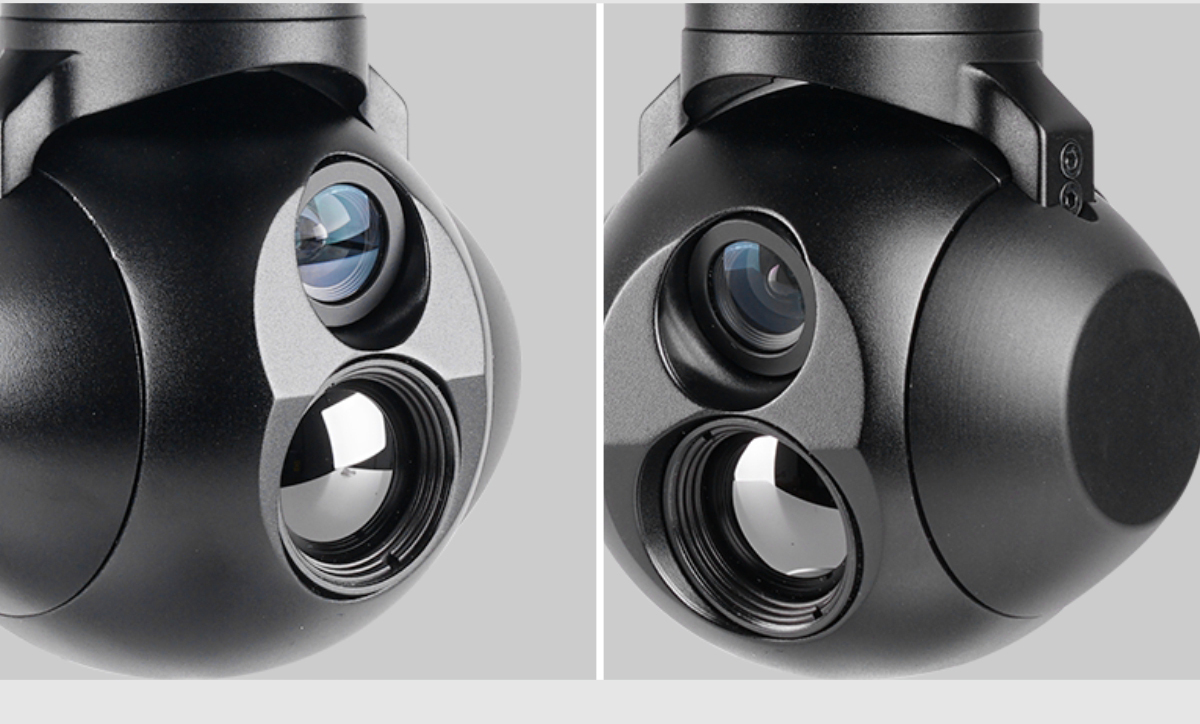

| EO Camera Spec | |
| Imager Sensor | CMOS Sensor |
| Resolution | 1920*1080(3.68MP) @60fps |
| Focus Length | 8mm |
| Pixel Pitch | 3μm |
| Angle of View | 51°*30° |
| Recognize Distance (Car: 6.5x3m) | ≥3.6km |
| Digital zoom | 1x ~ 4x |
| Defog | Yes |

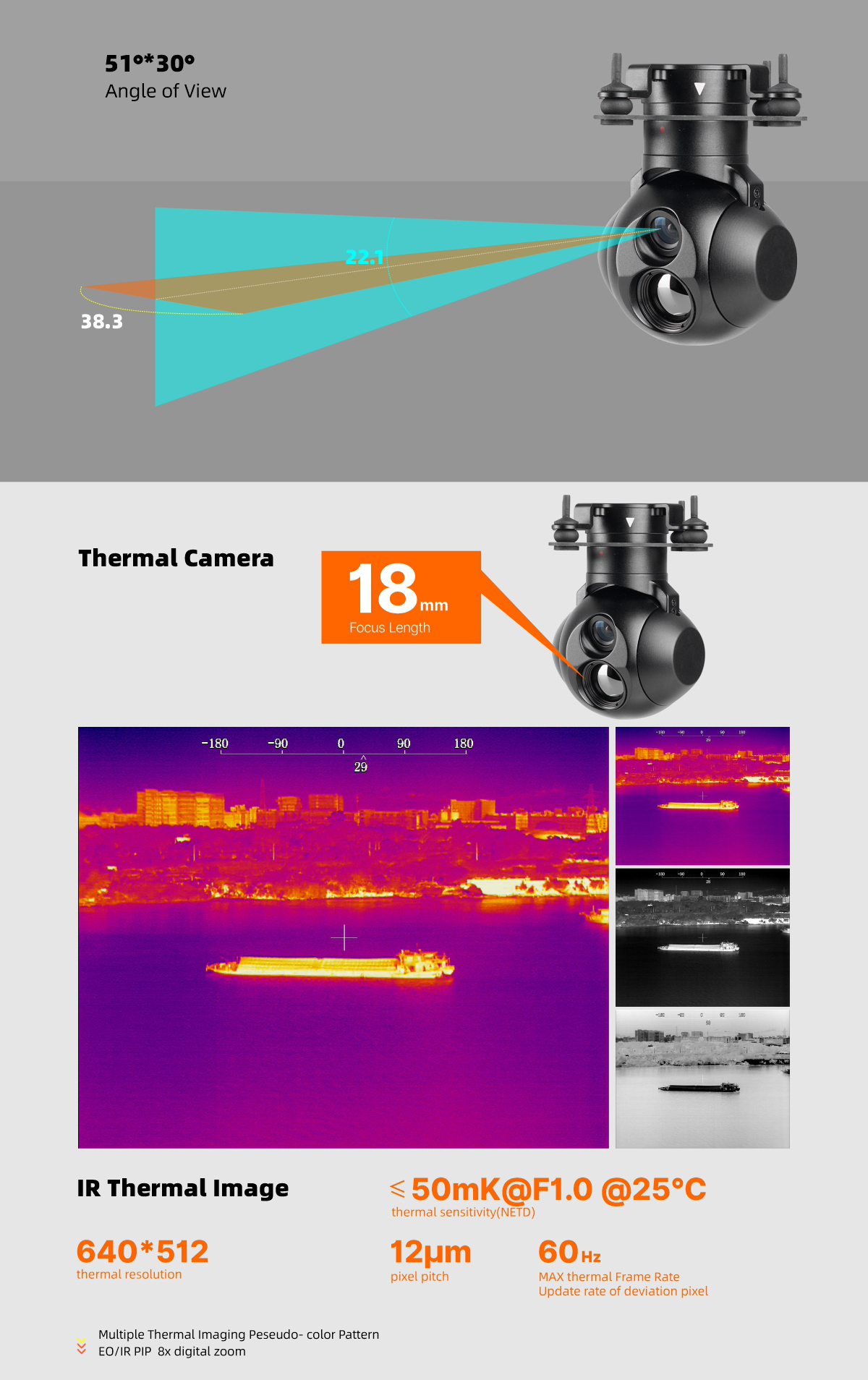

| IR Thermal Imager Spec | |
| Focus Length | 18mm |
| Horizontal FOV | 24° |
| Vertical FOV | 18° |
| Recognize Distance (Car: 6.5x3m) | ≥1km |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White hot, black hote, pseudo color |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |

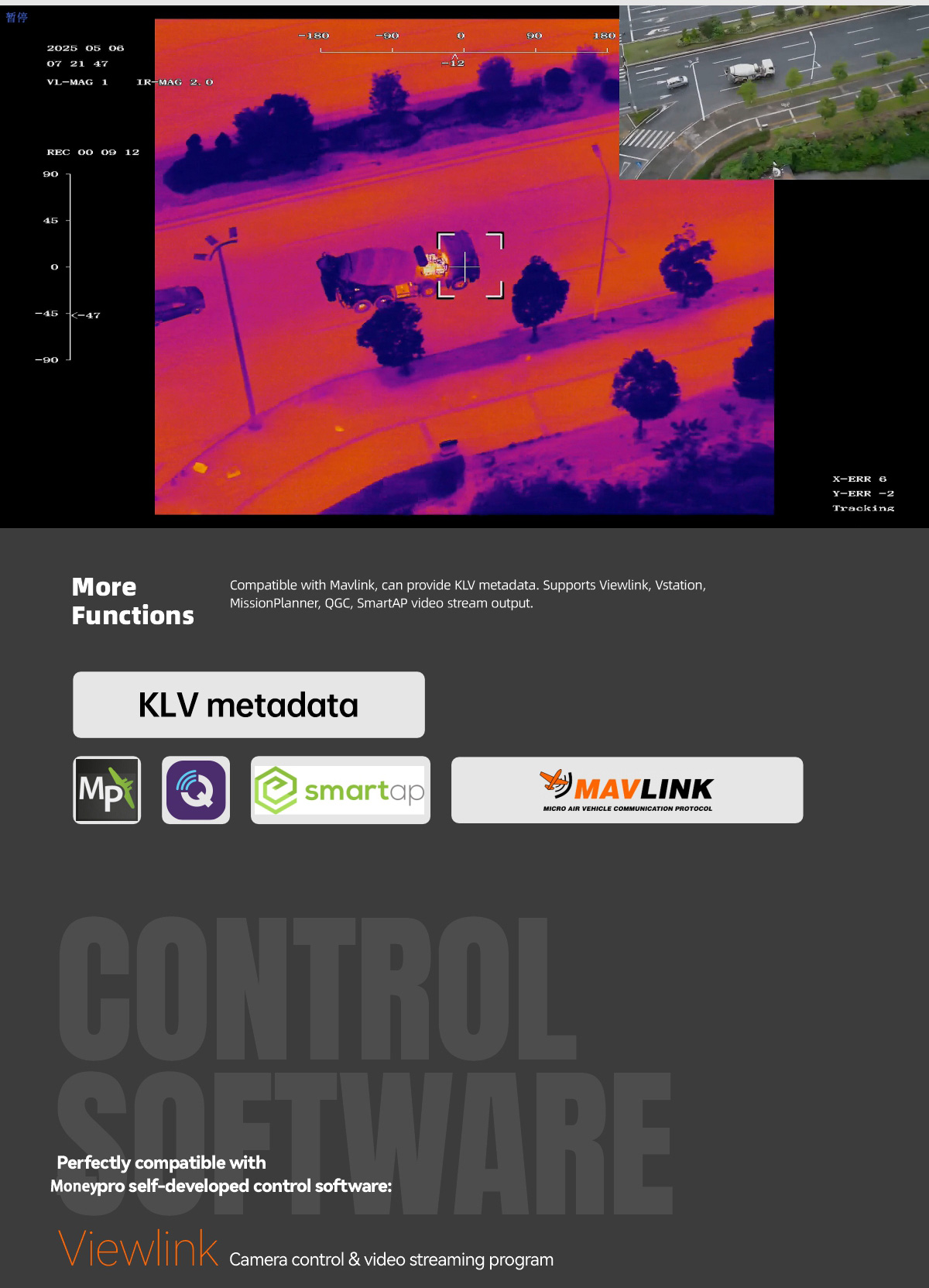

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | >48 pixel/frame |
| Object memory time | 100 frames |

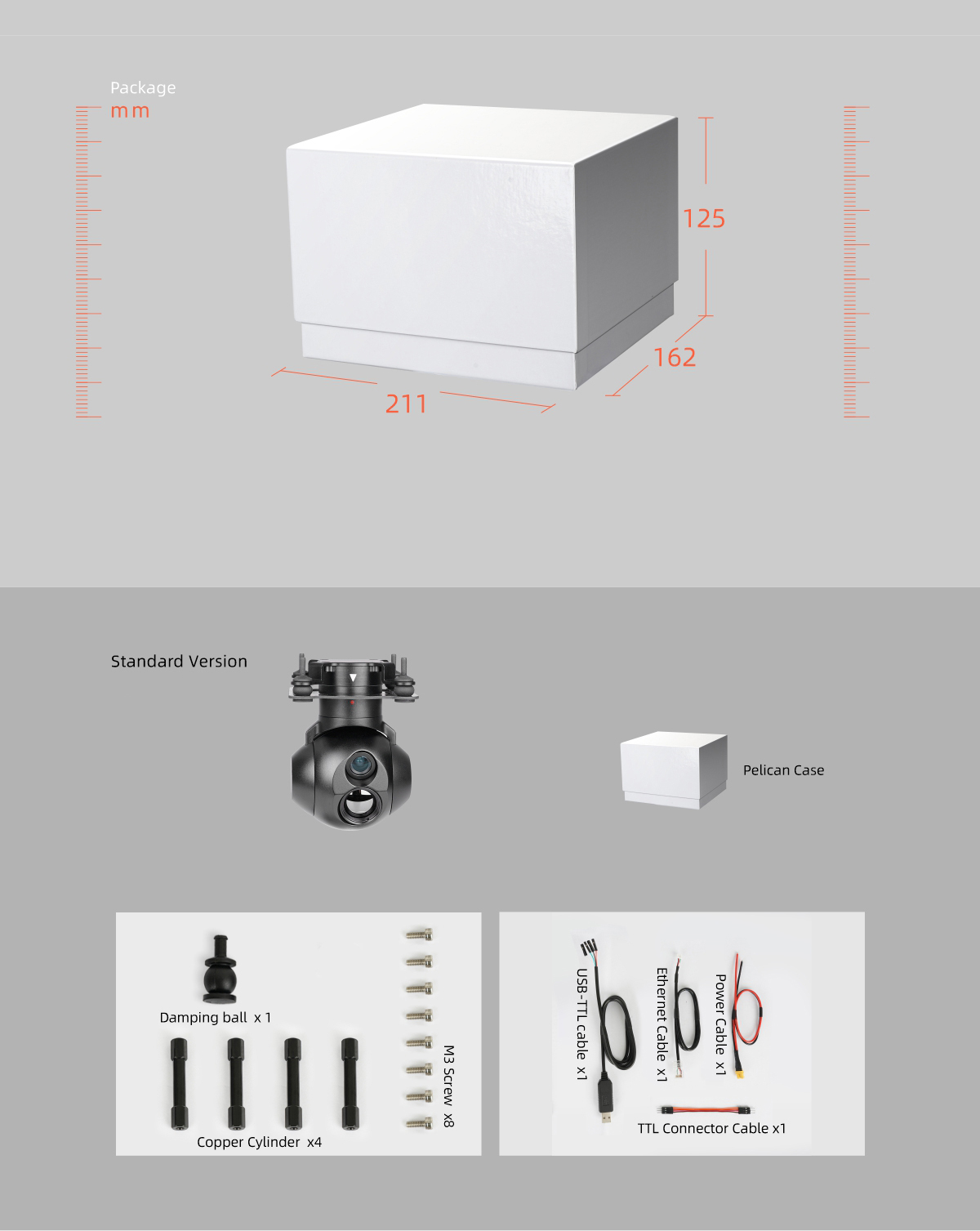

| Packing Information | |

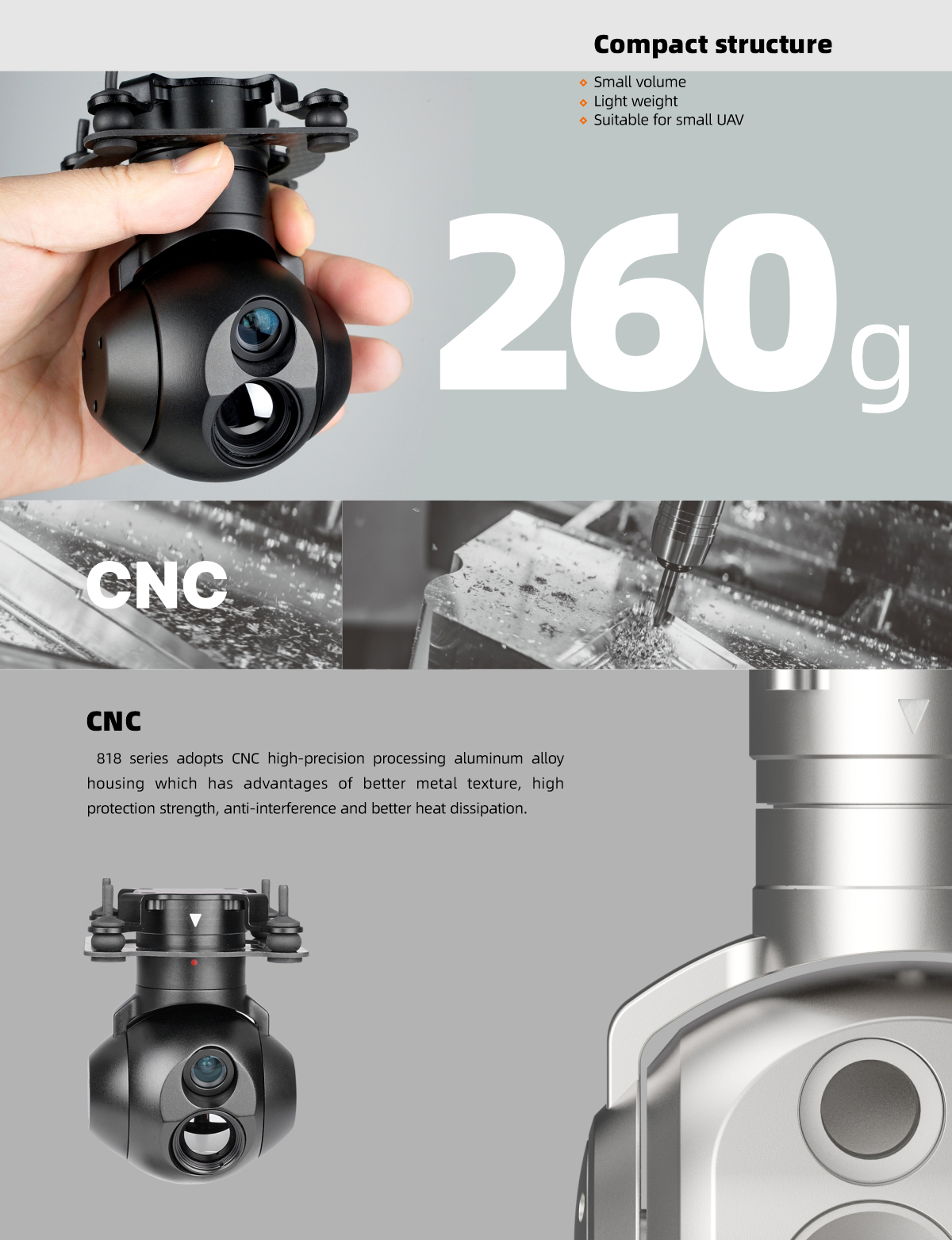

| N.W. | 260g (with damping system) |

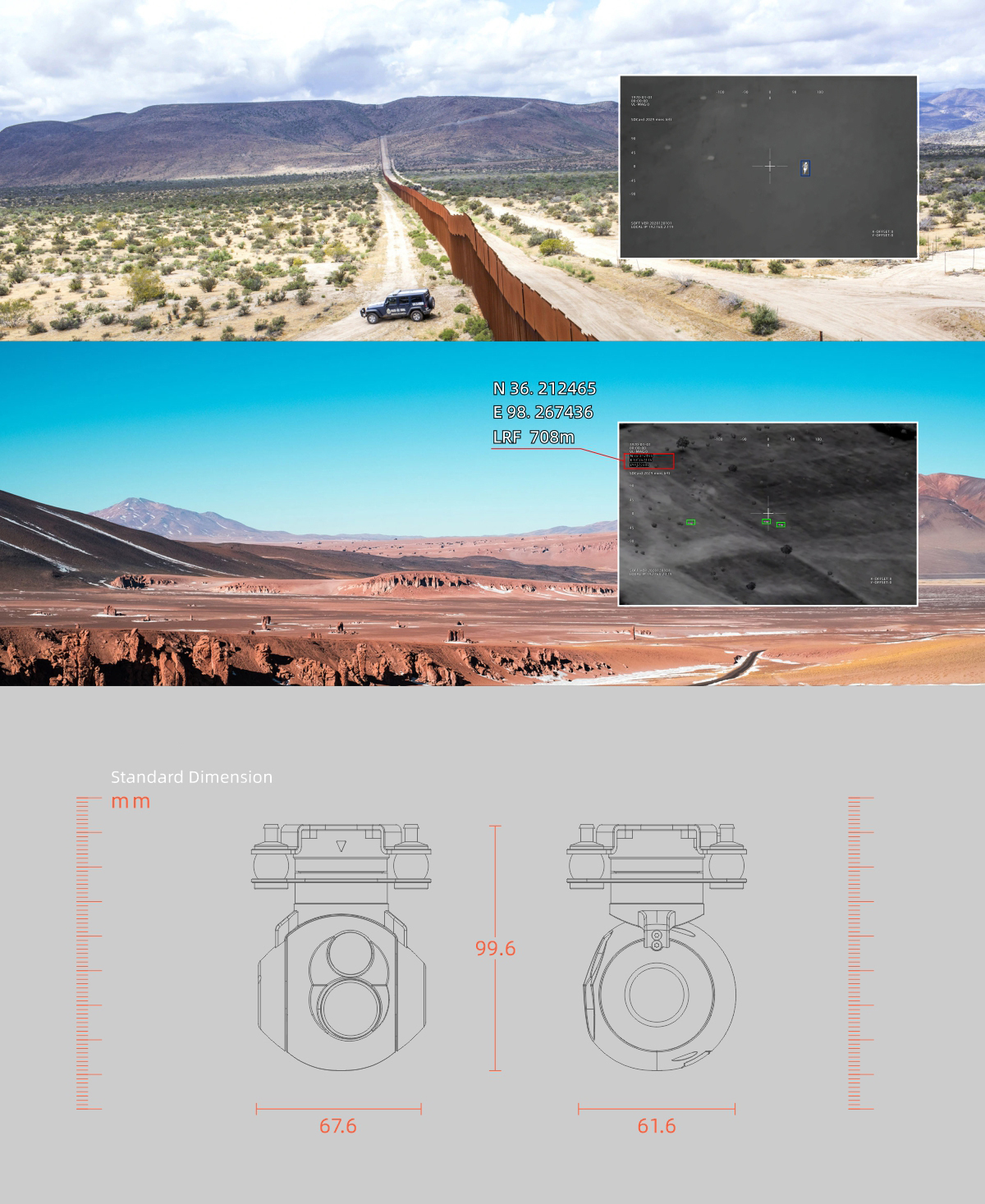

| Product meas. | 67.9*61.6*89.7mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
