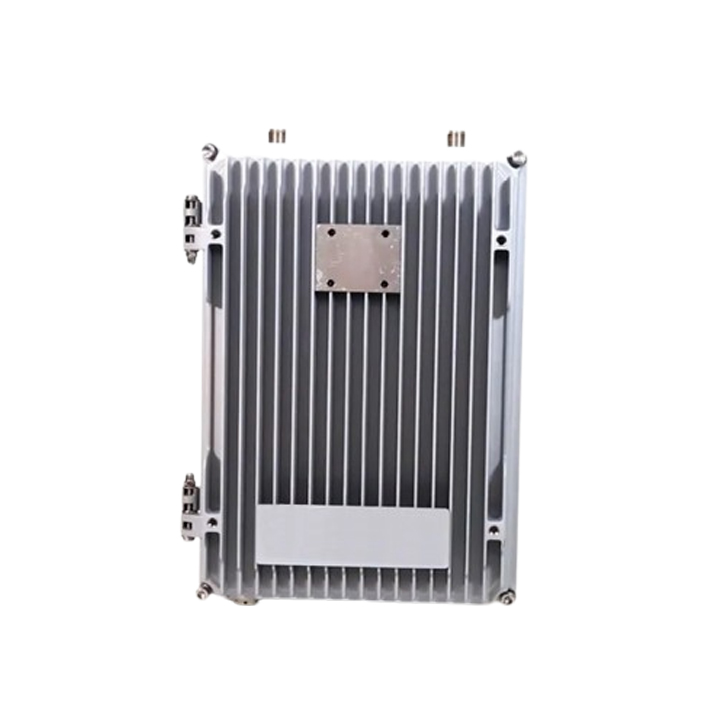

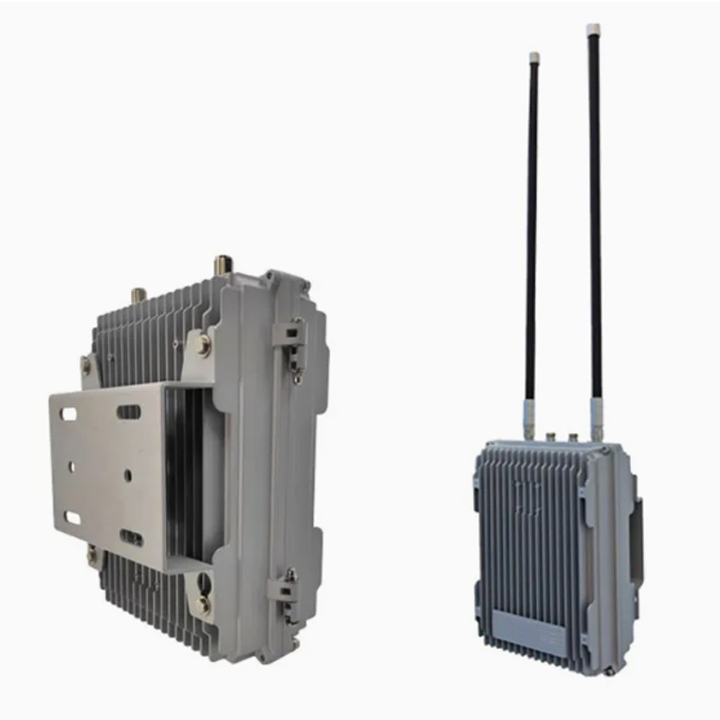

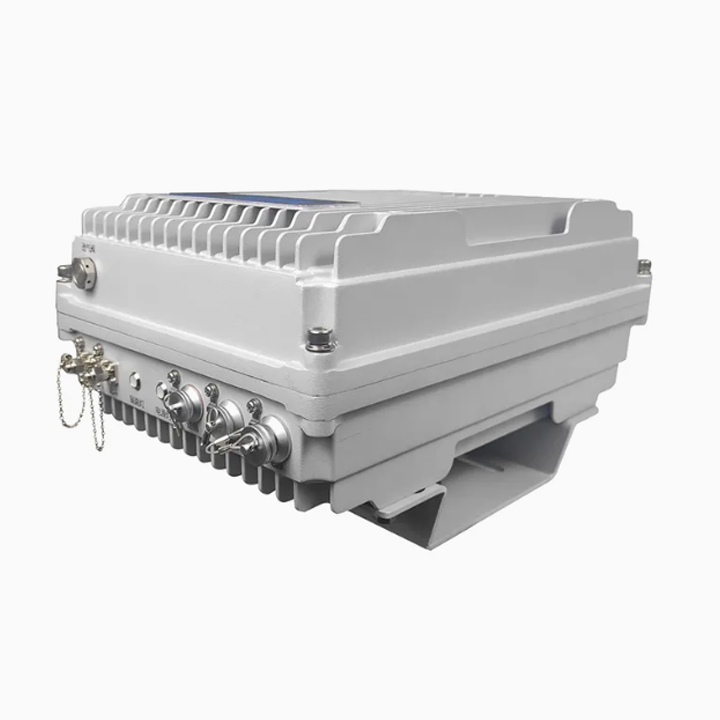

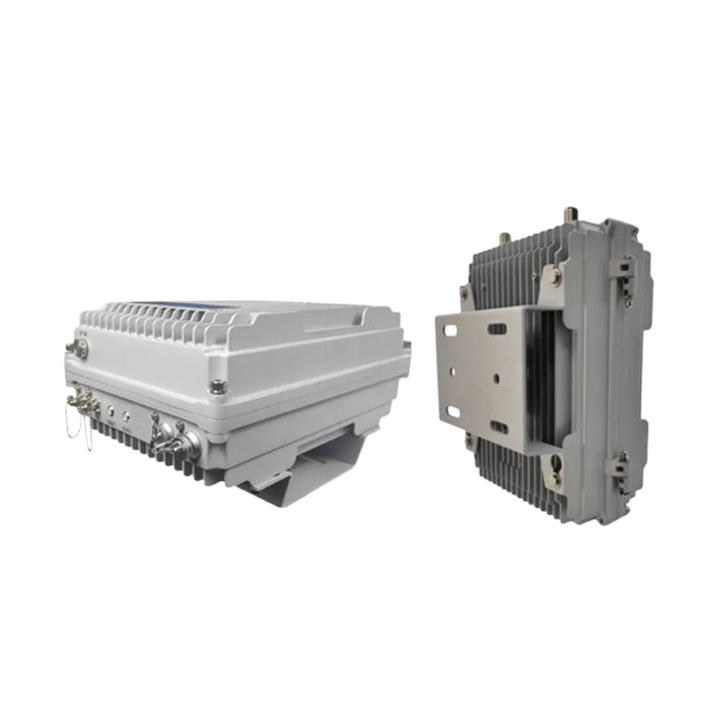

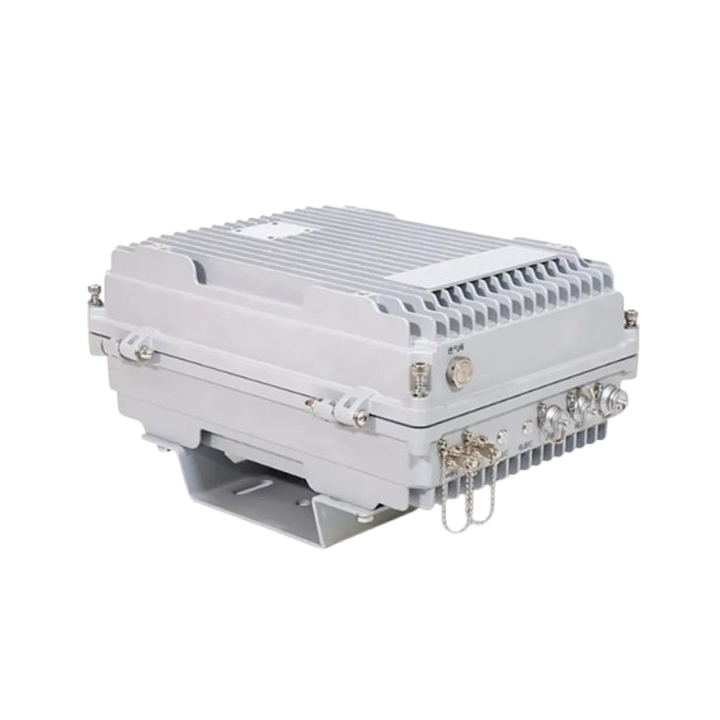

China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module

The China Moneypro Mf10/20 Fixed Mesh Radio is a high-performance wireless transmission module engineered for stable, long-term video and data connectivity in fixed deployment scenarios. As a key component of mesh networks, this fixed radio integrates advanced IP Mesh technology to enable seamless, low-latency transmission of high-definition video, critical data, and control signals—ideal for industrial monitoring, perimeter security, smart city infrastructure, and remote site connectivity. Available in Mf10 and Mf10 variants, it offers flexible configuration to suit diverse range and bandwidth requirements, while its fixed-installation design ensures reliable operation in outdoor or semi-outdoor environments. The self-organizing, self-healing mesh architecture eliminates single points of failure, maintaining connectivity even if network nodes are disrupted, and supports scalable multi-node networking. Built with durability in mind, it resists environmental factors like temperature fluctuations and moisture, delivering consistent performance for 24/7 mission-critical applications that demand uninterrupted wireless data and video link transmission.​
Categories: , , , , , , ,
Description

Overview

Basic Info.

Model NO. MF20
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 340240135mm
Power Consumption ≤ 120W
Specification 10W (5W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 10W (5W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight 7kg (Host Only)
Power Supply DC28V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 851779000

Product Description

MF10/20 Fixed Mesh Radio

Rugged Protective Structure
10 /20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

Mesh Radio – Typical System Solution

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and ReceiverChina Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
5W × 2  (10W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Security
AES128 / 256 Encryption
Power Supply
DC28V Power Supply
Power Supply
≤ 120W(Typical), ≤ 200W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network
Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface/Audio Interface/Power Interface
Aviation to Connector
Physical
Dimension
≤ 340 × 240 × 135mm
Weight
≤ 7000g
Protection Level
IP65
Operating Temperature
-30°C-+65°C

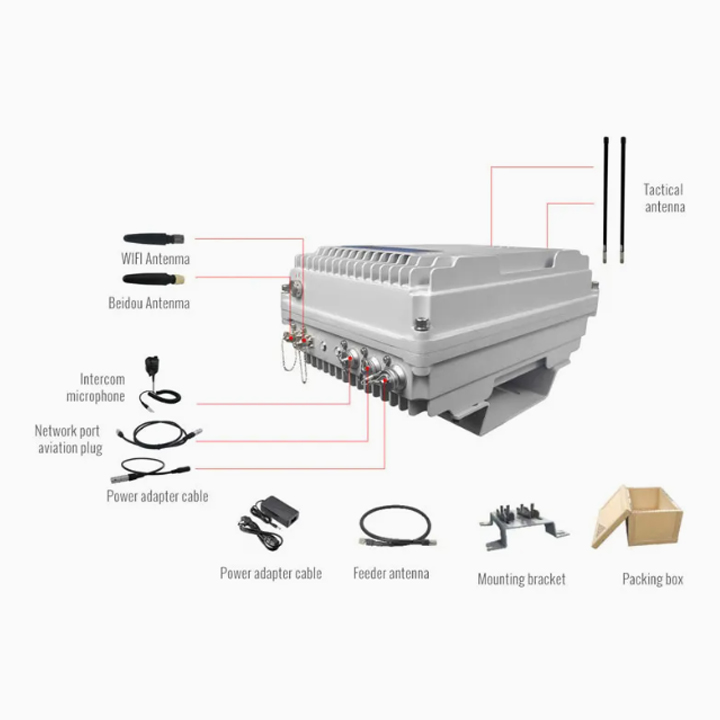

Packing & Delivery

China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module China Moneypro Mf10/20 Fixed Mesh Radio Wireless Video and Data Link Transmission Module

Application

IP Mesh Radio Application Case

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver

China Moneypro MIMO Mesh Network Vehicle Radio Module Multihop Ad Hoc Network Wireless Transmitter and Receiver
