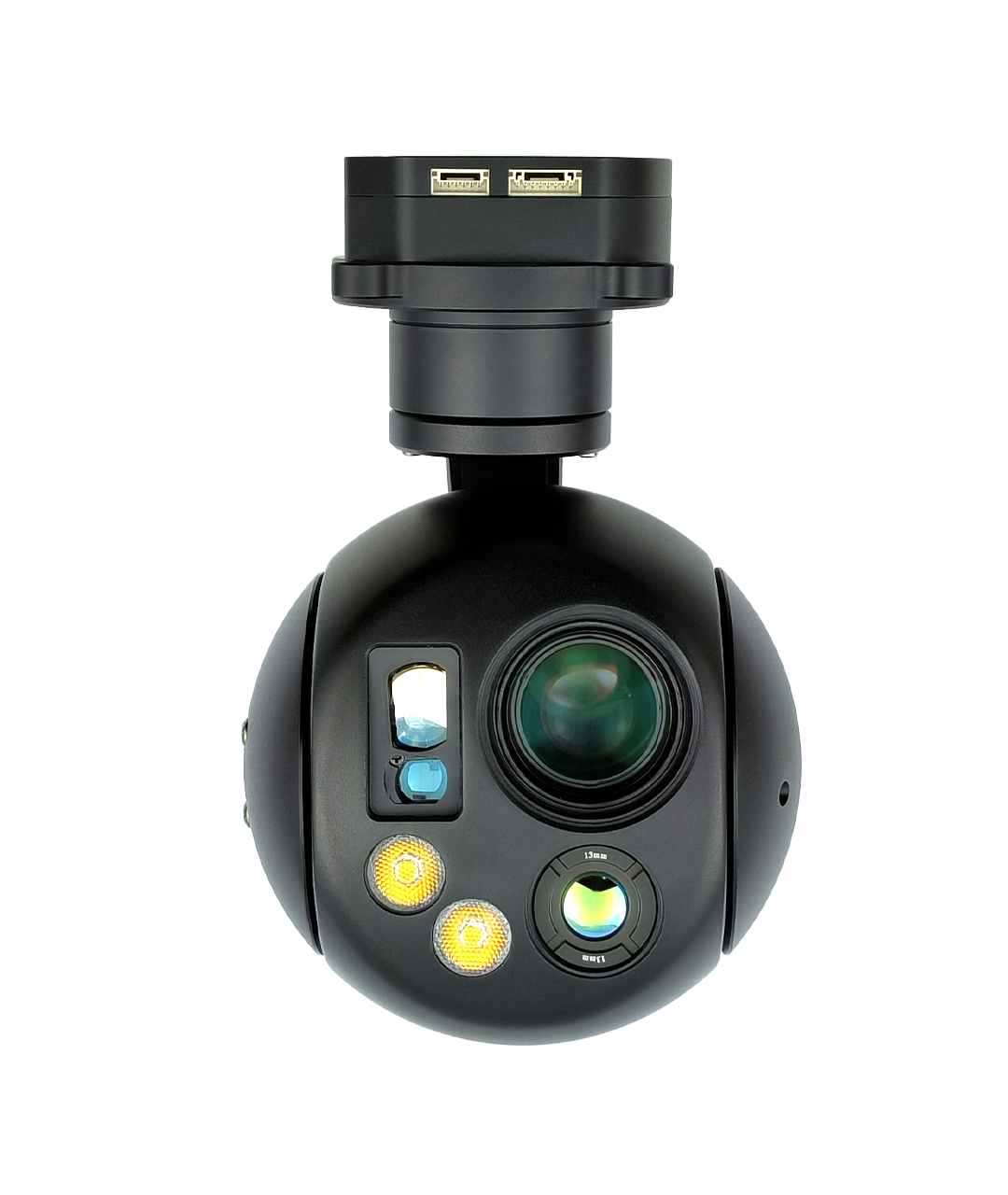

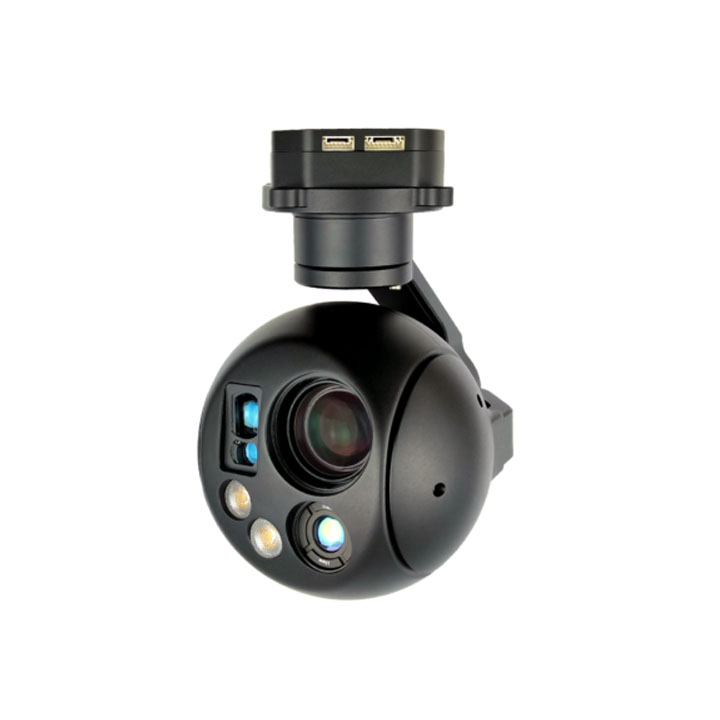

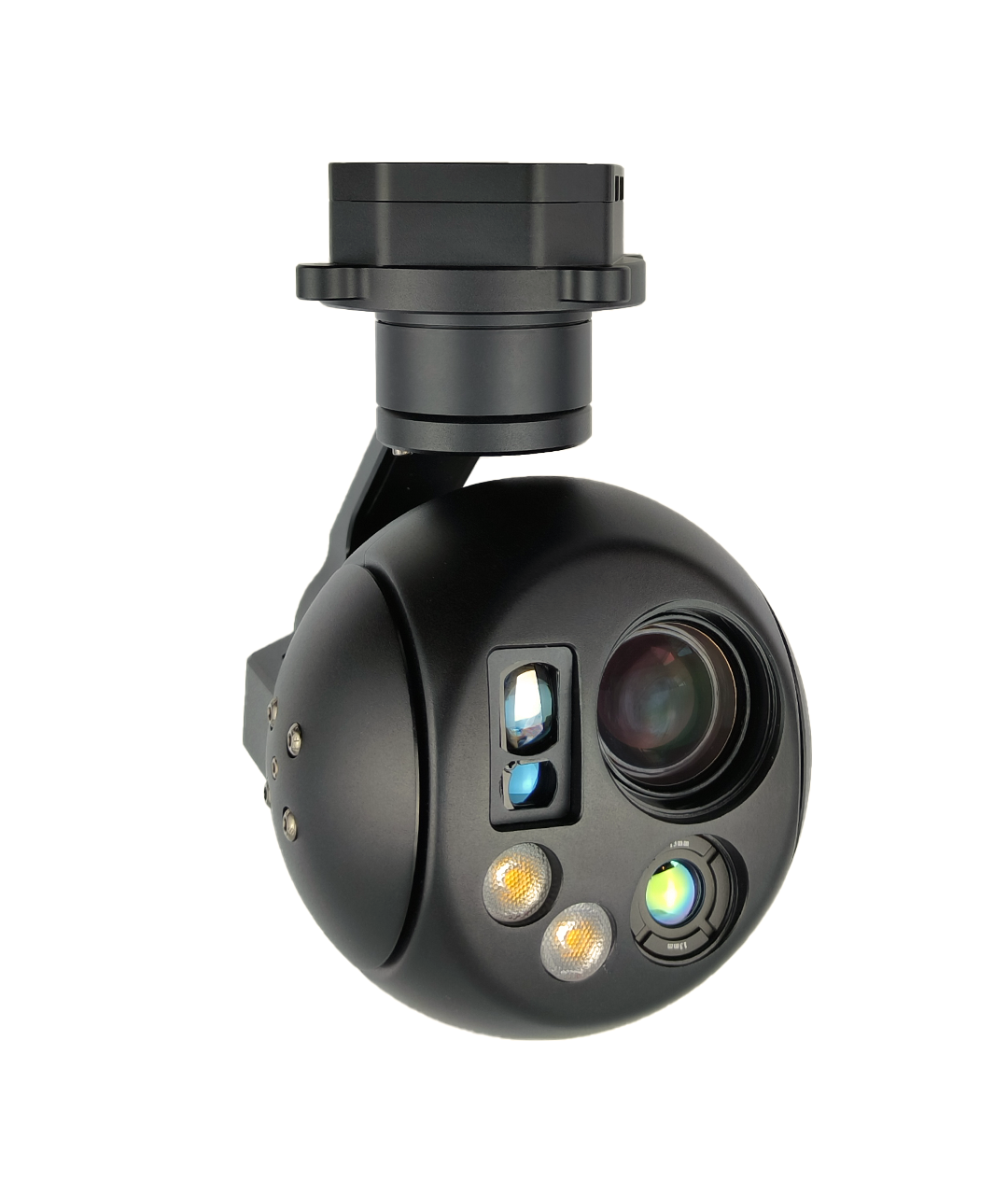

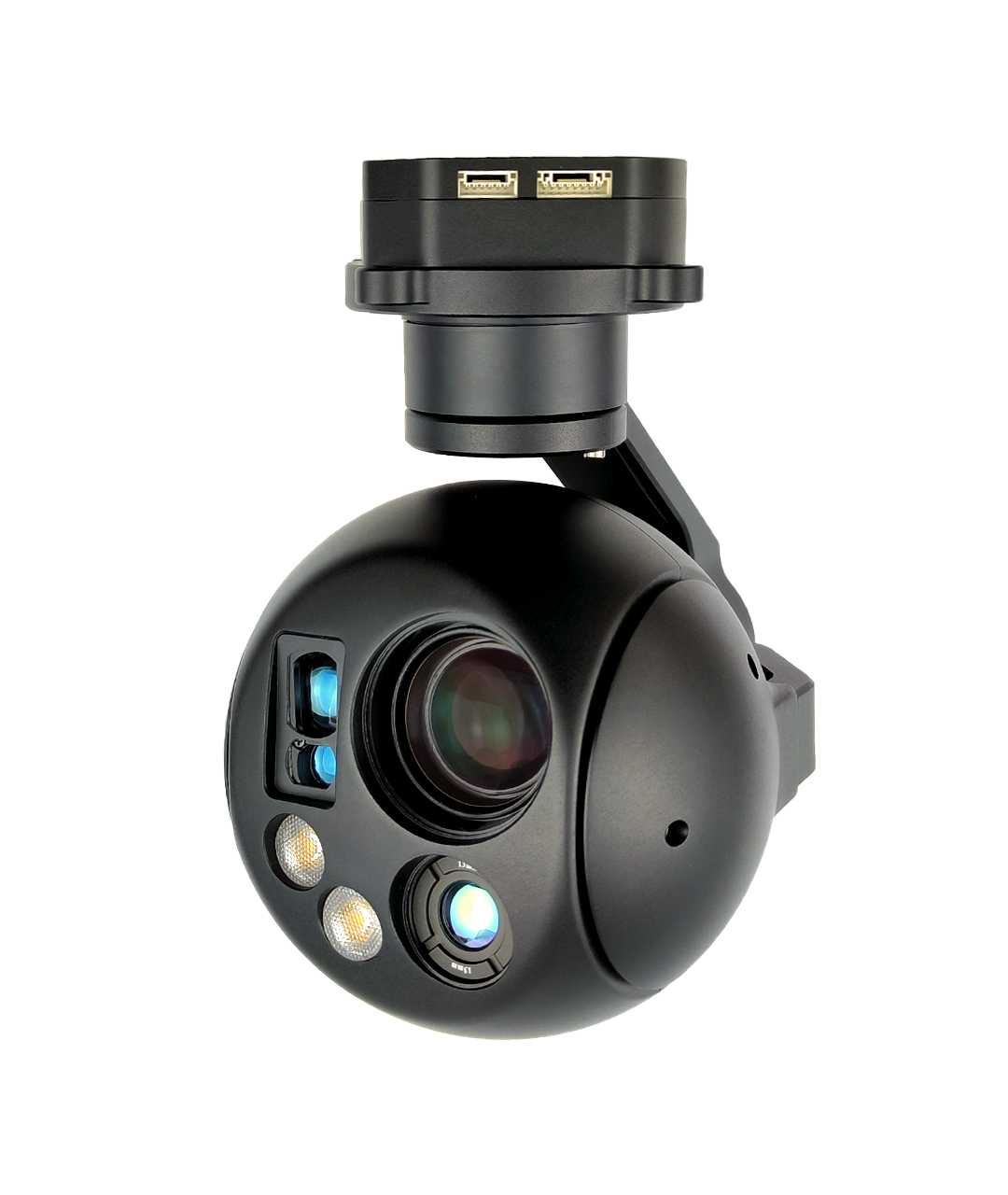

The China Moneypro MG10A613D15N is a four-in-one gimbal camera system that integrates a 90x hybrid zoom (10x Optical Zoom + 9x Digital Zoom), a 13mm focal length 640×512 thermal imaging sensor, a 5-1500 meters laser rangefinder, supplementary lights with a high-precision professional three-axis stabilized gimbal. It uses Ethernet (RTSP)output. The gimbal uses a high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses a wide dynamic SENSOR with 2 million effective pixels, while the thermal imaging uses a vanadium oxide detector. The camera system supports RTSP stream real-time video output, multiple picture-in-picture modes and multiple pseudocolor displays, and it also supports global temperature measurement functions. You can control the camera and the gimbal via serial port (UART), UDP and S.BUS. The camera outputs both visible light video and thermal imaging video, supporting video recording and photography on Micro-SD card and network remote accessing to stored videos and pictures on micro-SD card.
China-Moneypro-MG10A613D15N-Four-in-one-Gimbal-Camera-Download
