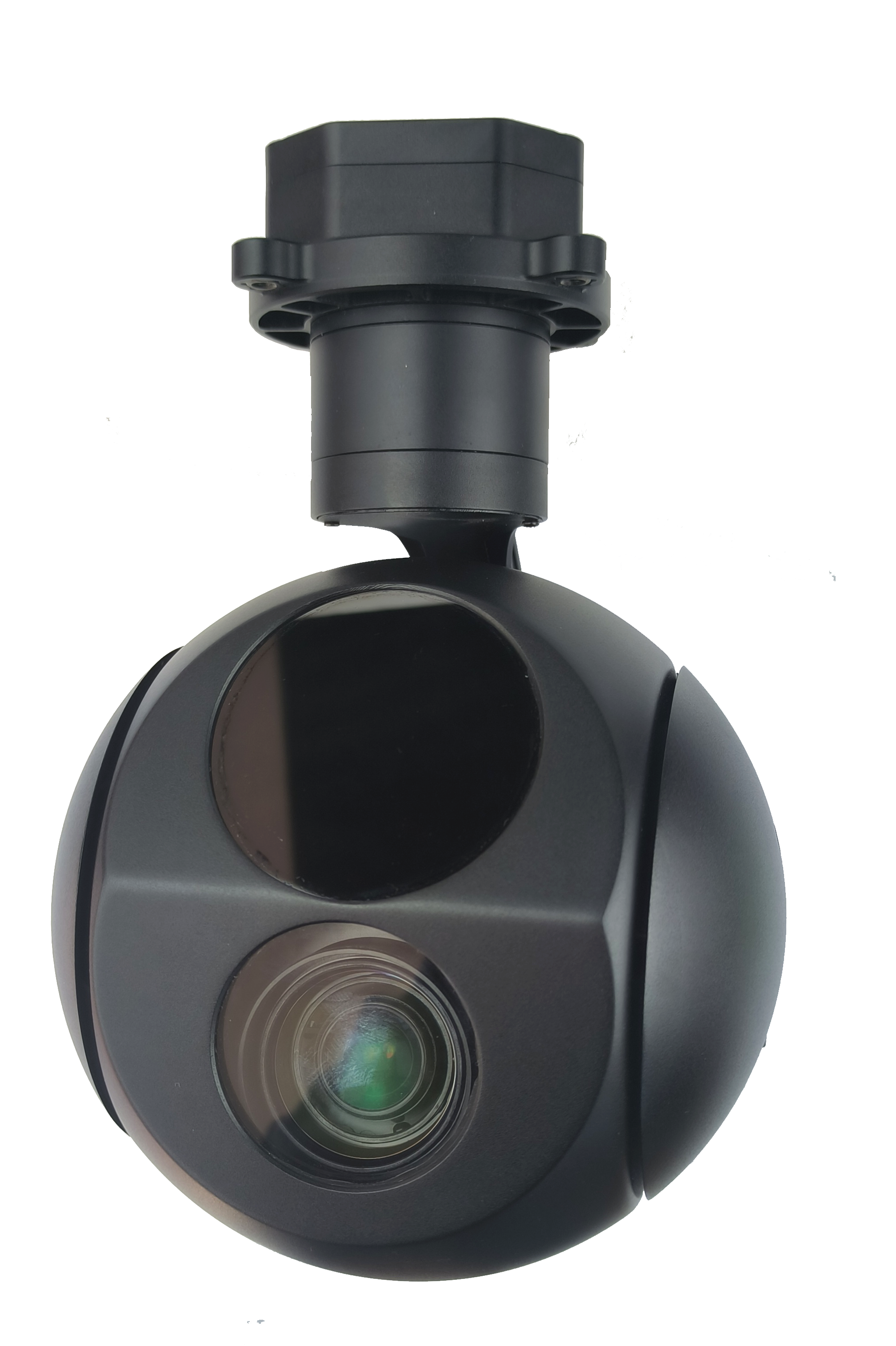

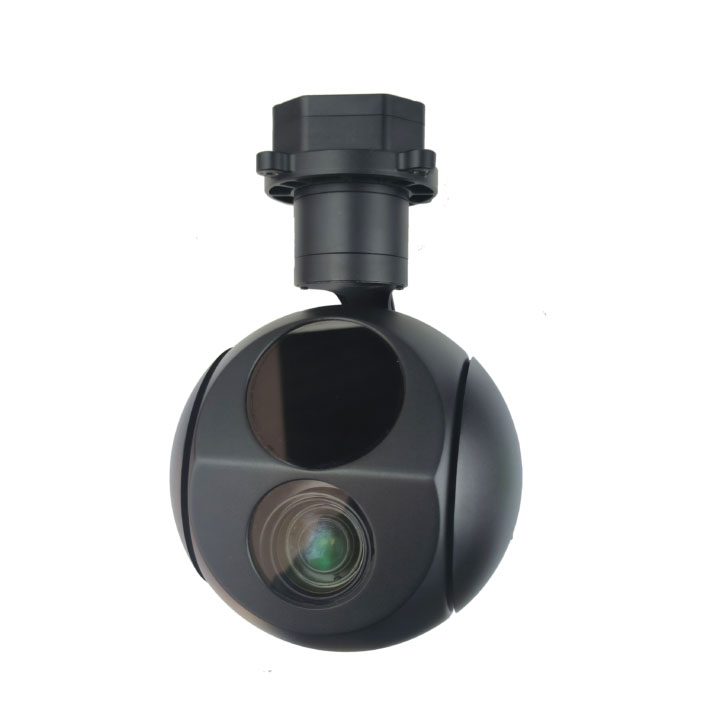

China Moneypro MG10G12 is a dual sensor integrated camera system that integrates a 90x mixed zoom ①visible light camera, 25mm focal length 1280*1024 infrared thermal camera and a high-precision three-axis stabilizing PTZ. Ethernet RTSP streaming video output, support SBUS/UART/UDP/PWM control. PTZ adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera adopts high-definition SENSOR with an effective pixel count of 2 million, and the thermal camera uses a 1280*1024 resolution uncooled vanadium oxide detector with a baffle design. The camera also supports picture-in-picture (PIP) mode, multiple false color modes and temperature measurement. You can control the camera and PTZ simultaneously using the serial port and network. Supports distance measurement data reading,local TF storage and network file read/write operations, dual channel synchronous recording.
China Moneypro MG10G12 10x Optical Zoom + 12801024 Thermal dual light gimbal. IP output
