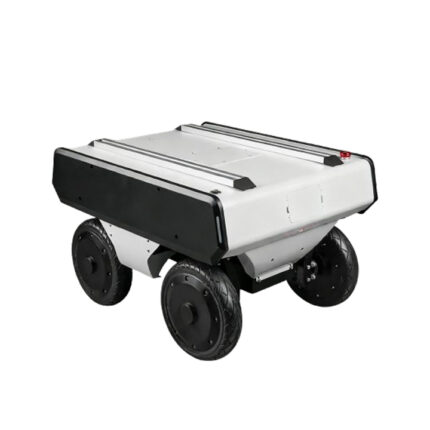

China Moneypro MM400 Full Scene Application Omnidirectional UGV
Back to products
M110 Surveying Boat Unmanned Surface Vehicle

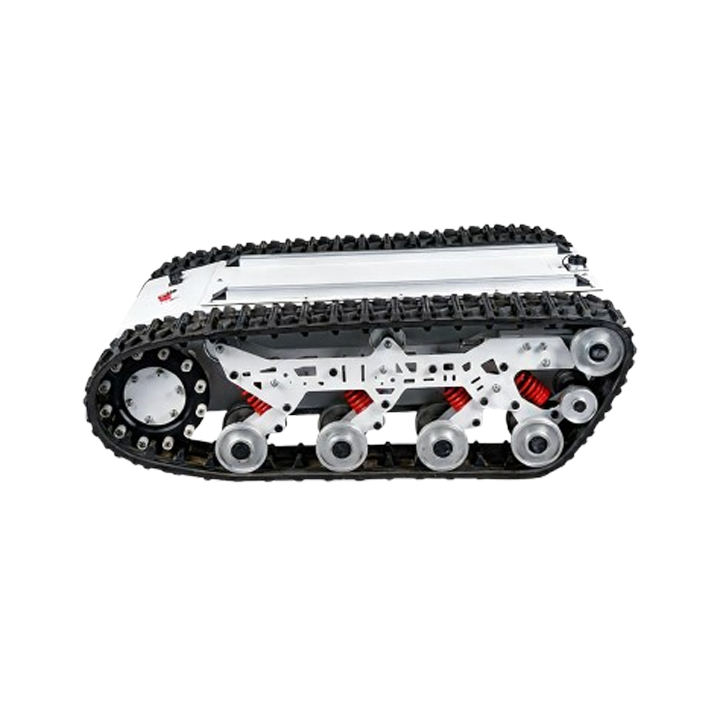

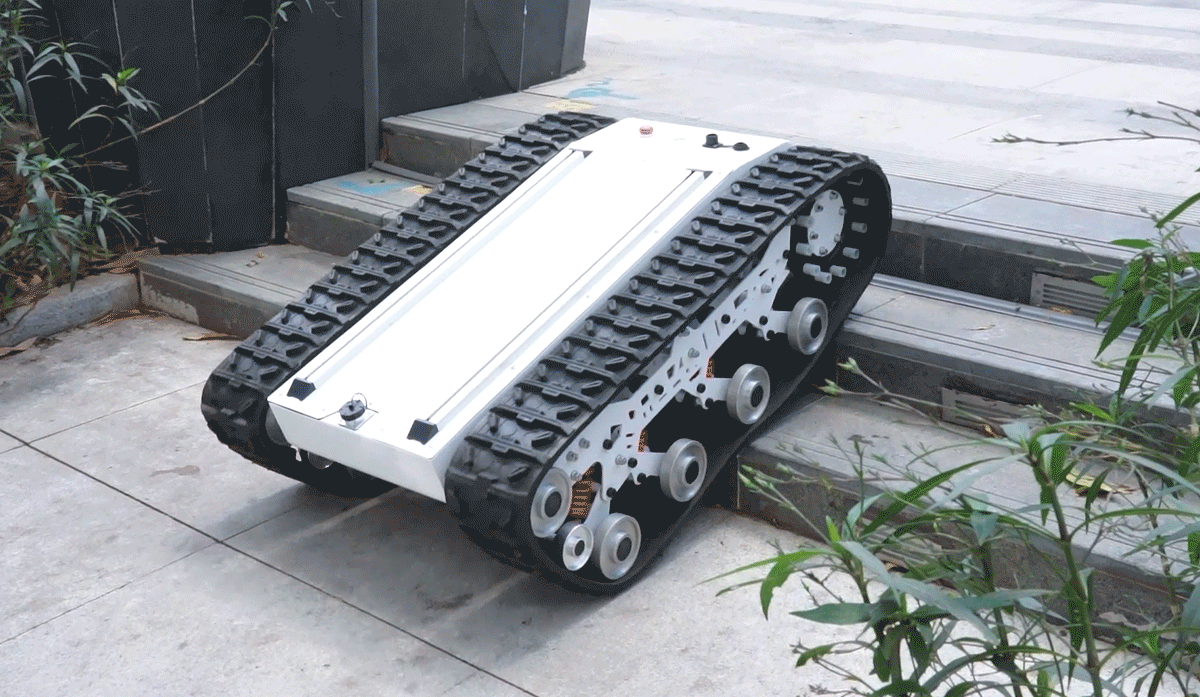

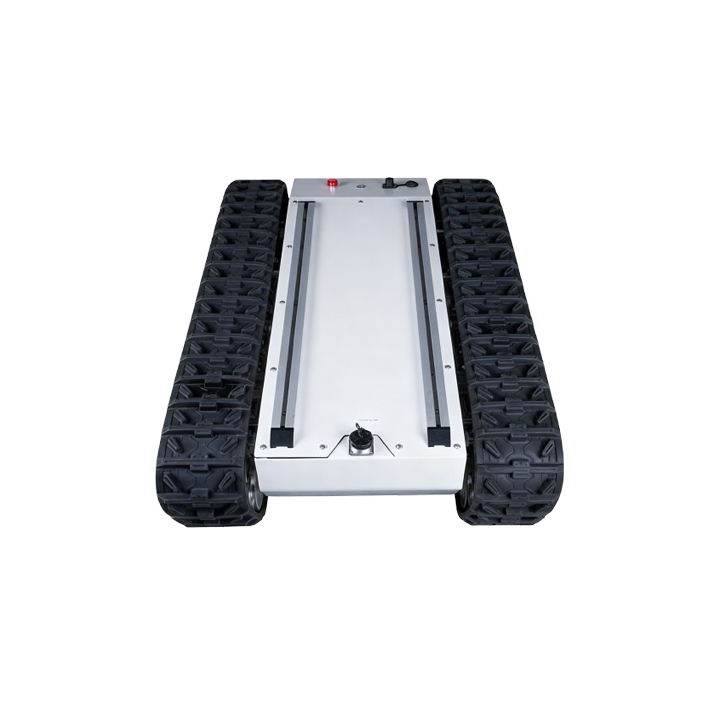

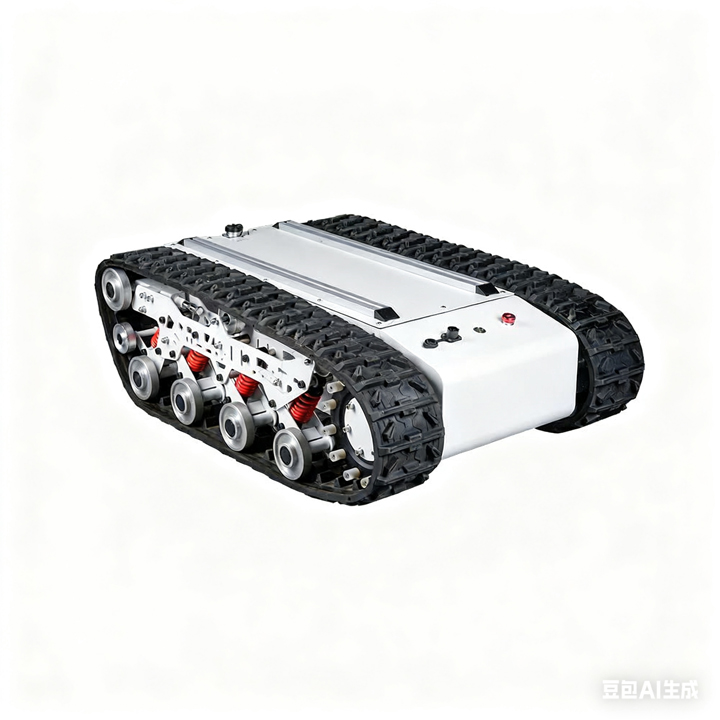

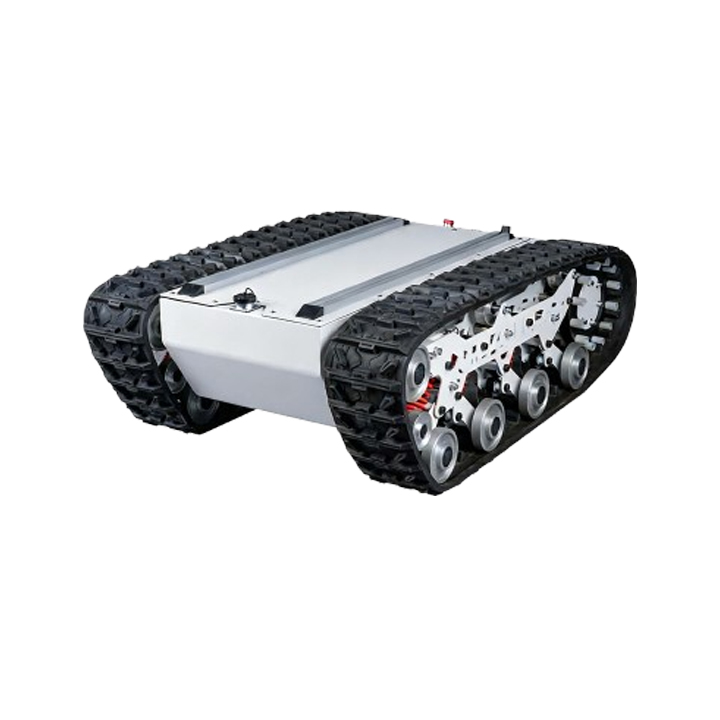

China Moneypro MK224 Unmanned Ground Vehicle

The Tracks MK224 Unmanned Ground Vehicle (UGV) is a crawler-type robotic platform defined by its “rock-solid” durability and exceptional all-terrain adaptability—engineered to operate reliably in challenging environments where stability and ruggedness are critical.​
At its core, the UGV features a robust tracked design (crawler-type configuration) that sets it apart: this structure distributes weight evenly, enhances traction on uneven or slippery surfaces (such as mud, gravel, rocky terrain, or debris), and enables smooth navigation over obstacles that would hinder wheeled UGVs. Complementing its tracked advantage is its “rock-solid” build—with a reinforced chassis and weather-resistant components that withstand impacts, dust, moisture, and extreme temperature fluctuations—ensuring consistent performance in harsh industrial, construction, or remote operational scenarios.
Category:
Description

Product Detail

China Moneypro MK224 Unmanned Ground Vehicle

Specifications

Product Size 1070*700*345mm
Weight 140kg
Shock-absorbing System 8 independent absorbers on each side
Suspension Christie Suspension
Material Q235
Ground Clearance 103mm
Wheel Track 550mm
Wheel Outer Diameter 212mm
Motor 1000W*2 DC Brushless Motor
Battery 48V/40AH
Charging Time 4-5h
Charging Mode 48V/10A Manual Charger
External power supply 24V/15A-12V/15A-5V/4A
Braking Motor Brake
Parking Motor Parking
Payload 80kg
Speed 4km/h
Mileage 20km
Wading Depth 100mm
Climbing Capacity 20°
Span Width 250mm
Obstacle Height 150mm
Protection Level IP64
Communication Interface CAN 2.0B
Operation temerature  -20℃~60℃

Related products

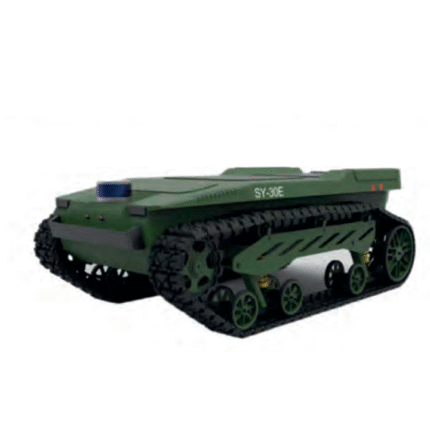

Mountain Ant SY-30 General Purpose Mobile Platform

This product is a remote-controlled crawler-type mobile platform, featuring high speed, excellent off-road and through-road performance, as well as strong flexibility and maneuverability in complex terrains and the ability to adapt to various scenarios. It can be used for target strikes, battlefield reconnaissance, security patrols, urban or outdoor exploration, and handling suspicious objects, etc.

Nuclear reconnaissance and detection robot

The upper part is equipped with multiple task units such as a small mechanical arm, a detector, a reconnaissance camera, and an autonomous navigation system. It can conduct autonomous monitoring and handling of radiation areas, and simultaneously transmit real-time images and videos of the target area to the handheld remote control terminal. It is widely used in various fields such as nuclear power and biochemical industries.

Severe Pollution Close-range Detection Robot Type 1

The upper part is equipped with radiation-resistant cameras, detectors, sampling and automatic line-retracting devices, etc. It can remotely monitor the target environment, take samples and provide real-time feedback to the handheld remote control terminal. It is mainly used in nuclear pollution, chemical industry and other fields. This product can be equipped with other mission systems according to application requirements to meet the unmanned operation needs of other military and civilian dual-use scenarios.

Navigation Industrial Control Computer

The navigation industrial control computer can process data from various sensors of vehicles, such as radars, laser radars (LIDAR), cameras, etc. It can achieve functions such as environmental perception, analysis and decision-making planning, and vehicle control.

Combat robots

The upper part is equipped with a weapon station, which can monitor and attack suspicious targets. It also transmits real-time images and videos of the target area to the handheld remote control terminal. This product is widely used in various fields such as battlefield reconnaissance and urban security. It can be equipped with other mission systems according to application requirements to meet the unmanned operation needs of other military and civilian dual-use scenarios.

Mountain Ant SY-100 General Mobile Platform

This product is a remote-controlled crawler-type mobile platform, featuring high maneuverability, long endurance, high speed, strong adaptability to various scenarios, and excellent shock absorption performance. It can be used for target strikes, urban or outdoor exploration, disposal of suspicious objects, monitoring of target areas and sampling, etc.

Vertical take-off and landing unmanned helicopter with twin rotors

This product is an autonomous/remote-controlled large-scale flying platform, which can be used for three-dimensional delivery, integrated reconnaissance and strike, emergency rescue, etc. It can operate in high-demand scenarios such as on ships and at high altitudes. It has advantages such as take-off and landing on the spot, long-duration flight and hovering, large payload capacity, no power attenuation at high altitudes, and strong anti-interference ability. This product can be equipped with other mission systems according to application requirements to meet the unmanned operation requirements for other military and civilian dual-use scenarios.

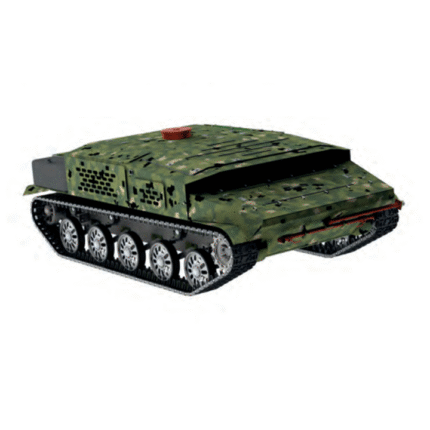

QZHP4T Universal Mobile Platform of QianZhi
