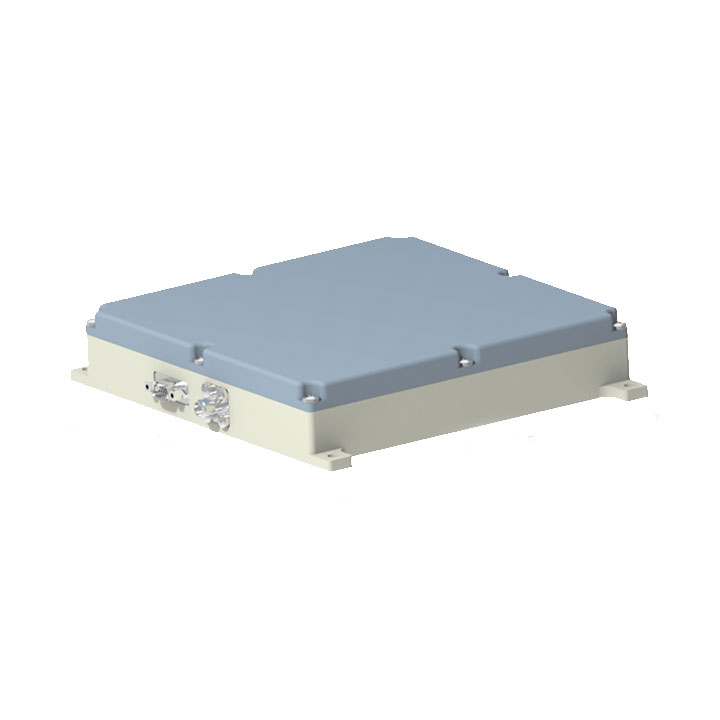

Key Features
- 4 channels Beidou B1/GPS L1/Galileo L1 signal reception, filtering, amplification and down-conversion processing;
- The antenna capable of suppressing 3 external broadband jamming with space time adaptive anti-jam processing function in Beidou B1/GPS L1/Galileo L1 frequency bands.
- 1 up-conversion channel. The filtered Beidou B1/GPS L1 Galileo L1 satellite signals are forwarded to the back-end GNSS receiver;
- Small size, low power consumption, light weight, simple application.
Antenna array
- 4 Beidou B1/GPS L1/Galileo L1 antenna array elements;
- VSWR:<2.0;
- Polarization: RHCP;
- Coverage: azimuth: 0-360 °,pitch: 0-90 °;
- Antenna vertex gain: >1.5 dBi
LNA
- GAIN:Beidou B1/GPS L1/Galileo L1:22+3dB(customizable);
- Noise Figure: <2.5dB;
- Out-of-band inhibition:>50dB@f0+50MHz;
- VSWR:< 2.0;
- Beidou B1/GPS L1/Galileo L1 RF input power limiting:10WFeed voltage: 5V±10%;
- Feed current: <100mA@5V;
Weight
- <540g。
Anti-jam processing
- Used for GNSS Beidou B1/GPS L1/Galileo L1;
- Mitigates multiple CW, partial band, broadband and pulsed jammers even under high dynamics;
- Greater than 90 dB J/S of jamming suppression against single jammer;
- Greater than 80 dB J/S of jamming suppression against 3jammers.
Power supply
- Input voltage: 12V~36V(28V default)
- ≤12WSupply power;
Temperature
- Operation temperature:-40C~70°C
- Storage temperature:-40°C~85°C
Built-in receiver
- Built-in high accuracy GNSSnavigation receiver option.

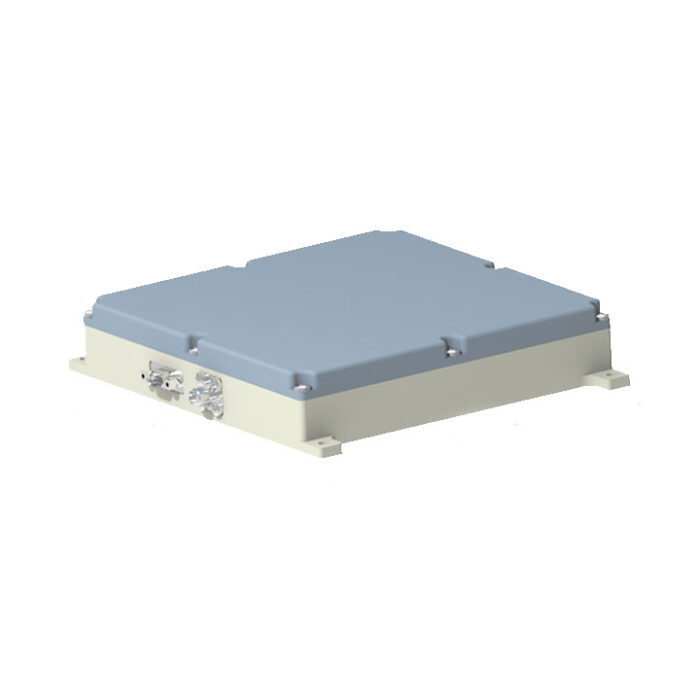

Outline dimensions

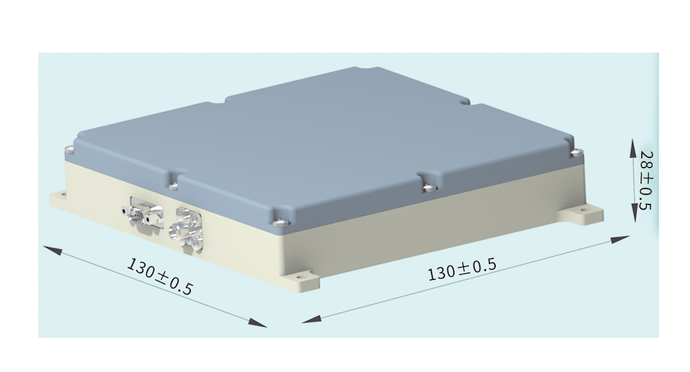

- The dimension :s130.0±0.5mm x130.0±0.5mmx28+0.5mm
External Interface
- Serial interface: J30J-9ZK
- RF Connector: SMA-K
