Home » Unmanned System Products » China Moneypro Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance
Tactical GPS Tracking Communication Device Wireless Transmitter Manpack Mesh Video Link Radio
Back to products
30km Rugged Mesh Tactical Radio IP67 Fixed IP Network for High-Bandwidth Video & Data Transmission

China Moneypro Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

The China Moneypro Mobile Mesh Network Router is a purpose-built communication solution engineered to enhance connectivity for fire and ambulance services, seamlessly integrating with vehicles and Unmanned Ground Vehicles (UGVs). Leveraging advanced mesh network technology, it creates a resilient, self-organizing wireless network that maintains stable links even in chaotic emergency environments—such as smoke-shrouded fire scenes or remote accident sites—overcoming signal obstructions and ensuring uninterrupted data flow. Designed for vehicle and UGV deployment, it enables real-time transmission of critical information: fire teams can share live video feeds, location data, and operational updates, while ambulances can relay patient vital signs and coordinate with command centers. Its rugged, mobile design withstands harsh conditions—including extreme temperatures, moisture, and physical jolts—making it a dependable asset for time-sensitive, high-stakes emergency response. This device bridges communication gaps in critical scenarios, empowering first responders to make faster, safer decisions.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. MV10
Information Content Text, Picture, Video, Audio
Frequency Range 1428~1448MHz(Std) / 1100~1500MHz(Customized)
Networking ≥ 52 Nodes
Encryption AES128/256
Dimension ≤ 492*387*90mm
Power Comsuption ≤120W
Specification 10W (5W * 2)
Origin China
Production Capacity 5000PCS/Month
Usage Radio, Satellite, Plane, Ship, Car
Transmitter Power 10W (5W * 2)
Bandwidth 5/10/20MHz
Max Data Rate 90Mbps@20MHz
Weight ≤8kg (with Battery)
Power Supply AC220V
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 48.20cm * 38.50cm * 9.00cm
Package Gross Weight 7.200kg

Product Description

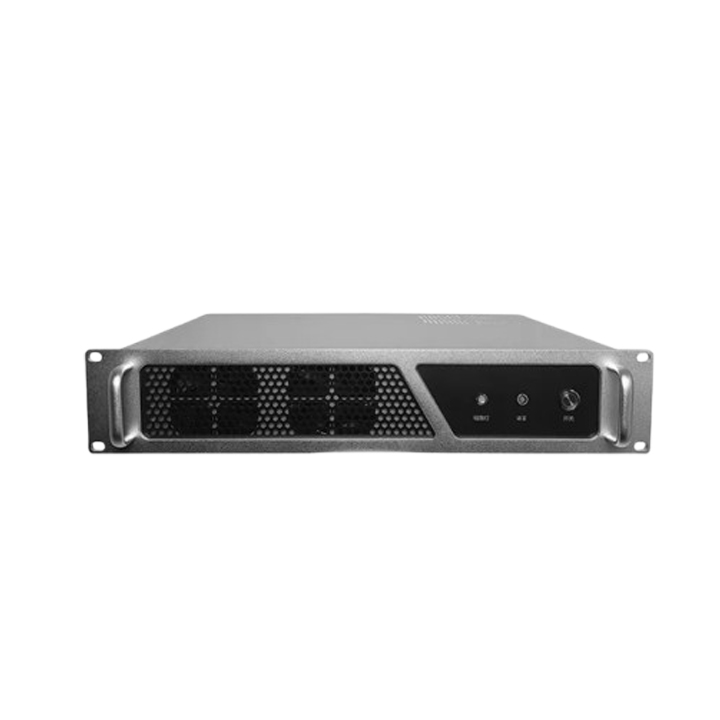

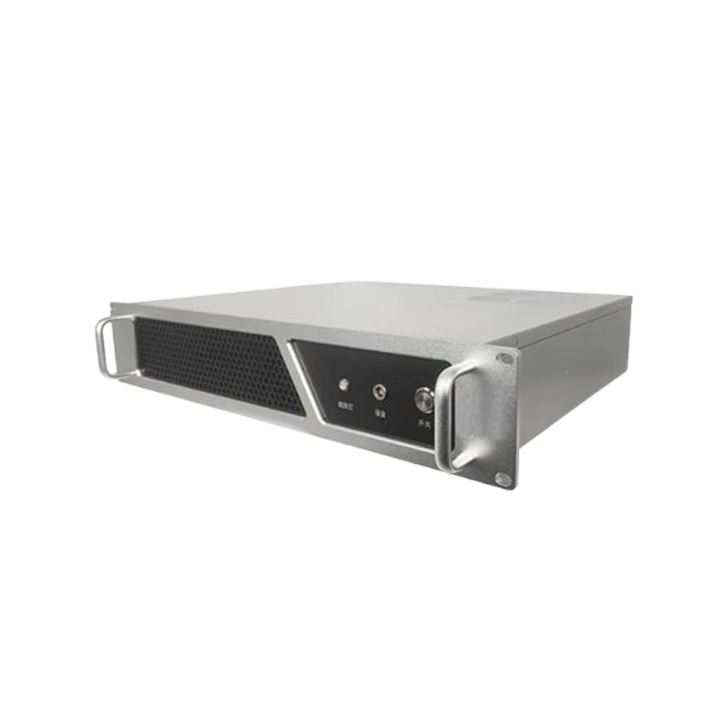

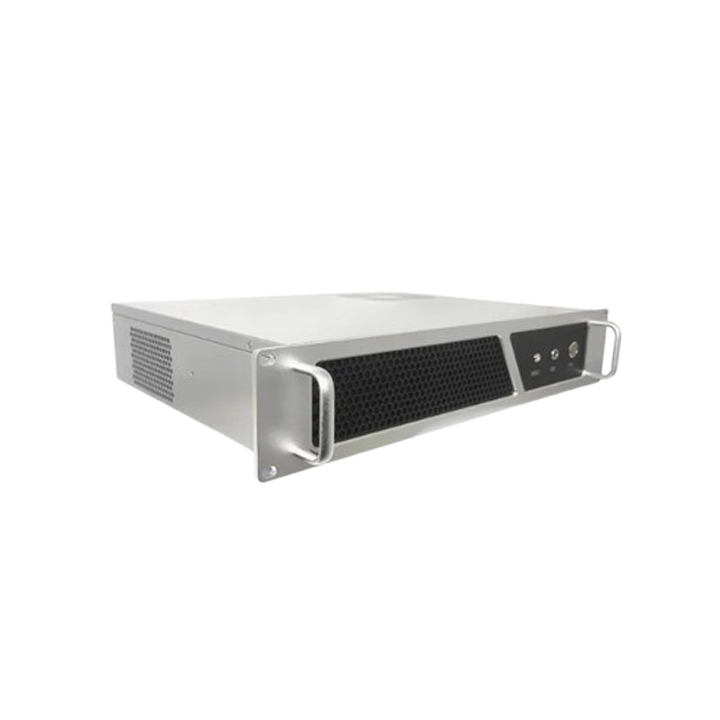

MV10/20 Vehicle Mesh Radio

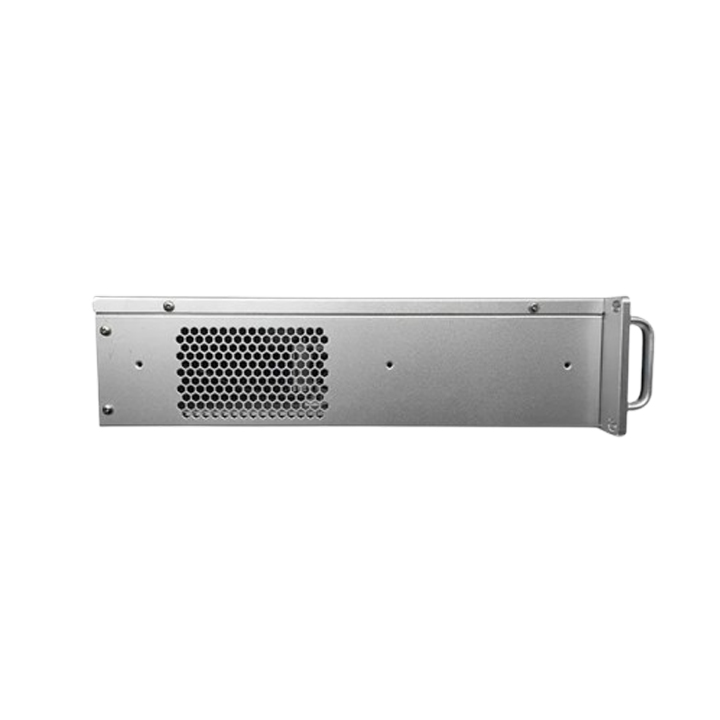

2U Standard Rack Structure
10 / 20 Watt Transmit Power
5 Seconds Quick Setup Time
More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate
AES128/256 Security Protection
20KM Open Area Transmission Distance

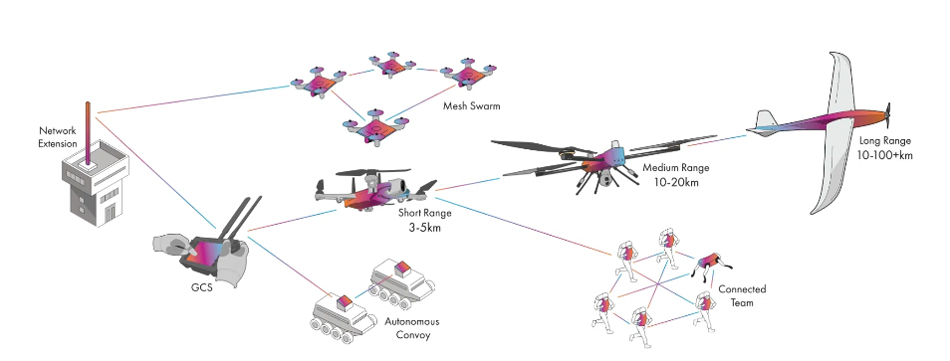

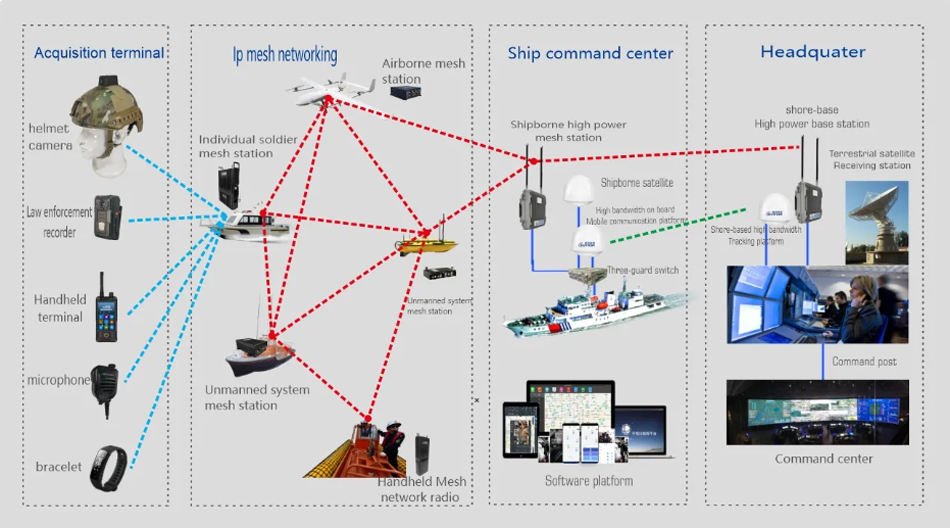

Mesh Radio – Typical System Solution

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

Specification

Wireless
Frequency Range
1428-1448MHz
Bandwidth
5M/10M/20MHz
Transmission System
COFDM
Modulation Mode
BPSK/QPSK/16QAM/64QAM
(Self-Adaption)
Data Rate
90Mbps@20MHz (Peak)
RF Power
5W × 2  (10W × 2 for Optional)
Receive Sensitivity
≤ -92dBm @ 5MHz
System
Video Input
ETH (HDMI/SDI for Optional)
Audio Input
Remote Microphone or Earpiece
Security
AES128 / 256 Encryption
Power Supply
AC220V Power Supply
Power Supply
≤ 120W(Typical), ≤ 200W(Peak)
Networking
Networking Capability
≥ 52 Nodes
Networking Hops
≥ 10 Hops
Access Time
5s after Startup of System
Topology Type
Ad-Hoc Network, Star Network,Chain Network

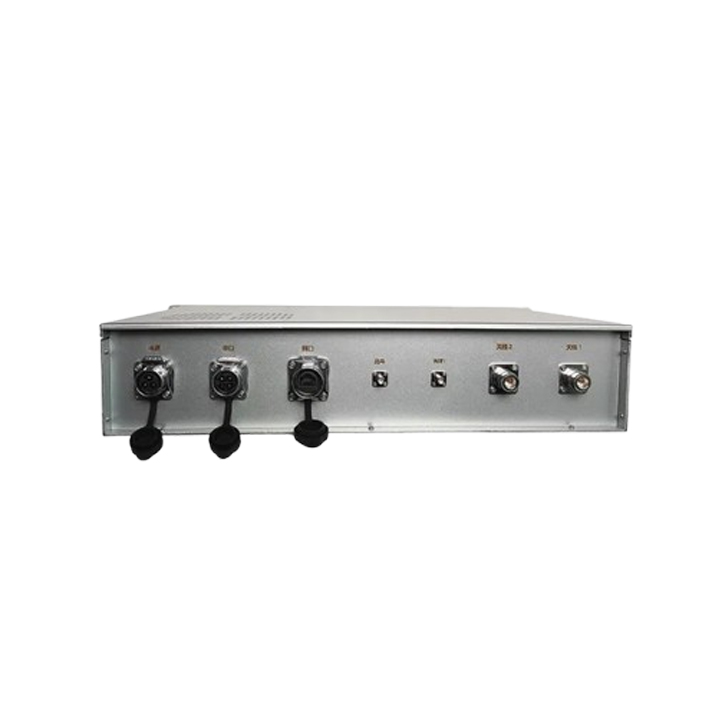

Interface
RF Antenna
N Type × 2
GPS Antenna
SMA
WIFI Antenna
SMA
Ethernet Interface
Aviation to RJ45 Connector
Serial Port Interface/Audio Interface/Power Interface
Aviation to Connector
Physical
Dimension
≤ 482 × 385 × 90mm
Weight
≤ 7200g
Protection Level
IP54
Operating Temperature
-30°C-+65°C

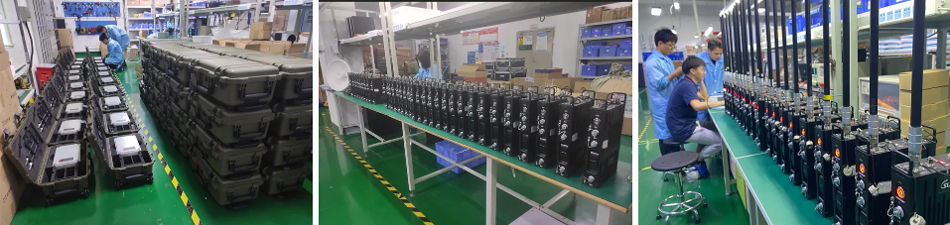

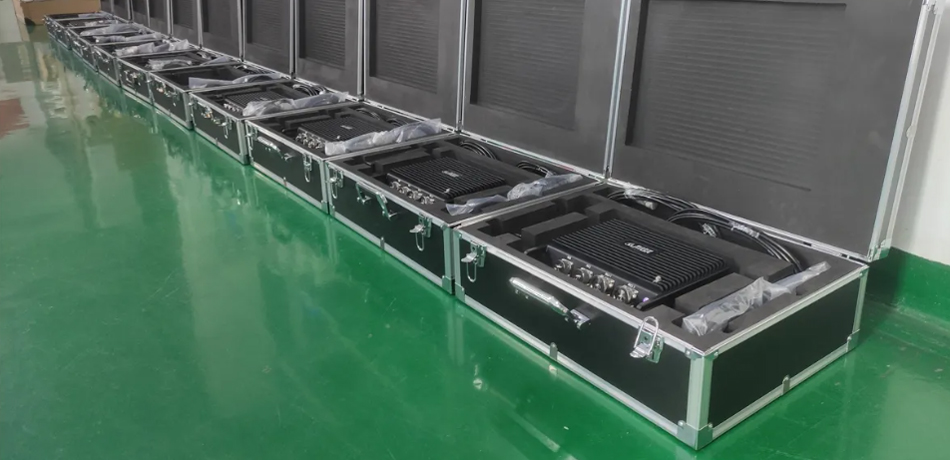

Packaging & Shipping

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance

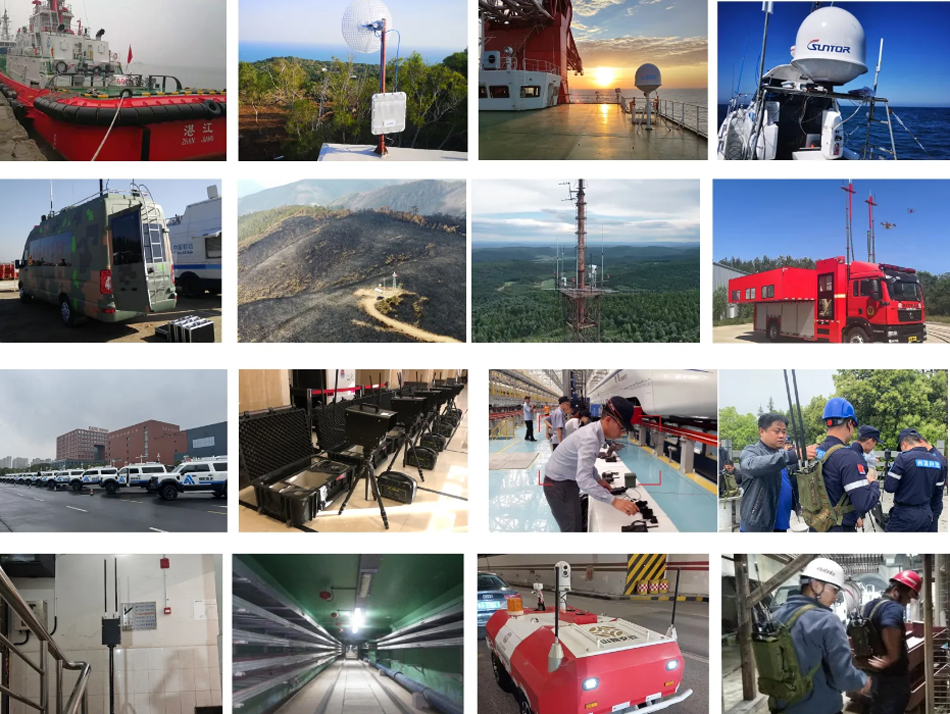

Application

IP Mesh Radio Application Case

Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance Suntor Mobile Mesh Network Router Ugv Vehicle Mesh Radio for Fire Ambulance
