Key Features
- Lightweight opto-mechanical-electrical design
- Nationally produced, full independent control of core components
- Built-in AI intelligent recognition algorithmfor unattended operation
- Three-axis gyro stabilizationensures stable, clear imaging in dynamic conditions
- Multi-process anti-corrosionfor deployment in high-salt, high-humidity coastal environments
- Supports external cueing systemssuch as radar and AIS
- Memory tracking(5 s) with precise PTZ control
- 20–200 mm zoom visible camera+ long-range LWIR thermal camera (75/100 mm)
- Laser rangefinder(150 m–8000 m, ±2 m accuracy, optional)
- One-click network configurationwith multi-protocol network and serial interfaces
- Day and night long-range detection and recognition
Technical Specifications
Thermal Imaging Channel
- Sensor type:VOx uncooled FPA
- Resolution / Pixel pitch:640 × 512 @ 15 µm
- Spectral range:5 – 12 µm
- Lens focal length:75 mm / 100 mm
- F-number:0 (matched to lens)
- NETD:≤ 40 mK
- Polarity modes:White-hot / Black-hot / Red-hot / Green-hot / Rainbow etc.
- Digital zoom:1× – 16×
- Functions:image freeze, electronic stabilization, digital defog, anti-blooming, ROI, pseudo-color
- AI functions:Target recognition and auto-tracking (supported)
- Laser rangefinder (optional):150 m – 8000 m, accuracy ± 2 m
Visible Light Camera
- Sensor:1/2.8″ CMOS
- Resolution:1920 × 1080 (1080p)
- Minimum illumination:001 Lux @ F1.5
- Optical zoom lens:20 – 200 mm (10× optical zoom)
- Digital zoom:16×
- S/N ratio:≥ 55 dB
- Functions:WDR, electronic stabilization, digital defog, anti-blooming, freeze frame, ROI, flip, sharpening, mirror
PTZ & Stabilization
- Pan range:360° continuous
- Tilt range:−90° ~ +90°
- Pan/Tilt speed:01°/s ~ 100°/s (pan), 0.01°/s ~ 50°/s (tilt)
- Positioning accuracy:≤ 0.1° (repeatability ≤ 0.1°)
- Angle measurement accuracy:≤ 1 mrad
- Tracking accuracy:≤ 0.3 mrad (1σ)
- Memory tracking:5 s
- Presets/scan modes:256 presets; cruise, A-B scan, pattern scan supported
Power, Interface & Environmental
- Power supply:AC 220 V (50 Hz), steady < 100 W, peak < 150 W
- Communication:Gigabit network / RS422 (control)
- Video output:Gigabit Ethernet
- Ingress protection:IP66
- Operating temperature:−40 °C ~ +60 °C
- Vibration:Complies with Annex C.3 vibration environment of 16A (wheeled vehicles)
- Dimensions:Φ (210 ± 2) mm × (300 ± 2) mm
- Weight:≤ 7 kg
Effective Ranges (typical values)
Visible Light
- Recognition: Personnel 3.5 km | Vehicle 12 km
- Detection: Personnel 8 km | Vehicle 15 km
Infrared (Thermal)
- Recognition: Personnel 1.0 km | Vehicle 2.5 km
- Detection: Personnel 1.8 km | Vehicle 4 km
Note: Actual recognition/detection range may vary based on target size, contrast, background, atmospheric conditions, and weather.
Applications
- Border and coastal surveillance
- Vehicle- and ship-mounted search & tracking
- Maritime patrol and security operations
- Emergency response and disaster monitoring
- Infrastructure protection (airports, ports, pipelines, power plants)
- Mobile ISR missions
Professional FAQs

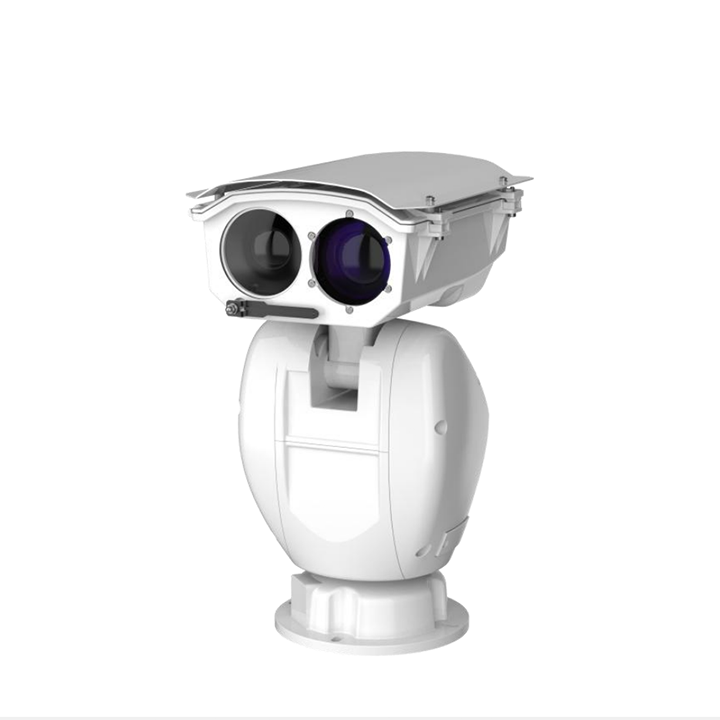

Q1: How stable is the China Moneypro MPC464A1 during motion and vibration?
A1: The system uses a three-axis gyro-stabilized platform, providing ≤ 1 mrad angle measurement accuracy and ≤ 0.3 mrad (1σ) tracking accuracy, maintaining stability even in high-vibration environments.
Q2: What is the difference between the 75 mm and 100 mm thermal lenses?
A2: Both cover the 7.5–12 µm LWIR band. The 100 mm lens provides extended long-range recognition and higher detail resolution, while the 75 mm lens offers a wider field of view for faster search and situational awareness.
Q3: How do the visible and thermal channels work together?
A3: The thermal channel ensures detection in all-weather/low-contrast scenarios, while the 20–200 mm visible zoom camera provides detailed identification. The system supports WDR, defog, stabilization, and AI auto-tracking, enabling seamless switching and cooperation between channels.
Q4: What integration options are available for platforms?
A4: The system uses AC 220 V power, with Gigabit Ethernet (video/control) and RS422 for platform integration. It supports one-click network setup and multi-protocol compatibility for easy integration with C4ISR or mission systems.
Q5: How is the system protected in harsh environments?
A5: The PC464A1 features multi-layer anti-corrosion treatment, IP66 ingress protection, and a −40 °C to +60 °C operating range. It meets GJB150.16A Annex C.3 vibration standards, ensuring reliability in coastal, humid, and rugged terrains.
